Turbocharger LH: Removal

NOTE: The turbocharger compressor vanes can be damaged by even the smallest particles. When removing any turbocharger or engine air intake system component, ensure that no debris enters the system. Failure to do so may result in damage to the turbocharger.
NOTE: Special attention needs to be given to the sealing ports for the oil feed, the oil drain, and the coolant tubes, on turbocharged engines. The sealing ports must be totally clean and free from O-ring residue, have no damage to the sealing surface and the tubes to ensure that there are no leaks or repeat repairs.
  1. If equipped, remove the engine rear undershield. Refer to: Engine Rear Undershield .
  2. If equipped, remove the engine front undershield. Refer to: Engine Front Undershield .
  3. Drain the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
  4. Remove the left and the right front fender splash shields. Refer to: Fender Splash Shield .
  5. Remove the air cleaner outlet pipe LH. Refer to: Air Cleaner Outlet Pipe LH .
  6. Remove the turbocharger outlet pipe LH. Refer to: Turbocharger Outlet Pipe LH .

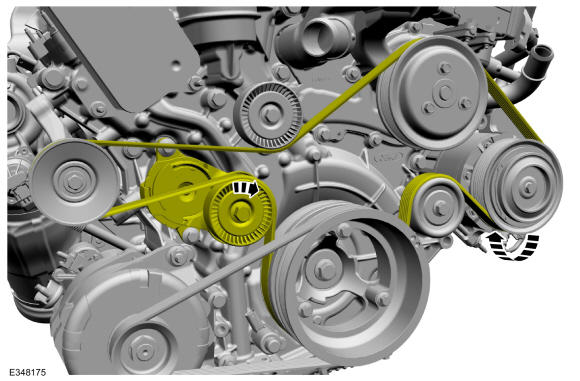

  7. Rotate the accessory drive belt tensioner clockwise, then position the accessory drive belt off the air conditioning compressor pulley.
    GFD625482Courtesy of FORD MOTOR COMPANY
  8. Disconnect the electrical connectors, then detach the wiring harness retainers.
    GFD625483Courtesy of FORD MOTOR COMPANY

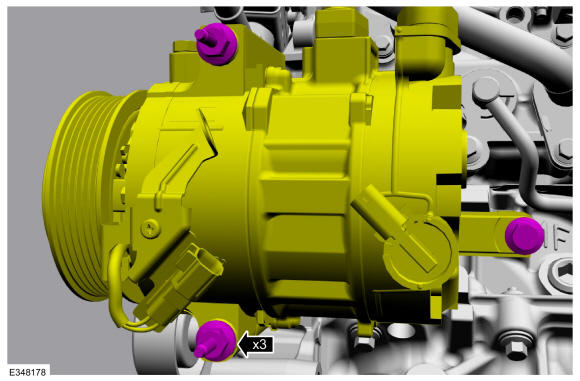

  9. Loosen the bolts, then the position the air conditioning compressor out of the way.
    GFD625484Courtesy of FORD MOTOR COMPANY

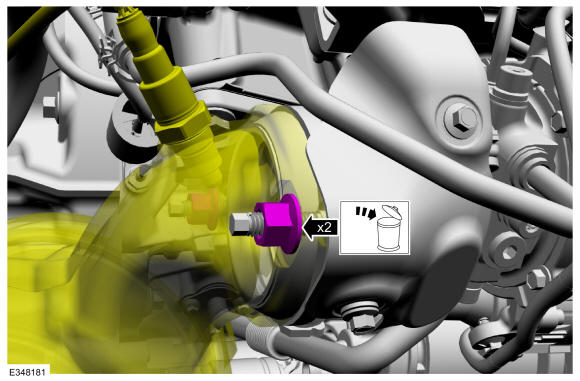

  10. Remove and discard the LH turbocharger exhaust flange nuts.
    GFD625485Courtesy of FORD MOTOR COMPANY

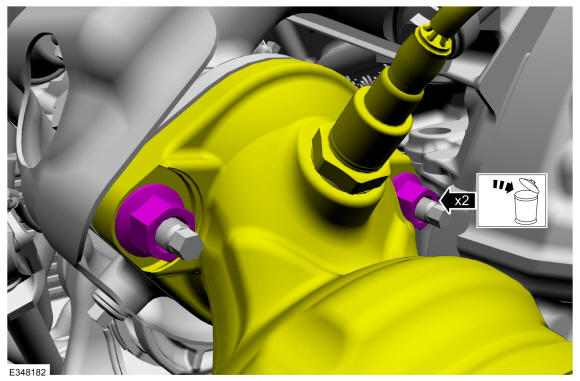

  11. Remove and discard the RH turbocharger exhaust flange nuts.
    GFD625486Courtesy of FORD MOTOR COMPANY

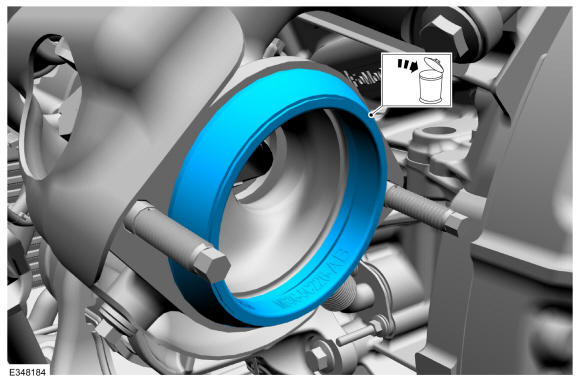

  12. Remove and discard the LH turbocharger exhaust flange gasket.
    GFD625487Courtesy of FORD MOTOR COMPANY

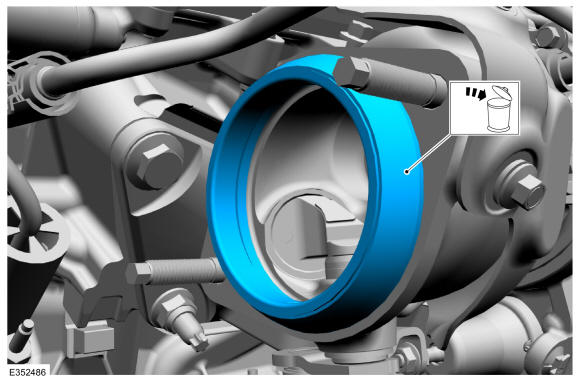

  13. Remove and discard the RH turbocharger exhaust flange gasket.
    GFD625488Courtesy of FORD MOTOR COMPANY
  14. Remove the turbocharger coolant return tube bolt, then disconnect the turbocharger coolant return tube from the turbocharger and position it out of the way.
    GFD625489Courtesy of FORD MOTOR COMPANY
    1. NOTE: Do not use a metal brush, damage to sealing area will result in leaks.

      Inspect the turbocharger tube and the sealing surfaces. Ensure that the retaining bracket is not bent, check for square-ness of the retaining bracket to the O-ring area. Use brake cleaner and a nylon brush to clean. Install new components as needed.

      Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

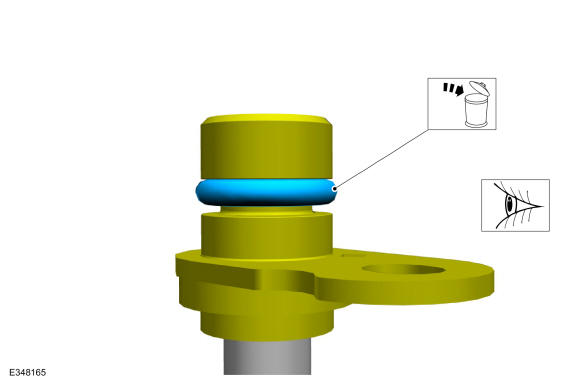

    2. Remove and discard the O-ring seal.
    GFD625473Courtesy of FORD MOTOR COMPANY
  16. Detach the wire harness retainer, then disconnect the electrical connector.
    GFD625490Courtesy of FORD MOTOR COMPANY
  17. Remove the EGR tube retainers, then remove the EGR tube.
    GFD625491Courtesy of FORD MOTOR COMPANY

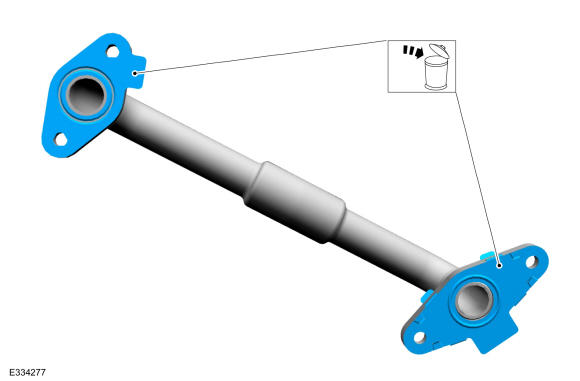

  18. Remove and discard the EGR tube gaskets.
    GFD625492Courtesy of FORD MOTOR COMPANY

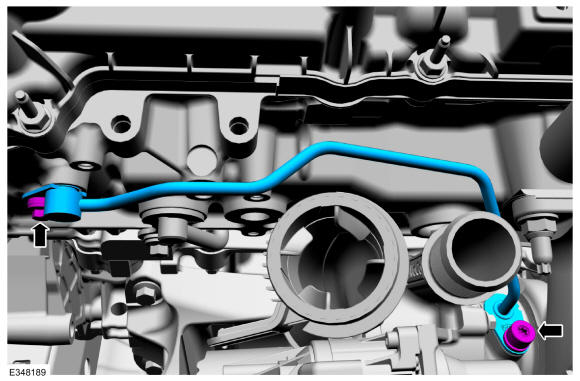

  19. Remove the turbocharger oil supply tube bolts, then remove the turbocharger oil supply tube.
    GFD625493Courtesy of FORD MOTOR COMPANY
    1. NOTE: Do not use a metal brush, damage to sealing area will result in leaks.

      Inspect the turbocharger tube and the sealing surfaces. Ensure that the retaining bracket is not bent, check for square-ness of the retaining bracket to the O-ring area. Use brake cleaner and a nylon brush to clean. Install new components as needed.

      Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

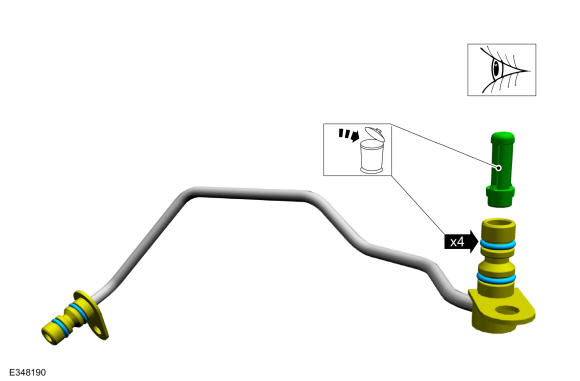

    2. Remove and discard the O-ring seals and the turbocharger oil supply tube oil filter.
    GFD625494Courtesy of FORD MOTOR COMPANY
  21. Remove the turbocharger oil return tube bolts, then remove the tube.
    GFD625495Courtesy of FORD MOTOR COMPANY

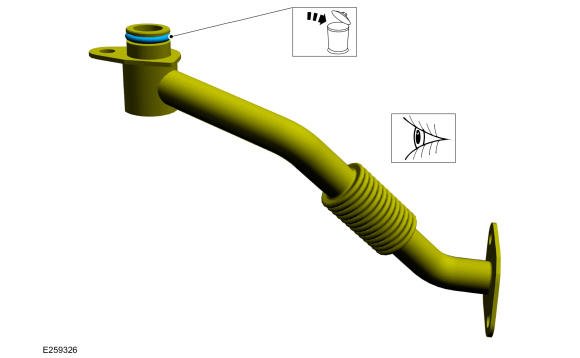

    1. NOTE: Do not use a metal brush, damage to sealing area will result in leaks.

      Inspect for blockage in the turbocharger tube. Check the tube, the sealing surfaces and the flange for flatness and damage. Use brake cleaner and a nylon brush to clean. Install new components as needed.

      Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

    2. NOTE: Do not use a metal brush, damage to sealing area will result in leaks.

      Ensure that the retaining bracket is not bent, check for square-ness of the retaining bracket to the O-ring area. Use brake cleaner and a nylon brush to clean. Install new components as needed.

      Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

    3. Remove and discard the O-ring seal.
    GFD624945Courtesy of FORD MOTOR COMPANY
  23. Remove and discard the oil return tube gasket.
    GFD624946Courtesy of FORD MOTOR COMPANY
  24. Remove the turbocharger coolant supply tube bolt, then disengage the tube from the engine block.
    GFD625496Courtesy of FORD MOTOR COMPANY
    1. Remove the turbocharger coolant supply tube from the engine block while removing the turbocharger.

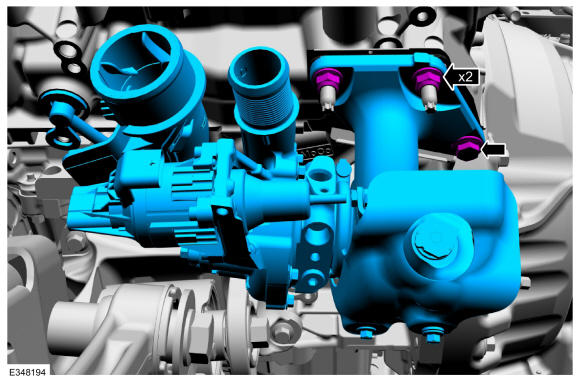

    2. Remove the turbocharger retainers, then remove the turbocharger.
    GFD625497Courtesy of FORD MOTOR COMPANY
    1. NOTE: Do not use a metal brush, damage to sealing area will result in leaks.

      Inspect the turbocharger tube and the sealing surfaces. Ensure that the retaining bracket is not bent, check for square-ness of the retaining bracket to the O-ring area. Use brake cleaner and a nylon brush to clean. Install new components as needed.

      Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

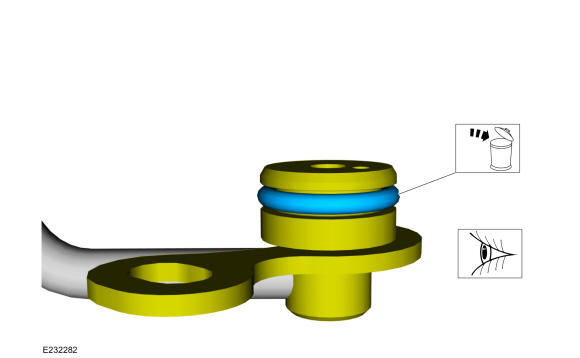

    2. Remove and discard the O-ring seal.
    GFD624984Courtesy of FORD MOTOR COMPANY

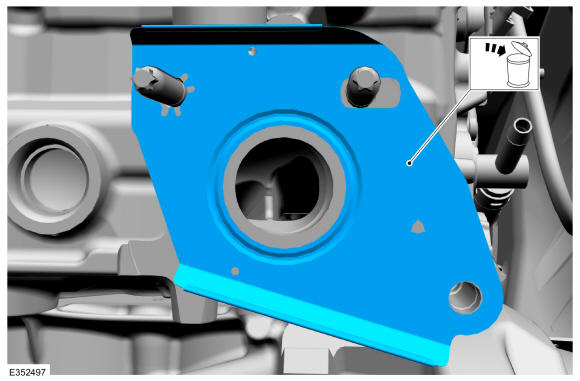

  27. Remove and discard the turbocharger gasket.
    GFD625498Courtesy of FORD MOTOR COMPANY
  28. Only if needed, remove the turbocharger mounting studs.
    GFD625499Courtesy of FORD MOTOR COMPANY
  29. Only if needed, remove the turbocharger exhaust flange studs.
    GFD625500Courtesy of FORD MOTOR COMPANY
  30. Only if needed, remove the bolt, then remove the turbocharger coolant supply tube.
    GFD625477Courtesy of FORD MOTOR COMPANY
    1. NOTE: Do not use a metal brush, damage to sealing area will result in leaks.

      Inspect the turbocharger tube and the sealing surfaces. Ensure that the retaining bracket is not bent, check for square-ness of the retaining bracket to the O-ring area. Use brake cleaner and a nylon brush to clean. Install new components as needed.

      Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

    2. If the turbocharger coolant supply tube was removed from the turbocharger, then remove and discard the O-ring seal.
    GFD625473Courtesy of FORD MOTOR COMPANY

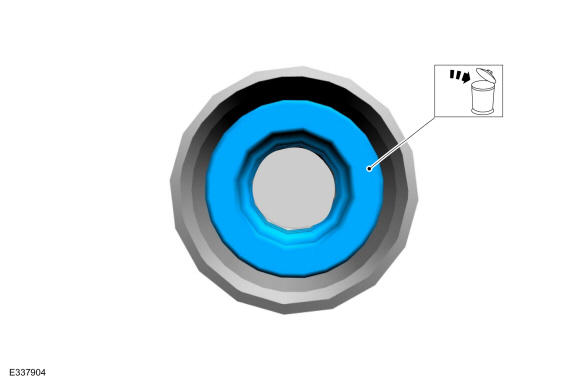

  32. NOTE: If the 2 piece turbocharger cooling tubes are separated or the rubber gasket is leaking, then the rubber gasket must be replaced.

    If needed, then remove and discard the rubber gasket.

    GFD625478Courtesy of FORD MOTOR COMPANY

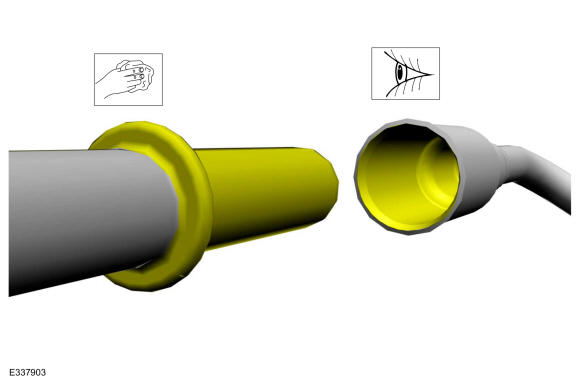

  33. NOTE: Do not use a metal brush, damage to sealing area will result in leaks.

    If needed, inspect and clean the turbocharger cooling tube sealing surfaces, using brake cleaner and a nylon brush to clean. Install new components as needed.

    Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

    GFD625479Courtesy of FORD MOTOR COMPANY
  34. Only if needed, remove the turbocharger elbow adapter bolts, then remove the elbow adapter.
    GFD625501Courtesy of FORD MOTOR COMPANY

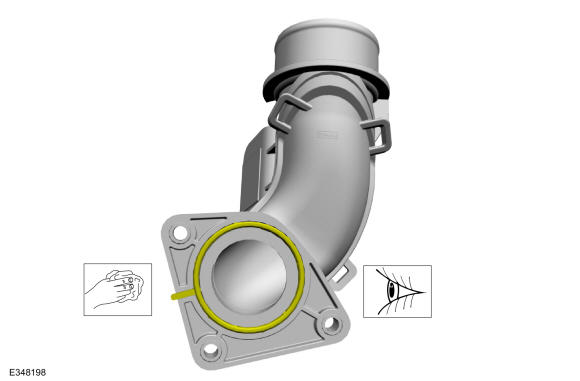

  35. If the turbocharger elbow adapter was removed, then inspect, clean and replace the gasket as needed.
GFD625502Courtesy of FORD MOTOR COMPANY
