Power Windows

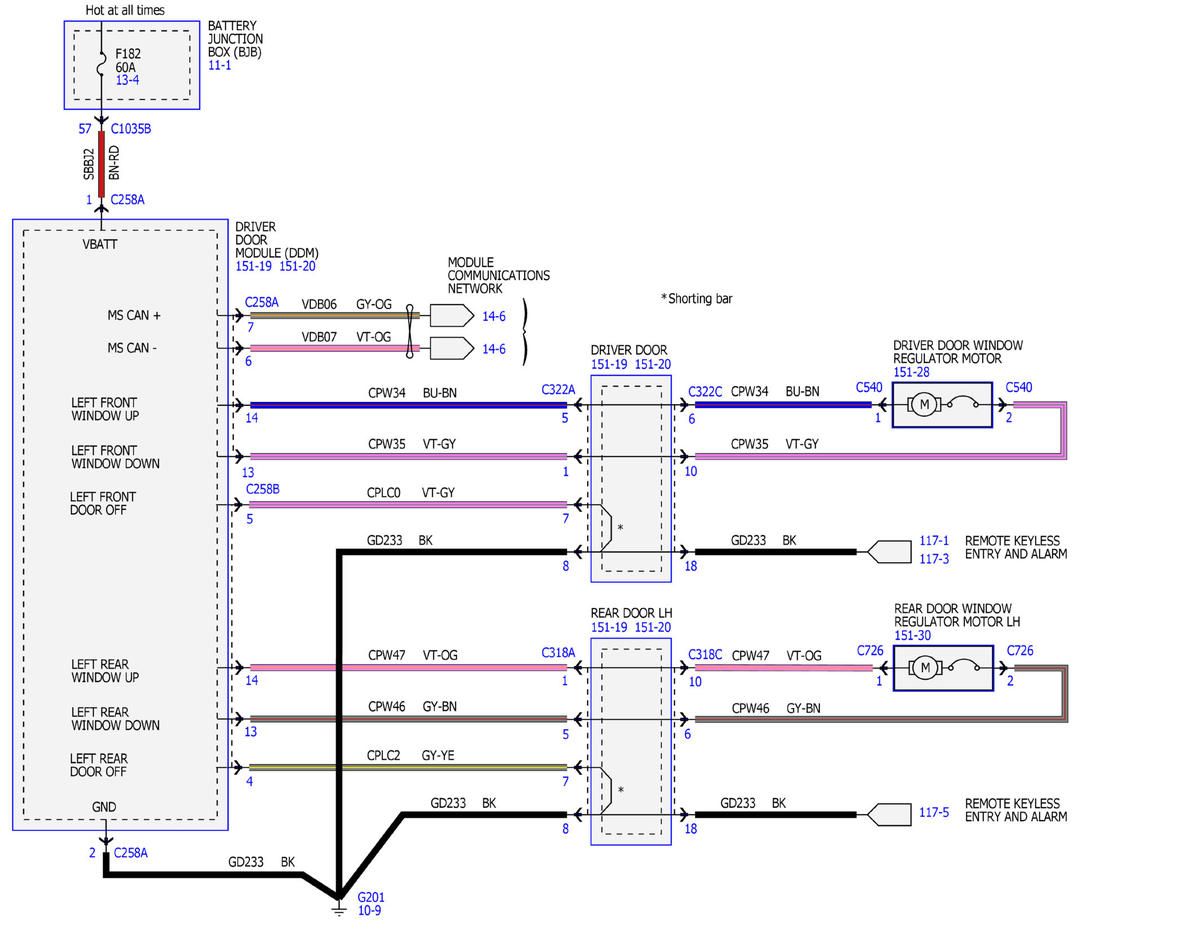

Fig 1: Power Windows Wiring Diagrams (1 Of 6)
GFDWR151845Courtesy of FORD MOTOR COMPANY

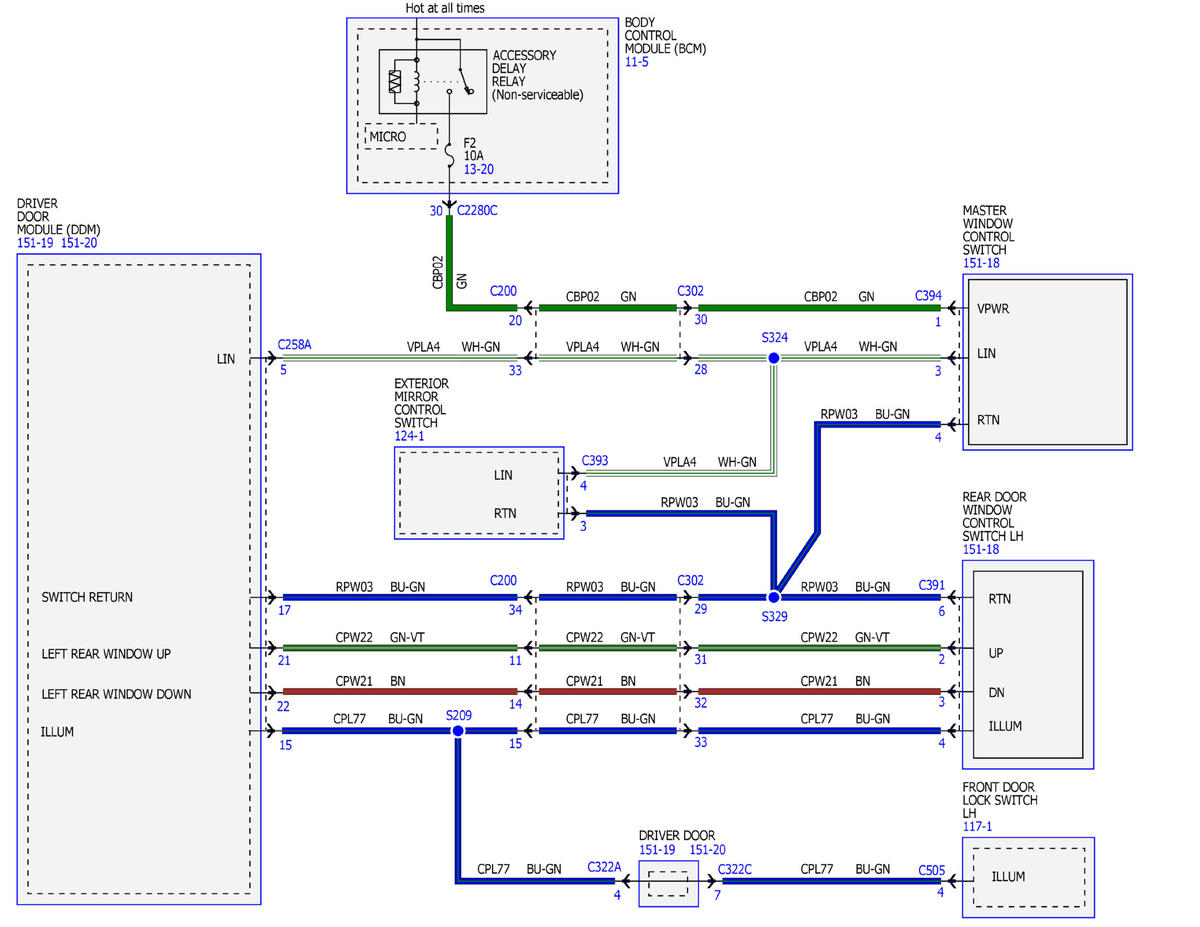

Fig 2: Power Windows Wiring Diagrams (2 Of 6)
GFDWR151846Courtesy of FORD MOTOR COMPANY

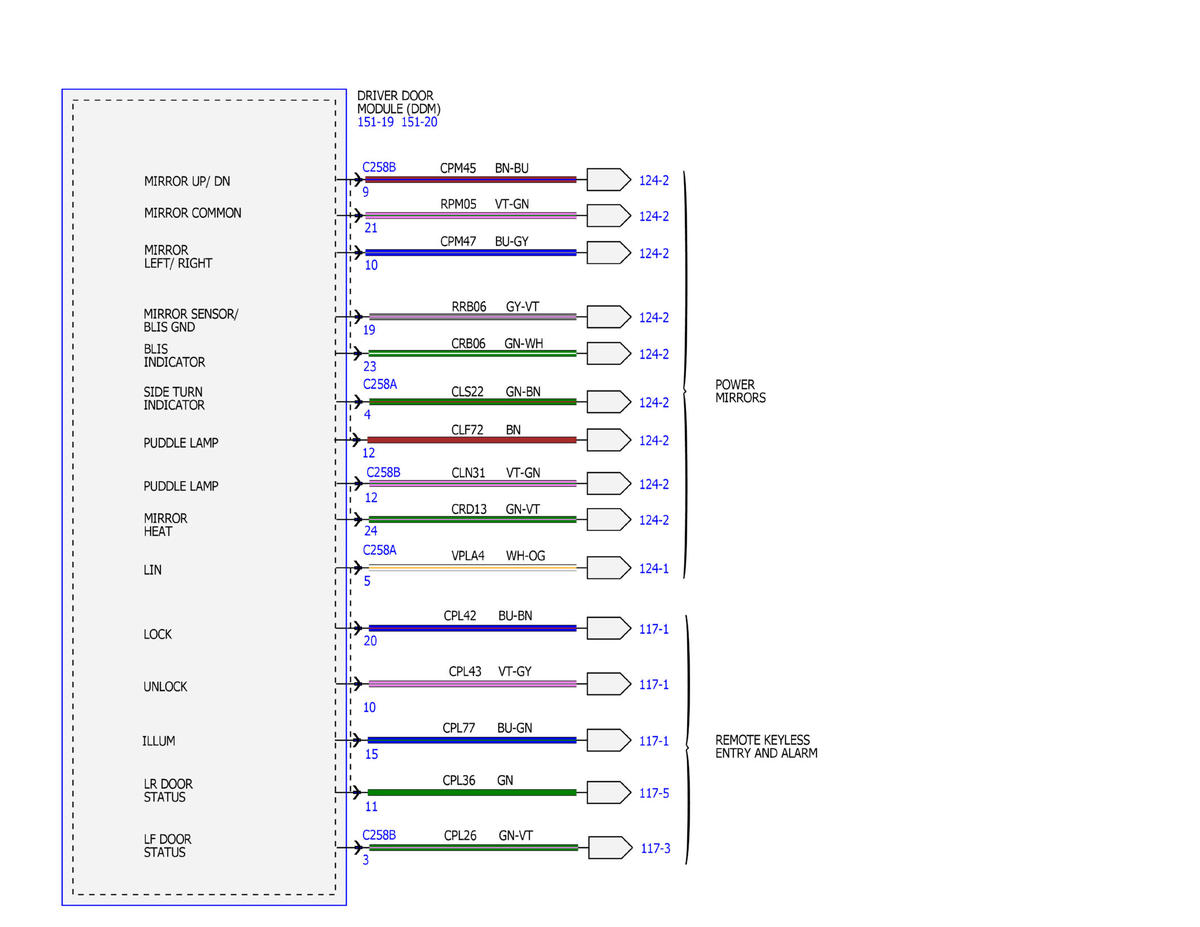

Fig 3: Power Windows Wiring Diagrams (3 Of 6)
GFDWR151847Courtesy of FORD MOTOR COMPANY

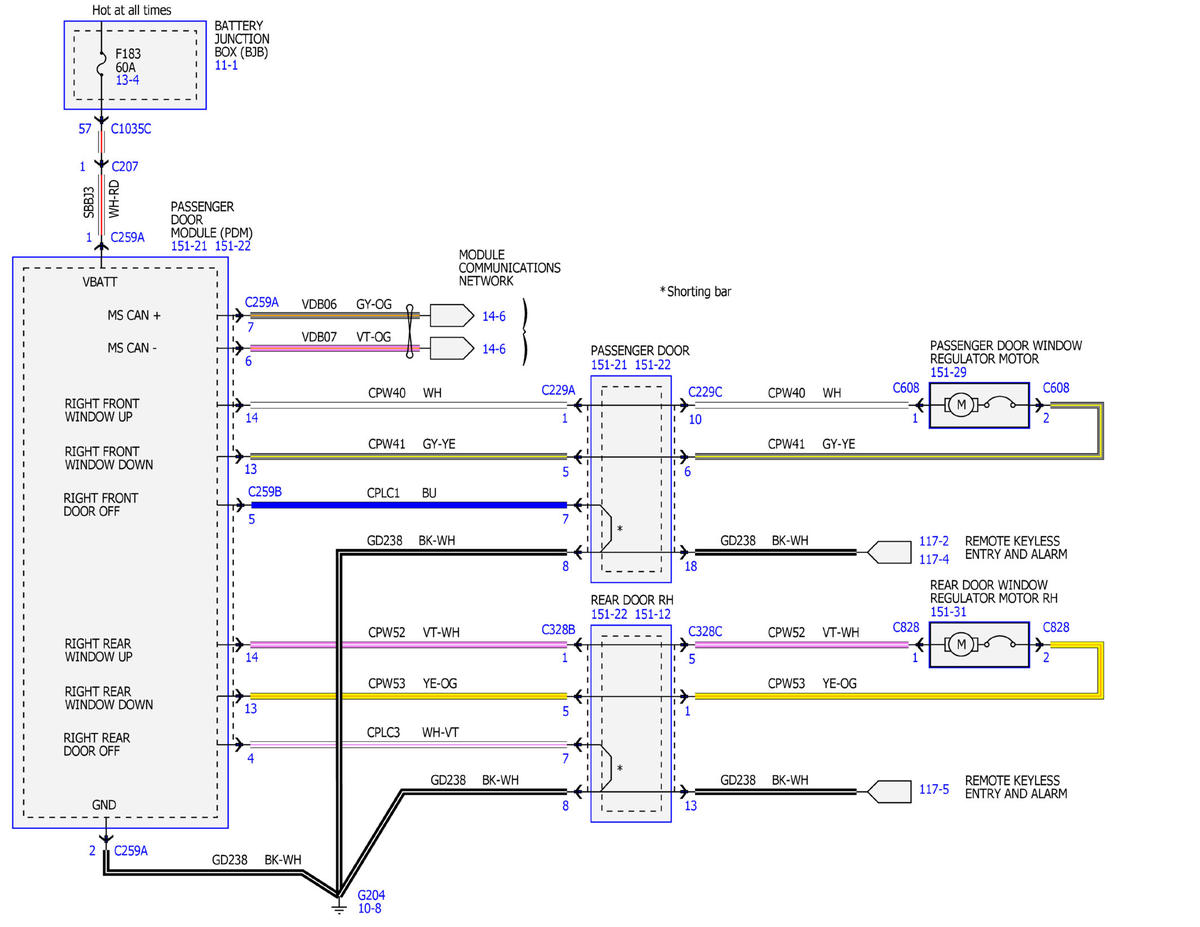

Fig 4: Power Windows Wiring Diagrams (4 Of 6)
GFDWR151848Courtesy of FORD MOTOR COMPANY

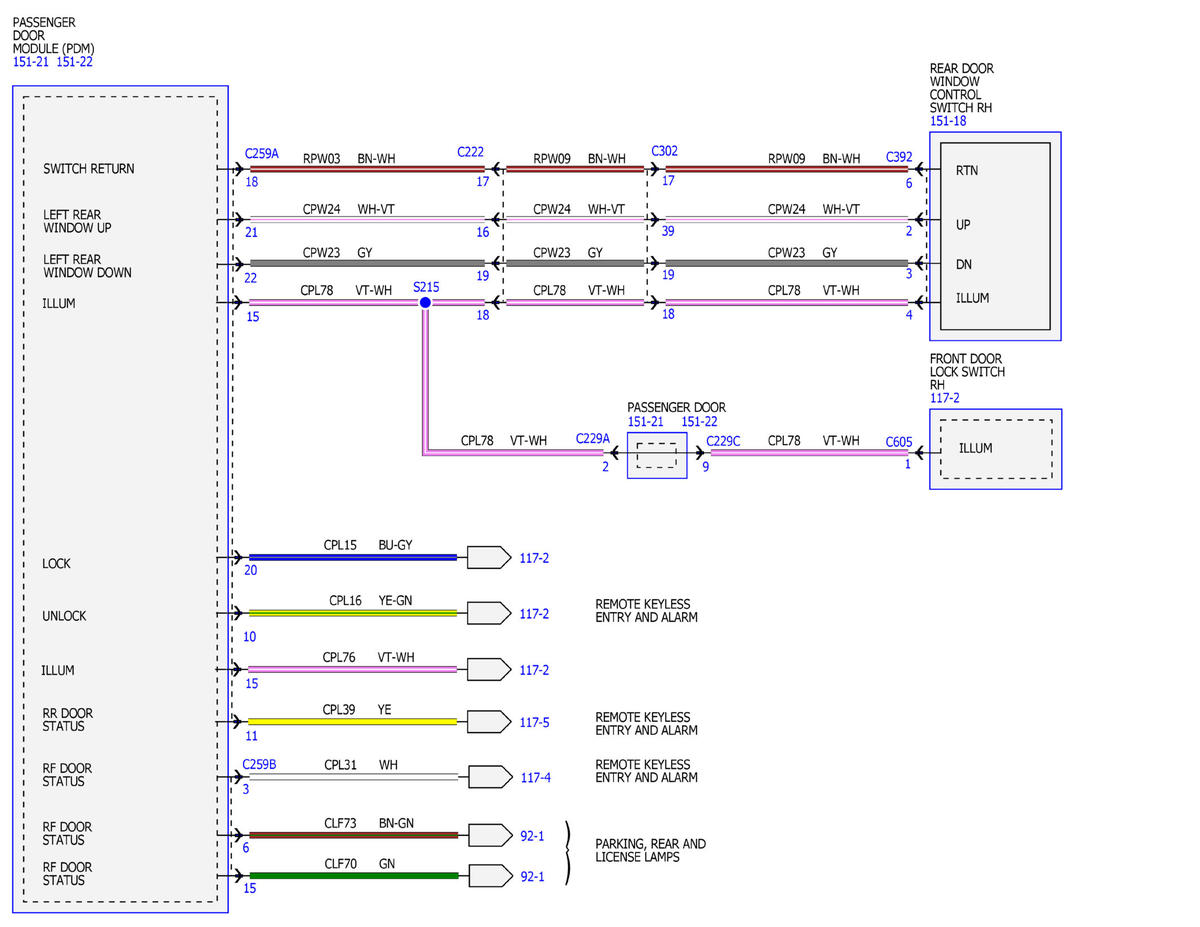

Fig 5: Power Windows Wiring Diagrams (5 Of 6)
GFDWR151849Courtesy of FORD MOTOR COMPANY

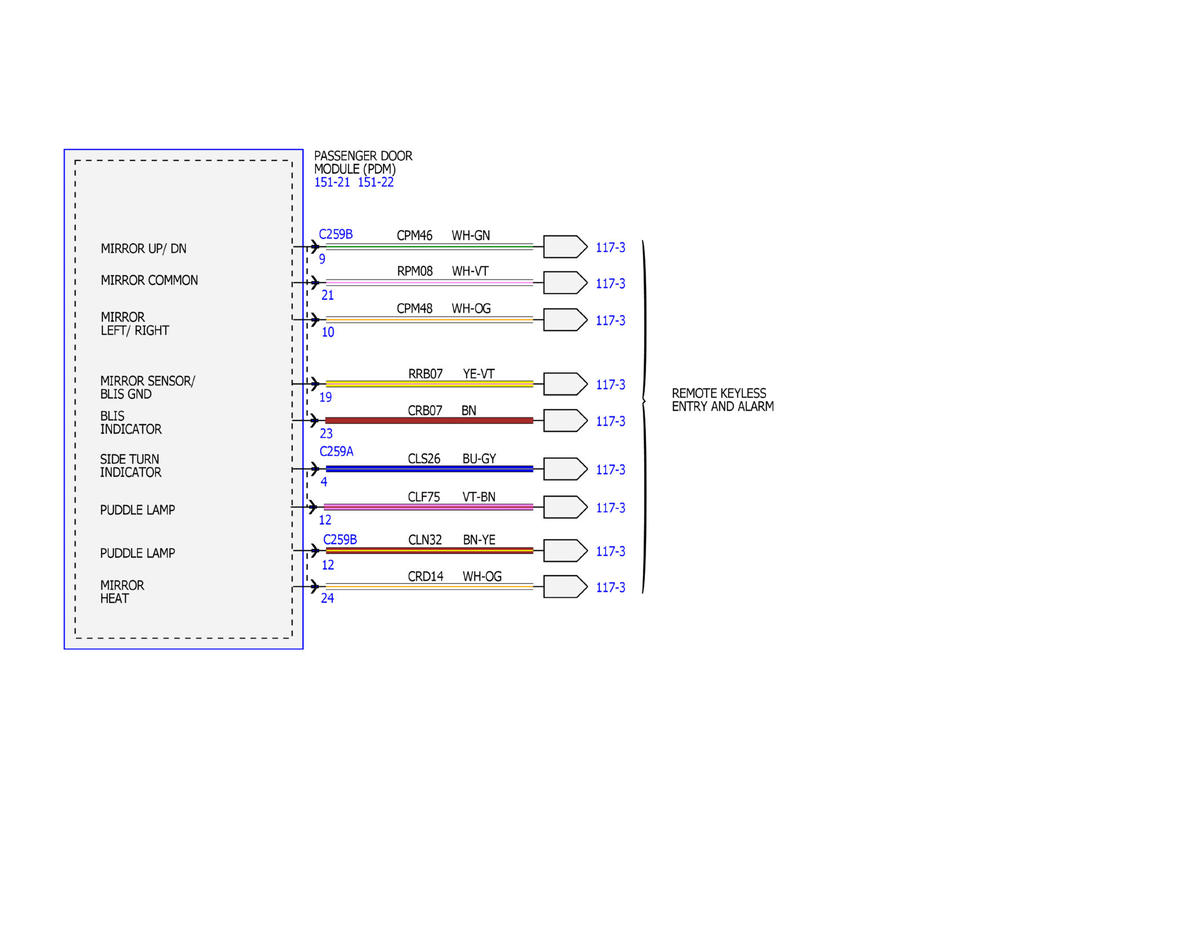

Fig 6: Power Windows Wiring Diagrams (6 Of 6)
GFDWR151850Courtesy of FORD MOTOR COMPANY
