Cluster And Panel Illumination

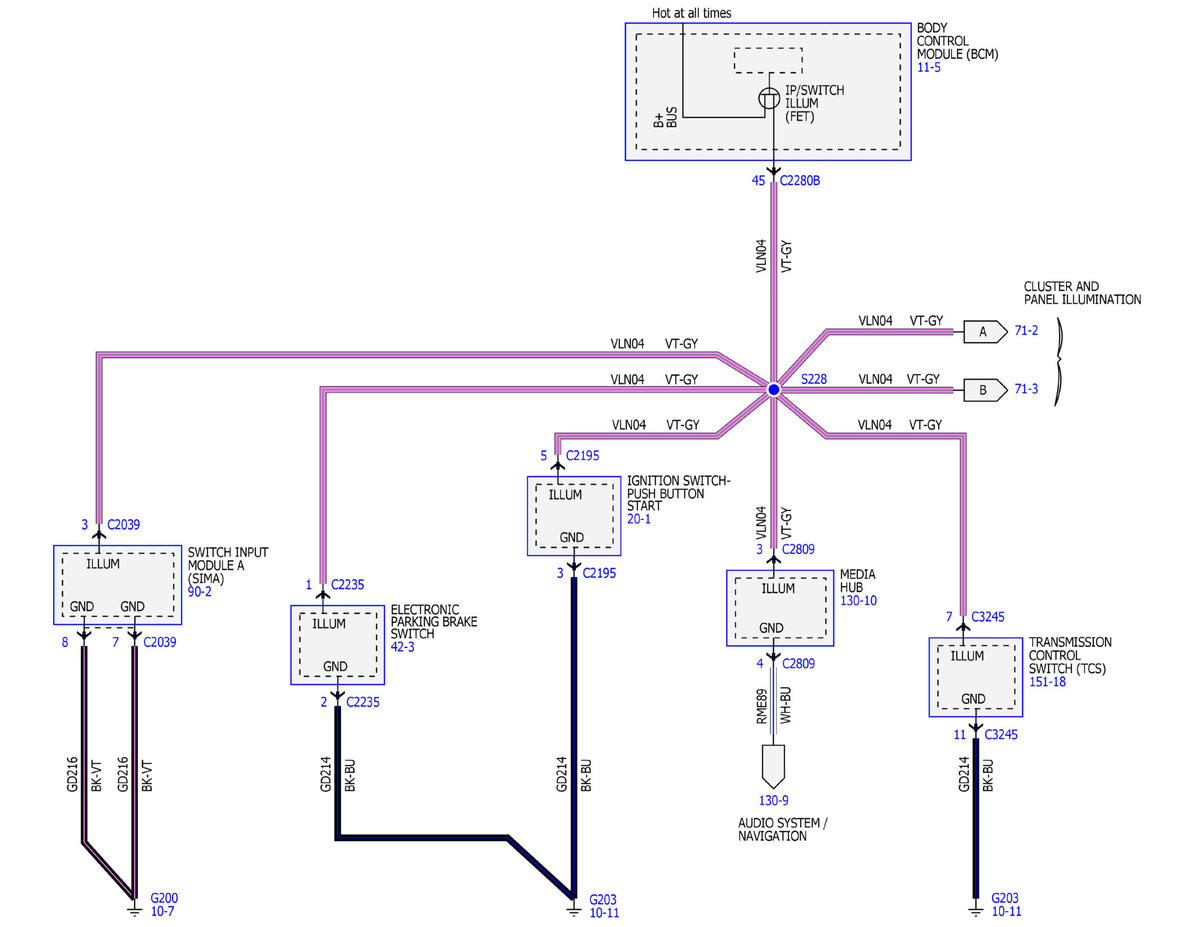

Fig 1: Cluster and Panel Illumination Wiring Diagrams (1 Of 3)
GFDWR151701Courtesy of FORD MOTOR COMPANY

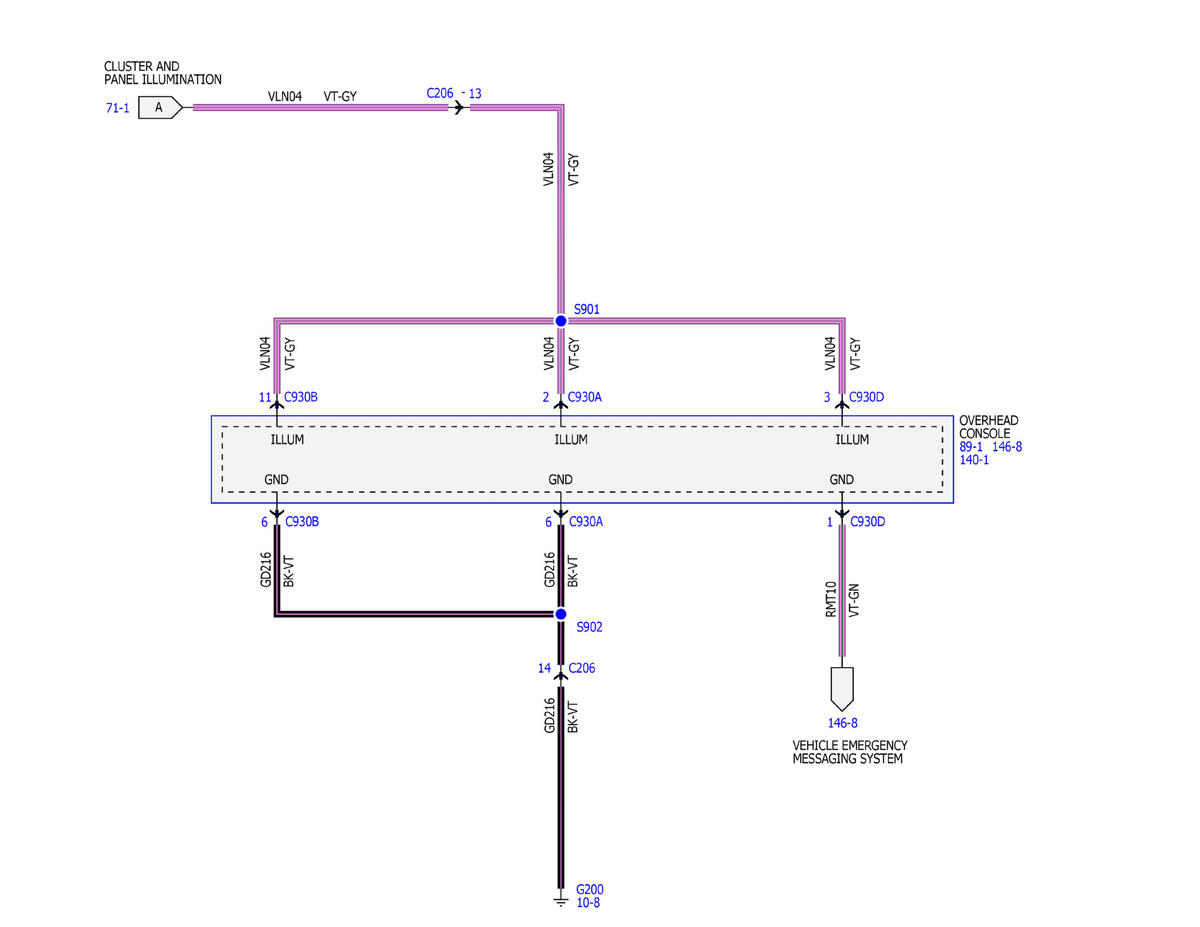

Fig 2: Cluster and Panel Illumination Wiring Diagrams (2 Of 3)
GFDWR151702Courtesy of FORD MOTOR COMPANY

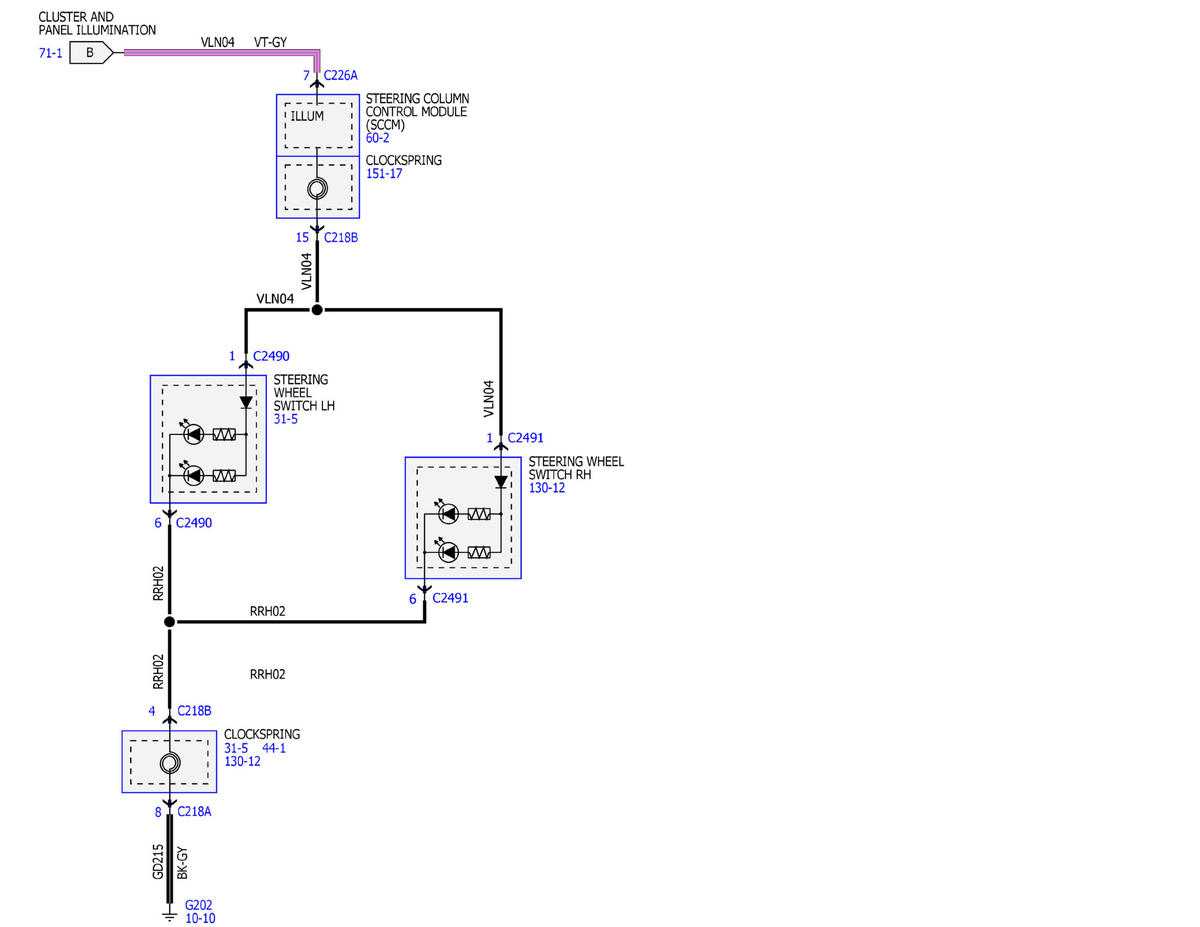

Fig 3: Cluster and Panel Illumination Wiring Diagrams (3 Of 3)
GFDWR151703Courtesy of FORD MOTOR COMPANY
