Connector End View C2280F - BODY CONTROL MODULE (BCM)

Connector: Description Color Harness Base Part # Service Pigtail
C2280F BODY CONTROL MODULE (BCM) 14A005 part# N/A Not Available

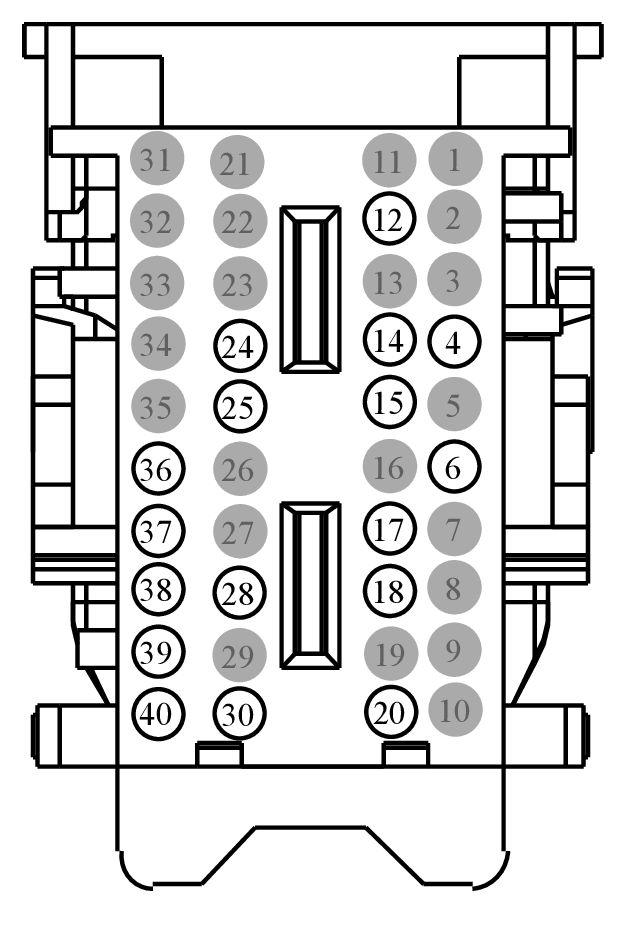

GFDWR151500Courtesy of FORD MOTOR COMPANY
Terminal Part Number  Service Part Number  Size
9U5T-14474-DB DU2Z-14474-AA 0.64
9U5T-14474-EB DU2Z-14474-AA 0.64
Pin  Circuit  Gauge  Circuit Function  Qualifier  Terminal Part Number
1 * * Not Used N/A
2 * * Not Used N/A
3 * * Not Used N/A
4 VDN18 (VT-GY) 20 CTRL MOD. - LIN BUS # 15 9U5T-14474-DB
5 * * Not Used N/A
6 CLS56 (YE-GN) 18 LAMP - TURN FRONT LEFT OR COMMON# SIGNAL OUT 9U5T-14474-EB|9U5T-14474-DB
6 CLS56 (YE-GN) 22 LAMP - TURN FRONT LEFT OR COMMON# SIGNAL OUT 9U5T-14474-EB|9U5T-14474-DB
7 * * Not Used N/A
8 * * Not Used N/A
9 * * Not Used N/A
10 * * Not Used N/A
11 * * Not Used N/A
12 CAT17 (BN) 20 RELAY - TRAILER TOW PARK LAMPS 9U5T-14474-DB
13 * * Not Used N/A
14 CPL25 (BU-OG) 22 SWITCH - HOOD # AJAR 9U5T-14474-DB
15 VDN14 (YE-VT) 22 CTRL MOD. - LIN BUS # 14 9U5T-14474-DB
16 * * Not Used N/A
17 CLS58 (BU-WH) 22 LAMP - TURN FRONT RIGHT # SIGNAL OUT 9U5T-14474-DB
18 CE436 (VT-OG) 20 CTRL MOD. -WAKE UP PCM 9U5T-14474-DB
19 * * Not Used N/A
20 CRH04 (VT-GN) 20 CTRL MOD. - RELAY HORN 9U5T-14474-DB
21 * * Not Used N/A
22 * * Not Used N/A
23 * * Not Used N/A
24 CDC64 (WH-BU) 20 RELAY - RUN; ACCESSORY 9U5T-14474-DB
25 CDC55 (GY) 22 RELAY - RUN; START 9U5T-14474-DB
26 * * Not Used N/A
27 * * Not Used N/A
28 CMC19 (GY-VT) 20 SWITCH - LOW LEVEL BRAKE FLUID 9U5T-14474-DB
29 * * Not Used N/A
30 CLS06 (GN-OG) 18 CTRL MOD. - PARK FRONT LEFT OR FRONT/REAR LEFT 9U5T-14474-EB
31 * * Not Used N/A
32 * * Not Used N/A
33 * * Not Used N/A
34 * * Not Used N/A
35 * * Not Used N/A
36 CLF62 (VT-WH) 20 CTRL MOD. - DAYTIME RUNNING LIGHT RIGHT 9U5T-14474-DB
37 CLS07 (BN-YE) 20 CTRL MOD. - PARK FRONT RIGHT OR FRONT/REAR RIGHT 9U5T-14474-DB
38 CLS25 (YE-VT) 20 CTRL MOD. - TURN LAMP RIGHT FRONT 9U5T-14474-DB
39 CLS21 (BU-GN) 20 CTRL MOD. - TURN LAMP LEFT FRONT 9U5T-14474-DB
40 CLF61 (GY-BU) 20 CTRL MOD. - DAYTIME RUNNING LIGHT LEFT 9U5T-14474-DB
