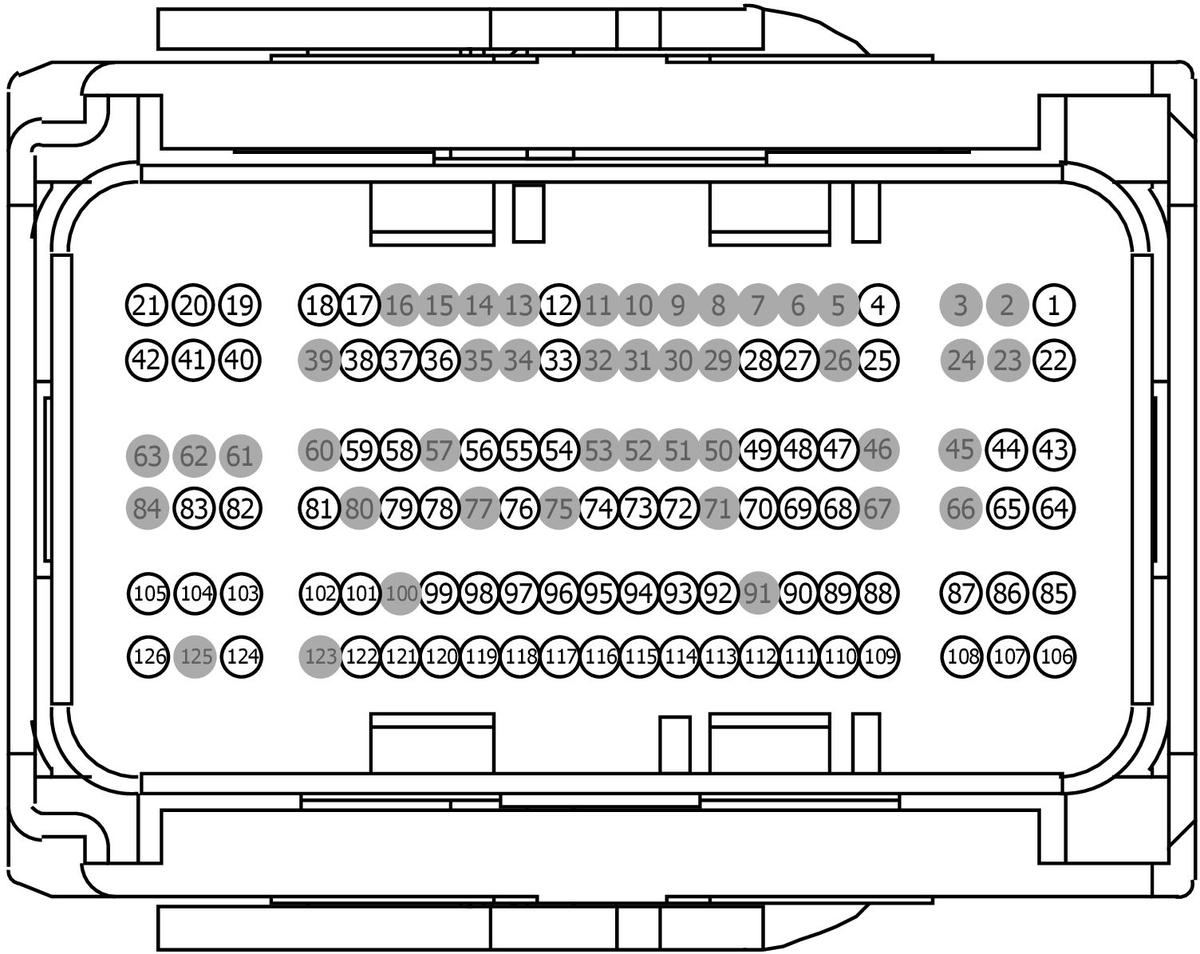

| 1 |
CET25 (BU-GN) |
20 |
CTRL MOD. - POWERTRAIN # TRANSMISSION SOLENOID POWER CONTROL (TSPC) |
GU5T-14474-CA |
| 2 |
* |
* |
Not Used |
N/A |
| 3 |
* |
* |
Not Used |
N/A |
| 4 |
RE460 (GN-BU) |
20 |
CTRL MOD. - SENSOR CLUTCH MASTER CYLINDER - |
BU5T-14474-AB |
| 5 |
* |
* |
Not Used |
N/A |
| 6 |
* |
* |
Not Used |
N/A |
| 7 |
* |
* |
Not Used |
N/A |
| 8 |
* |
* |
Not Used |
N/A |
| 9 |
* |
* |
Not Used |
N/A |
| 10 |
* |
* |
Not Used |
N/A |
| 11 |
* |
* |
Not Used |
N/A |
| 12 |
CE148 (YE-GY) |
20 |
CTRL MOD. - POWERTRAIN # ENGINE COOLANT BYPASS VALVE |
BU5T-14474-AB |
| 13 |
* |
* |
Not Used |
N/A |
| 14 |
* |
* |
Not Used |
N/A |
| 15 |
* |
* |
Not Used |
N/A |
| 16 |
* |
* |
Not Used |
N/A |
| 17 |
CE235 (GN-BN) |
18 |
CTRL MOD. - POWERTRAIN # HEATER OXYGEN SEN. PRE CAT. 1ST OR UNIQUE (HTR11) |
BU5T-14474-BB |
| 18 |
CE233 (WH-OG) |
18 |
CTRL MOD. - POWERTRAIN # HEATER OXYGEN SEN. POST CAT. 1ST OR UNIQUE (HTR12) |
BU5T-14474-BB |
| 19 |
CE426 (BU-GN) |
18 |
CTRL MOD. - POWERTRAIN # THROTTLE ACTUATOR CONTROL MOTOR (TACM-) |
GU5T-14474-CA |
| 20 |
LE139 (BN-WH) |
20 |
CTRL MOD. - POWERTRAIN # EXHAUST GAS RECIRCUL. VALVE + |
GU5T-14474-CA |
| 21 |
CE422 (WH-OG) |
18 |
CTRL MOD. - POWERTRAIN # VARIABLE CAMSHAFT TIMING VALVE 2 (VCT2) |
GU5T-14474-CA |
| 22 |
CET49 (BN) |
20 |
CTRL MOD. - POWERTRAIN # TRANSMISSION SOLENOID POWER CONTROL 2 (TSPC2) |
GU5T-14474-CA |
| 23 |
* |
* |
Not Used |
N/A |
| 24 |
* |
* |
Not Used |
N/A |
| 25 |
VE850 (WH-VT) |
20 |
SENSOR - WASTE GATE CONTROL PRESSURE (WGCP) |
BU5T-14474-AB |
| 26 |
* |
* |
Not Used |
N/A |
| 27 |
VE801 (VT-OG) |
18 |
SENSOR - KNOCK 1ST BANK 1ST OR UNIQUE (KS1P) [KSL1+] |
BU5T-14474-BB |
| 28 |
VE802 (BN-BU) |
18 |
SENSOR - KNOCK 2ND BANK 1ST (KS2P) [KSL2+] |
BU5T-14474-BB |
| 29 |
* |
* |
Not Used |
N/A |
| 30 |
* |
* |
Not Used |
N/A |
| 31 |
* |
* |
Not Used |
N/A |
| 32 |
* |
* |
Not Used |
N/A |
| 33 |
LE448 (GY-BU) |
18 |
CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE UNIVERSAL HEGO 1ST (UREF-11) |
BU5T-14474-BB |
| 34 |
* |
* |
Not Used |
N/A |
| 35 |
* |
* |
Not Used |
N/A |
| 36 |
VE804 (GN-BN) |
20 |
SENSOR - MANIFOLD ABSOLUTE PRESSURE THERMISTOR (TMAP) + |
BU5T-14474-AB |
| 37 |
VE740 (VT-GY) |
20 |
SENSOR - INTAKE AIR TEMPERATURE (IAT) |
BU5T-14474-AB |
| 38 |
VE713 (GN-OG) |
20 |
SENSOR - DELTA PRESSURE FEEDBACK EGR (DPFE) |
BU5T-14474-AB |
| 39 |
* |
* |
Not Used |
N/A |
| 40 |
CE412 (YE-VT) |
18 |
CTRL MOD. - POWERTRAIN # THROTTLE ACTUATOR CONTROL MOTOR (TACM+) |
GU5T-14474-CA |
| 41 |
RE139 (GY-OG) |
20 |
CTRL MOD. - POWERTRAIN # EXHAUST GAS RECIRCUL. VALVE - |
GU5T-14474-CA |
| 42 |
CE421 (YE-OG) |
18 |
CTRL MOD. - POWERTRAIN # VARIABLE CAMSHAFT TIMING VALVE 1 (VCT1) |
GU5T-14474-CA |
| 43 |
RE207 (GN-VT) |
1.00 |
CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 3 (INJ) - |
GU5T-14474-DA |
| 44 |
CE207 (VT-GY) |
1.00 |
CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 3 (INJ) + |
GU5T-14474-DA |
| 45 |
* |
* |
Not Used |
N/A |
| 46 |
* |
* |
Not Used |
N/A |
| 47 |
RE429 (GY-OG) |
20 |
CTRL MOD. - POWERTRAIN # VARIABLE RELUCTANCE SENSOR (VRSRTN) (CAMSHAFT POSITION) |
BU5T-14474-AB |
| 48 |
RE323 (WH-BN) |
18 |
CTRL MOD. - POWERTRAIN # KNOCK SENSOR 1ST BANK 1ST OR UNIQUE (KS1N) [KSL1-] - |
BU5T-14474-BB |
| 49 |
RE324 (BN-GN) |
18 |
CTRL MOD. - POWERTRAIN # KNOCK SENSOR 2ND BANK 1ST (KS2N) [KSL2-] |
BU5T-14474-BB |
| 50 |
* |
* |
Not Used |
N/A |
| 51 |
* |
* |
Not Used |
N/A |
| 52 |
* |
* |
Not Used |
N/A |
| 53 |
* |
* |
Not Used |
N/A |
| 54 |
VE826 (YE-GN) |
18 |
SENSOR - UNIVERSAL HEATED OXYGEN 1ST OR UNIQUE (UO2SN-11) |
BU5T-14474-BB |
| 55 |
LE451 (BN-YE) |
18 |
CTRL MOD. - POWERTRAIN # UNIVERSAL HEATED OXYGEN PUMPING CURRENT 1ST (UO2SIP-11) |
BU5T-14474-BB |
| 56 |
CMC14 (BN-YE) |
18 |
SENSOR - LOW LEVEL ENGINE OIL |
BU5T-14474-BB |
| 57 |
* |
* |
Not Used |
N/A |
| 58 |
VE721 (WH-OG) |
20 |
SENSOR - EXHAUST GAS RECIRCULATION VALVE POSITION |
BU5T-14474-AB |
| 59 |
LE238 (GY) |
20 |
CTRL MOD. - POWERTRAIN # FUEL RAIL PRESSURE SENSOR + |
BU5T-14474-AB |
| 60 |
* |
* |
Not Used |
N/A |
| 61 |
* |
* |
Not Used |
N/A |
| 62 |
* |
* |
Not Used |
N/A |
| 63 |
* |
* |
Not Used |
N/A |
| 64 |
RE206 (BU-OG) |
1.00 |
CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 2 (INJ) - |
GU5T-14474-DA |
| 65 |
CE206 (GY-YE) |
1.00 |
CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 2 (INJ) + |
GU5T-14474-DA |
| 66 |
* |
* |
Not Used |
N/A |
| 67 |
* |
* |
Not Used |
N/A |
| 68 |
CE304 (YE-BU) |
18 |
CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 2 (COP-B) |
BU5T-14474-BB |
| 69 |
VET84 (BN-GN) |
20 |
SENSOR - TRANSMISSION RANGE # PWM OUTPUT 1 (TR-P1) |
BU5T-14474-AB |
| 70 |
VET81 (YE-GY) |
20 |
SENSOR - TRANSMISSION RANGE # PWM OUTPUT 2 (TR-P2) |
BU5T-14474-AB |
| 71 |
* |
* |
Not Used |
N/A |
| 72 |
VET26 (BN-GN) |
20 |
SENSOR - OUTPUT SHAFT SPEED (OSS) |
BU5T-14474-AB |
| 73 |
VET74 (BU) |
20 |
SENSOR - INPUT SHAFT SPEED #2 (ISS2) + |
BU5T-14474-AB |
| 74 |
RE135 (GN-BN) |
20 |
CTRL MOD. - POWERTRAIN # CRANKSHAFT POSITION SENSOR (CKPN) - |
BU5T-14474-AB |
| 75 |
* |
* |
Not Used |
N/A |
| 76 |
VE731 (YE-GN) |
18 |
SENSOR - HEATED OXYGEN POST CAT. 1ST OR UNIQUE (HO2S12) |
BU5T-14474-BB |
| 77 |
* |
* |
Not Used |
N/A |
| 78 |
VE716 (YE) |
20 |
SENSOR - ENGINE COOLANT TEMPERATURE (ECT) |
BU5T-14474-AB |
| 79 |
VE719 (GY-VT) |
20 |
SENSOR - EXHAUST GAS RECIRCULATION TEMPERATURE |
BU5T-14474-AB |
| 80 |
* |
* |
Not Used |
N/A |
| 81 |
CET06 (GN-BN) |
20 |
CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 2 (PC2) [EPC] [VFS] |
BU5T-14474-AB |
| 82 |
CET51 (WH) |
20 |
CTRL MOD. - POWERTRAIN # TRANSMISSION CLUTCH PRESSURE CONTROL (CPC) |
GU5T-14474-CA |
| 83 |
CET50 (WH-OG) |
20 |
CTRL MOD. - POWERTRAIN # TRANSMISSION LINE PRESSURE CONTROL (LPC) |
GU5T-14474-CA |
| 84 |
* |
* |
Not Used |
N/A |
| 85 |
CE226 (YE-VT) |
18 |
CTRL MOD. - POWERTRAIN # FUEL PUMP ON/OFF (FP) + |
BU5T-14474-BB |
| 86 |
RE205 (YE-BU) |
1.00 |
CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 1 (INJ) - |
GU5T-14474-DA |
| 87 |
CE205 (GN-BU) |
1.00 |
CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 1 (INJ) + |
GU5T-14474-DA |
| 88 |
CE306 (GN-VT) |
18 |
CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 4 (COP-D) |
BU5T-14474-BB |
| 89 |
CE305 (BU-OG) |
18 |
CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 3 (COP-C) |
BU5T-14474-BB |
| 90 |
VET33 (WH-OG) |
20 |
SENSOR - TURBINE/TRANSMISSION SHAFT SPEED (TSS) + |
BU5T-14474-AB |
| 91 |
* |
* |
Not Used |
N/A |
| 92 |
VE707 (GN-VT) |
20 |
SENSOR - CAMSHAFT POSITION BANK 2 IN+EX / IN (CMP2) [CID-H] (CID2) |
BU5T-14474-AB |
| 93 |
VE706 (BN-BU) |
20 |
SENSOR - CAMSHAFT POSITION BANK 1 IN+EX / IN (CMP1) [CID-H] (CID1) |
BU5T-14474-AB |
| 94 |
VET73 (GN-BN) |
20 |
SENSOR - INPUT SHAFT SPEED #1 (ISS1) + |
BU5T-14474-AB |
| 95 |
RE135 (GN-BN) |
20 |
CTRL MOD. - POWERTRAIN # CRANKSHAFT POSITION SENSOR (CKPN) - |
BU5T-14474-AB |
| 96 |
RET24 (BN-BU) |
20 |
CTRL MOD. - POWERTRAIN # TRANSMISSION RANGE SIGNAL RETURN (TRGND) |
BU5T-14474-AB |
| 97 |
RE454 (YE-GN) |
18 |
CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE #2 |
BU5T-14474-BB |
| 98 |
VE712 (BU-GY) |
20 |
SENSOR - CYLINDER HEAD TEMPERATURE (CHT) |
BU5T-14474-AB |
| 99 |
VE836 (VT-GN) |
20 |
SENSOR - WASTEGATE POSITION (WGT_PS) |
BU5T-14474-AB |
| 100 |
* |
* |
Not Used |
N/A |
| 101 |
VE818 (BN) |
20 |
SENSOR - THROTTLE POSITION # NEGATIVE SLOPE (TP1-NS) |
BU5T-14474-AB |
| 102 |
CET07 (GY-OG) |
20 |
CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 3 (PC3) [EPC] [VFS] |
BU5T-14474-AB |
| 103 |
CET10 (BU-GY) |
20 |
CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 6 (PC6) [EPC] [VFS] |
GU5T-14474-CA |
| 104 |
CET05 (BU-GN) |
20 |
CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 1 (PC1) [EPC] [VFS] |
GU5T-14474-CA |
| 105 |
CE358 (GY-YE) |
18 |
CTRL MOD. - POWERTRAIN # PUMP VARIABLE OIL |
GU5T-14474-CA |
| 106 |
RE226 (GN-VT) |
18 |
CTRL MOD. - POWERTRAIN # FUEL PUMP ON/OFF (FP) - |
GU5T-14474-CA |
| 107 |
RE208 (BU) |
1.00 |
CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 4 (INJ) - |
GU5T-14474-DA |
| 108 |
CE208 (YE-OG) |
1.00 |
CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 4 (INJ) + |
GU5T-14474-DA |
| 109 |
CE303 (WH-VT) |
18 |
CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 1 (COP-A) |
BU5T-14474-BB |
| 110 |
CET91 (YE-OG) |
20 |
CTRL MOD. - POWERTRAIN # TRANSMISSION ACTUATOR SUPPLY VOLTAGE |
BU5T-14474-AB |
| 111 |
LE458 (BU-WH) |
20 |
CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE 2 (VREF2) |
BU5T-14474-AB |
| 112 |
LE423 (GN-VT) |
20 |
CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE (VREF) |
BU5T-14474-AB |
| 113 |
LE135 (GY-VT) |
20 |
CTRL MOD. - POWERTRAIN # CRANKSHAFT POSITION SENSOR (CKP) + |
BU5T-14474-AB |
| 114 |
LE459 (GY) |
20 |
CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE 3 (VREF3) |
BU5T-14474-AB |
| 115 |
LE461 (GY-YE) |
18 |
CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE TRANSMISSION 2 (VREF2) |
BU5T-14474-BB |
| 116 |
LE425 (BU-BN) |
20 |
CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE TRANSMISSION (VREF) |
BU5T-14474-AB |
| 117 |
LE134 (YE) |
20 |
CTRL MOD. - POWERTRAIN # ELECTRONIC THROTTLE CONTROL (ETCREF) |
BU5T-14474-AB |
| 118 |
RE134 (BU-OG) |
18 |
CTRL MOD. - POWERTRAIN # ELECTRONIC THROTTLE CONTROL (ETCRTN) |
BU5T-14474-BB |
| 119 |
RE405 (GN-WH) |
18 |
CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE (SIGRTN) |
BU5T-14474-BB |
| 120 |
RE135 (GN-BN) |
20 |
CTRL MOD. - POWERTRAIN # CRANKSHAFT POSITION SENSOR (CKPN) - |
BU5T-14474-AB |
| 121 |
VE711 (YE-VT) |
20 |
SENSOR - CRANKSHAFT POSITION (CKPP) + |
BU5T-14474-AB |
| 122 |
VE779 (YE-GN) |
20 |
SENSOR - EXHAUST GAS TEMPERATURE 4 (EGT4) + |
BU5T-14474-AB |
| 123 |
* |
* |
Not Used |
N/A |
| 124 |
CET09 (YE-VT) |
20 |
CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 5 (PC5) [EPC] [VFS] |
GU5T-14474-CA |
| 125 |
* |
* |
Not Used |
N/A |
| 126 |
CET08 (BN-WH) |
20 |
CTRL MOD. - POWERTRAIN # SOLENOID PRESSURE CONTROL 4 (PC4) [EPC] [VFS] |
GU5T-14474-CA |
