Connector End View C155 - ANTI-LOCK BRAKE SYSTEM (ABS) MODULE

Connector: Description Color Harness Base Part # Service Pigtail
C155 ANTI-LOCK BRAKE SYSTEM (ABS) MODULE 14290 part# N/A Not Available

Pin: 22 - VDB49(YE-OG)-CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED DIAG 2, Gauge 22

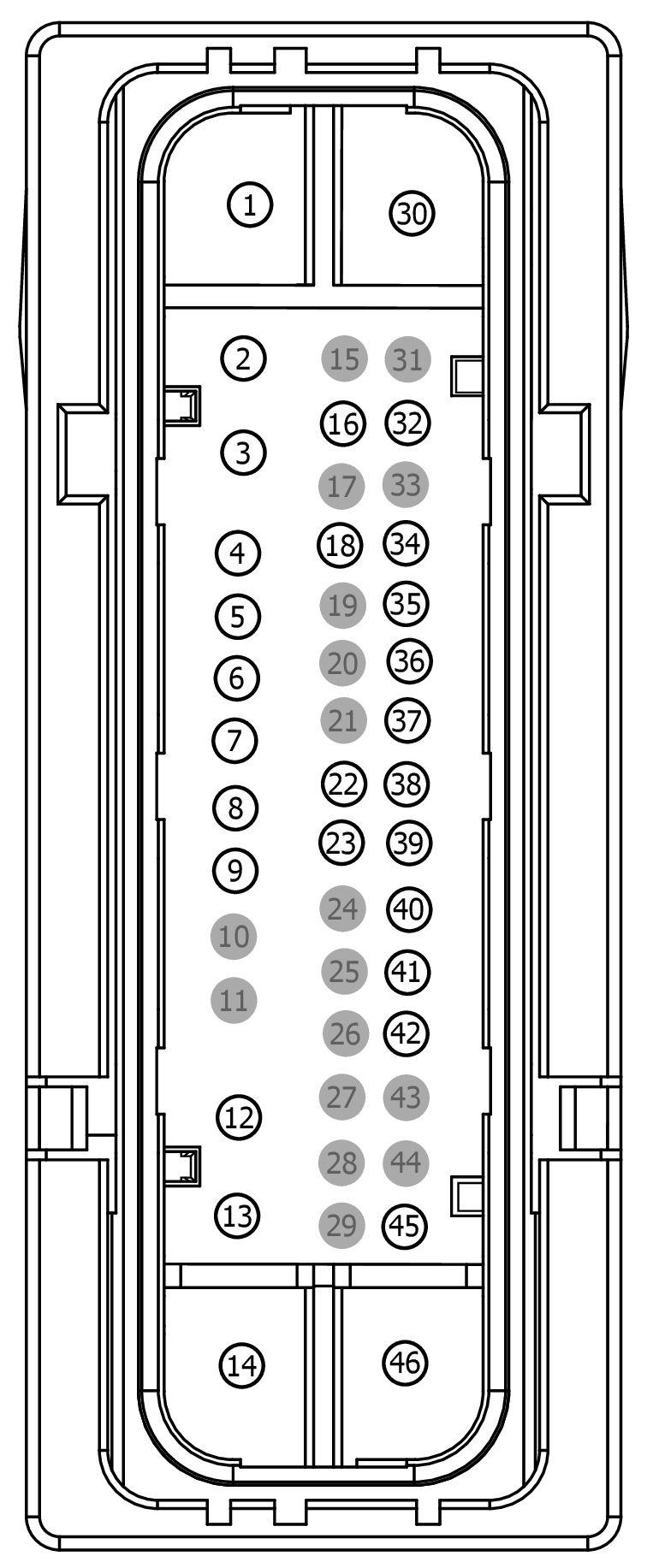

GFDWR151141Courtesy of FORD MOTOR COMPANY
Terminal Part Number  Service Part Number  Size
F8VB-14474-AA EU2Z-14474-AB 2.80
CU5T-14474-EB DU2Z-14474-CA 0.64
1C1T-14474-AA KU2Z-14474-AA 6.30
Pin  Circuit  Gauge  Circuit Function  Qualifier  Terminal Part Number
1 SBB29 (GY-RD) 8 FUSE - 29 OR CIRCUIT BREAKER 1C1T-14474-AA
2 CCB16 (WH-VT) 12 CTRL MOD. - ELEC. PARK BRAKE # EPB MOTOR LEFT LOCK (+) F8VB-14474-AA
3 CCB17 (BU-GN) 12 CTRL MOD. - ELEC. PARK BRAKE # EPB MOTOR LEFT UNLOCK (-) F8VB-14474-AA
4 CCB20 (BU-WH) 20 CTRL MOD. - ELEC. PARK BRAKE # SWITCH SUPPLY 1 CU5T-14474-EB
5 CCB21 (GN-VT) 20 CTRL MOD. - ELEC. PARK BRAKE # SWITCH SUPPLY 2 CU5T-14474-EB
6 CCB22 (WH-BN) 20 CTRL MOD. - ELEC. PARK BRAKE # SWITCH SUPPLY 3 CU5T-14474-EB
7 CCB23 (VT-GN) 20 CTRL MOD. - ELEC. PARK BRAKE # SWITCH INPUT 4 CU5T-14474-EB
8 CCB24 (WH-OG) 20 CTRL MOD. - ELEC. PARK BRAKE # SWITCH INPUT 5 CU5T-14474-EB
9 CCB25 (BN) 20 CTRL MOD. - ELEC. PARK BRAKE # SWITCH INPUT 6 CU5T-14474-EB
10 * * Not Used N/A
11 * * Not Used N/A
12 CCB18 (YE-GY) 12 CTRL MOD. - ELEC. PARK BRAKE # EPB MOTOR RIGHT LOCK (+) F8VB-14474-AA
13 CCB19 (GN-BN) 12 CTRL MOD. - ELEC. PARK BRAKE # EPB MOTOR RIGHT UNLOCK (-) F8VB-14474-AA
14 SBB28 (GN-RD) 8 FUSE - 28 OR CIRCUIT BREAKER 1C1T-14474-AA
15 * * Not Used N/A
16 CES09 (VT-OG) 20 SWITCH - BRAKE PEDAL # SPEED CONTROL DEACTIVATION (BPS) + CU5T-14474-EB
17 * * Not Used N/A
18 CCB08 (VT-WH) 20 SWITCH - BRAKE ON/OFF (BOO) NORMAL OPEN CU5T-14474-EB
19 * * Not Used N/A
20 * * Not Used N/A
21 * * Not Used N/A
22 VDB49 (YE-OG) 22 CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED DIAG 2 CU5T-14474-EB
23 VDB50 (BU-OG) 22 CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED DIAG 2 CU5T-14474-EB
24 * * Not Used N/A
25 * * Not Used N/A
26 * * Not Used N/A
27 * * Not Used N/A
28 * * Not Used N/A
29 * * Not Used N/A
30 GD112 (BK-GN) 8 GROUND - COWL TOP LEFT 1C1T-14474-AA
31 * * Not Used N/A
32 RMC19 (YE-GY) 20 SWITCH - LOW LEVEL BRAKE FLUID (CONTINUITY CHECK) CU5T-14474-EB
33 * * Not Used N/A
34 CMC19 (GY-VT) 20 SWITCH - LOW LEVEL BRAKE FLUID CU5T-14474-EB
35 RCA20 (BN) 20 CTRL MOD. - SENSOR WHEEL SPEED RIGHT REAR CU5T-14474-EB
36 VCA06 (WH-OG) 20 SENSOR - WHEEL SPEED RIGHT REAR CU5T-14474-EB
37 VCA04 (BU-OG) 20 SENSOR - WHEEL SPEED LEFT REAR CU5T-14474-EB
38 RCA18 (BN-GN) 20 CTRL MOD. - SENSOR WHEEL SPEED LEFT REAR CU5T-14474-EB
39 RCA19 (GN-WH) 20 CTRL MOD. - SENSOR WHEEL SPEED RIGHT FRONT CU5T-14474-EB
40 VCA05 (GY-VT) 20 SENSOR - WHEEL SPEED RIGHT FRONT CU5T-14474-EB
41 VCA03 (VT-WH) 20 SENSOR - WHEEL SPEED LEFT FRONT CU5T-14474-EB
42 RCA17 (YE) 20 CTRL MOD. - SENSOR WHEEL SPEED LEFT FRONT CU5T-14474-EB
43 * * Not Used N/A
44 * * Not Used N/A
45 CBB23 (BN-YE) 20 FUSE - 23 OR CIRCUIT BREAKER CU5T-14474-EB
46 GD103 (BK) 8 GROUND - *GENERIC LOGICAL TYPE 2 ELECTRONIC 1C1T-14474-AA
