Brake Booster: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the brake master cylinder. Refer to: Brake Master Cylinder - Vehicles With: Vacuum Brake Booster .

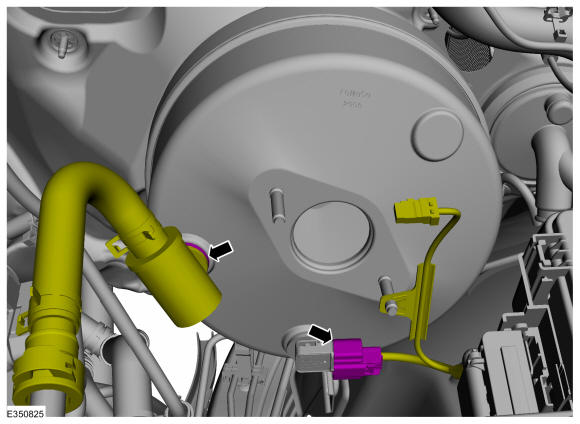

  2. Disconnect the vacuum tube and the vacuum sensor electrical connector.
    GFD623795Courtesy of FORD MOTOR COMPANY
  3. NOTE: Do not service the brake pedal or brake booster without first removing the stoplamp switch. This switch must be removed with the brake pedal in the at-rest position. The switch plunger must be compressed for the switch to rotate in the bracket. Attempting to remove the switch when the plunger is extended (during pedal apply) will result in damage to the switch.

    Remove the stoplamp switch. Refer to: Stoplamp Switch .

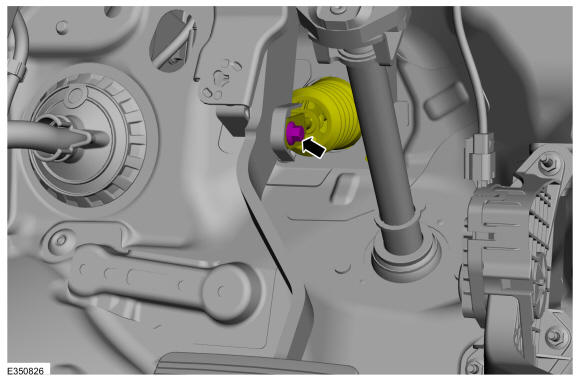

  4. Remove the brake pedal bolt, and disconnect the brake booster push rod from the brake pedal arm.

    Torque

    : 18 lb.ft (25 Nm)

    GFD623792Courtesy of FORD MOTOR COMPANY

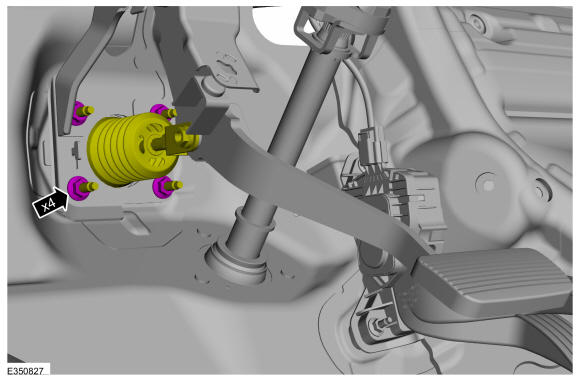

  5. Remove the brake booster mounting nuts.
    GFD623796Courtesy of FORD MOTOR COMPANY

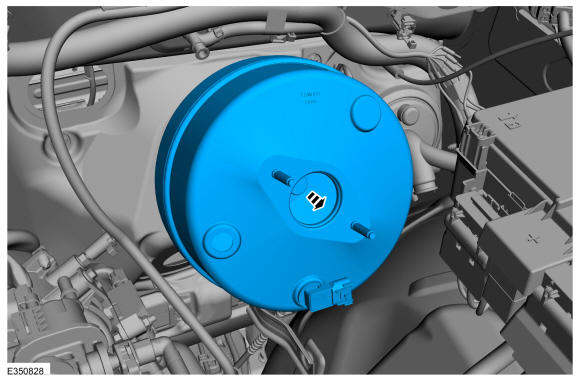

  6. Remove the brake booster.
GFD623797Courtesy of FORD MOTOR COMPANY
