Instrument Panel Cluster (IPC): Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: If installing a new module, it is necessary to upload the module configuration information to the scan tool prior to removing the module. This information must be downloaded into the new module after installation.

Using a diagnostic scan tool, begin the PMI process for the IPC following the on-screen instructions. Record the odometer value from the original IPC. If the odometer value cannot be obtained from the IPC (display failure), perform the diagnostic routine. If the value cannot be obtained after the diagnostic routine, the customer should supply the approximate odometer value.
Depower the SRS. Refer to: Supplemental Restraint System (SRS) Depowering .

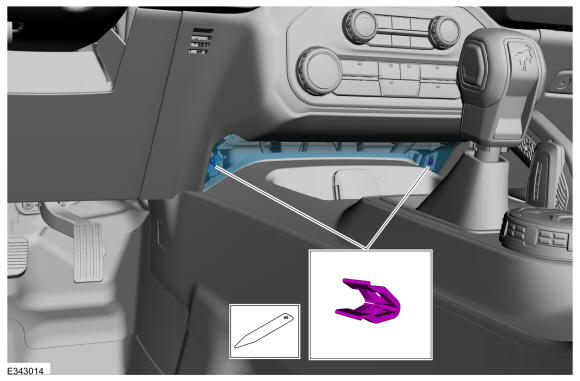

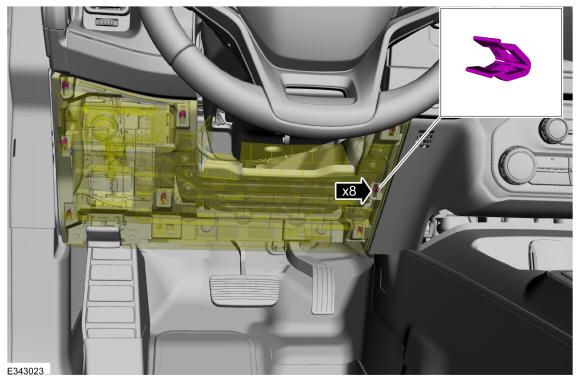

Release the clips and remove the lower instrument trim panel. Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY
Release the clips and position the lower steering column closeout panel down.

Courtesy of FORD MOTOR COMPANY
Remove the glove box. Refer to: Glove Compartment .
If equipped. Remove the screws and the console handle.
Torque

: 48 lb.in (5.4 Nm)

Courtesy of FORD MOTOR COMPANY

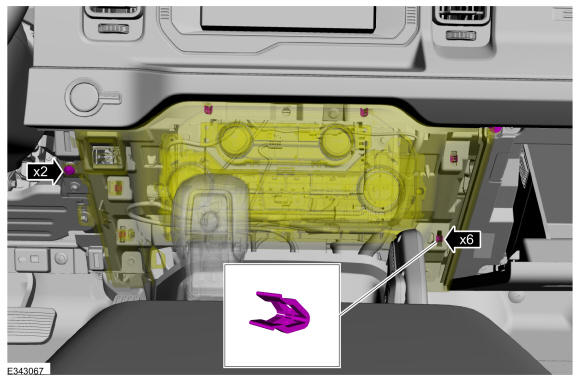

Remove the screws, release the clips and position the lower center instrument panel trim panel.

Courtesy of FORD MOTOR COMPANY
Disconnect the electrical connectors and remove the lower center instrument panel trim panel.

Courtesy of FORD MOTOR COMPANY

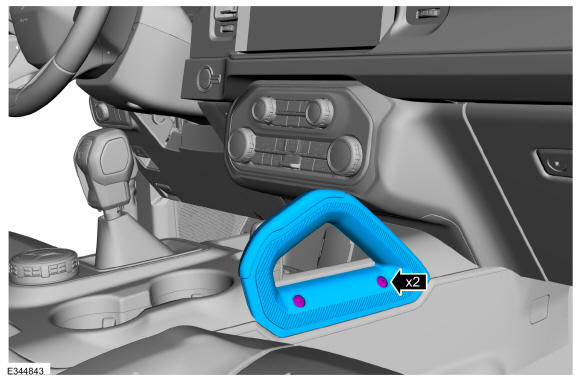

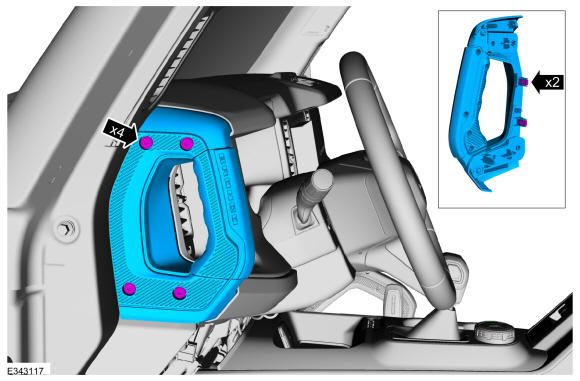

On both sides. Remove the screws, release the clips and remove the assist handle.
Torque

: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY
Position the bolt covers.

Courtesy of FORD MOTOR COMPANY
Remove the bolts.
Torque

: 22 lb.in (2.5 Nm)

Courtesy of FORD MOTOR COMPANY
Release the clips and remove the lower instrument panel trim panel.
- Disconnect the electrical connector.
Courtesy of FORD MOTOR COMPANY

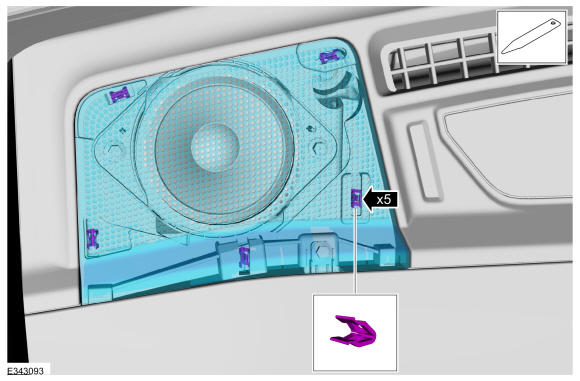

On both sides. Release the clips and remove the instrument panel speaker grille. Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY

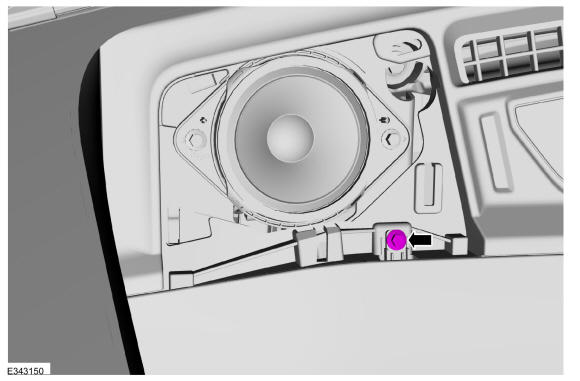

On both sides. Remove the bolt.
Torque

: 22 lb.in (2.5 Nm)

Courtesy of FORD MOTOR COMPANY
Position the instrument panel switch pack up, disconnect the electrical connector and remove the switch pack.

Courtesy of FORD MOTOR COMPANY

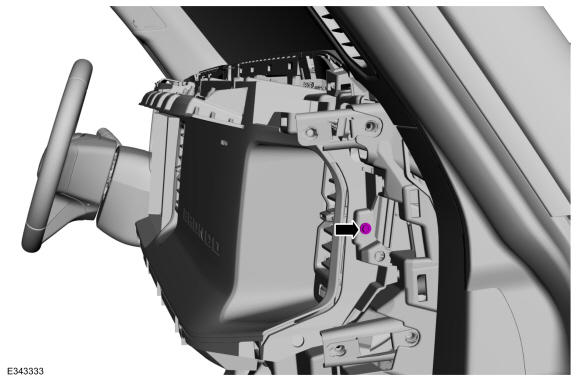

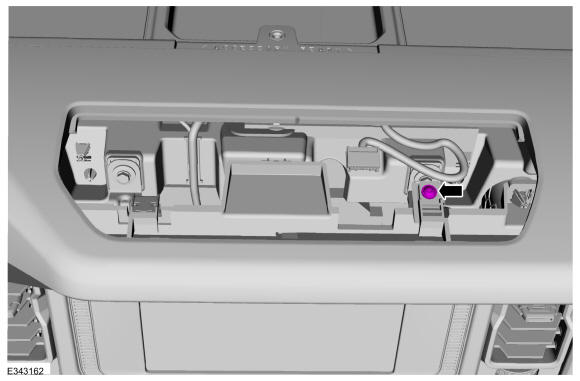

Remove the screw.

Courtesy of FORD MOTOR COMPANY
Position the screw covers.

Courtesy of FORD MOTOR COMPANY

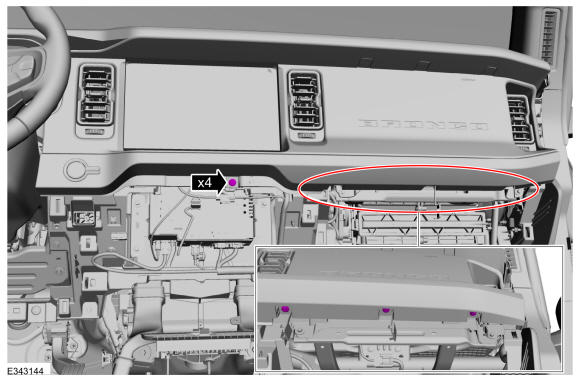

Remove the screws.
Torque

: 22 lb.in (2.5 Nm)

Courtesy of FORD MOTOR COMPANY

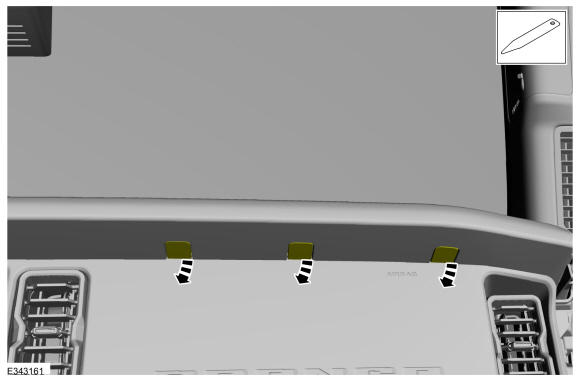

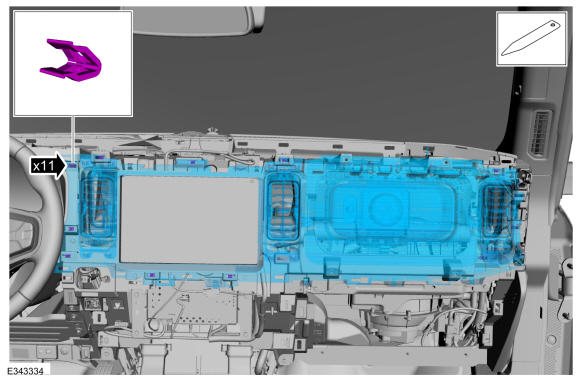

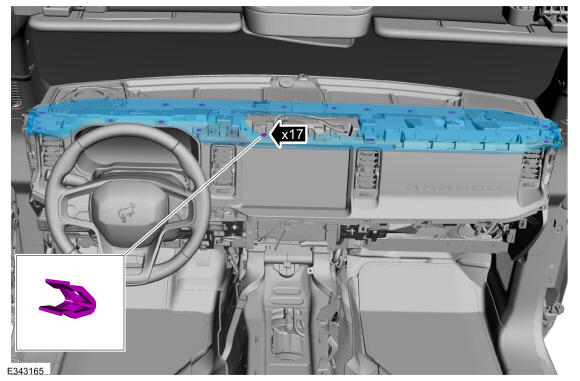

Release the clips and remove the upper instrument trim panel.

Courtesy of FORD MOTOR COMPANY

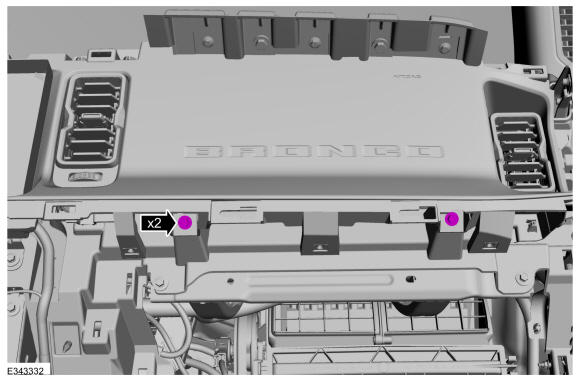

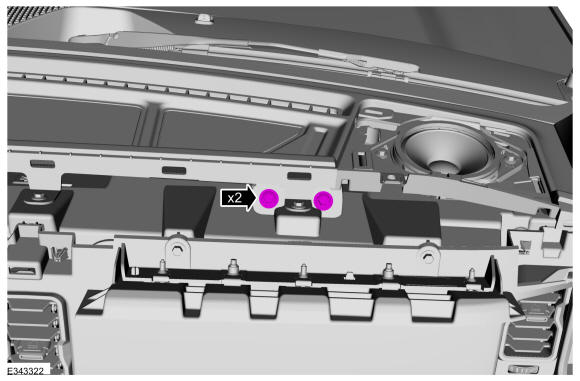

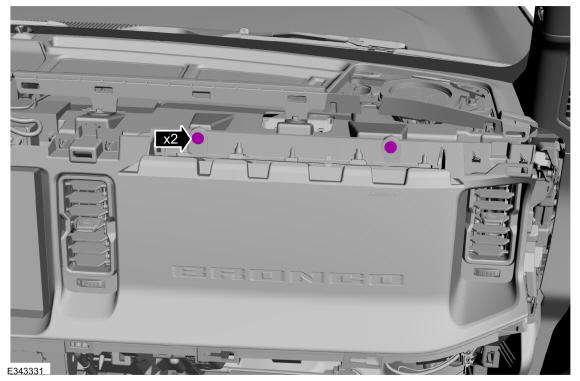

Remove the upper passenger side air bag bracket bolts.
Torque

: 93 lb.in (10.5 Nm)

Courtesy of FORD MOTOR COMPANY

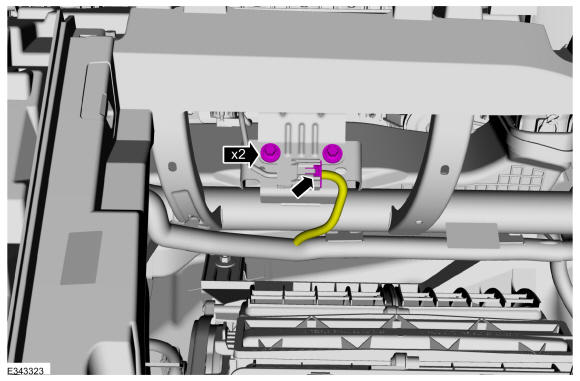

Disconnect the electrical connector and remove the lower passenger side air bag bracket bolts.
Torque

: 93 lb.in (10.5 Nm)

Courtesy of FORD MOTOR COMPANY
Remove the RH center instrument trim panel upper screws.
Torque

: 22 lb.in (2.5 Nm)

Courtesy of FORD MOTOR COMPANY
Remove the RH center instrument trim panel lower screws.
Torque

: 22 lb.in (2.5 Nm)

Courtesy of FORD MOTOR COMPANY
Remove the RH center instrument trim panel side screw.
Torque

: 22 lb.in (2.5 Nm)

Courtesy of FORD MOTOR COMPANY

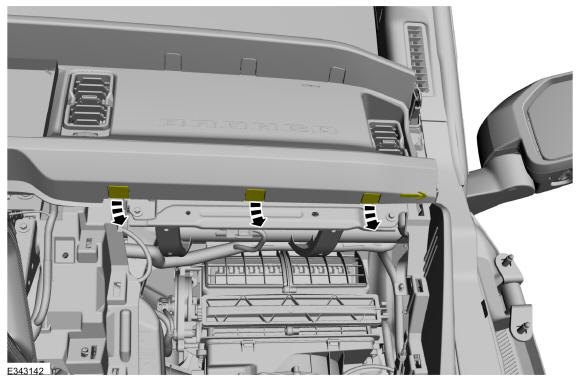

Release the clips and remove the RH center instrument trim panel and passenger side air bag as an assembly. Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY

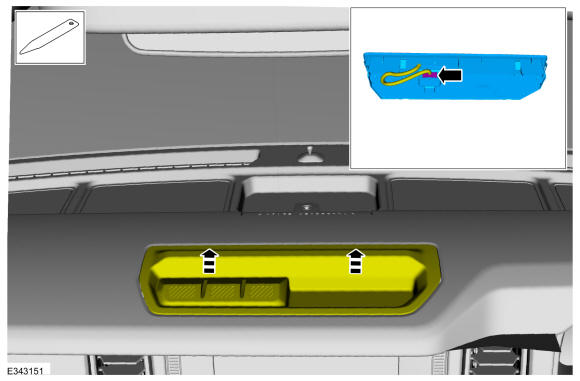

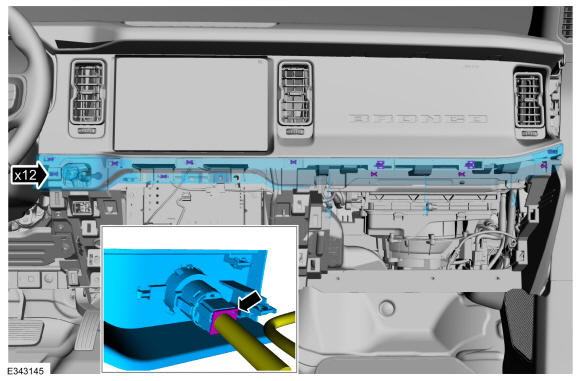

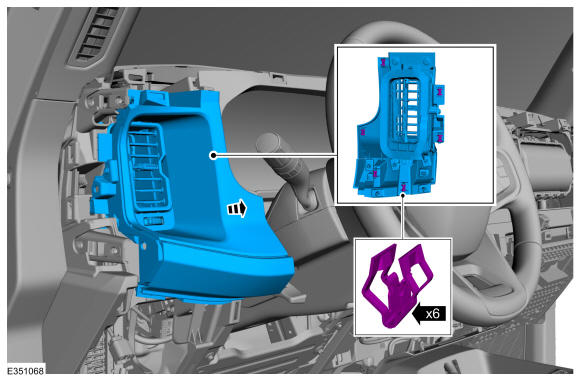

Release the clips and remove the LH veneer trim panel.

Courtesy of FORD MOTOR COMPANY

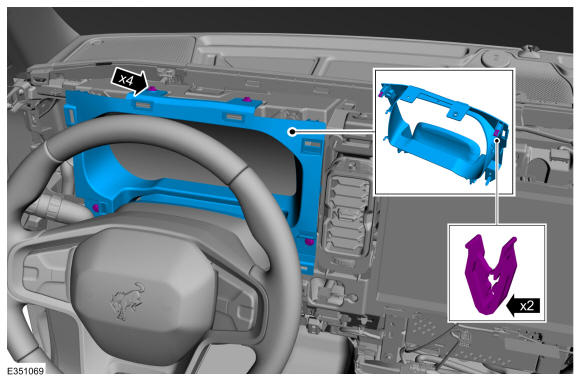

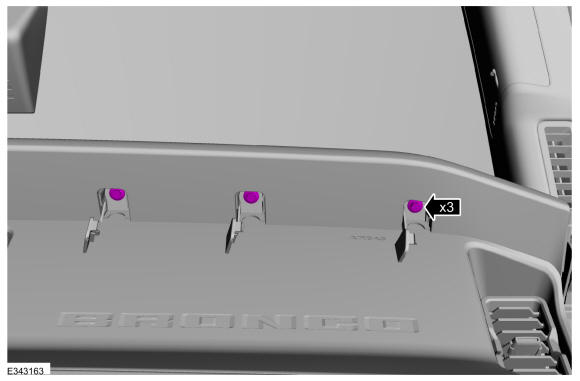

Remove the bolts, release the clips and remove IPC trim panel.
Torque

: 22 lb.in (2.5 Nm)

Courtesy of FORD MOTOR COMPANY

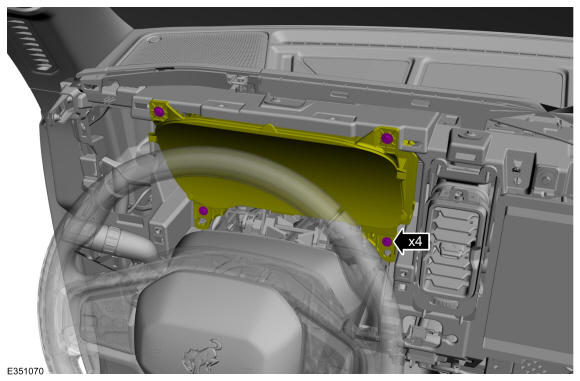

Remove the screws.
Torque

: 22 lb.in (2.5 Nm)

Courtesy of FORD MOTOR COMPANY

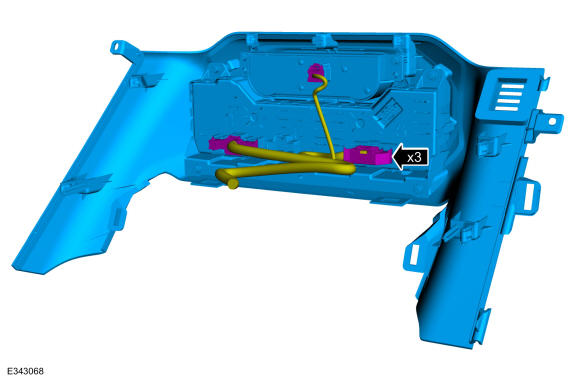

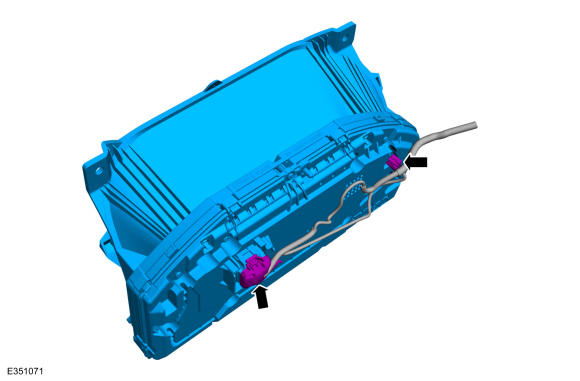

Disconnect the electrical connector and remove the IPC.
