Instrument Panel Cluster (IPC) - Overview: Overview
The IPC uses gauges, warning and informational indicators, RTT indicators, warning messages and chimes to alert the driver of vehicle conditions and system operation. The message center provides menu selections to configure various vehicle features. For a complete list and description of the features the message center controls, refer to the Owner's Literature.
The IPC provides a single display screen that contains the message center, RTT indication and virtual gauge displays.
Informational indicators inform the driver of conditions that exist in the vehicle. Warning indicators provide information to the driver of conditions that could potentially cause personal injury or alter vehicle performance.
RTT indicators illuminate in the message center and replace traditional informational or warning indicators, using the same iconic representation. The message center uses a rotating RTT display area that can display multiple indicators, dedicated RTT displays and fixed locations for other RTT indicators and displays.

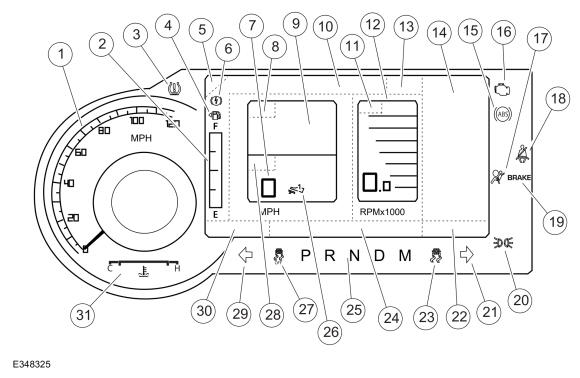

IPC, 6-Inch Display
IPC
| Item | Description |
|---|---|
| 1 | Speedometer |
| 2 | Virtual fuel gauge |
| 3 | TPMS indicator |
| 4 | Low fuel warning RTT indicator |
| 5 | Drive mode RTT indicator Normal Eco Sport Slippery Trail or Mut/Ruts (4WD only) Deep Snow/Sand (4WD only) Rock Crawl (4WD only) Baja (4WD only) Lane keep assist system RTT indicator (when selectable drive mode display appears in the main menu display area) Engine over-temperature RTT indicator (when selectable drive mode display appears in the main menu display area) |
| 6 | Electric park brake RTT indicator |
| 7 | Digital speedometer display |
| 8 | Speed limit recognition RTT indicator |
| 9 | Advanced driver assist display area (when main menu is selected to display) Lane keep assist Adaptive cruise control follow mode |
| 10 | Information status bar LED low beam malfunction RTT indicator Rear seatbelt monitor RTT indicator Engine over-temperature warning RTT indicator Auto stop/start RTT indicator |
| 11 | SelectShift gear selection RTT indicator Crawl gear selection RTT indicator |
| 12 | Virtual tachometer |
| 13 | Compass display Outside air temperature display |
| 14 | Main menu display Information-on-demand display |
| 15 | ABS warning indicator |
| 16 | MIL |
| 17 | Airbag warning indicator |
| 18 | Seatbelt warning indicator |
| 19 | Brake warning indicator |
| 20 | Lights on indicator |
| 21 | RH turn indicator |
| 22 | Odometer display |
| 23 | Stability-traction control (sliding car icon) RTT indicator |
| 24 | Rotating Reconfigurable Telltales (RTTs): Auto high beam BLIS off Charging system Door ajar Engineering test (ET) mode Forward collision warning OFF Four wheel drive (2H, 4H, 4L, 4A) Front fog lamps Front electronic locking differential (eLocker) High beam Hill descent Hood ajar Low engine oil pressure warning Low washer fluid Overspeed warning (GSO member countries) Powertrain malfunction (wrench) Rear electronic locking differential (eLocker) Sta-Bar disconnected Tailgate (swing gate) ajar Trail turn assist |
| 25 | PRNDM display |
| 26 | Trail 1-pedal drive RTT indicator |
| 27 | Stability-traction control disabled (sliding car OFF icon) indicator |
| 28 | Adaptive cruise control RTT indicator Non-adaptive cruise control RTT indicator Trail control RTT indicator |
| 29 | LH turn indicator |
| 30 | DTE display |
| 31 | Temperature gauge |
