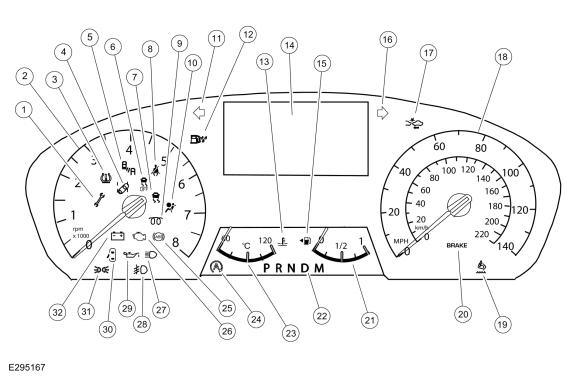

Instrument Panel Cluster (IPC) - Overview: IPC
NOTE:
Mid- and high-level IPC shown, base IPC similar.
| Item | Description |
|---|---|
| 1 | Powertrain malfunction (wrench) indicator |
| 2 | Tachometer |
| 3 | TPMS warning indicator |
| 4 | Lane keeping assist indicator |
| 5 | BLIS/ CTA indicator |
| 6 | Traction control disabled indicator (sliding car OFF icon) |
| 7 | Stability-traction control indicator (sliding car icon) |
| 8 | Seatbelt indicator |
| 9 | Wait to start indicator (diesel only) |
| 10 | Airbag warning indicator |
| 11 | LH turn indicator |
| 12 | Water in fuel indicator (diesel only) |
| 13 | Engine over-temperature indicator |
| 14 | Message center display |
| 15 | Low fuel indicator |
| 16 | RH turn indicator |
| 17 | Forward collision warning indicator |
| 18 | Speedometer |
| 19 | Diesel exhaust fluid level indicator (diesel only) |
| 20 | Brake warning indicator |
| 21 | Fuel gauge |
| 22 | PRNDL display (automatic transmission) |
| 23 | Engine temperature gauge |
| 24 | Auto stop/start indicator |
| 25 | ABS indicator |
| 26 | MIL |
| 27 | High beams indicator |
| 28 | Front fog lamp indicator |
