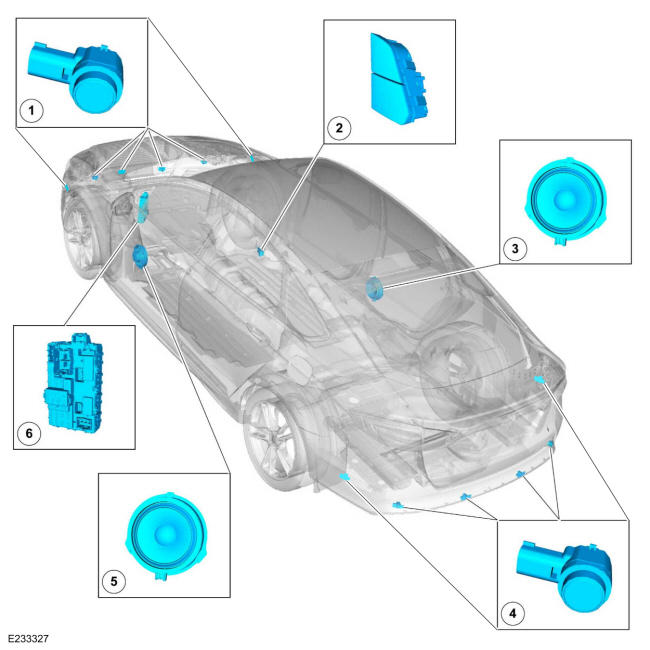

Component Location, Parking Aid - Audible
WARNING: This page is about a different variant/trim than selected.
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
Front parking aid sensors |
| 2 |
Parking aid switch (if equipped) |
| 3 |
Rear speakers (part of audio system) |
| 4 |
Rear parking aid sensors |
| 5 |
Front speakers (part of audio system) |
| 6 |
PAM (integral to the BCM |
