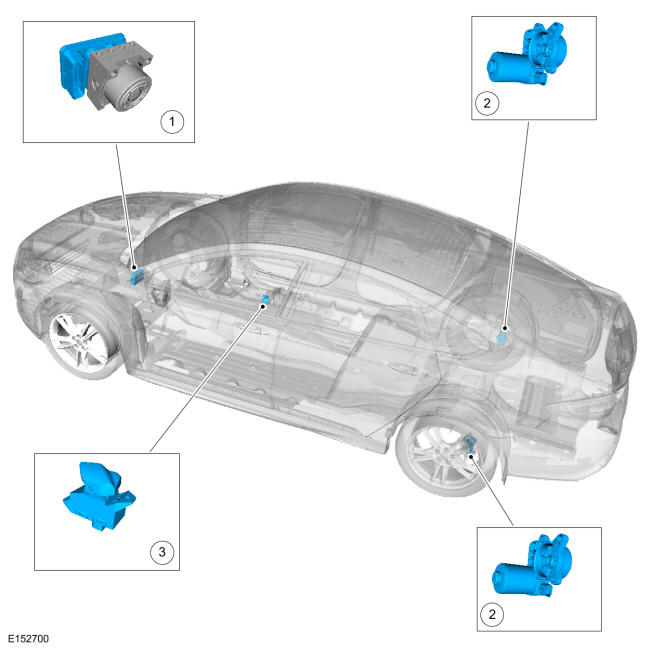

Parking Brake - Component Location
WARNING: This page is about a different variant/trim than selected.
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
2C219
Comments:
ABS module and HCU assembly |
| 2 |
2B712 (RH), 2B713 (LH)
Comments:
Parking brake actuator motor (2 required) |
| 3 |
2B623
Comments:
Parking brake switch |
