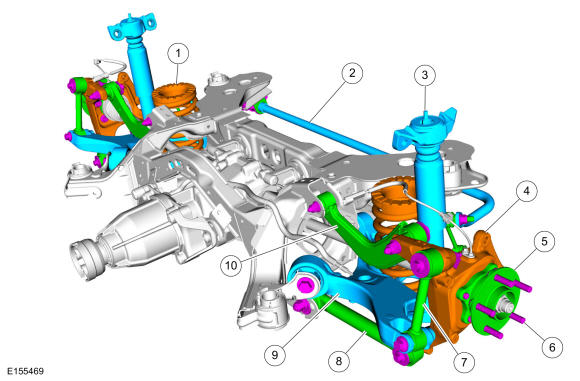

Rear Suspension - Component Location
WARNING: This page is about a different variant/trim than selected.
NOTE:
AWD suspension shown, FWD similar.
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
Coil spring |
| 2 |
Stabilizer and links |
| 3 |
Shock absorber |
| 4 |
Wheel knuckle |
| 5 |
Wheel bearing and wheel hub assembly |
| 6 |
Wheel studs |
| 7 |
Lower arm vertical link |
| 8 |
Toe link |
| 9 |
Lower arm and bushing assembly |
| 10 |
Upper arm |
