Airbag and Seatbelt Pretensioner Supplemental Restraint System (SRS) - Component Location
WARNING: This page is about a different variant/trim than selected.

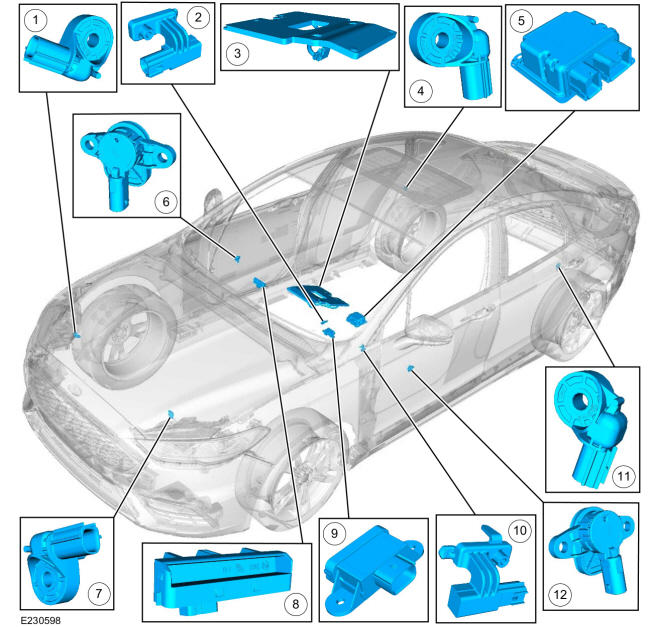

| Item | Description |
|---|---|
| 1 | Passenger side front impact severity sensor |
| 2 | Passenger side seat position sensor |
| 3 | OCS sensor |
| 4 | Passenger side C-pillar side impact sensor |
| 5 | RCM |
| 6 | Passenger front door side impact sensor |
| 7 | Driver side front impact severity sensor |
| 8 | PAD indicator |
| 9 | BECMB |
| 10 | Driver side seat position sensor |
| 11 | Driver side C-pillar side impact sensor |
| 12 | Driver front door side impact sensor |

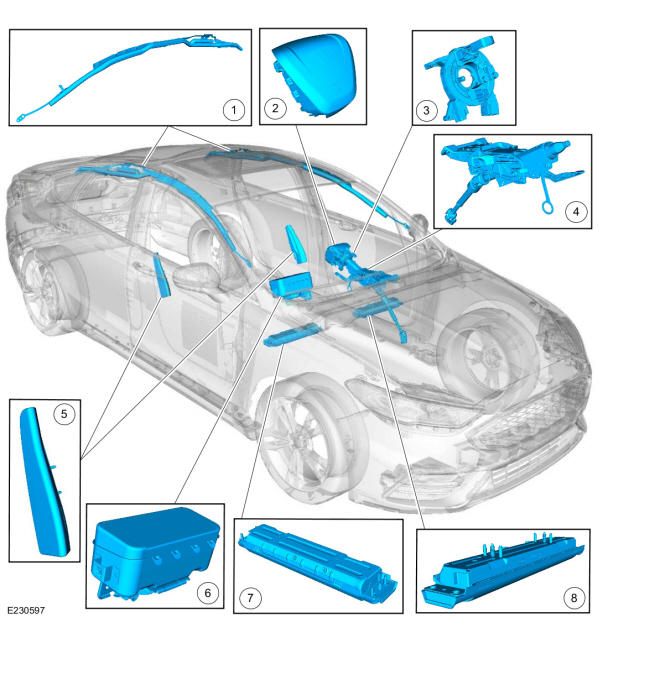

| Item | Description |
|---|---|
| 1 | Side air curtain |
| 2 | Driver airbag |
| 3 | Clockspring |
| 4 | Collapsible steering column |
| 5 | Side airbag |
| 6 | Passenger airbag |
| 7 | Passenger knee airbag |
| 8 | Driver knee airbag |

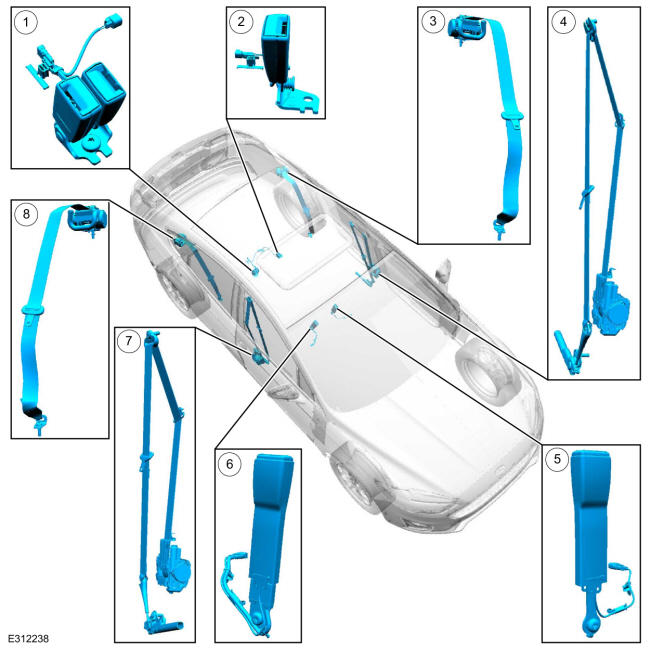

| Item | Description |
|---|---|
| 1 | Rear passenger side and center seatbelt buckle assembly (includes seatbelt buckle sensors) |
| 2 | Rear driver side seatbelt buckle (includes seatbelt buckle sensor) |
| 3 | Rear passenger side seatbelt retractor and pretensioner |
| 4 | Driver seatbelt retractor (includes retractor pretensioner and anchor pretensioner) |
| 5 | Driver seatbelt buckle (includes buckle sensor) |
| 6 | Front passenger seatbelt buckle (includes buckle sensor and Belt Tension Sensor (BTS)) |
| 7 | Front passenger seatbelt retractor (includes retractor pretensioner, adaptive load limiter and anchor pretensioner) |
| 8 | Rear passenger side seatbelt retractor and pretensioner |
