Parking Brake - Component Location

WARNING: This page is about a different car, the 2019 Ford SSV Plug-in Hybrid, 2019 Ford Police Responder Hybrid, and 2019 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

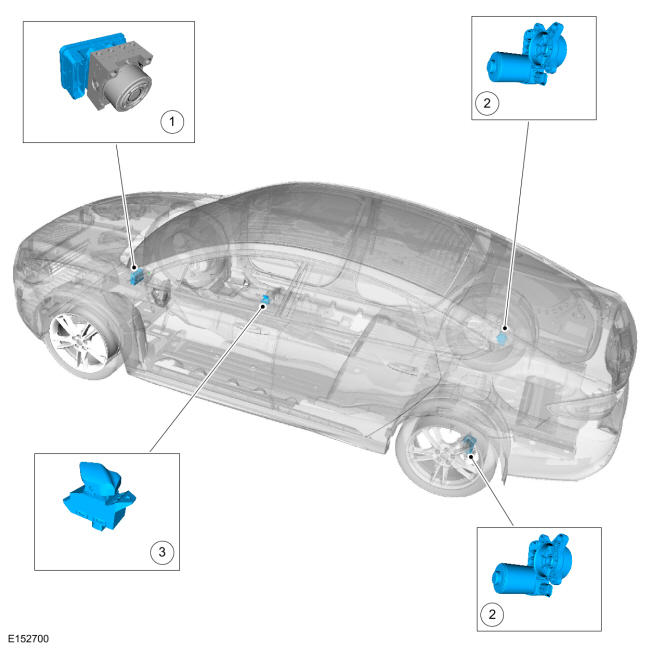

GFD435356Courtesy of FORD MOTOR COMPANY
Item Description
1 2C219
Comments:
ABS module and HCU assembly
2 2B712 (RH), 2B713 (LH)
Comments:  Parking brake actuator motor (2 required)
3 2B623
Comments:  Parking brake switch
