Rear Active Park Assist Sensors: Removal

WARNING: This page is about a different car, the 2019 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

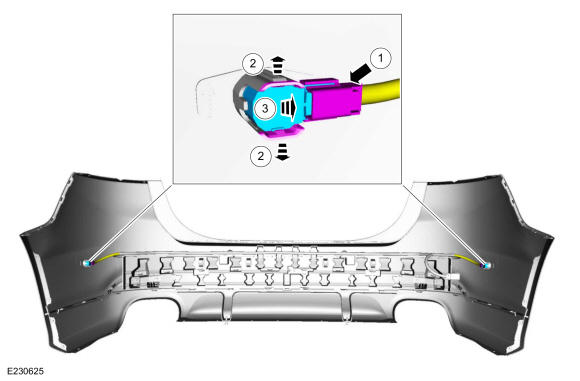

  1. Remove the rear bumper cover. Refer to: Rear Bumper Cover .
    1. Disconnect the electrical connector.
    2. Release the tabs.
    3. Remove the active park assist sensor.
GFD402699Courtesy of FORD MOTOR COMPANY
