Front Active Park Assist Sensors: Removal

WARNING: This page is about a different car, the 2019 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
NOTE: The LH side shown, RH side is similar.
  1. Remove the front wheel and tire. Refer to: Wheel and Tire .

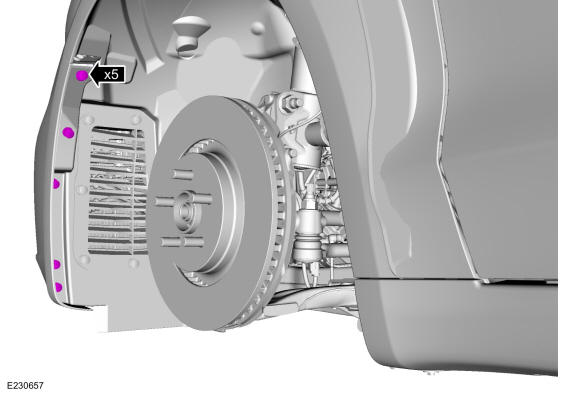

  2. Remove the plastic rivets from the front of the fender liner.
    GFD402695Courtesy of FORD MOTOR COMPANY
  3. Remove the screws.
    GFD402696Courtesy of FORD MOTOR COMPANY

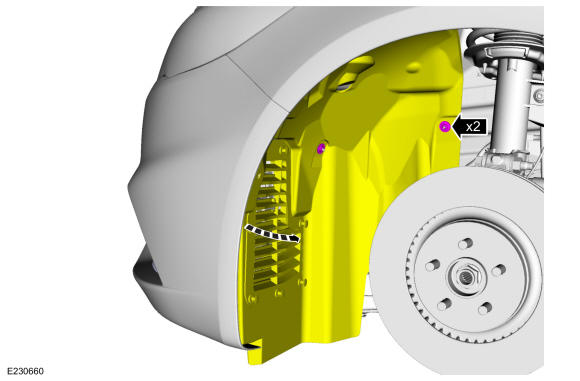

  4. Remove the nuts and position the fender liner aside.
    GFD402697Courtesy of FORD MOTOR COMPANY

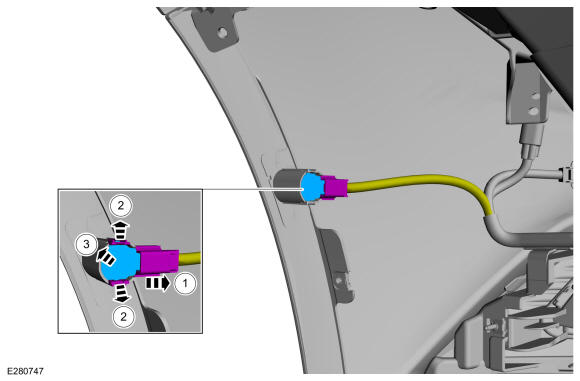

  5. Remove the front active park assist sensor.

    1. Disconnect the front active park assist sensor electrical connector.
    2. Release the tabs.
    3. Remove the front active park assist sensor from the bracket.

GFD402698Courtesy of FORD MOTOR COMPANY
