Active Park Assist Switch: Removal

WARNING: This page is about a different car, the 2019 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.

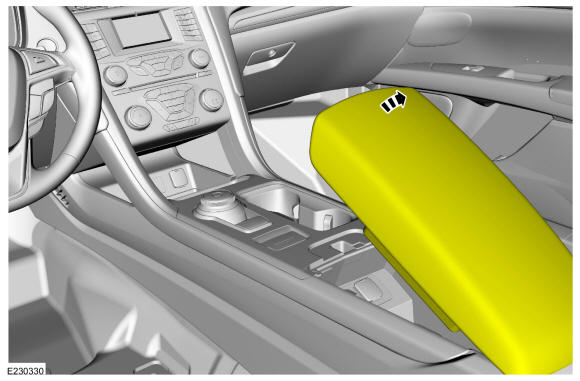

  1. Open the floor console stowage bin lid.
    GFD402690Courtesy of FORD MOTOR COMPANY

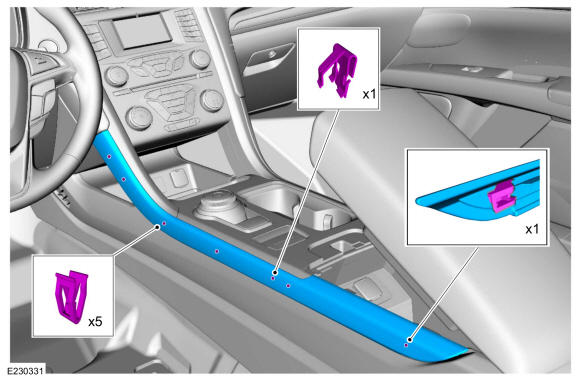

  2. On both sides. Detach the clips and remove the floor console upper side finish panels.
    GFD402691Courtesy of FORD MOTOR COMPANY

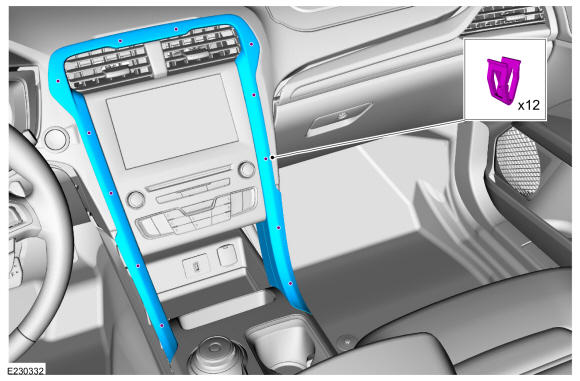

  3. Detach the clips and remove the instrument panel center finish panel.
    GFD402692Courtesy of FORD MOTOR COMPANY

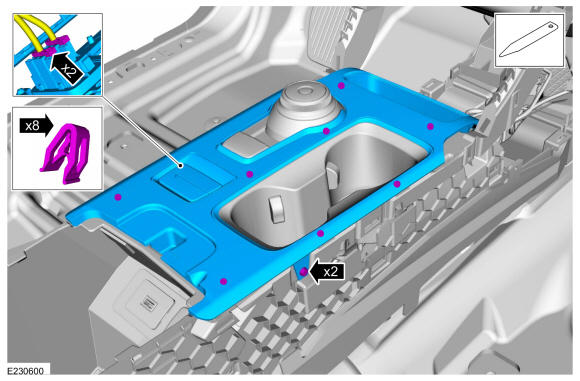

  4. Remove the screws, detach the clips, disconnect the electrical connectors and remove the upper floor console finish panel.
    GFD402693Courtesy of FORD MOTOR COMPANY

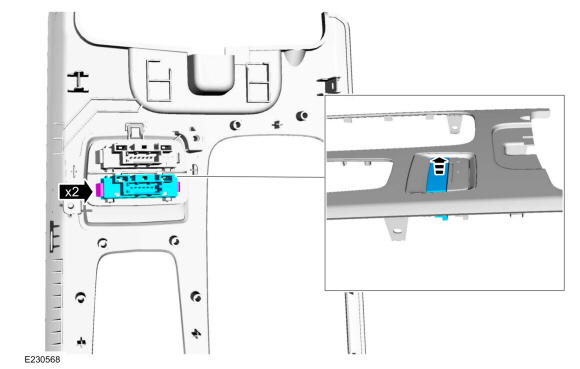

  5. Release the tabs and remove the active park assist switch.
GFD402694Courtesy of FORD MOTOR COMPANY
