Audio System/Navigation - Fusion With Touchscreen/Without Sony
WARNING: This page is about a different car, the 2019 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

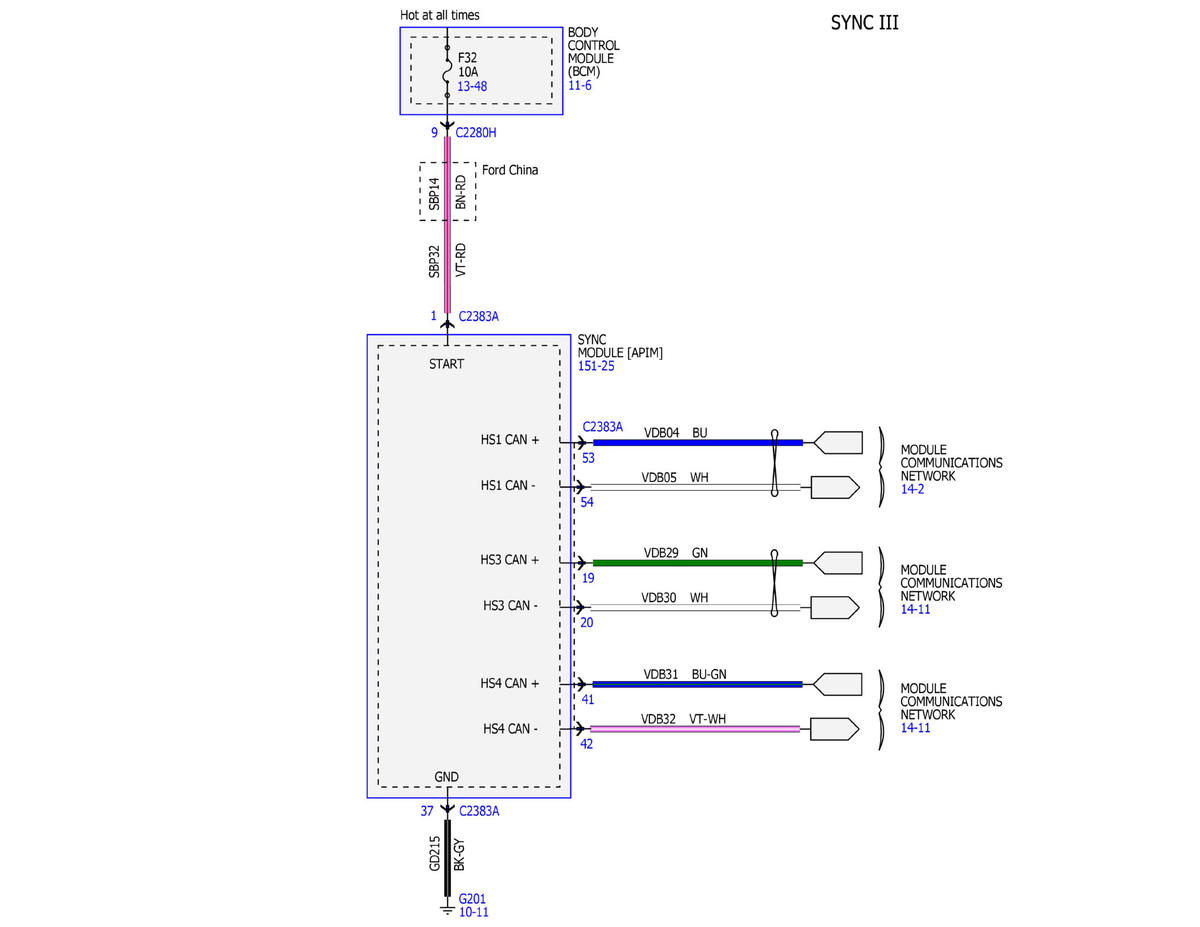

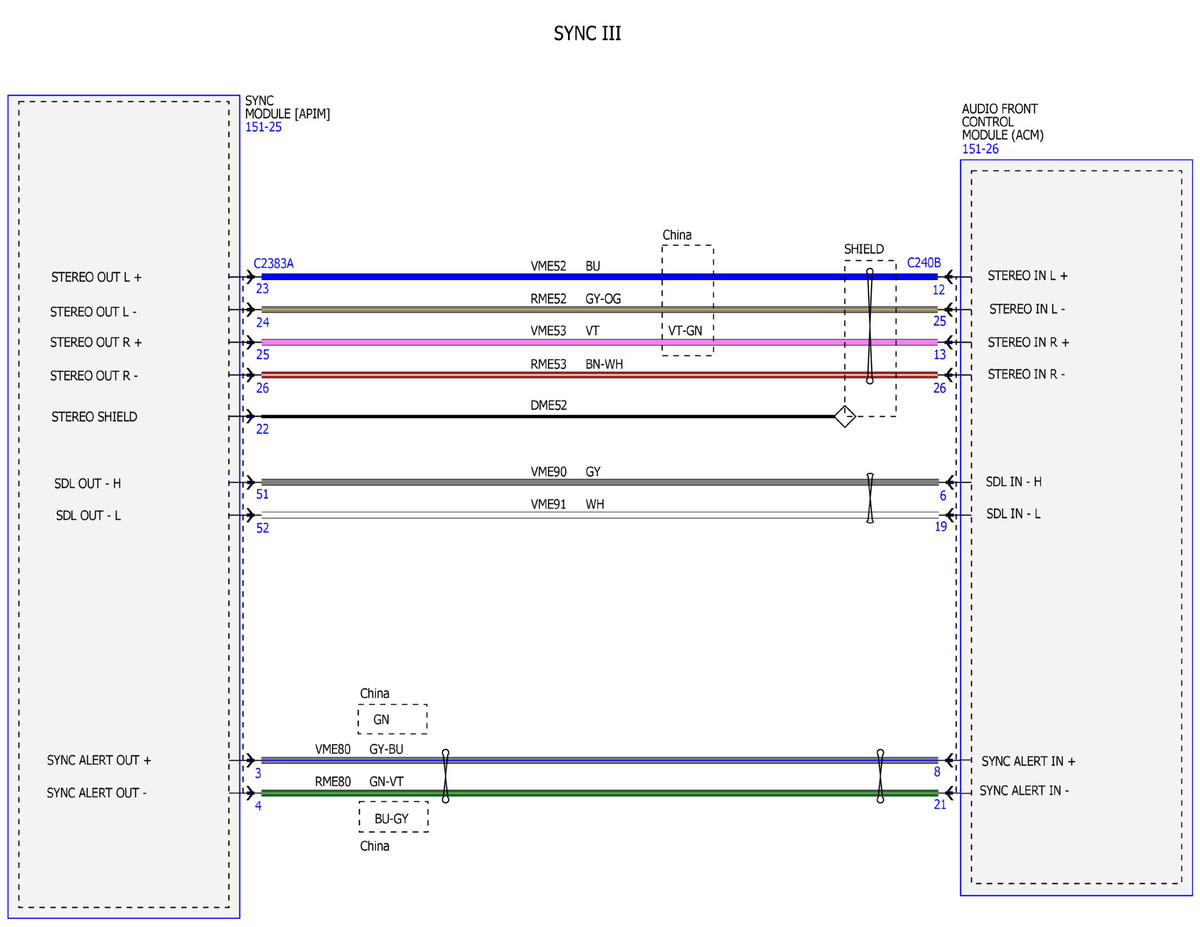

Fig 1: Audio System/Navigation - Fusion With Touchscreen/Without Sony Wiring Diagram (1 Of 11)
Courtesy of FORD MOTOR COMPANY

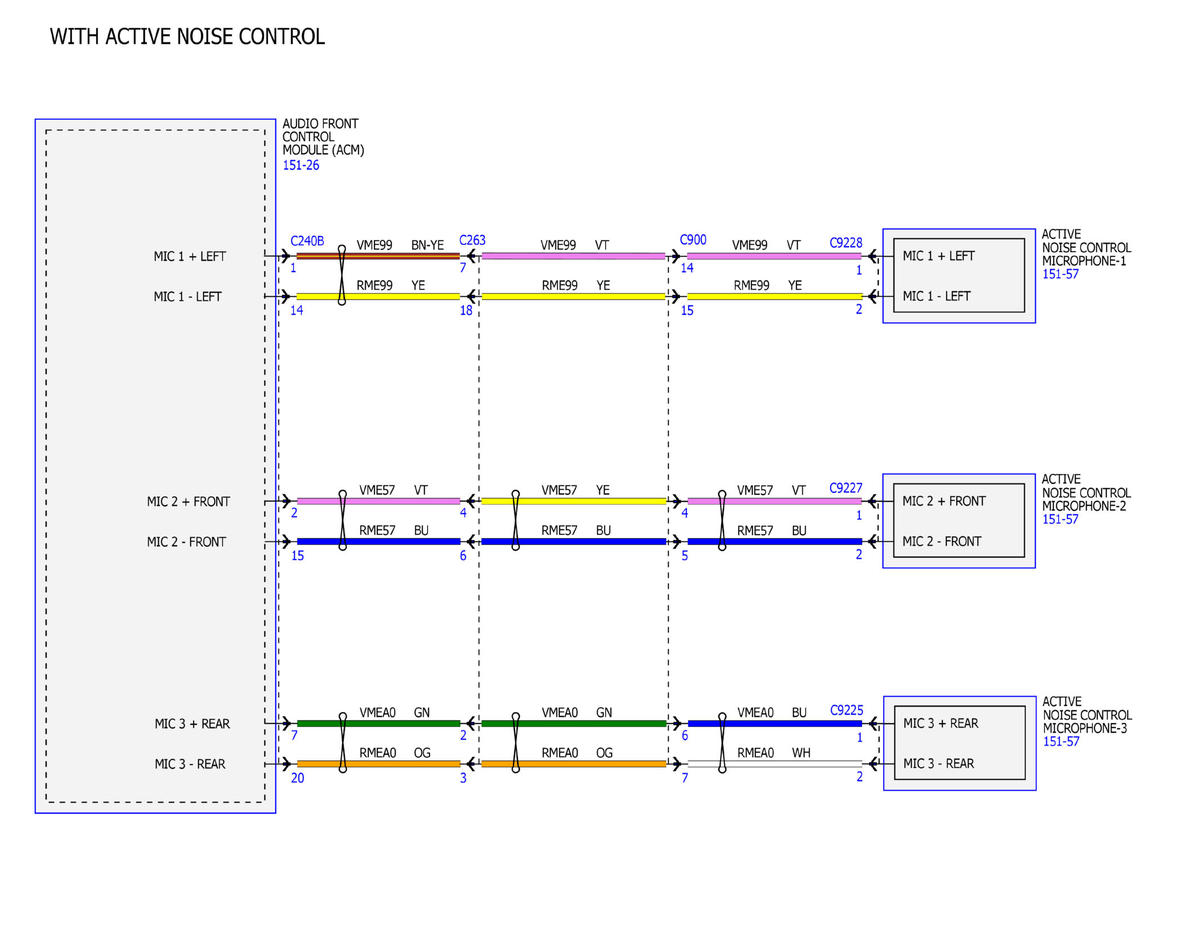

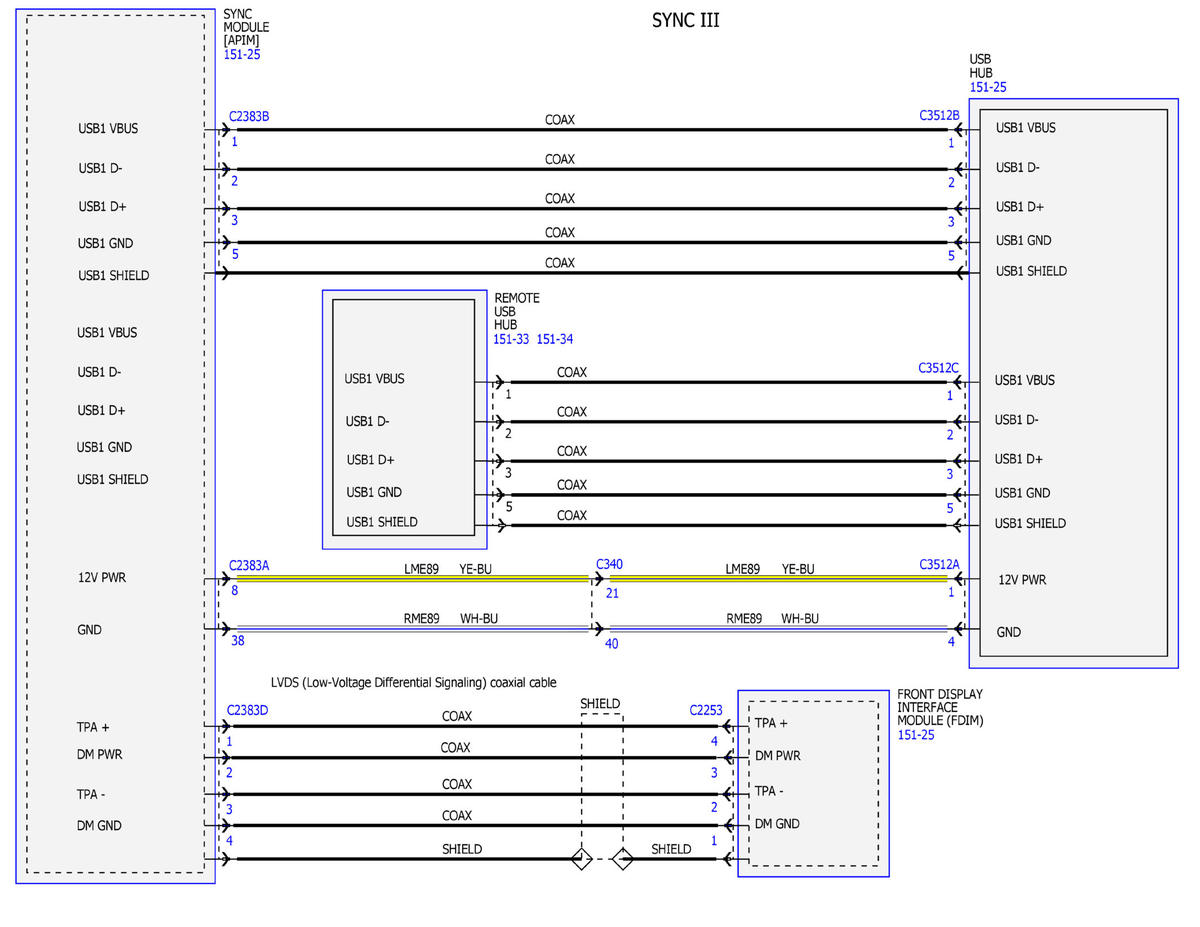

Fig 2: Audio System/Navigation - Fusion With Touchscreen/Without Sony Wiring Diagram (2 Of 11)
Courtesy of FORD MOTOR COMPANY

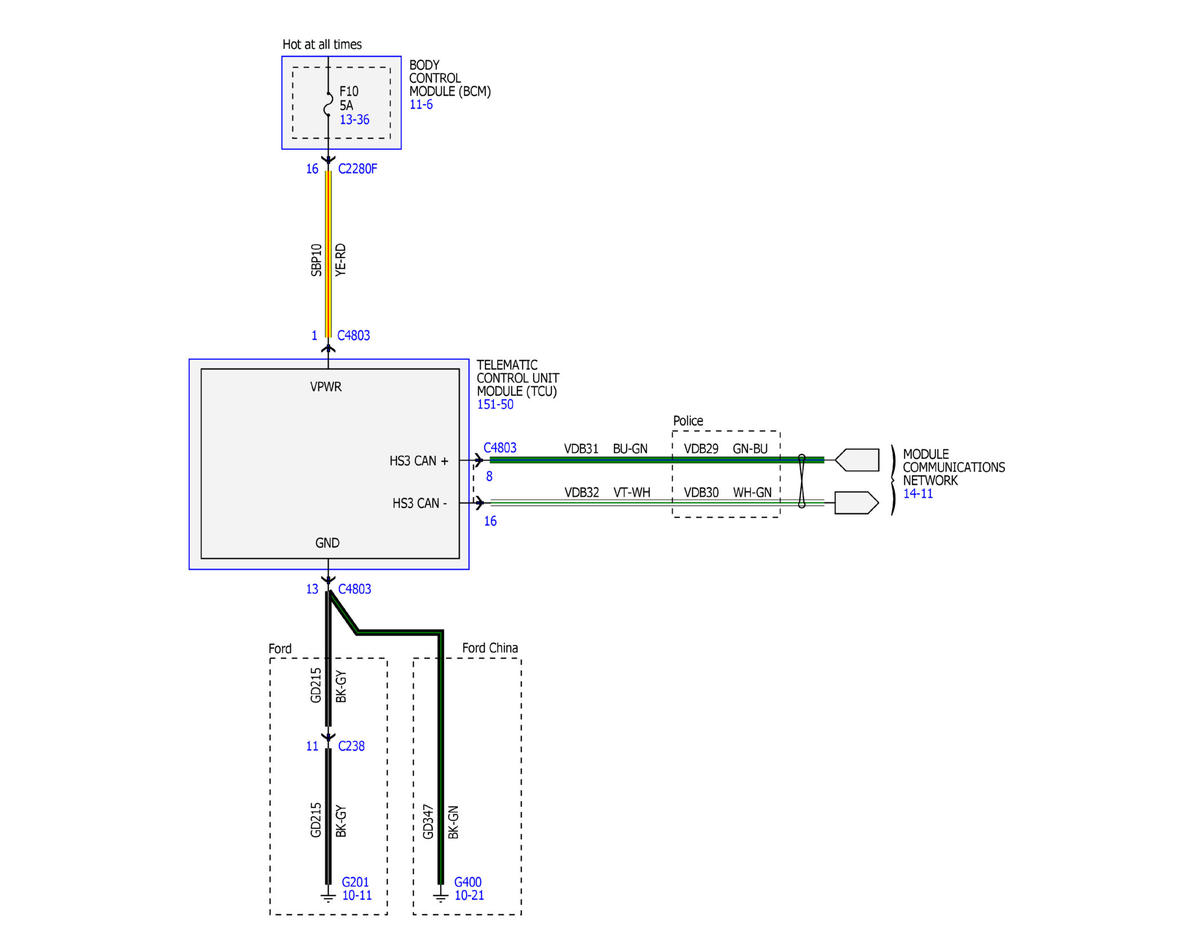

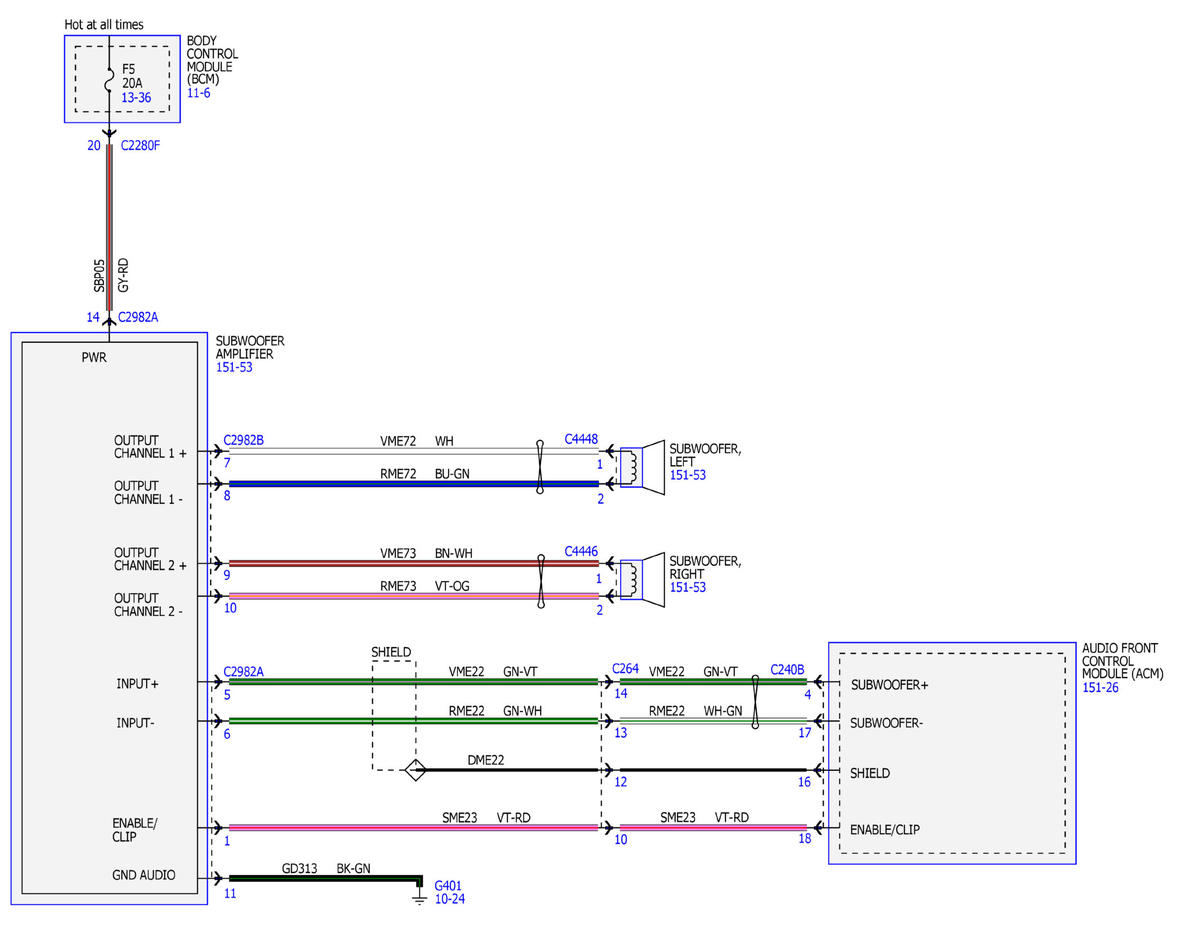

Fig 3: Audio System/Navigation - Fusion With Touchscreen/Without Sony Wiring Diagram (3 Of 11)
Courtesy of FORD MOTOR COMPANY

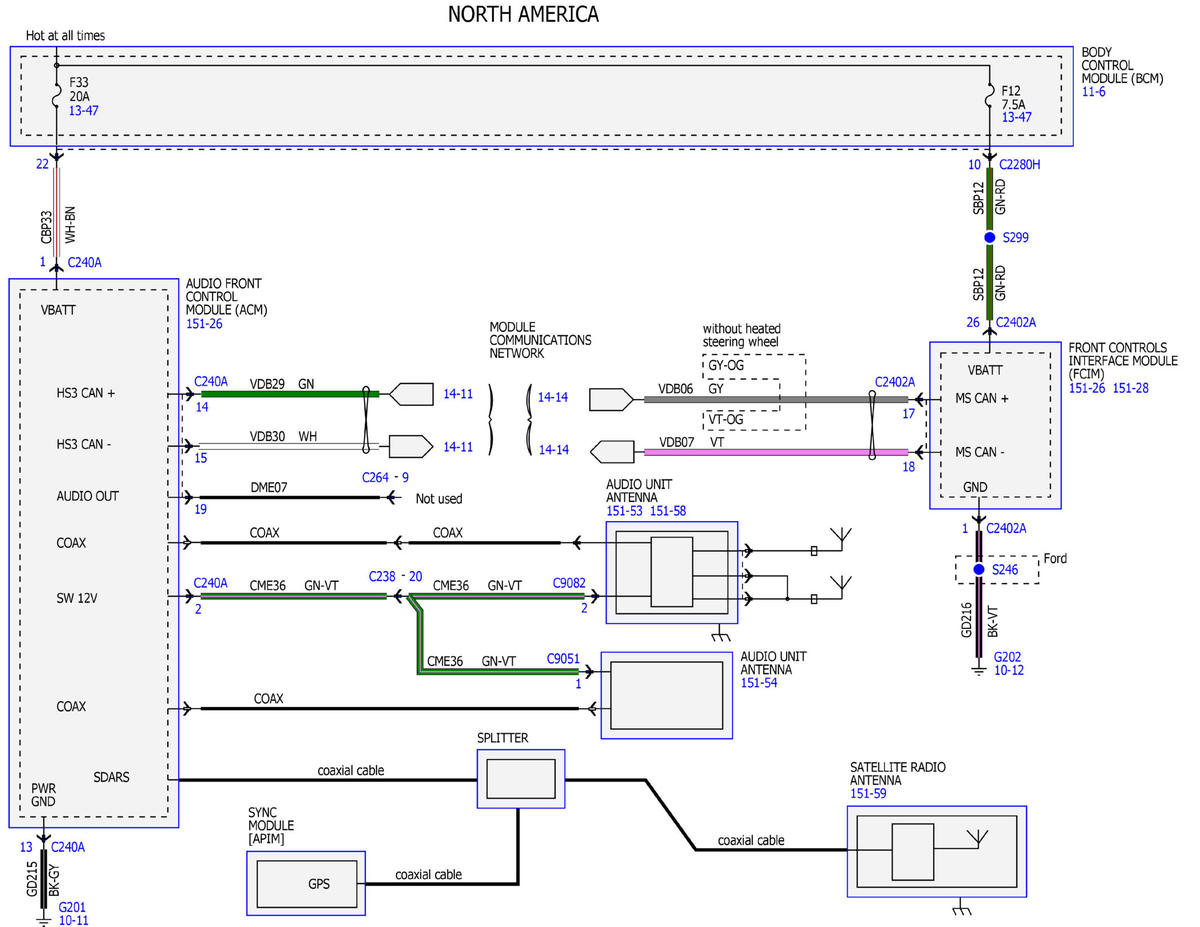

Fig 4: Audio System/Navigation - Fusion With Touchscreen/Without Sony Wiring Diagram (4 Of 11)
Courtesy of FORD MOTOR COMPANY

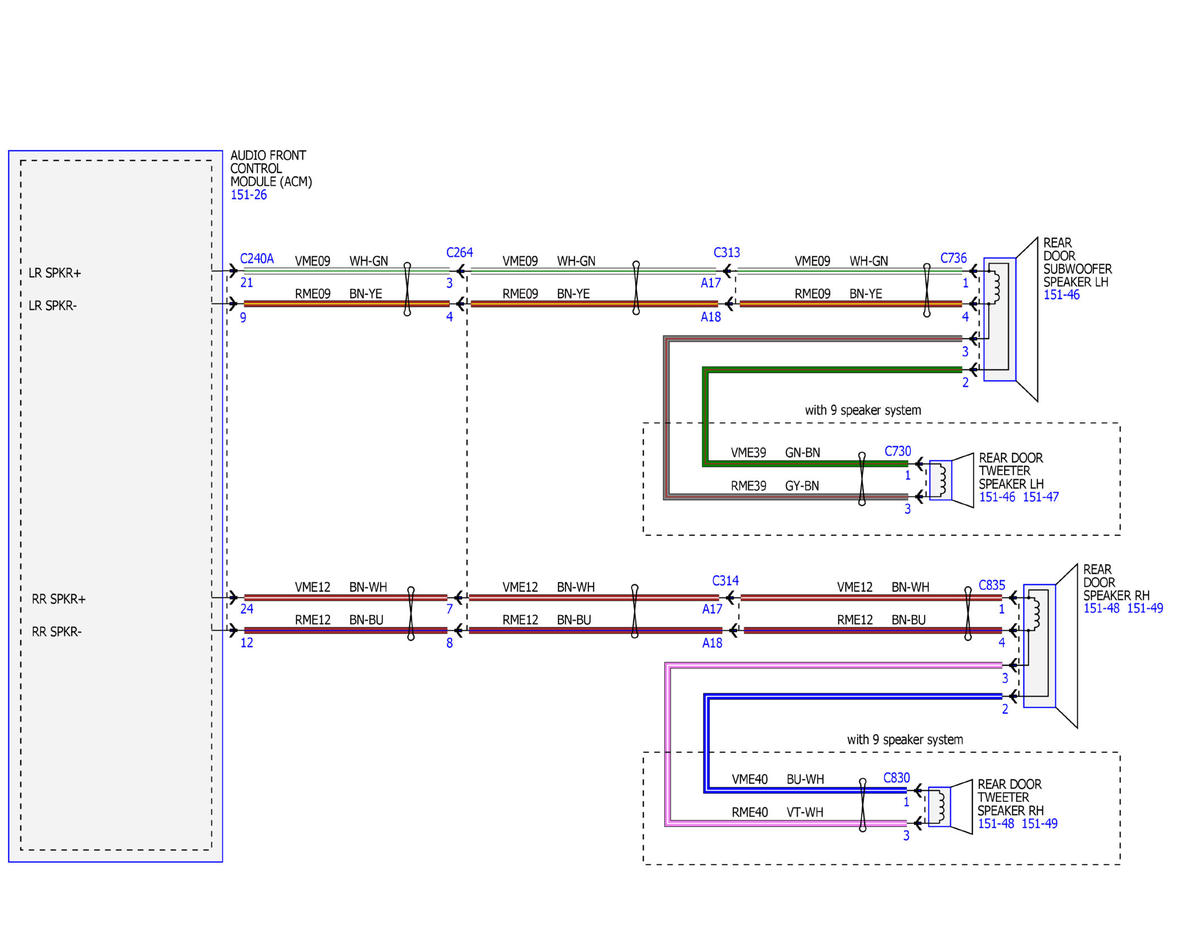

Fig 5: Audio System/Navigation - Fusion With Touchscreen/Without Sony Wiring Diagram (5 Of 11)
Courtesy of FORD MOTOR COMPANY

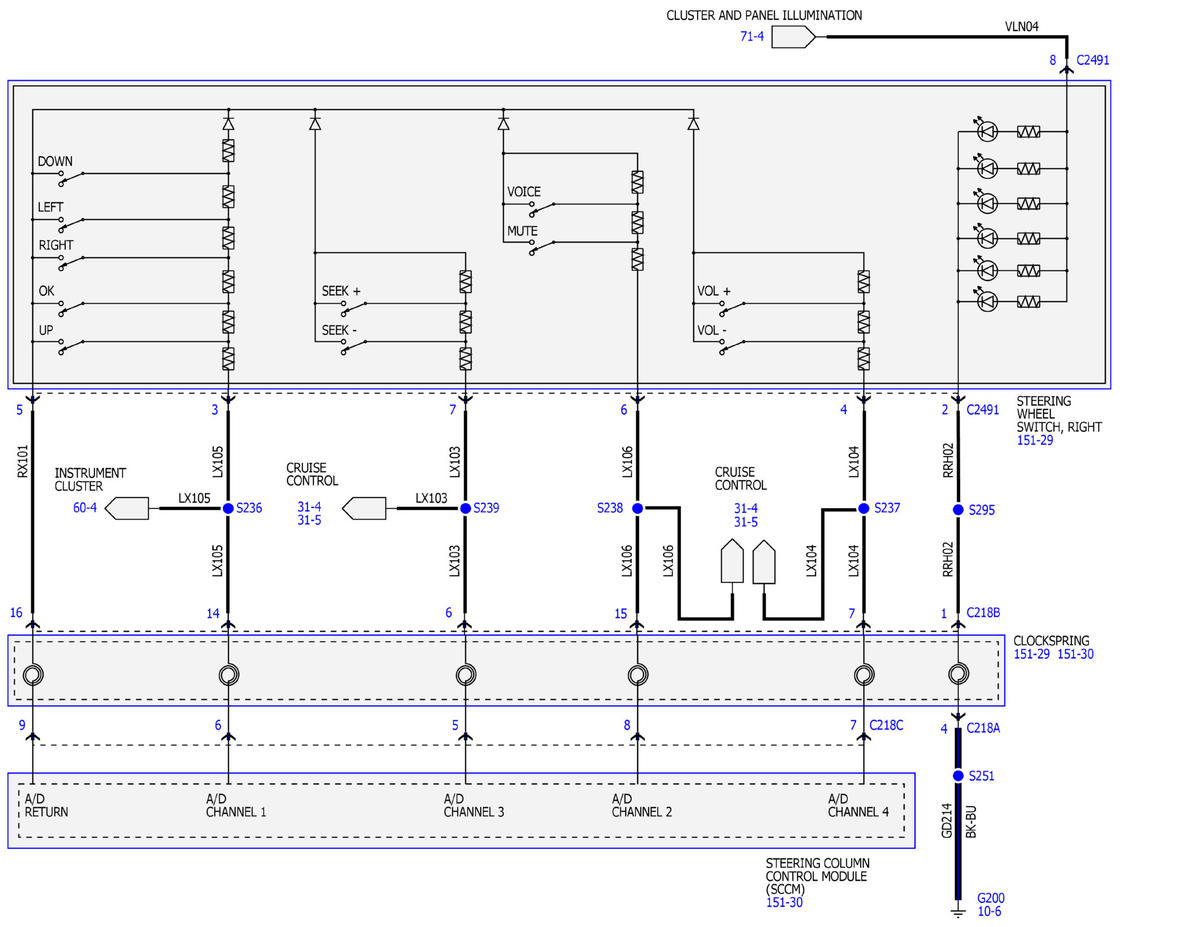

Fig 6: Audio System/Navigation - Fusion With Touchscreen/Without Sony Wiring Diagram (6 Of 11)
Courtesy of FORD MOTOR COMPANY

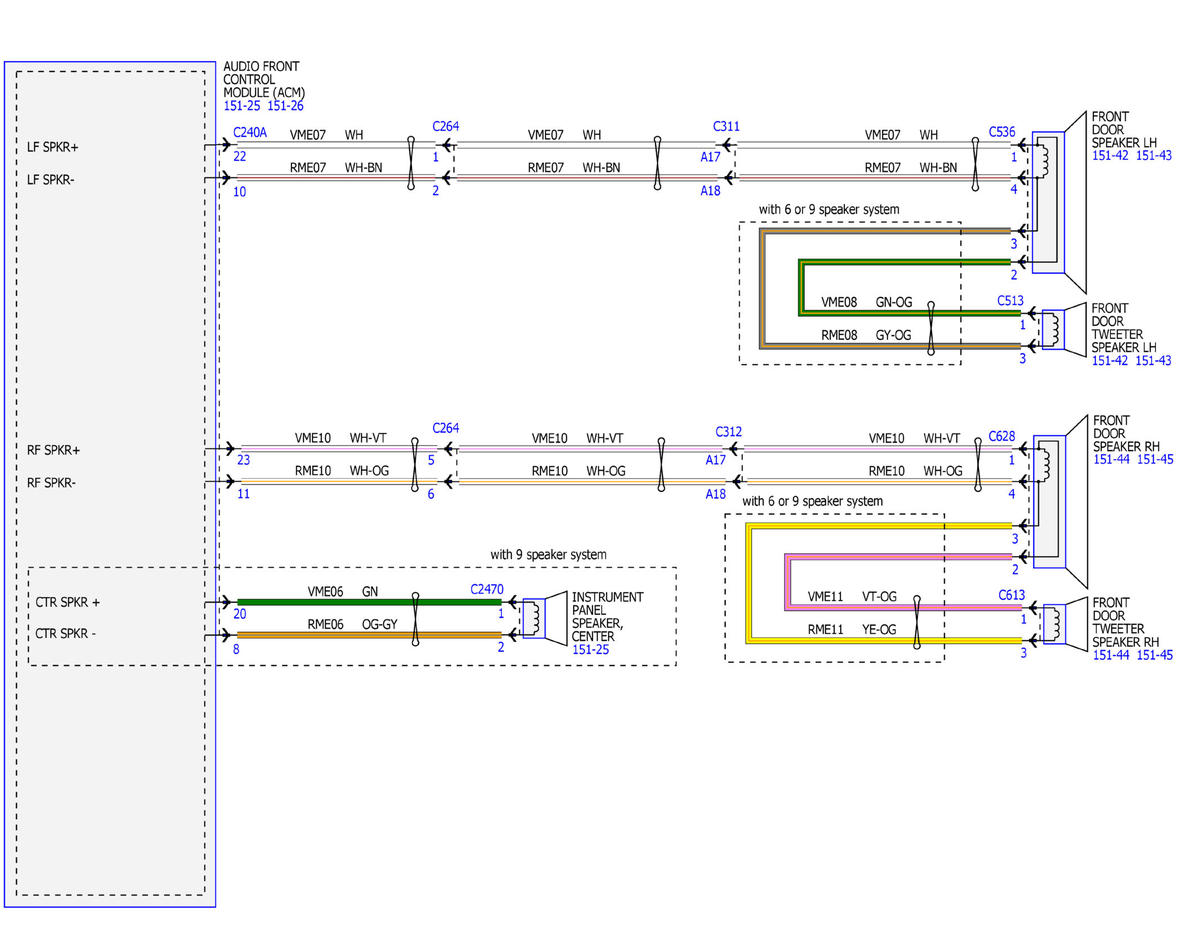

Fig 7: Audio System/Navigation - Fusion With Touchscreen/Without Sony Wiring Diagram (7 Of 11)
Courtesy of FORD MOTOR COMPANY

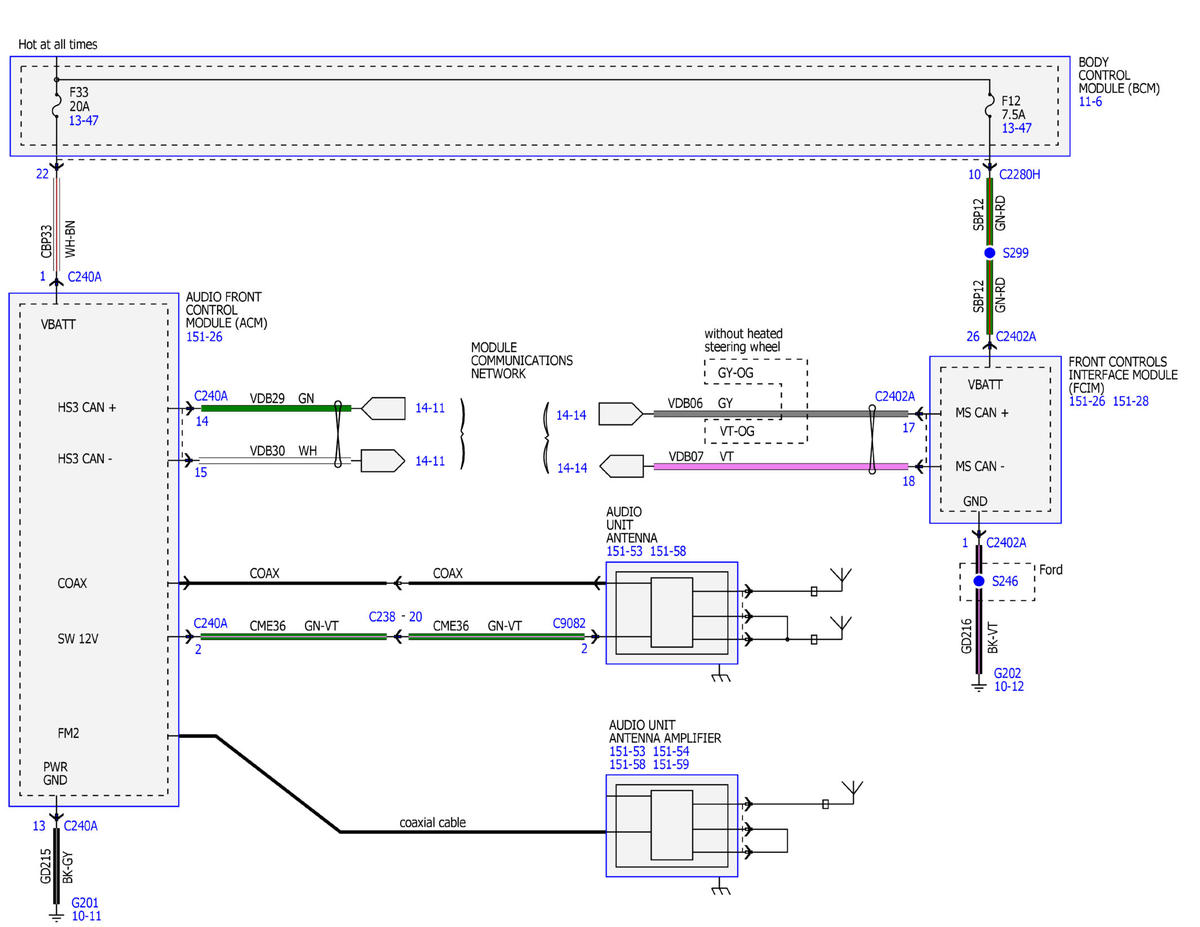

Fig 8: Audio System/Navigation - Fusion With Touchscreen/Without Sony Wiring Diagram (8 Of 11)
Courtesy of FORD MOTOR COMPANY
Fig 9: Audio System/Navigation - Fusion With Touchscreen/Without Sony Wiring Diagram (9 Of 11)
Courtesy of FORD MOTOR COMPANY
Fig 10: Audio System/Navigation - Fusion With Touchscreen/Without Sony Wiring Diagram (10 Of 11)
Courtesy of FORD MOTOR COMPANY
Fig 11: Audio System/Navigation - Fusion With Touchscreen/Without Sony Wiring Diagram (11 Of 11)
