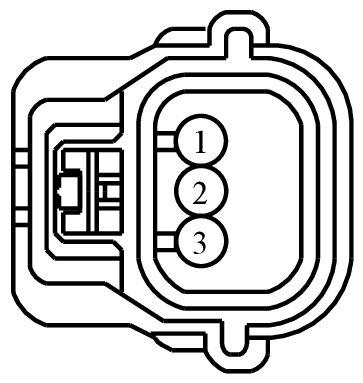

Connector End View (C1608) - FRONT ACTIVE PARK ASSIST SENSOR RH
WARNING: This page is about a different car, the 2019 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Connector Viewer - 150
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C1608 | FRONT ACTIVE PARK ASSIST SENSOR RH | 15K867 | part# N/A | See Below | ||
Check for Terminal Part Numbers
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 3F2T-14474-SA | DU2Z-14474-BA | 0.64 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number |
|---|---|---|---|---|---|
| 1 | LMP06 (VT-GY) | 18 | CTRL MOD. - PARKING AID # SENSORS FRONT + | Lincoln | 3F2T-14474-SA |
| 1 | LMP06 (VT-GY) | 22 | CTRL MOD. - PARKING AID # SENSORS FRONT + | Ford | N/A |
| 2 | VMP21 (WH-BN) | 22 | SENSOR - PARKING AID # ACTIVE PARK ASSIST (AUTOPARK) FRONT RIGHT SIDE | Ford | N/A |
| 2 | VMP21 (WH-BN) | 18 | SENSOR - PARKING AID # ACTIVE PARK ASSIST (AUTOPARK) FRONT RIGHT SIDE | Lincoln | 3F2T-14474-SA |
| 3 | RMP06 (YE-OG) | 18 | CTRL MOD. - PARKING AID # SENSORS FRONT - | Lincoln | 3F2T-14474-SA |
| 3 | RMP06 (YE-OG) | 22 | CTRL MOD. - PARKING AID # SENSORS FRONT - | Ford | N/A |
Available Pigtail Kits
Pigtail Kit Part Number WPT-1394
Service Part Number:
AU2Z-14S411-AFB
Gauge:
20
Pin material:
Silver
Cavities:
3
Vehicle Uses:
- Sensor - Front Park Aid (FPA)
Pigtail Kit Part Number WPT-1095
Service Part Number:
AU2Z-14S411-AFA
Gauge:
18
Pin material:
Silver
Cavities:
3
Vehicle Uses:
- Sensor - Front Park Aid (FPA)
