Fusion Titanium, FWD
>>
Repair and Diagnosis
>>
Electrical
>>
Wiring Diagrams
>>
OEM Wiring Diagrams (Except Hybrid)
>>
Wipers and Washers
Wipers and Washers

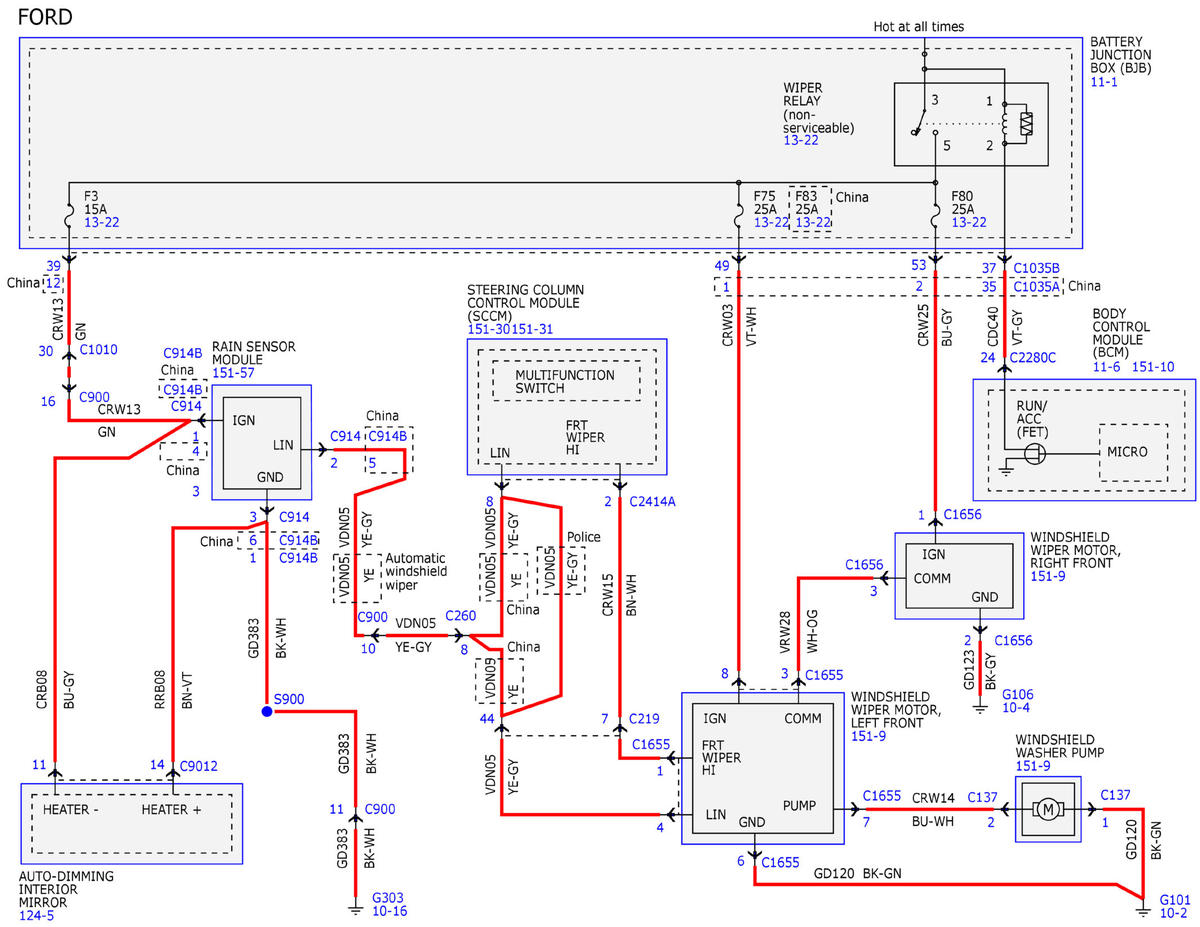

Fig 1: Wipers and Washers Wiring Diagram (1 Of 2)
Courtesy of FORD MOTOR COMPANY

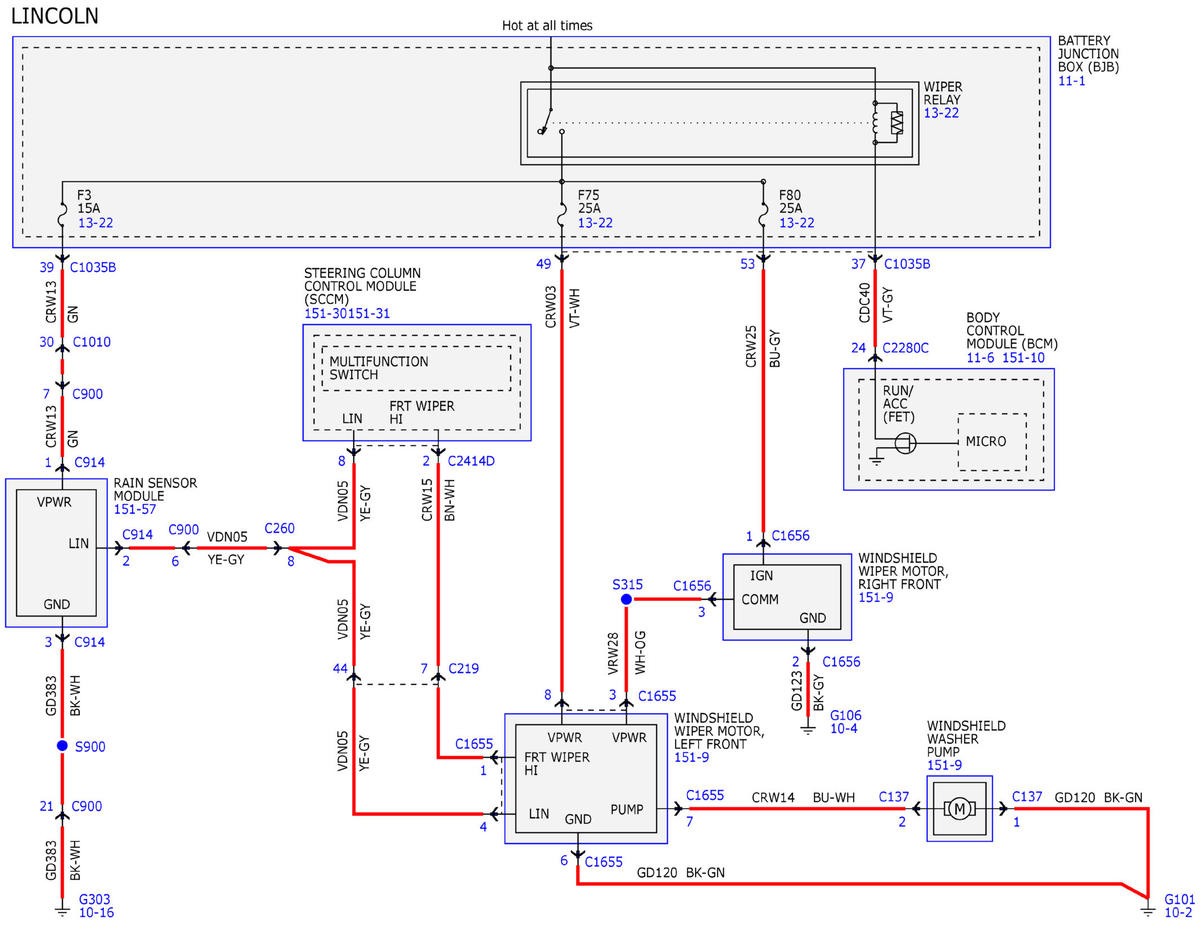

Fig 2: Wipers and Washers Wiring Diagram (2 Of 2)
Courtesy of FORD MOTOR COMPANY
