Remote Keyless Entry and Alarm

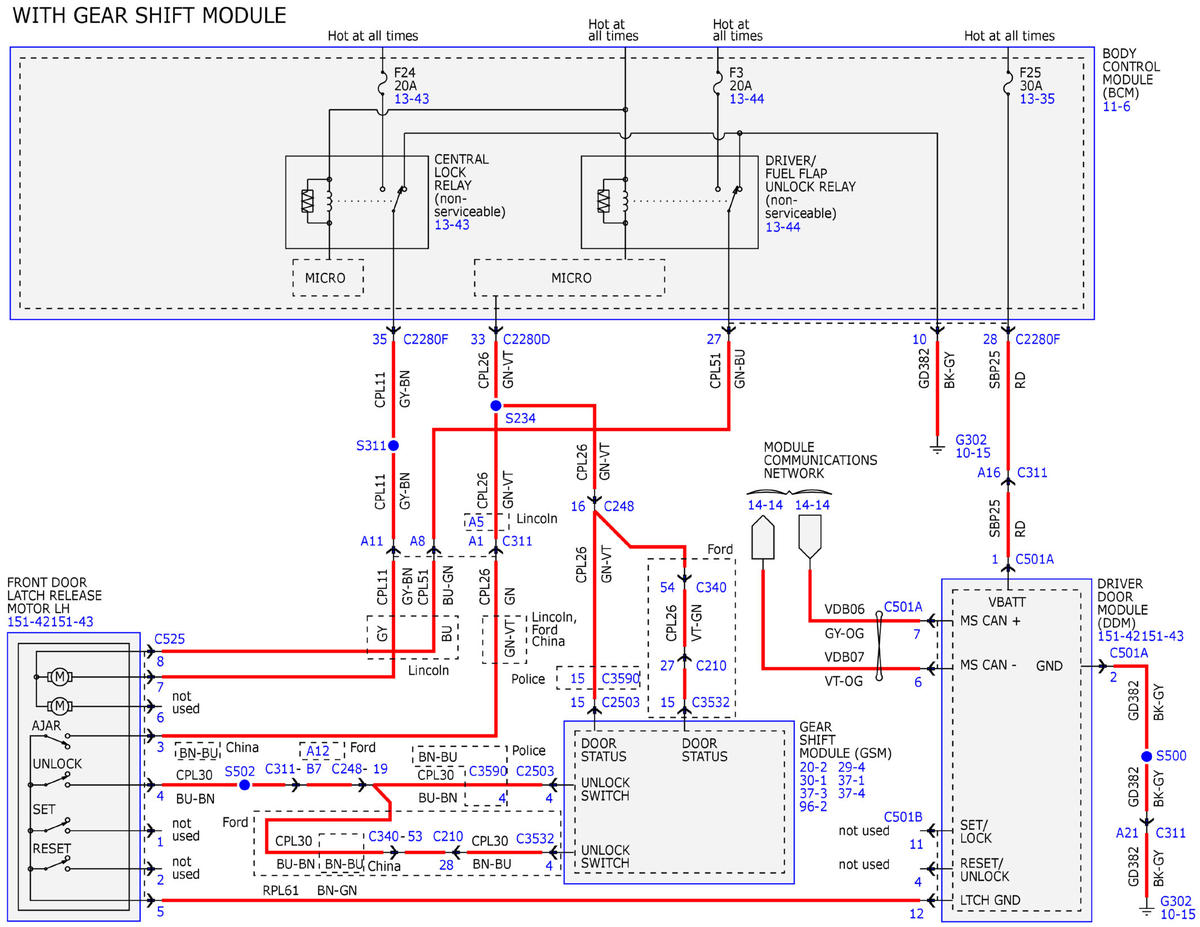

Fig 1: Remote Keyless Entry and Alarm Wiring Diagram (1 Of 21)

GFDWR89738

Courtesy of FORD MOTOR COMPANY

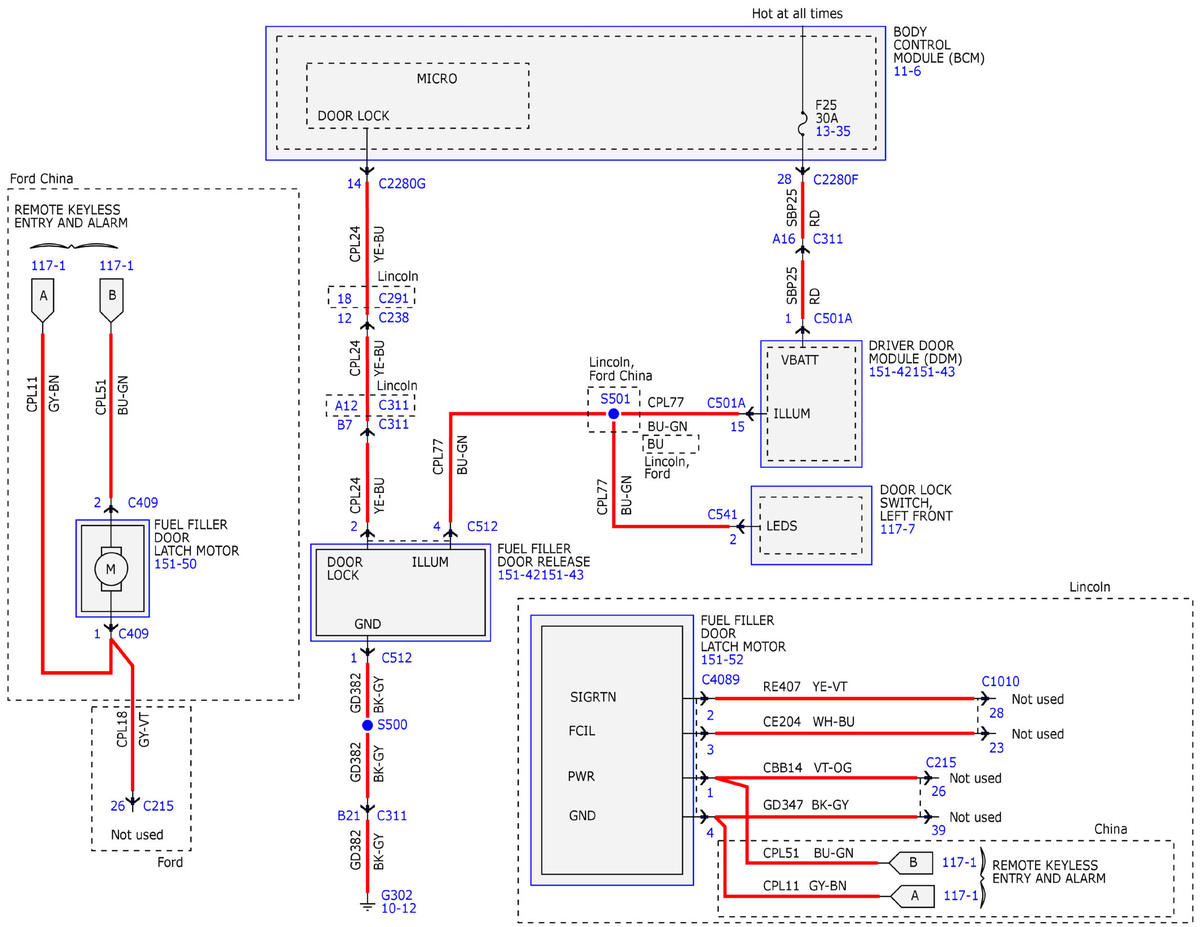

Fig 2: Remote Keyless Entry and Alarm Wiring Diagram (2 Of 21)

GFDWR89739

Courtesy of FORD MOTOR COMPANY

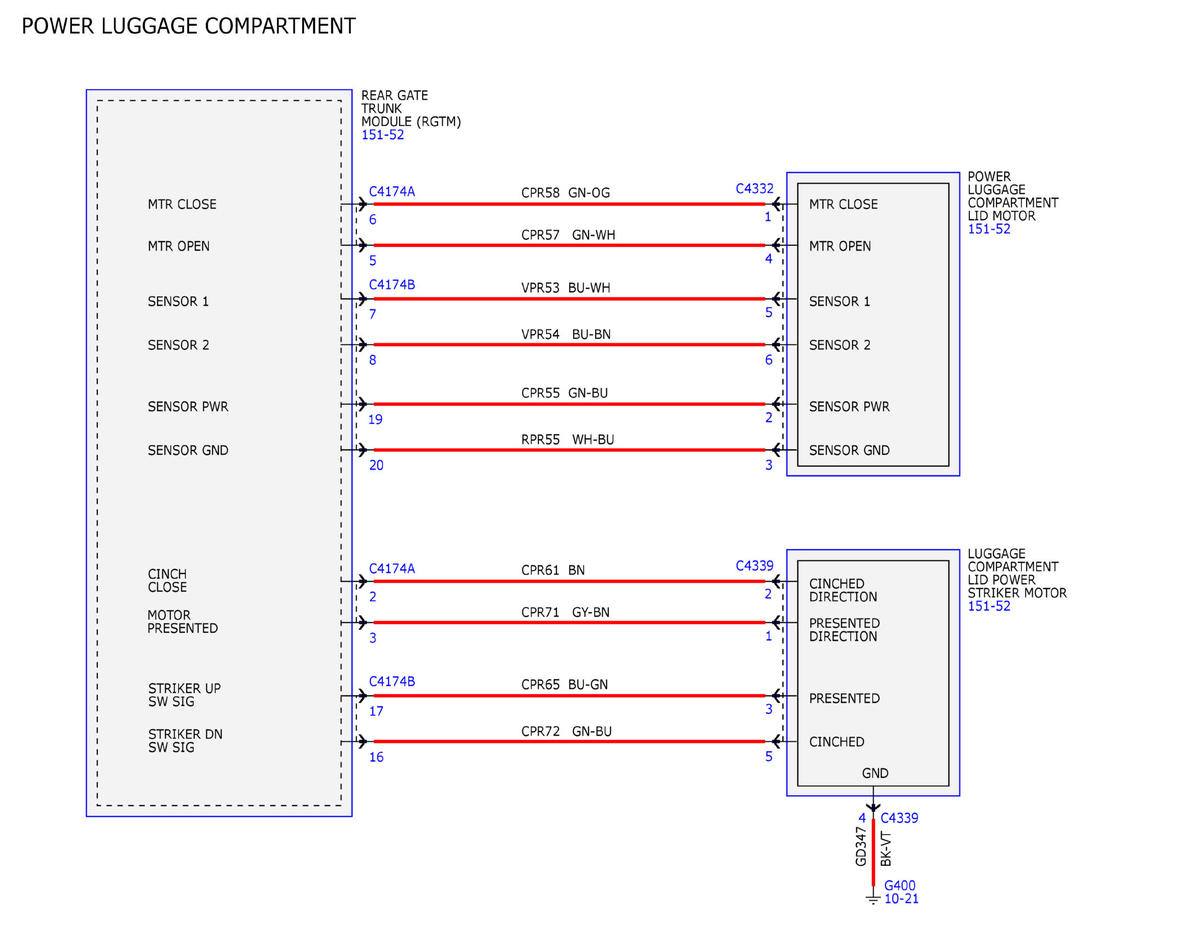

Fig 3: Remote Keyless Entry and Alarm Wiring Diagram (3 Of 21)

GFDWR89740

Courtesy of FORD MOTOR COMPANY

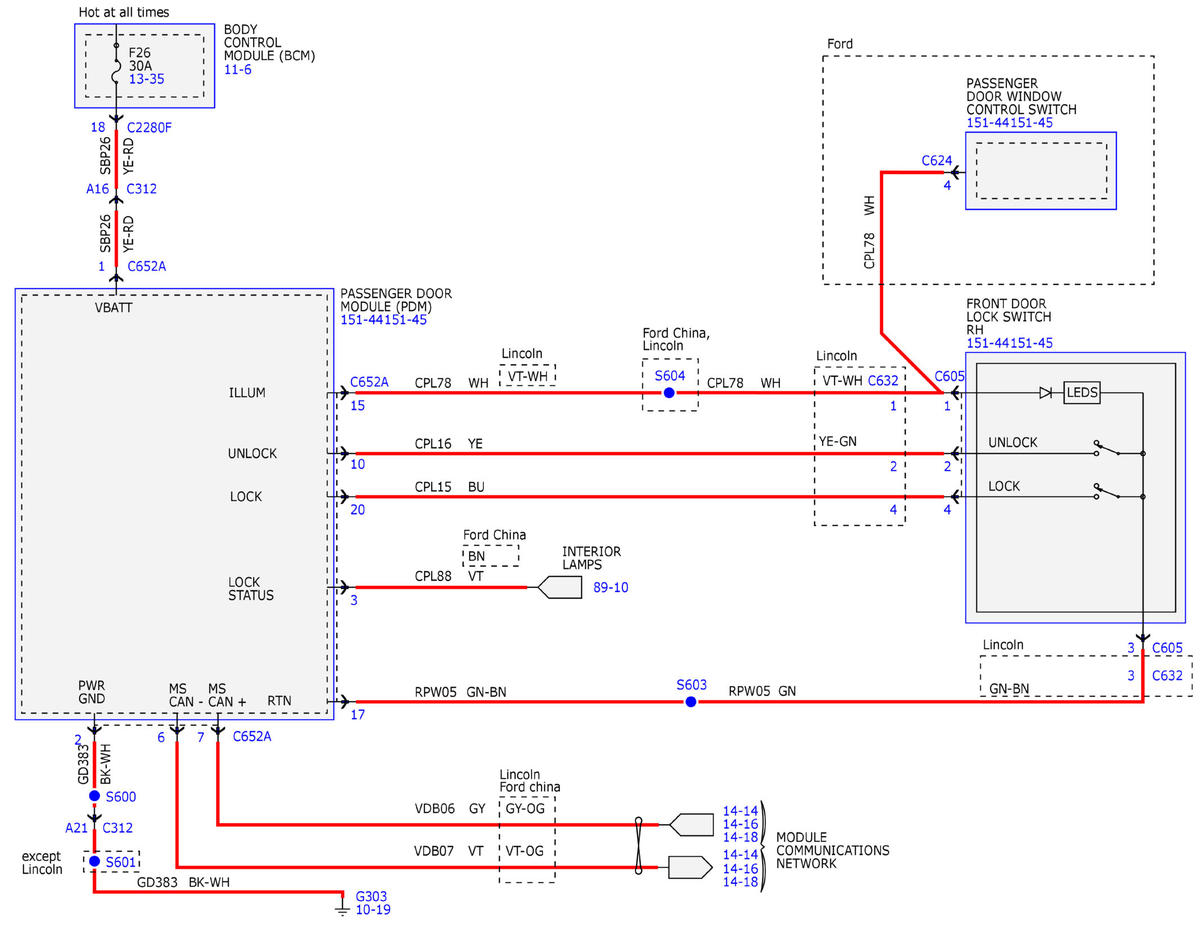

Fig 4: Remote Keyless Entry and Alarm Wiring Diagram (4 Of 21)

GFDWR89741

Courtesy of FORD MOTOR COMPANY

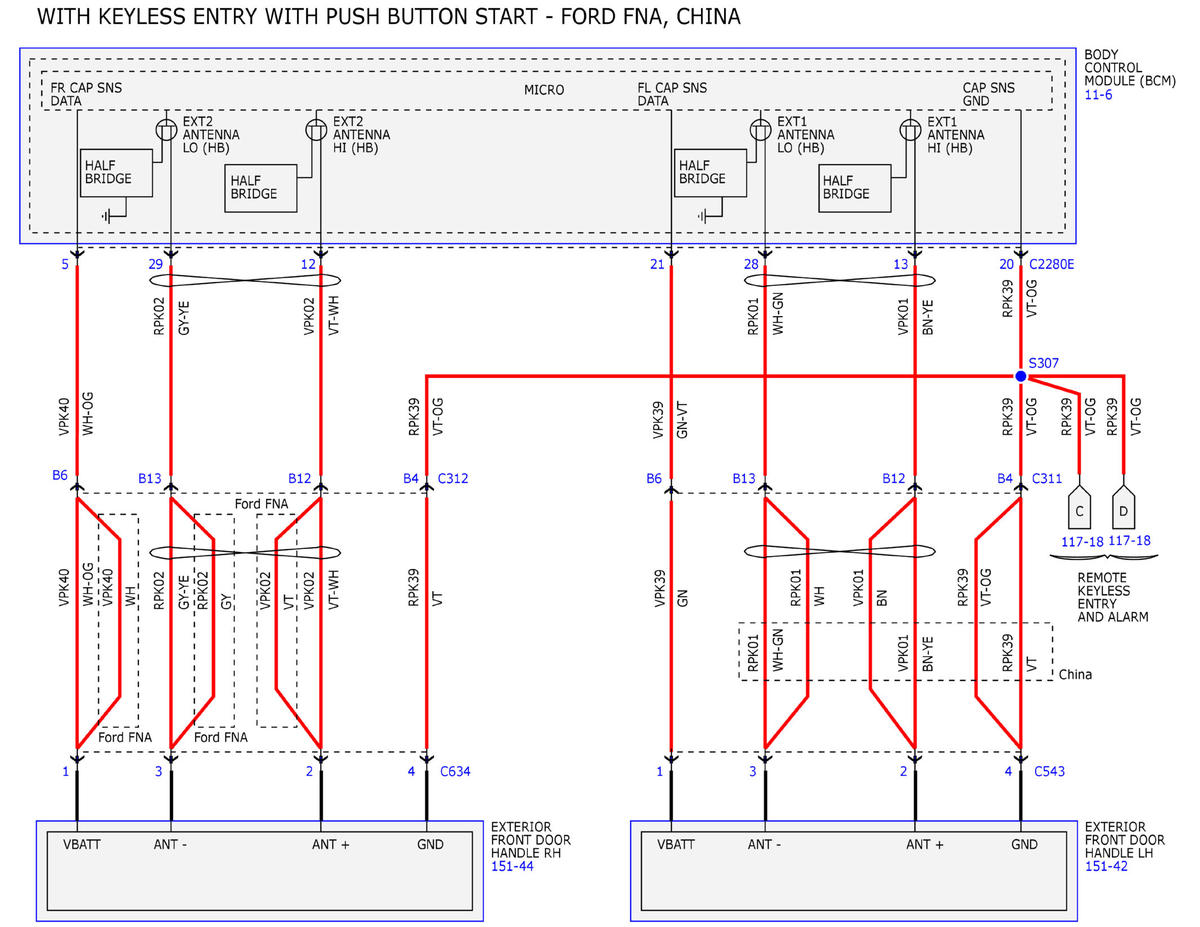

Fig 5: Remote Keyless Entry and Alarm Wiring Diagram (5 Of 21)

GFDWR89742

Courtesy of FORD MOTOR COMPANY

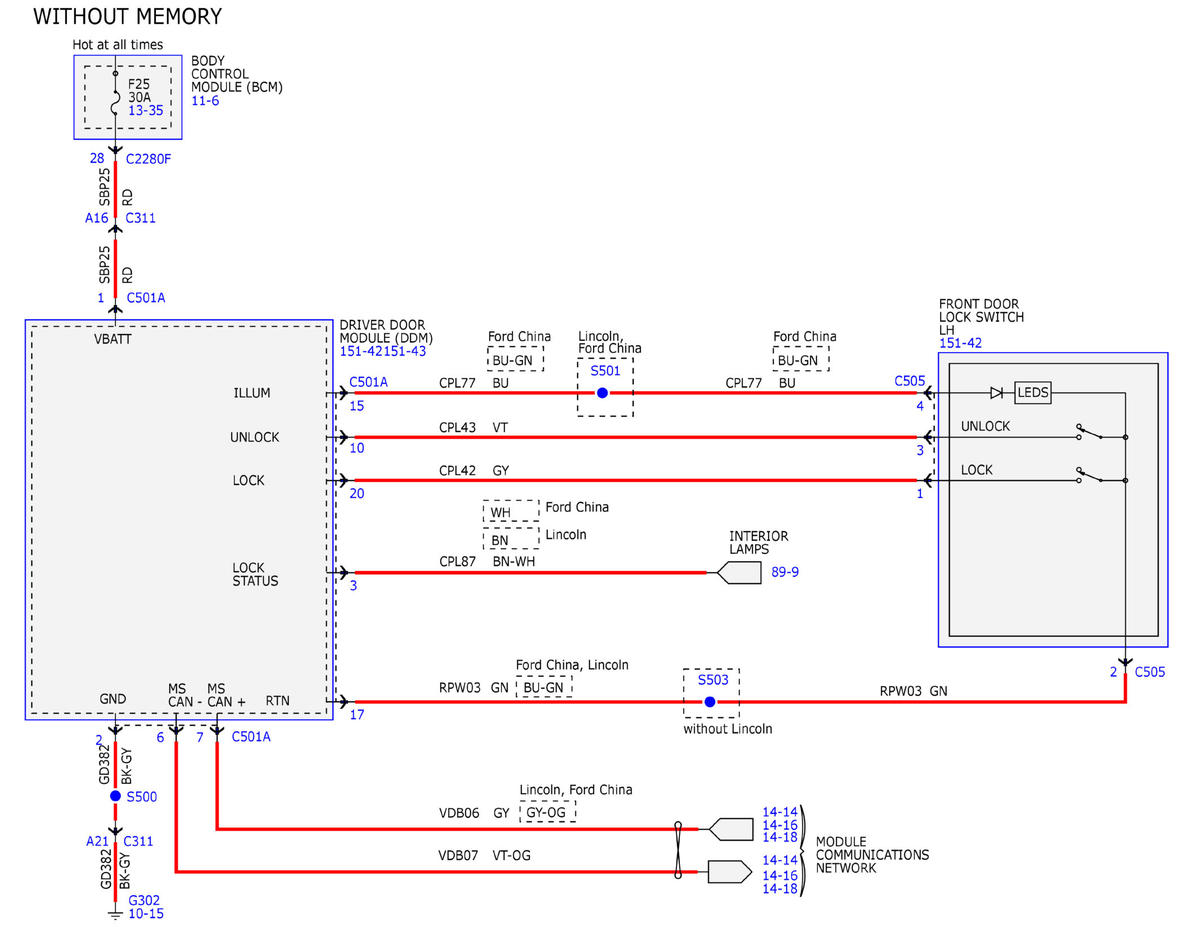

Fig 6: Remote Keyless Entry and Alarm Wiring Diagram (6 Of 21)

GFDWR89743

Courtesy of FORD MOTOR COMPANY

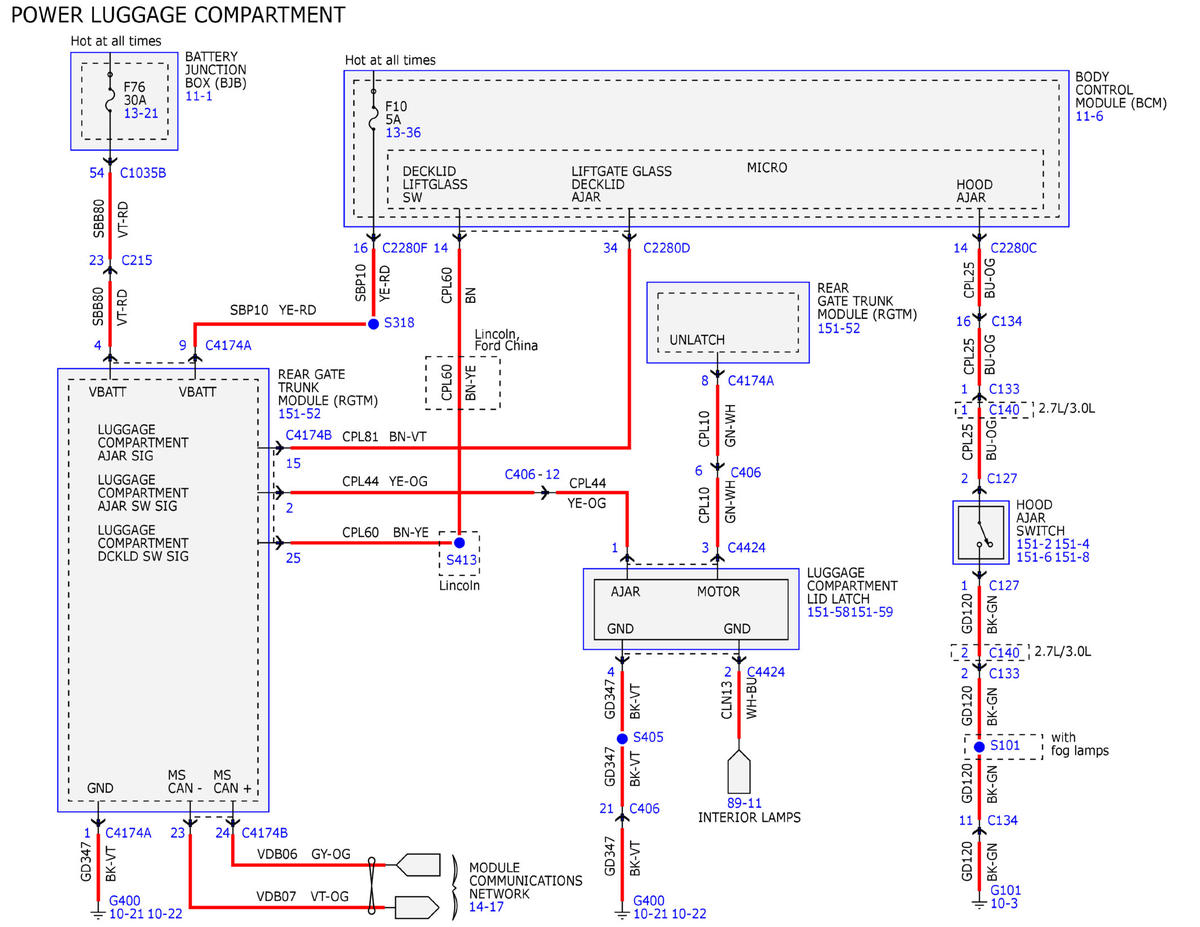

Fig 7: Remote Keyless Entry and Alarm Wiring Diagram (7 Of 21)

GFDWR89744

Courtesy of FORD MOTOR COMPANY

Fig 8: Remote Keyless Entry and Alarm Wiring Diagram (8 Of 21)

GFDWR89745

Courtesy of FORD MOTOR COMPANY

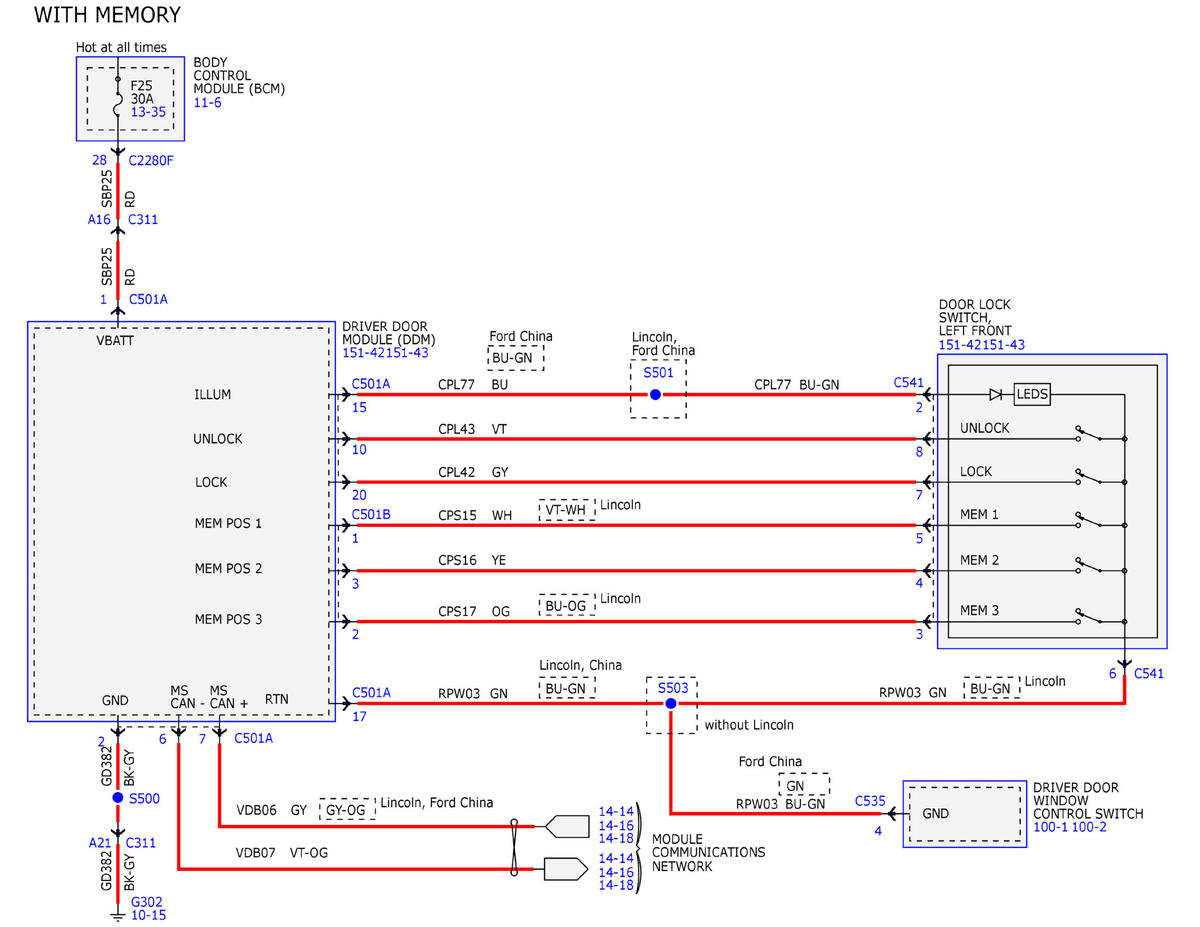

Fig 9: Remote Keyless Entry and Alarm Wiring Diagram (9 Of 21)

GFDWR89746

Courtesy of FORD MOTOR COMPANY

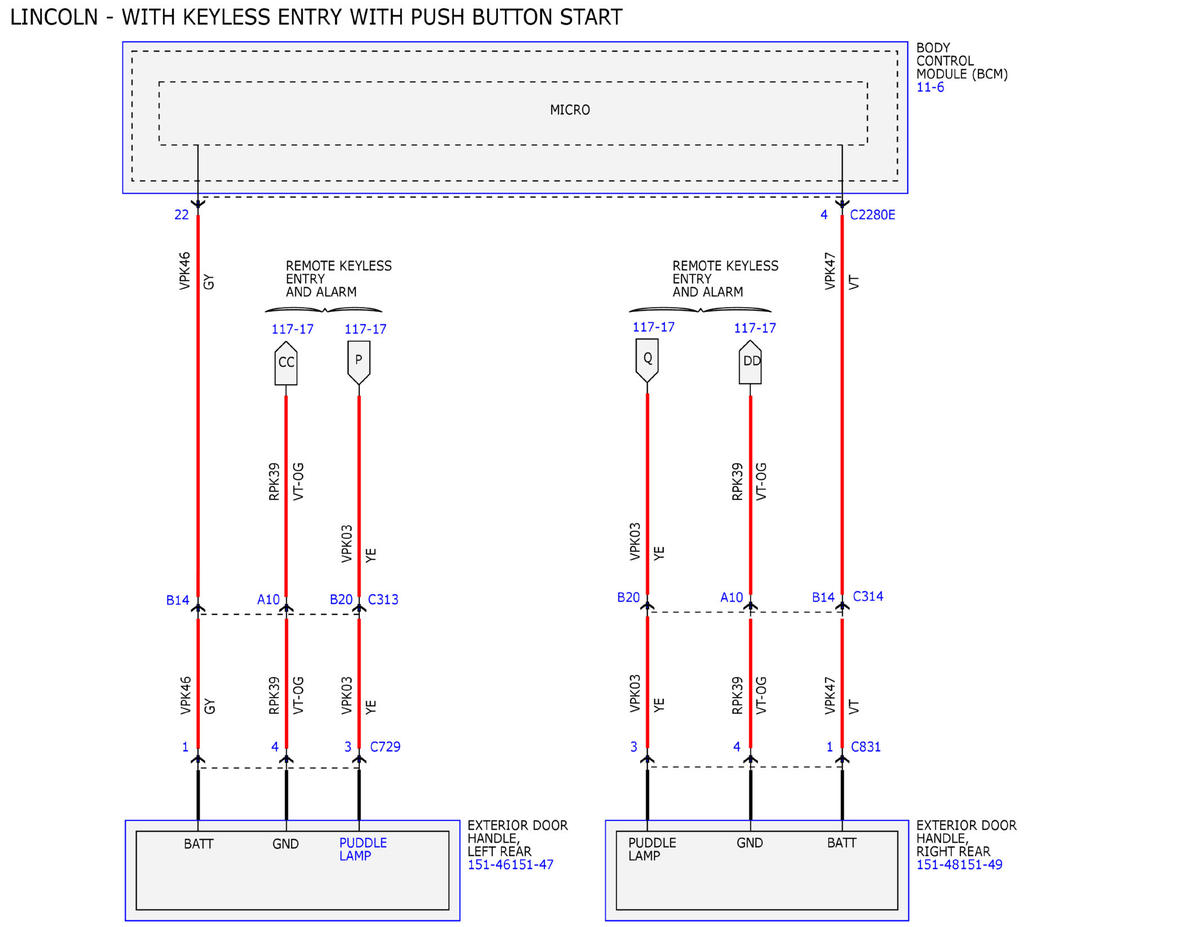

Fig 10: Remote Keyless Entry and Alarm Wiring Diagram (10 Of 21)

GFDWR89747

Courtesy of FORD MOTOR COMPANY

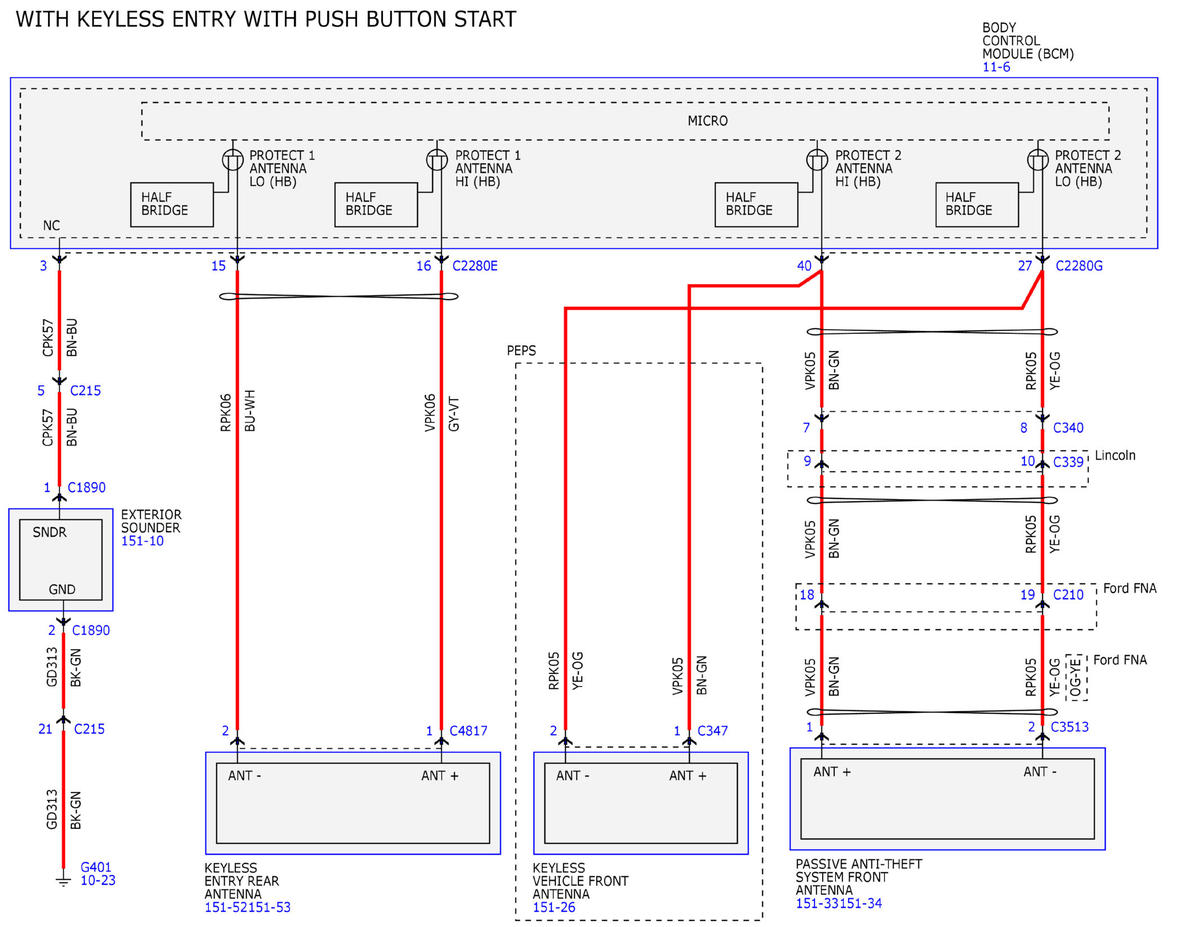

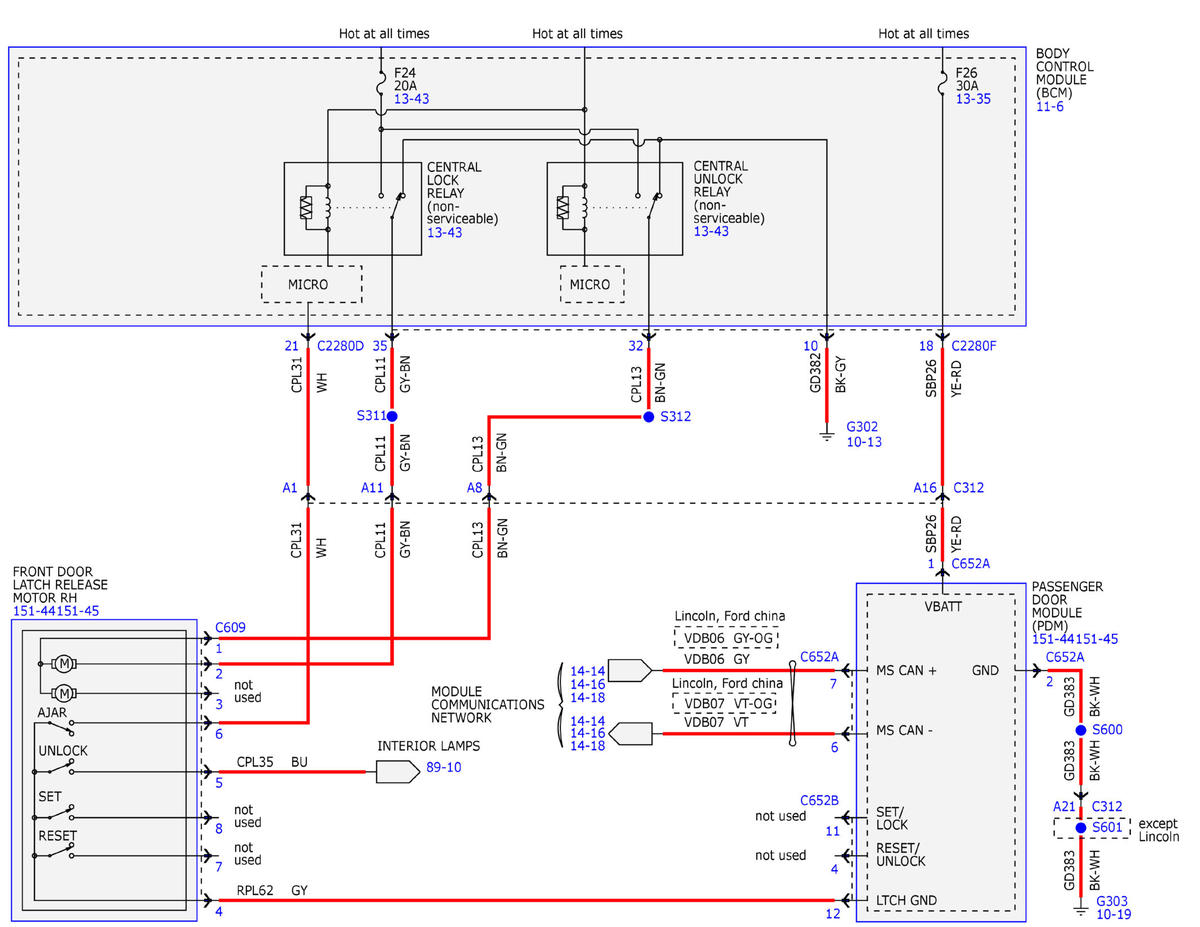

Fig 11: Remote Keyless Entry and Alarm Wiring Diagram (11 Of 21)

GFDWR89748

Courtesy of FORD MOTOR COMPANY

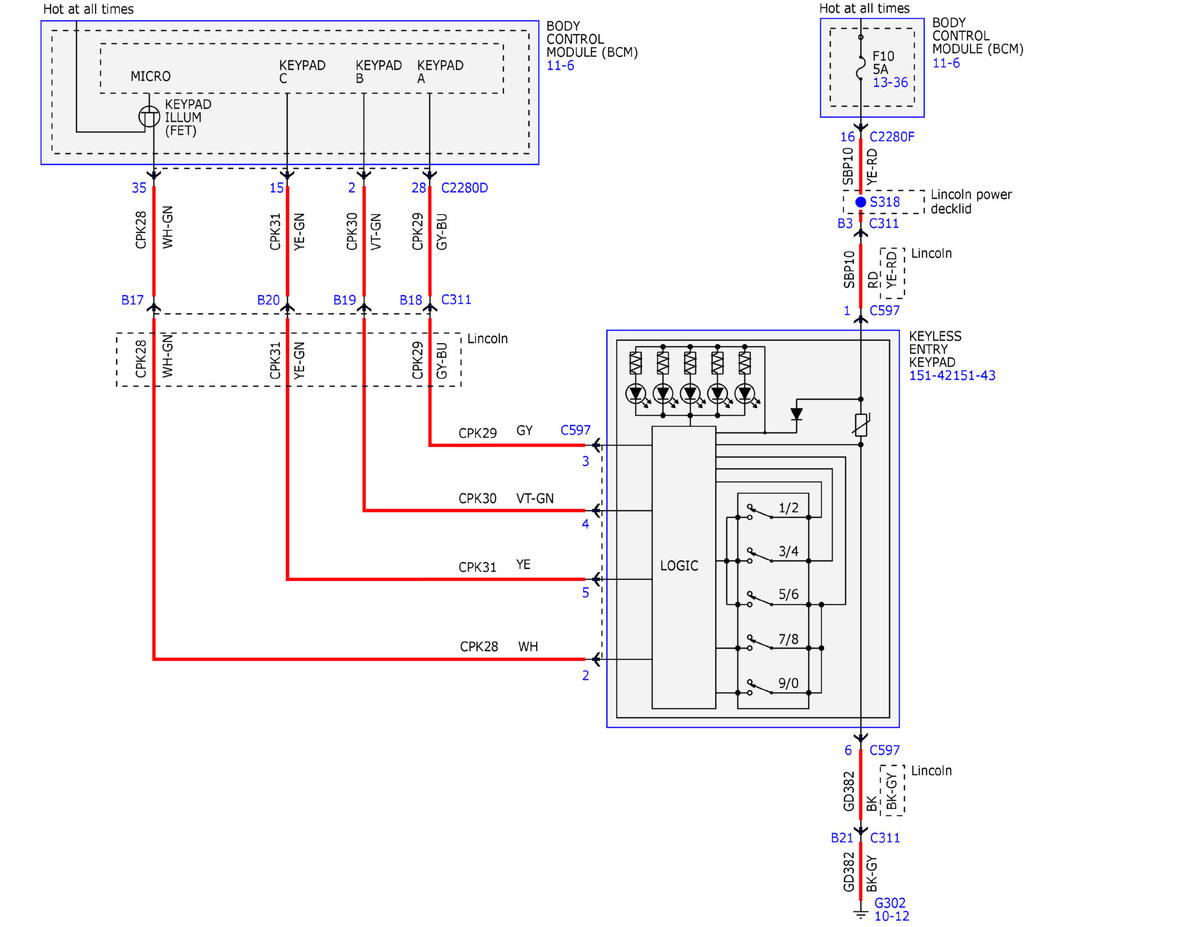

Fig 12: Remote Keyless Entry and Alarm Wiring Diagram (12 Of 21)

GFDWR89749

Courtesy of FORD MOTOR COMPANY

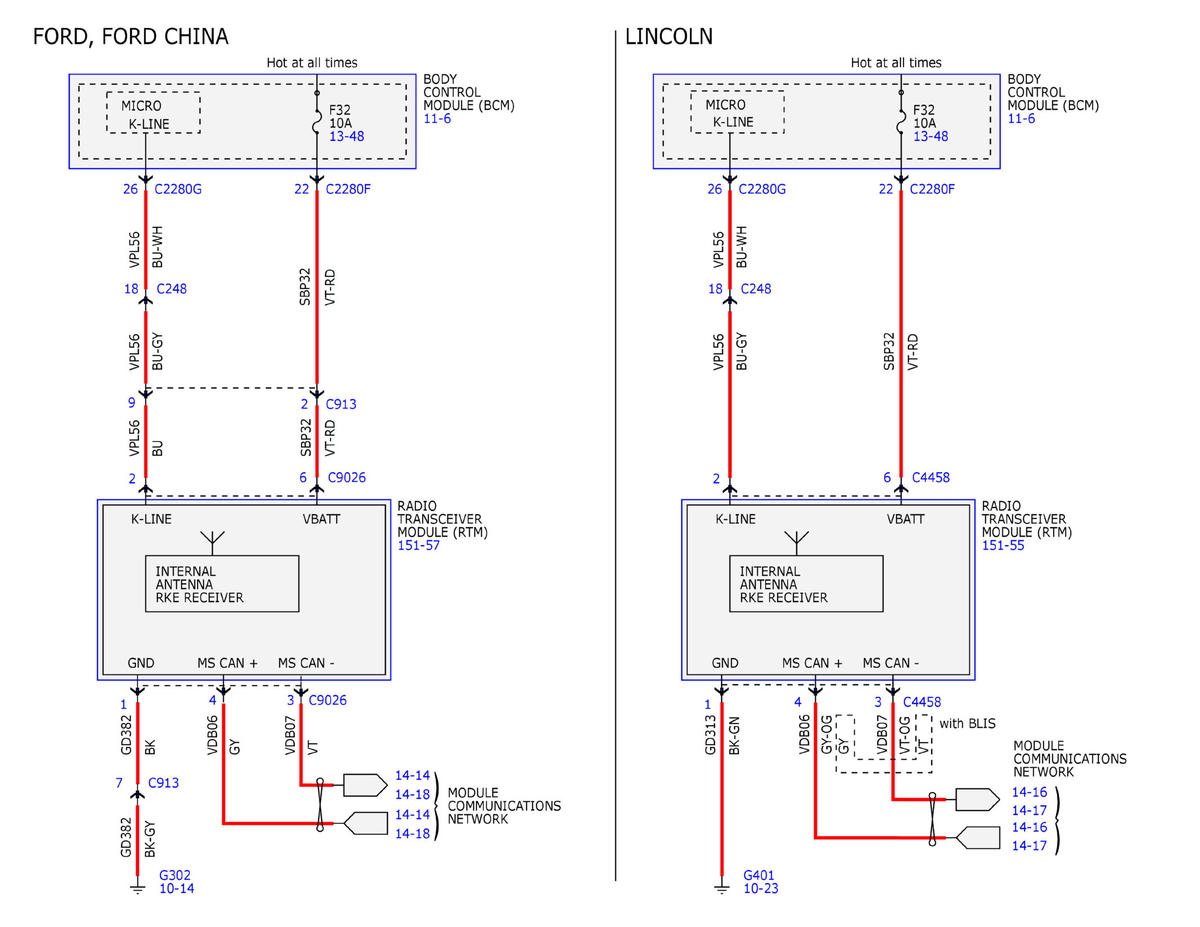

Fig 13: Remote Keyless Entry and Alarm Wiring Diagram (13 Of 21)

GFDWR89750

Courtesy of FORD MOTOR COMPANY

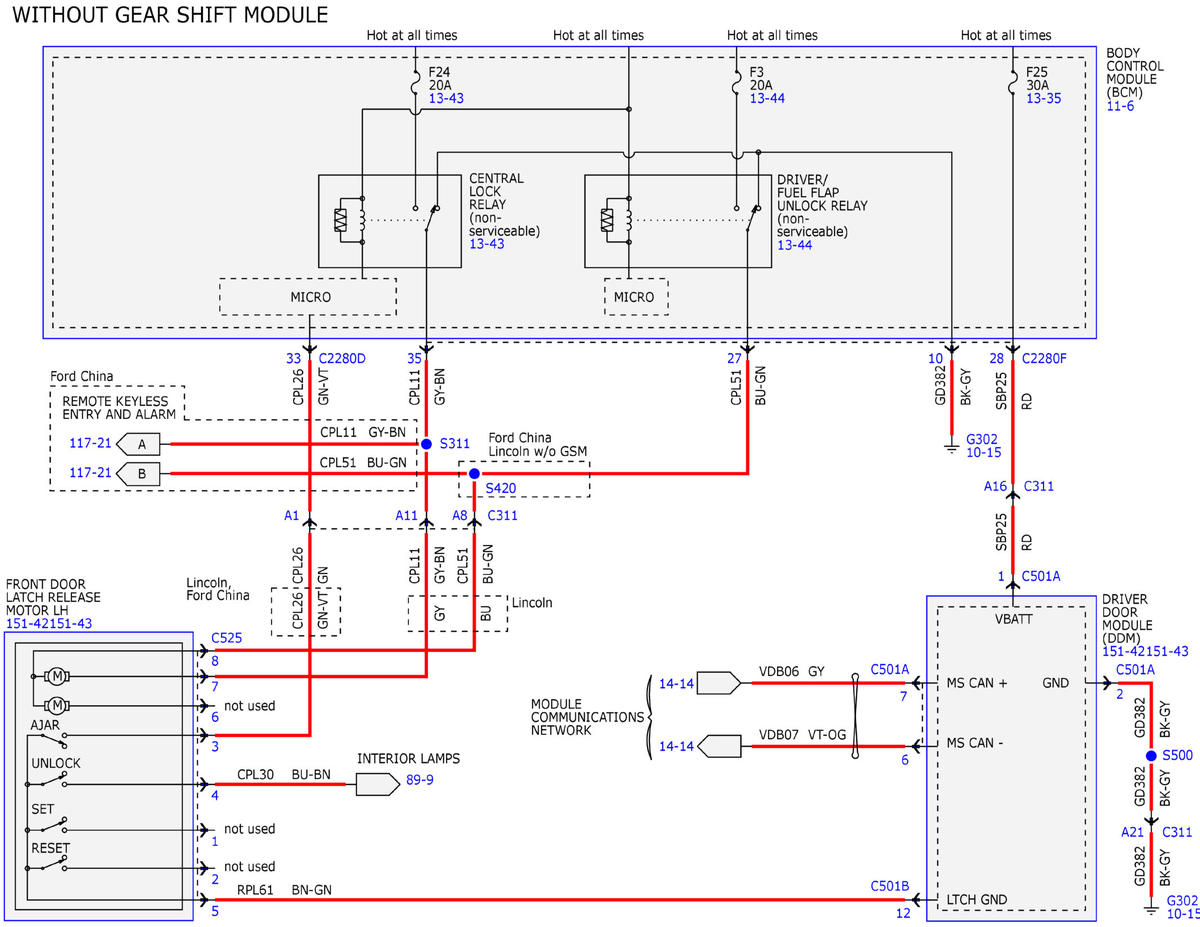

Fig 14: Remote Keyless Entry and Alarm Wiring Diagram (14 Of 21)

GFDWR89751

Courtesy of FORD MOTOR COMPANY

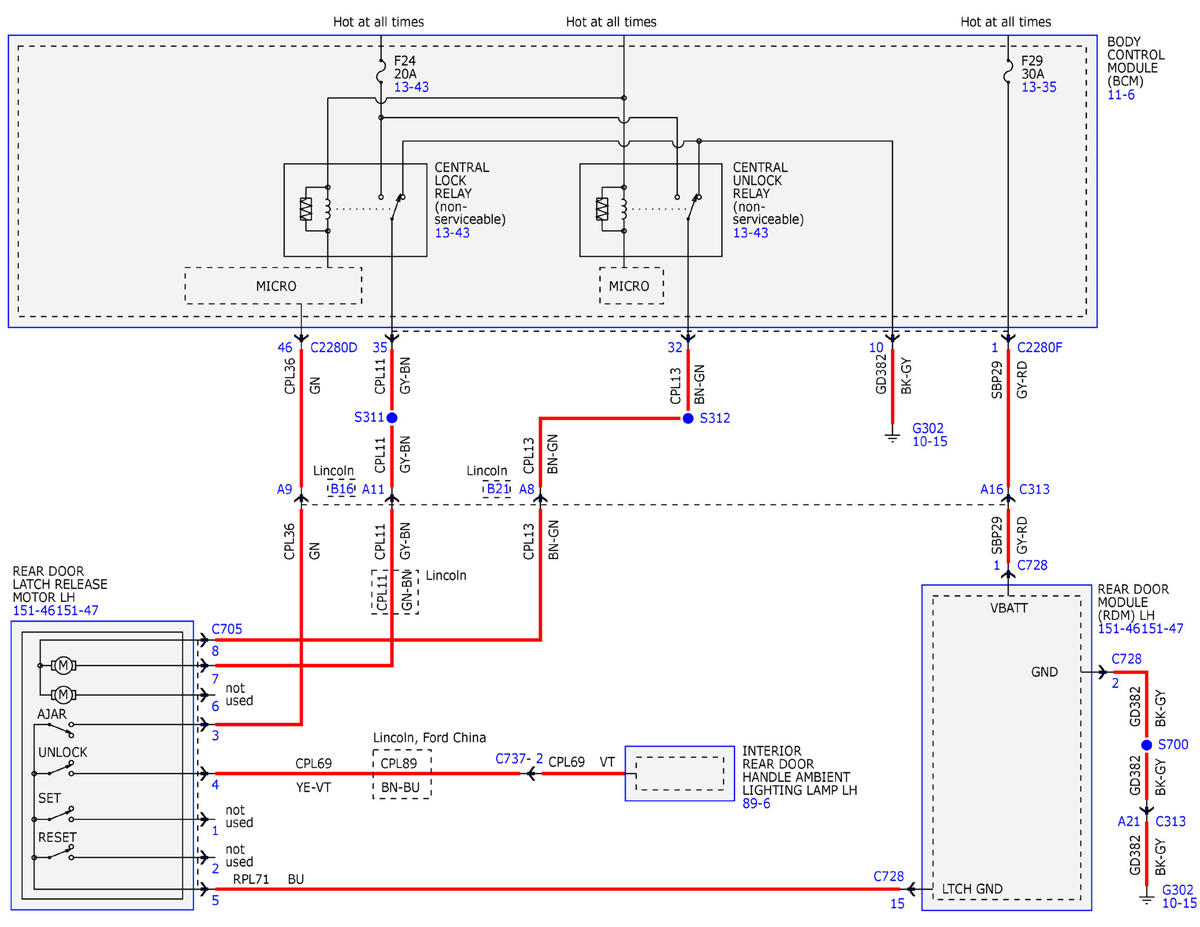

Fig 15: Remote Keyless Entry and Alarm Wiring Diagram (15 Of 21)

GFDWR89752

Courtesy of FORD MOTOR COMPANY

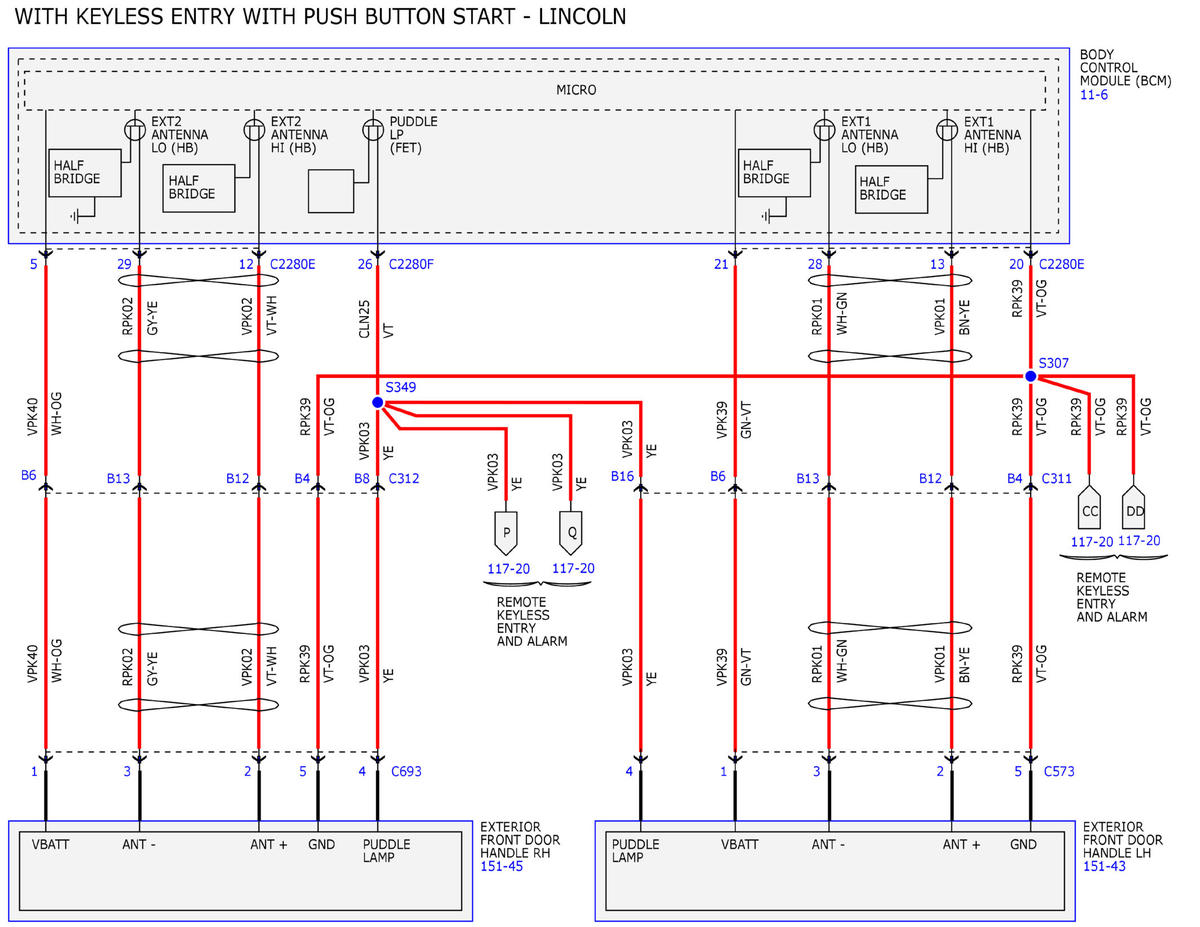

Fig 16: Remote Keyless Entry and Alarm Wiring Diagram (16 Of 21)

GFDWR89753

Courtesy of FORD MOTOR COMPANY

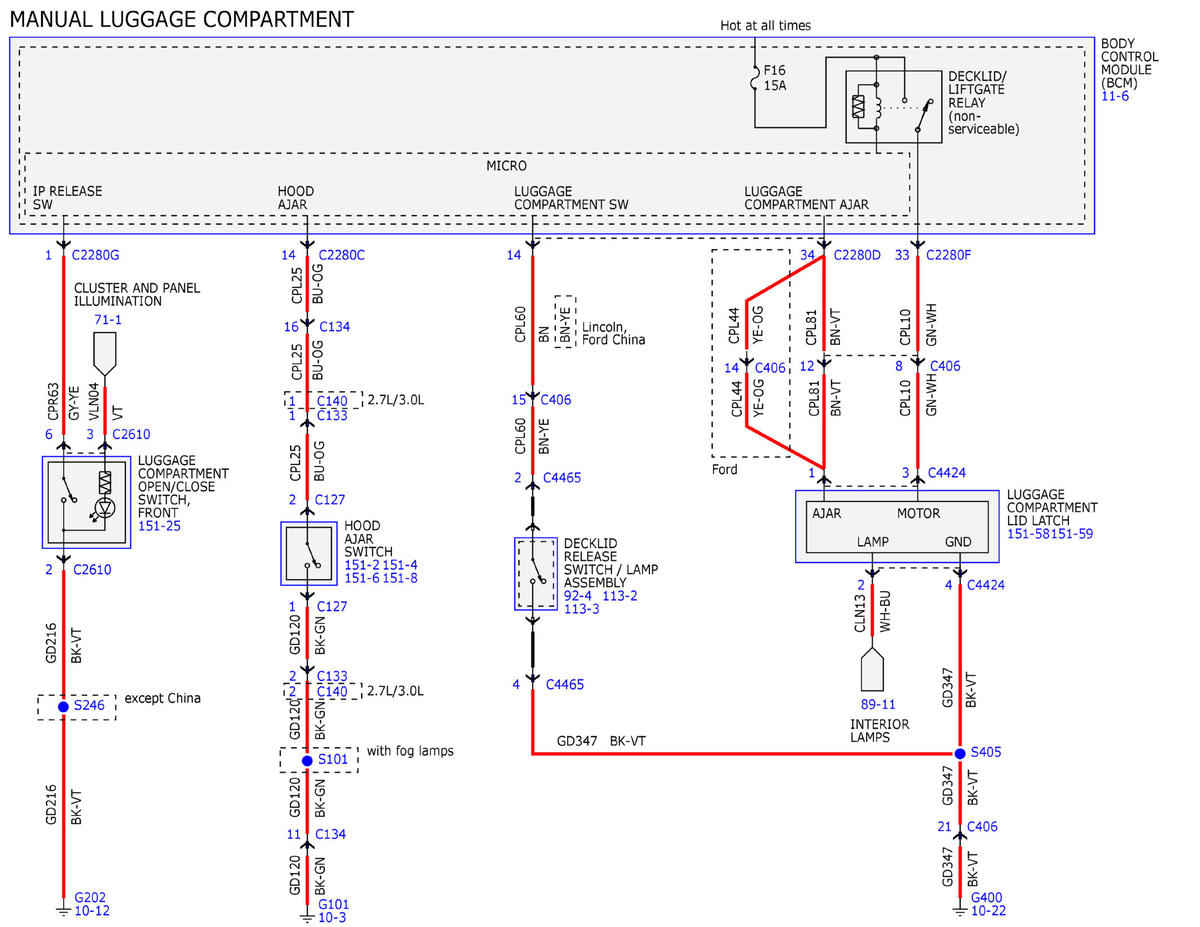

Fig 17: Remote Keyless Entry and Alarm Wiring Diagram (17 Of 21)

GFDWR89754

Courtesy of FORD MOTOR COMPANY

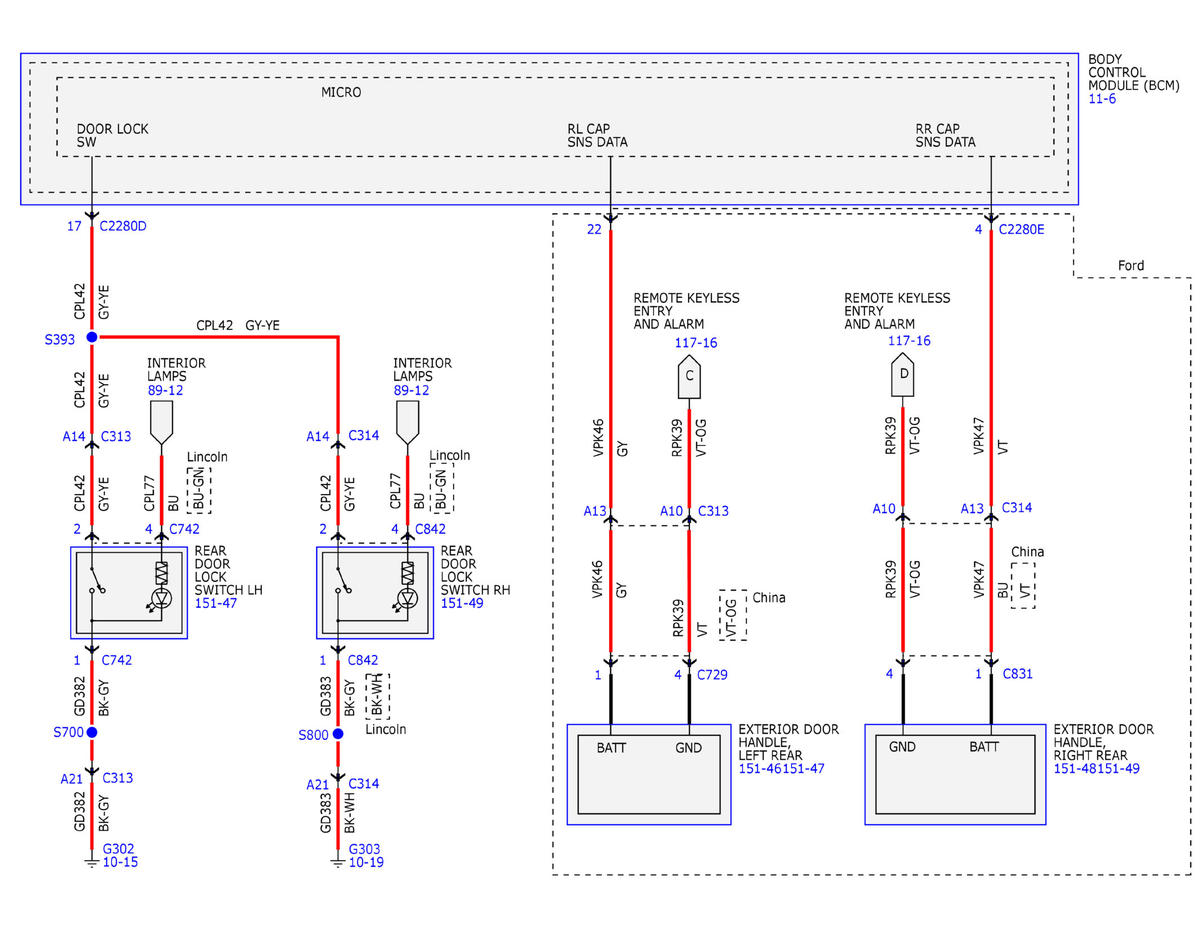

Fig 18: Remote Keyless Entry and Alarm Wiring Diagram (18 Of 21)

GFDWR89755

Courtesy of FORD MOTOR COMPANY

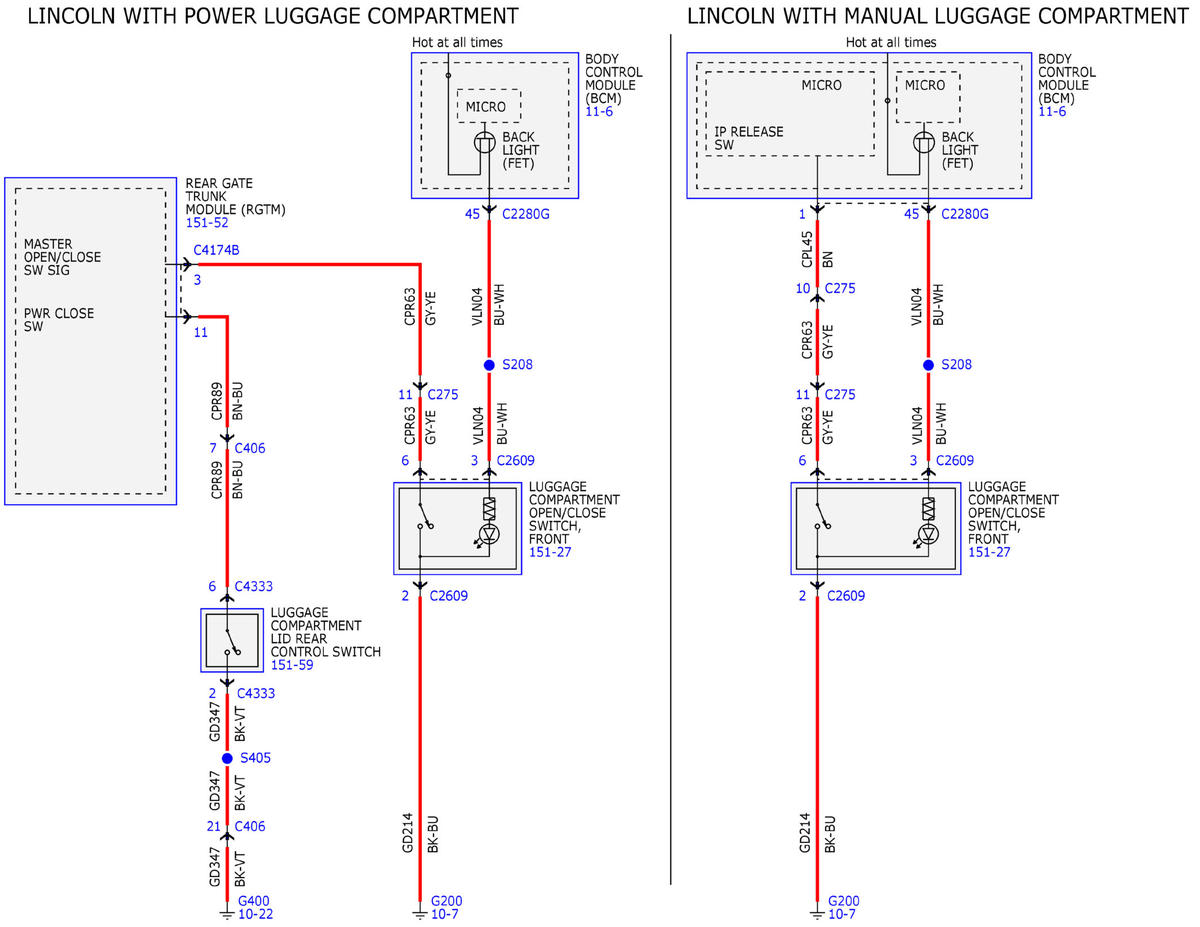

Fig 19: Remote Keyless Entry and Alarm Wiring Diagram (19 Of 21)

GFDWR89756

Courtesy of FORD MOTOR COMPANY

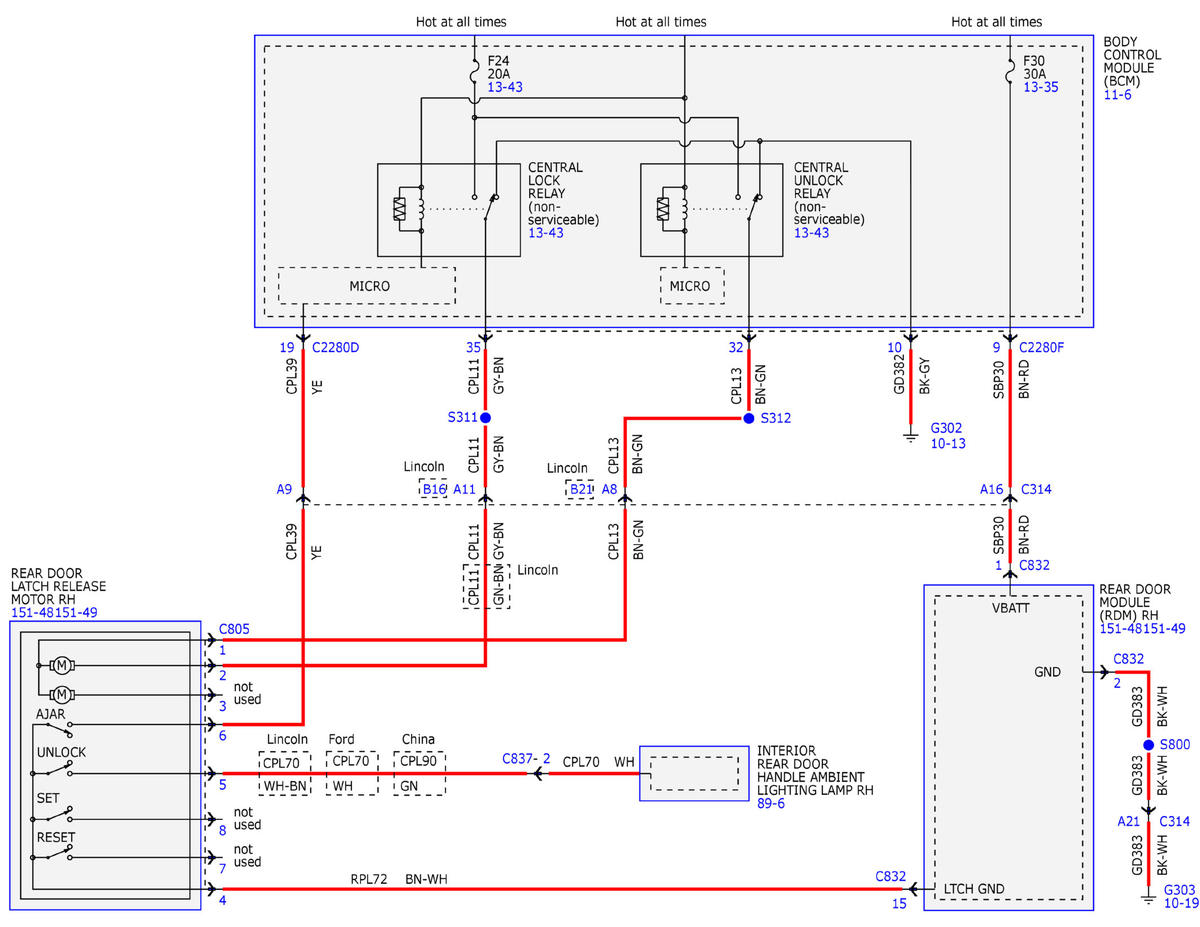

Fig 20: Remote Keyless Entry and Alarm Wiring Diagram (20 Of 21)

GFDWR89757

Courtesy of FORD MOTOR COMPANY

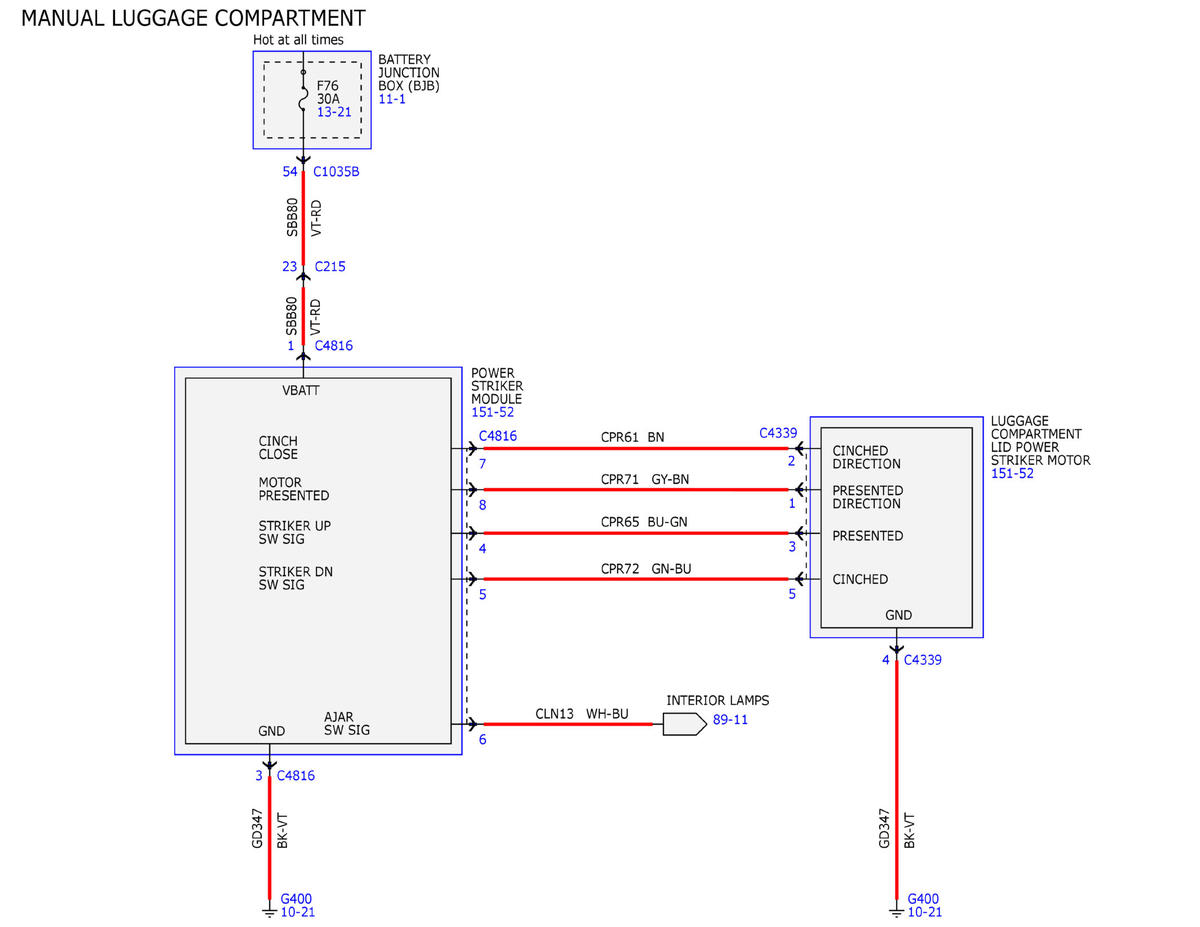

Fig 21: Remote Keyless Entry and Alarm Wiring Diagram (21 Of 21)

GFDWR89758

Courtesy of FORD MOTOR COMPANY
