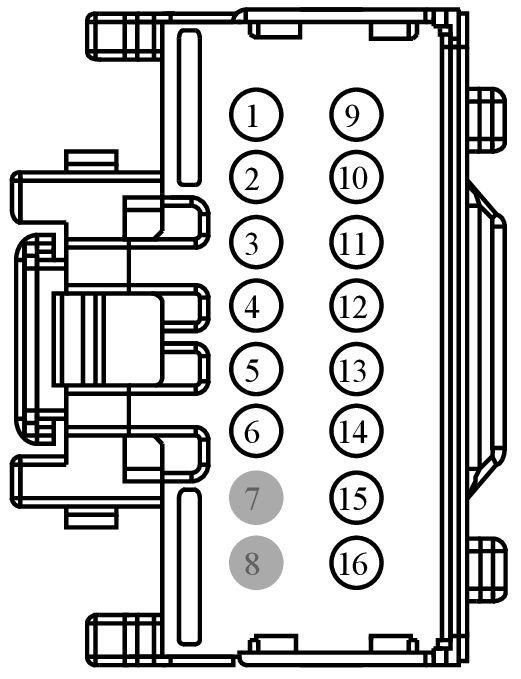

Connector End View (C341D) - DRIVER SEAT MODULE (DSM)
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C341D | DRIVER SEAT MODULE (DSM) | 14D231 | #N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CHS02 (YE-BU) | 16 | CTRL MOD. - HOT/COLD SEAT # DRIVER CUSHION HEATER + | NA | ||||
| 2 | CHS07 (GY-BU) | 16 | CTRL MOD. - HOT/COLD SEAT # PASSENGER CUSHION HEATER + | NA | ||||
| 3 | CHS08 (BN-YE) | 18 | CTRL MOD. - HOT/COLD SEAT # PASSENGER FAN + | NA | ||||
| 4 | CHS03 (GN-BN) | 18 | CTRL MOD. - HOT/COLD SEAT # DRIVER FAN + | NA | ||||
| 5 | CHS01 (GY-VT) | 16 | CTRL MOD. - HOT/COLD SEAT # DRIVER BACK HEATER + | NA | ||||
| 6 | RHS02 (BU-OG) | 16 | CTRL MOD. - HOT/COLD SEAT # DRIVER CUSHION HEATER - | NA | ||||
| 7 | * | * | Not Used | N/A | ||||
| 8 | * | * | Not Used | N/A | ||||
| 9 | RHS03 (GY-OG) | 18 | CTRL MOD. - HOT/COLD SEAT # DRIVER FAN - | NA | ||||
| 10 | RHS07 (BU) | 16 | CTRL MOD. - HOT/COLD SEAT # PASSENGER CUSHION HEATER - | NA | ||||
| 11 | RHS08 (VT-WH) | 18 | CTRL MOD. - HOT/COLD SEAT # PASSENGER FAN - | NA | ||||
| 12 | CHS06 (BU-BN) | 16 | CTRL MOD. - HOT/COLD SEAT # PASSENGER BACK HEATER + | NA | ||||
| 13 | CPP01 (WH-OG) | 18 | CTRL MOD. - MOTOR ADJUSTABLE PEDAL FORWARD | NA | ||||
| 14 | CPP02 (BN) | 18 | CTRL MOD. - MOTOR ADJUSTABLE PEDAL REARWARD | NA | ||||
| 15 | RHS01 (WH-VT) | 16 | CTRL MOD. - HOT/COLD SEAT # DRIVER BACK HEATER - | NA | ||||
| 16 | RHS06 (WH) | 16 | CTRL MOD. - HOT/COLD SEAT # PASSENGER BACK HEATER - | NA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1565
Service Part Number:
3U2Z-14S411-BRAB
Gauge:
16
Pin material:
Silver
Cavities:
16
Vehicle Uses:
- Connector - Inline
- Element - Heated Seat
- Junction Box - Relay
- Module - Anti-theft
- Module - Auto Lamps
- Module - Climate Control Seat
- Module - Driver Door
- Module - Remote Keyless Entry
- Module - Tire Pressure
- Radio - Amplifier
- Switch - Power Window - Driver
Pigtail Kit Part Number WPT-645
Service Part Number:
3U2Z-14S411-BRAA
Gauge:
16
Pin material:
Tin
Cavities:
16
Vehicle Uses:
- Connector - Inline
- Element - Heated Seat
- Module - Anti-theft
- Module - Climate Control Seat
