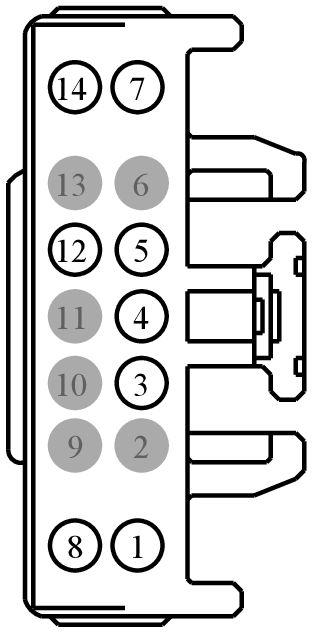

Connector End View (C2406) - HEATED STEERING WHEEL MODULE

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C2406	HEATED STEERING WHEEL MODULE	14401			#N/A	See Below

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CBP37 (WH)	14	FUSE - 37 OR CIRCUIT BREAKER	3M5T-14474-HCA
2	*	*	Not Used	N/A
3	VDB07 (VT)	26	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW	AU5T-14474-DA
3	VDB07 (GY-OG)	22	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW	Ford	AU5T-14474-DA
3	VDB07 (VT)	22	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW	Lincoln	N/A
3	VDB07 (VT-OG)	22	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW	Ford China	N/A
4	VDB06 (GY)	22	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH	Lincoln	N/A
4	VDB06 (GY-OG)	22	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH	Ford China	N/A
4	VDB06 (GY)	26	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH	AU5T-14474-DA
4	VDB06 (VT-OG)	22	CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH	Ford	AU5T-14474-DA
5	CHS71 (BU)	22	CTRL MOD. - HEATER STEERING WHEEL # SENSOR POWER	6M5T-14474-BAA
6	*	*	Not Used	N/A
7	RHS72 (YE-GY)	20	CTRL MOD. - HEATER STEERING WHEEL # HEATER ELEMENT -	3M5T-14474-HAA
8	CHS72 (YE-BU)	22	CTRL MOD. - HEATER STEERING WHEEL # HEATER ELEMENT +	Ford China	3M5T-14474-HAA
8	CHS72 (YE-BU)	20	CTRL MOD. - HEATER STEERING WHEEL # HEATER ELEMENT +	97BG-14474-BAA
9	*	*	Not Used	N/A
10	*	*	Not Used	N/A
11	*	*	Not Used	N/A
12	RHS73 (BN-BU)	22	CTRL MOD. - HEATER STEERING WHEEL # SENSOR	AU5T-14474-DA
13	*	*	Not Used	N/A
14	GD214 (BK-BU)	20	GROUND - INSTRUMENT PANEL STRUCTURE	3M5T-14474-HAA

Available Pigtail Kits

Pigtail Kit Part Number WPT-955

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-BJAC

Gauge:

12 14 16

Pin material:

Tin & Silver

Cavities:

Vehicle Uses:
