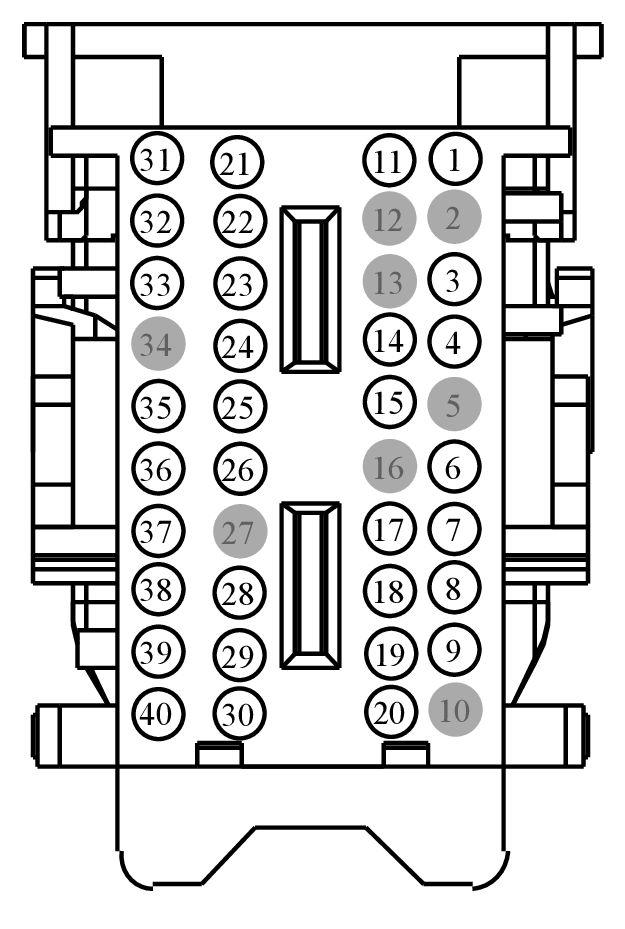

Connector End View (C2280C) - BODY CONTROL MODULE (BCM)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C2280C	BODY CONTROL MODULE (BCM)	12A581			#N/A	Not Available

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
9U5T-14474-DA	DU2Z-14474-AA	0.64
FU5T-14474-LA	DU2Z-14474-AA	0.64
9U5T-14474-EA	DU2Z-14474-AA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	VMP21 (WH-BN)	20	SENSOR - PARKING AID # ACTIVE PARK ASSIST (AUTOPARK) FRONT RIGHT SIDE	9U5T-14474-DA
2	*	*	Not Used	N/A
3	LDC59 (BU-WH)	20	CTRL MOD. - BATTERY MONITORING SYSTEM SENSOR +	9U5T-14474-DA
4	CDC56 (WH)	20	CTRL MOD. - BATTERY MONITORING SYSTEM LIN BUS	9U5T-14474-DA
4	SDC57 (BU-OG)	20	CTRL MOD. - BATTERY MONITORING SYSTEM MONITOR	Ford China	9U5T-14474-DA
5	*	*	Not Used	N/A
6	CLS04 (GN-WH)	20	CTRL MOD. - LICENSE PLATE	Lincoln	9U5T-14474-DA
6	CLS56 (YE-GN)	22	LAMP - TURN FRONT LEFT OR COMMON# SIGNAL OUT	9U5T-14474-DA
7	LMP06 (VT-GY)	20	CTRL MOD. - PARKING AID # SENSORS FRONT +	9U5T-14474-DA
8	SDC57 (BU-OG)	20	CTRL MOD. - BATTERY MONITORING SYSTEM MONITOR	9U5T-14474-DA
9	CDC45 (VT-BN)	20	CTRL MOD. - ELECTRICAL STEERING COLUMN LOCK +	9U5T-14474-DA
10	*	*	Not Used	N/A
11	VMP20 (GY-OG)	20	SENSOR - PARKING AID # ACTIVE PARK ASSIST (AUTOPARK) FRONT LEFT SIDE	9U5T-14474-DA
12	*	*	Not Used	N/A
13	*	*	Not Used	N/A
14	CPL25 (BU-OG)	20	SWITCH - HOOD # AJAR	9U5T-14474-DA
14	CPL25 (BU-OG)	22	SWITCH - HOOD # AJAR	Ford China	FU5T-14474-LA
15	CLF61 (GN-OG)	20	CTRL MOD. - DAYTIME RUNNING LIGHT LEFT	9U5T-14474-DA
16	*	*	Not Used	N/A
17	CLS05 (GN-WH)	20	CTRL MOD. - PARK	9U5T-14474-DA
17	CLS58 (BU-WH)	22	LAMP - TURN FRONT RIGHT # SIGNAL OUT	Lincoln	9U5T-14474-DA
18	CE436 (VT-OG)	20	CTRL MOD. -WAKE UP PCM	Lincoln- 2.7L/3.0L	9U5T-14474-DA
18	CE436 (VT-OG)	22	CTRL MOD. -WAKE UP PCM	9U5T-14474-DA
19	RDC59 (GY-BN)	20	CTRL MOD. - BATTERY MONITORING SYSTEM SENSOR -	9U5T-14474-DA
20	CRH02 (BU-WH)	22	SWITCH - HORN	Ford China	FU5T-14474-LA
20	CRH02 (BU-WH)	20	SWITCH - HORN	9U5T-14474-DA
21	VMP13 (BU-OG)	20	SENSOR - PARKING AID # FRONT # (RIGHT OUTER)	9U5T-14474-DA
22	VMP12 (BU-GY)	20	SENSOR - PARKING AID # FRONT # (RIGHT INNER)	9U5T-14474-DA
23	CDC71 (YE-GY)	20	CTRL MOD. - POWER OUTLET ENABLE OR SET	9U5T-14474-DA
24	CDC40 (VT-GY)	20	RELAY - DELAY ACCESSORY	9U5T-14474-DA
25	CDC55 (BN-VT)	20	RELAY - RUN START	9U5T-14474-DA
26	CE226 (YE-VT)	20	CTRL MOD. - POWERTRAIN # FUEL PUMP ON/OFF (FP) +	9U5T-14474-DA
27	*	*	Not Used	N/A
28	CMC19 (GY-VT)	20	SWITCH - LOW LEVEL BRAKE FLUID	9U5T-14474-DA
29	CE115 (BN)	20	CTRL MOD. - POWERTRAIN # INDICATOR CATALYST OVERHEATED	Lincoln- 2.7L/3.0L	9U5T-14474-DA
29	CR115 (BN)	22	CTRL MOD. - INDICATOR DEPLOYMENT (RDI)	9U5T-14474-DA
30	CLS06 (GN-OG)	20	CTRL MOD. - PARK FRONT LEFT OR FRONT/REAR LEFT	Ford China	9U5T-14474-DA
30	CLS13 (YE-BU)	18	CTRL MOD. - SIDE MARKER FRONT LEFT	Lincoln China	9U5T-14474-EA
31	VMP11 (BU-GN)	20	SENSOR - PARKING AID # FRONT # (LEFT OUTER)	9U5T-14474-DA
32	VMP10 (WH-BU)	20	SENSOR - PARKING AID # FRONT # (LEFT INNER)	9U5T-14474-DA
33	CDC72 (BN-WH)	20	CTRL MOD. - POWER OUTLET DISABLE OR RESET	9U5T-14474-DA
34	*	*	Not Used	N/A
35	RMP06 (YE-OG)	20	CTRL MOD. - PARKING AID # SENSORS FRONT -	9U5T-14474-DA
36	CLS05 (BU-GY)	20	CTRL MOD. - PARK LAMPS 1	N/A
37	CLS07 (BN-YE)	20	CTRL MOD. - PARK FRONT RIGHT OR FRONT/REAR RIGHT	Ford China	9U5T-14474-DA
37	CLS14 (YE-GY)	18	CTRL MOD. - SIDE MARKER FRONT RIGHT	Lincoln China	9U5T-14474-EA
38	CLS25 (YE-VT)	22	CTRL MOD. - TURN LAMP RIGHT FRONT	FU5T-14474-LA
38	CLS25 (YE-VT)	20	CTRL MOD. - TURN LAMP RIGHT FRONT	Halogen	N/A
39	CLS21 (GN-BU)	22	CTRL MOD. - TURN LAMP LEFT FRONT	LED Lincoln	N/A
39	CLS21 (BU-GN)	20	CTRL MOD. - TURN LAMP LEFT FRONT	9U5T-14474-DA
40	CLF61 (GY-BU)	20	CTRL MOD. - DAYTIME RUNNING LIGHT LEFT	Ford China	9U5T-14474-DA
40	CLF61 (BU-GY)	20	CTRL MOD. - DAYTIME RUNNING LIGHT LEFT	N/A
