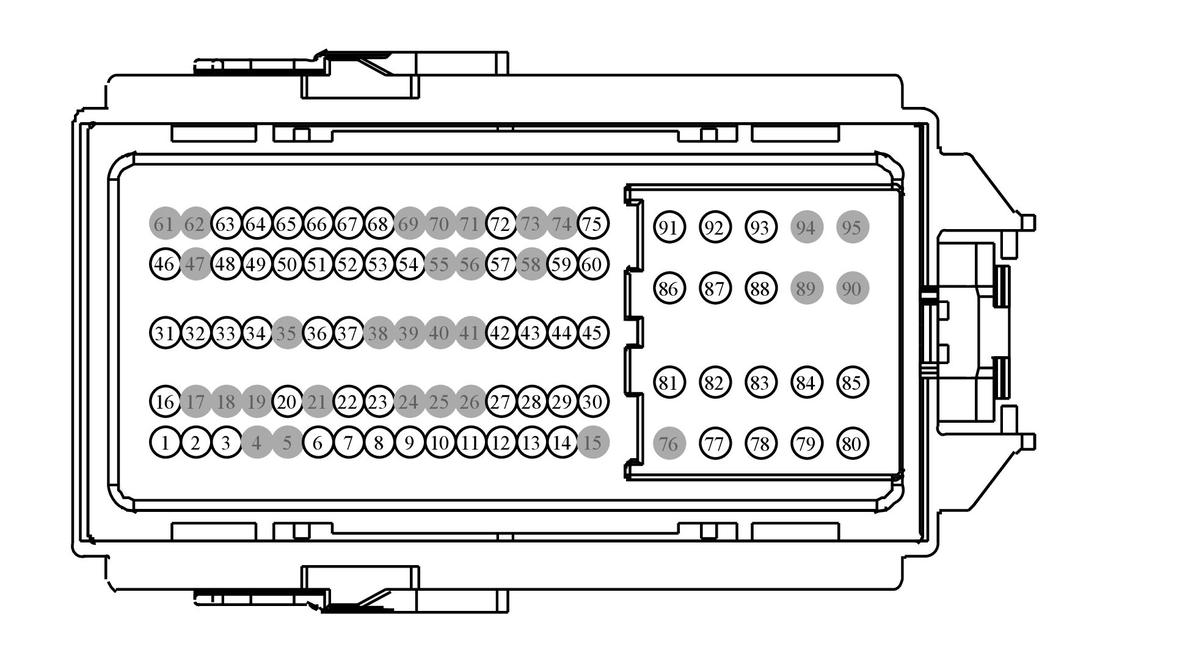

Connector End View (C1915E) - POWERTRAIN CONTROL MODULE (PCM)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1915E	POWERTRAIN CONTROL MODULE (PCM)	12C508			part# N/A	Not Available

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CE421 (VT)	20	CTRL MOD. - POWERTRAIN # VARIABLE CAMSHAFT TIMING 1 (VCT11)	N/A
2	CET18 (GY-YE)	20	CTRL MOD. - POWERTRAIN # SHIFT SOLENOID E (SSE)	N/A
3	VE836 (VT-GN)	20	CTRL MOD. - POWERTRAIN # ENGINE TURBOCHARGER BYPASS VALVE (TCBY)	N/A
4	*	*	Not Used	N/A
5	*	*	Not Used	N/A
6	LE458 (BU-WH)	20	CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE (VREF)	N/A
7	LE134 (YE)	20	CTRL MOD. - POWERTRAIN # ELECTRONIC THROTTLE CONTROL (ETCREF)	N/A
8	LE423 (GN-VT)	20	CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE (VREF)	N/A
9	CMC24 (GY)	18	SWITCH - OIL PRESSURE	N/A
10	VET32 (VT)	20	SENSOR - TRANSMISSION RANGE # 4 (TR4) [DTRS]	N/A
11	VE711 (YE-VT)	20	SENSOR - CRANKSHAFT POSITION (CKP)	N/A
12	VET26 (BN-GN)	20	SENSOR - OUTPUT SHAFT SPEED (OSS)	N/A
13	CE258 (YE-GN)	20	CTRL MOD. - POWERTRAIN # CHARGE AIR COOLER (CAC)	N/A
14	CE235 (GN-BN)	18	CTRL MOD. - POWERTRAIN # HEATER OXYGEN SEN. PRE CAT. 1ST OR UNIQUE (UO2SHTR11)	N/A
15	*	*	Not Used	N/A
16	CE460 (VT-WH)	20	CTRL MOD. - POWERTRAIN # TURBOCHARGER WASTEGATE REGULATING VALVE SOLENOID (TCWRVS)	N/A
17	*	*	Not Used	N/A
18	*	*	Not Used	N/A
19	*	*	Not Used	N/A
20	RE454 (YE-GN)	20	CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE	N/A
21	*	*	Not Used	N/A
22	LE111 (VT-GN)	20	CTRL MOD. - POWERTRAIN # BUFFERED POWER SUPPLY SENSORS (VBPWR)	N/A
23	VE759 (GN-BN)	18	SENSOR - ENGINE COOLANT TEMPERATURE 2 (ECT2)	N/A
24	*	*	Not Used	N/A
25	*	*	Not Used	N/A
26	*	*	Not Used	N/A
27	VET33 (WH-OG)	20	SENSOR - TURBINE/TRANSMISSION SHAFT SPEED (TSS) +	N/A
28	VE706 (BN-BU)	20	SENSOR - CAMSHAFT POSITION BANK 1 IN+EX / IN (CMP11)	N/A
29	CE422 (WH-OG)	20	CTRL MOD. - POWERTRAIN # VARIABLE CAMSHAFT TIMING 11 (VCT11)	N/A
30	CET08 (BN-WH)	20	CTRL MOD. - POWERTRAIN # SHIFT SOLENOID D (SSD)	N/A
31	RE134 (BU-OG)	20	CTRL MOD. - POWERTRAIN # ELECTRONIC THROTTLE CONTROL (ETCRTN)	N/A
32	RET24 (BN-BU)	20	CTRL MOD. - POWERTRAIN # TRANSMISSION RANGE SIGNAL RETURN (TRGND)	N/A
33	VE804 (GN-BN)	18	SENSOR- MANIFOLD ABSOLUTE PRESSURE (MAP)	N/A
34	VE751 (BN-VT)	20	SENSOR - INTAKE AIR TEMPERATURE 2ND (IAT2)	N/A
35	*	*	Not Used	N/A
36	VE716 (YE)	20	SENSOR - CHARGE AIR COOLER COOLANT TEMPERATURE (CACCT)	N/A
37	LE238 (GY)	20	SENSOR - FUEL RAIL PRESSURE (FRP)	N/A
38	*	*	Not Used	N/A
39	*	*	Not Used	N/A
40	*	*	Not Used	N/A
41	*	*	Not Used	N/A
42	CE303 (WH-VT)	20	CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 1 (COP1A)	N/A
43	CE306 (GN-VT)	20	CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 4 (COP4C)	N/A
44	CET10 (BU-GY)	20	TORQUE CONVERTER CLUTCH (TCC) SOLENOID	N/A
45	CET06 (GN)	20	CTRL MOD. - POWERTRAIN # SHIFT SOLENOID B (SSB)	N/A
46	VE712 (BU-GY)	20	SENSOR-CYLINDER HEAD TEMPERATURE (CHT)	N/A
47	*	*	Not Used	N/A
48	LE452 (GN)	18	CTRL MOD. - POWERTRAIN # UNIVERSAL HEATED OXYGEN MEASURED PUMPING CURRENT 1ST (UO2SPCT11)	N/A
49	LE448 (GY-BU)	18	CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE UNIVERSAL HEGO 1ST (UO2SGREF11)	N/A
50	VE802 (BN-BU)	20	SENSOR - KNOCK 2ND (KS2+)	N/A
51	RE324 (BN-GN)	20	CTRL MOD. - POWERTRAIN # KNOCK SENSOR 2ND (KS2-)	N/A
52	VE819 (GN-VT)	20	SENSOR - THROTTLE POSITION # POSITIVE SLOPE (TP2)	N/A
53	RE405 (GN-WH)	20	CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE (SIGRTN)	N/A
54	VE707 (GN-VT)	20	SENSOR - CAMSHAFT POSITION BANK 2 IN+EX / IN (CMP12)	N/A
55	*	*	Not Used	N/A
56	*	*	Not Used	N/A
57	CE304 (YE-BU)	20	CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 2 (COP2D)	N/A
58	*	*	Not Used	N/A
59	CET09 (YE-VT)	20	LINE PRESSURE CONTROL (LPC)	N/A
60	CET05 (BU-GN)	20	CTRL MOD. - POWERTRAIN # SHIFT SOLENOID A (SSA)	N/A
61	*	*	Not Used	N/A
62	*	*	Not Used	N/A
63	LE451 (BN-YE)	18	CTRL MOD. - POWERTRAIN # UNIVERSAL HEATED OXYGEN PUMPING CURRENT 1ST (UO2SPC11)	N/A
64	VE826 (BN-VT)	18	SENSOR - UNIVERSAL HEATED OXYGEN 1ST OR UNIQUE (UO2S11)	N/A
65	VE801 (VT-OG)	20	SENSOR - KNOCK 1ST BANK 1ST OR UNIQUE (KS1+)	N/A
66	RE323 (WH-BN)	20	CTRL MOD. - POWERTRAIN # KNOCK SENSOR 1ST BANK 1ST OR UNIQUE (KS1-)	N/A
67	VET27 (BN-YE)	20	SENSOR - TRANSMISSION FLUID TEMPERATURE (TFT)	N/A
68	VE818 (BN)	20	SENSOR - THROTTLE POSITION # NEGATIVE SLOPE (TP1)	N/A
69	*	*	Not Used	N/A
70	*	*	Not Used	N/A
71	*	*	Not Used	N/A
72	CE305 (BU-OG)	20	CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 3 (COP3B)	N/A
73	*	*	Not Used	N/A
74	*	*	Not Used	N/A
75	CET07 (GY-OG)	20	CTRL MOD. - POWERTRAIN # SHIFT SOLENOID C (SSC)	N/A
76	*	*	Not Used	N/A
77	RE226 (GN-VT)	16	FUEL VOLUME REGULATOR RETURN (FVRRTN)	N/A
78	CE226 (YE-VT)	16	CTRL MOD. - POWERTRAIN # FUEL PUMP ON/OFF (FP) +	N/A
79	VYT11 (VT-GY)	18	CTRL MOD. - TRANSMISSION AUXILIARY PUMP PWM CONTROL (TAPR_CT)	N/A
80	CET49 (BN)	18	CTRL MOD. - POWERTRAIN # TRANSMISSION SOLENOID POWER CONTROL (TSPC)	N/A
81	VYT12 (YE-GN)	18	PUMP - TRANSMISSION AUXILIARY # DIAGNOSTIC (TAPR_DI)	N/A
82	CE206 (GY-YE)	16	CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 2 (INJ)	N/A
83	CE207 (VT-GY)	16	CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 3 (INJ)	N/A
84	CE205 (GN-BU)	16	CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 1 (INJ)	N/A
85	CE208 (YE-OG)	16	CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 4 (INJ)	N/A
86	CE412 (YE-VT)	18	CTRL MOD. - POWERTRAIN # THROTTLE ACTUATOR CONTROL MOTOR (TACM+)	N/A
87	RE205 (YE-BU)	16	CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 1 (INJ) -	N/A
88	RE207 (GN-VT)	16	CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 3 (INJ) -	N/A
89	*	*	Not Used	N/A
90	*	*	Not Used	N/A
91	CE426 (BU-GN)	18	CTRL MOD. - POWERTRAIN # THROTTLE ACTUATOR CONTROL MOTOR (TACM-)	N/A
92	RE208 (BU)	16	CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 4 (INJ) -	N/A
93	RE206 (BU-OG)	16	CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 2 (INJ) -	N/A
94	*	*	Not Used	N/A
95	*	*	Not Used	N/A
