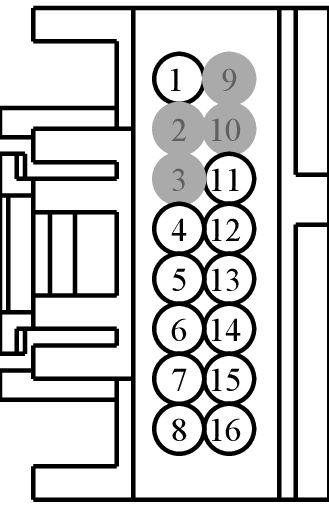

Connector End View (C218B) - CLOCKSPRING

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C218B	CLOCKSPRING	GY	PIA	14A664	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	RRH02 (*)	*	ILLUMINATION GROUND	N/A
2	*	*	Not Used	N/A
3	*	*	Not Used	N/A
4	CRH02 (*)	*	SWITCH - HORN	N/A
5	CET42 (*)	*	SWITCH - TRANSMISSION SELECT SHIFT # DOWN (SST)	N/A
6	LX103 (*)	*	SWITCH - STEERING WHEEL CONTROLS # A/D CHANNEL 3	N/A
7	LX104 (*)	*	SWITCH - STEERING WHEEL CONTROLS # A/D CHANNEL 4	N/A
8	RX101 (*)	*	SWITCH - STEERING WHEEL CONTROLS # RETURN LEFT (SW GND LEFT)	N/A
9	*	*	Not Used	N/A
10	*	*	Not Used	N/A
11	VLN04 (*)	*	ILLUMINATION FEED	N/A
12	CET43 (*)	*	SWITCH - TRANSMISSION SELECT SHIFT # UP (SST)	N/A
13	RE407 (*)	*	CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (SIGRTN)	N/A
14	LX105 (*)	*	SWITCH - STEERING WHEEL CONTROLS # A/D CHANNEL 1	N/A
15	LX106 (*)	*	SWITCH - STEERING WHEEL CONTROLS # A/D CHANNEL 2	N/A
16	RX102 (*)	*	SWITCH - STEERING WHEEL CONTROLS # RETURN RIGHT (SW GND RIGHT)	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-968

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-DPB

Gauge:

18

Pin material:

Silver

Cavities:

16

Vehicle Uses:

• Module - Reverse Park Aid (RPA)
• Radio
• Switch - Power Window - Driver
• Switch - Reverse Park Aid

Pigtail Kit Part Number WPT-1582

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-DPC

Gauge:

20

Pin material:

Silver

Cavities:

16

Vehicle Uses:

• Connector - Inline
• Control - Navigation Display
• Module - Body Control
• Module - Reverse Park Aid (RPA)
• Radio
• Switch - Power Window - Driver
• Switch - Reverse Park Aid
