Component Location Views

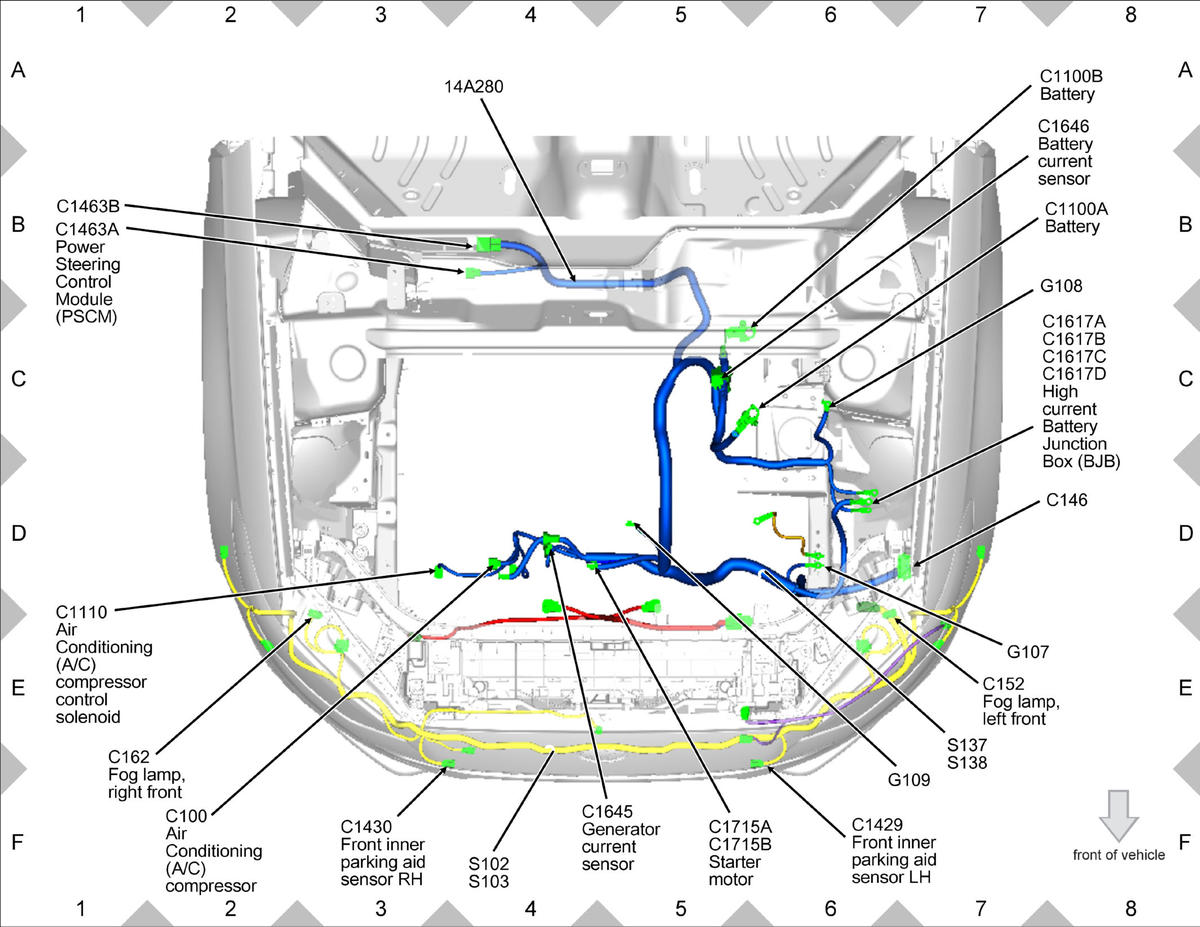

GFDWR88512Courtesy of FORD MOTOR COMPANY

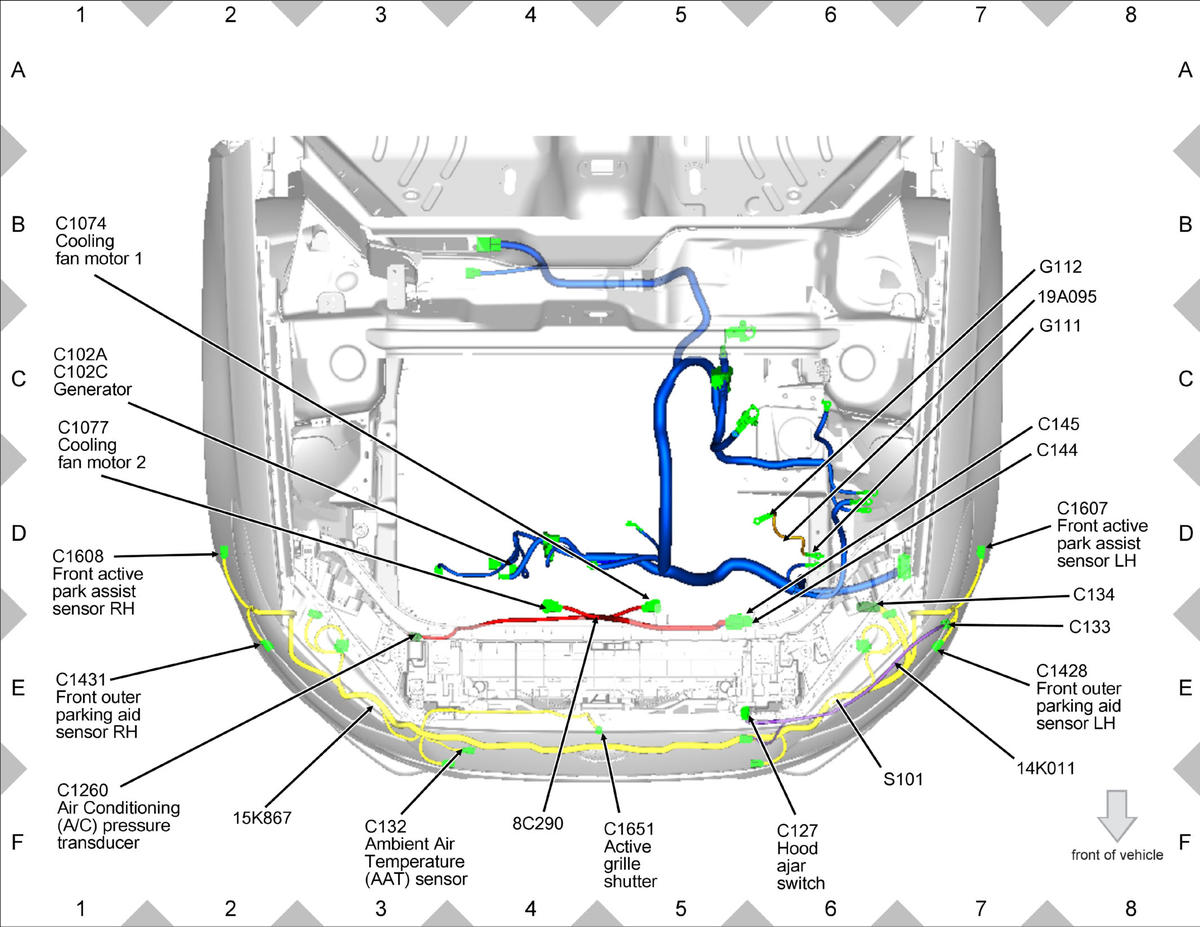

GFDWR88479Courtesy of FORD MOTOR COMPANY

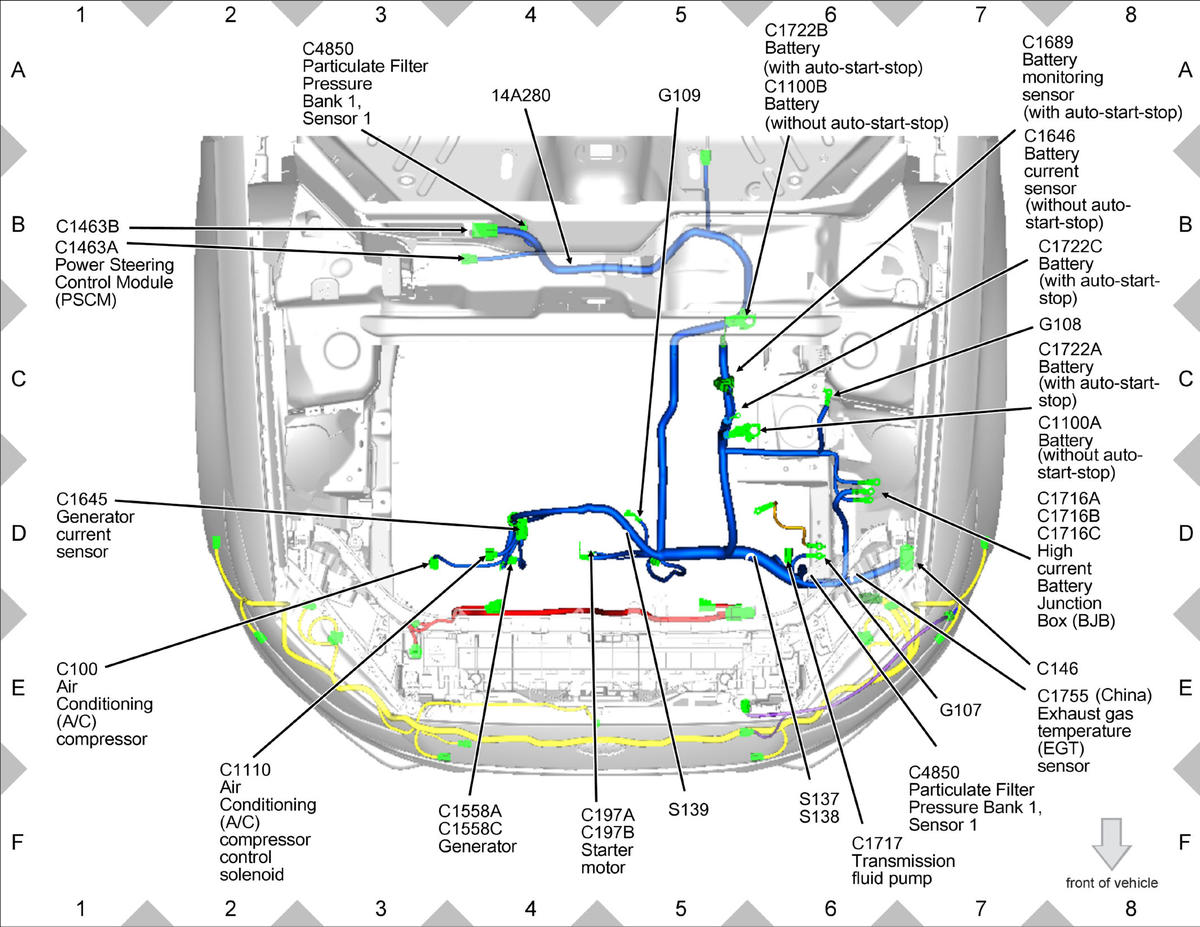

GFDWR88507Courtesy of FORD MOTOR COMPANY

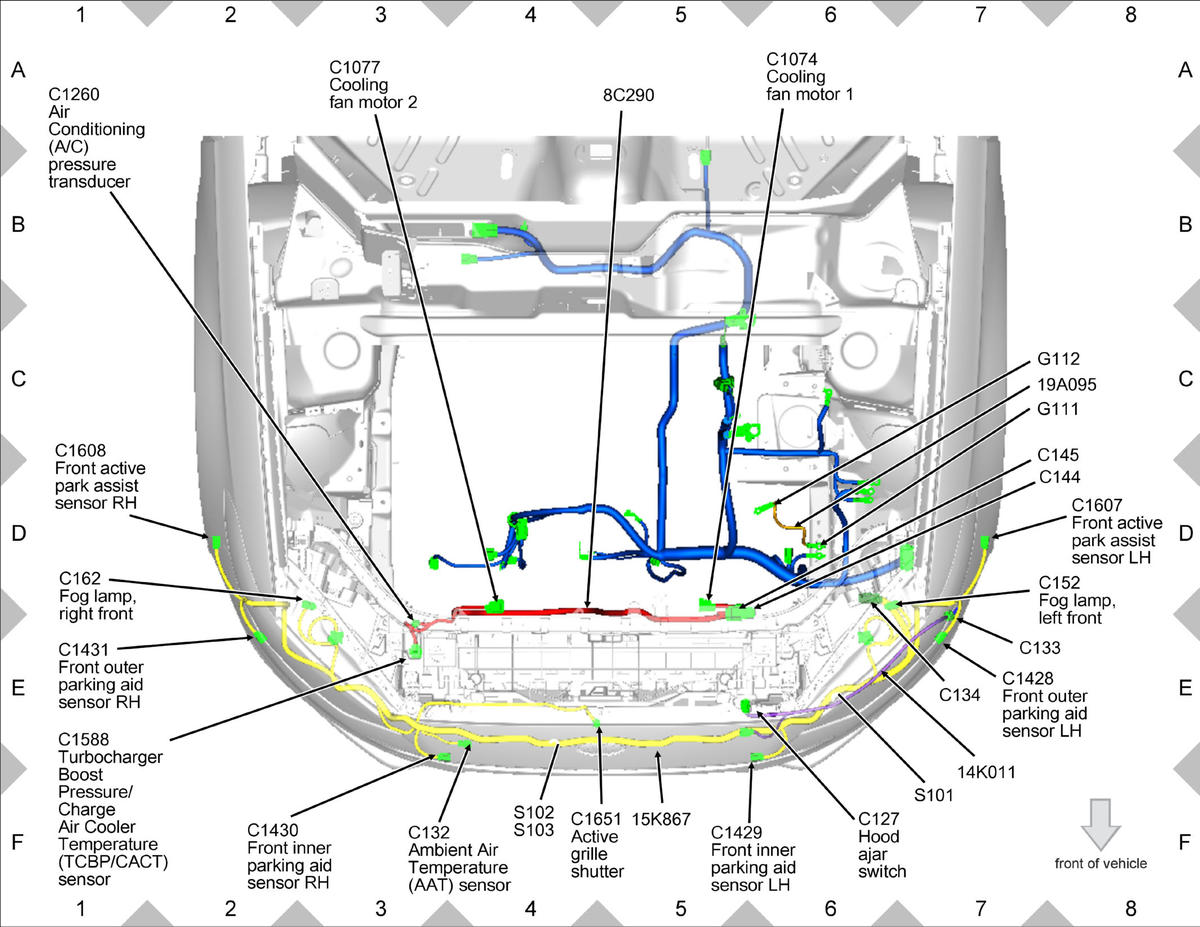

GFDWR88519Courtesy of FORD MOTOR COMPANY

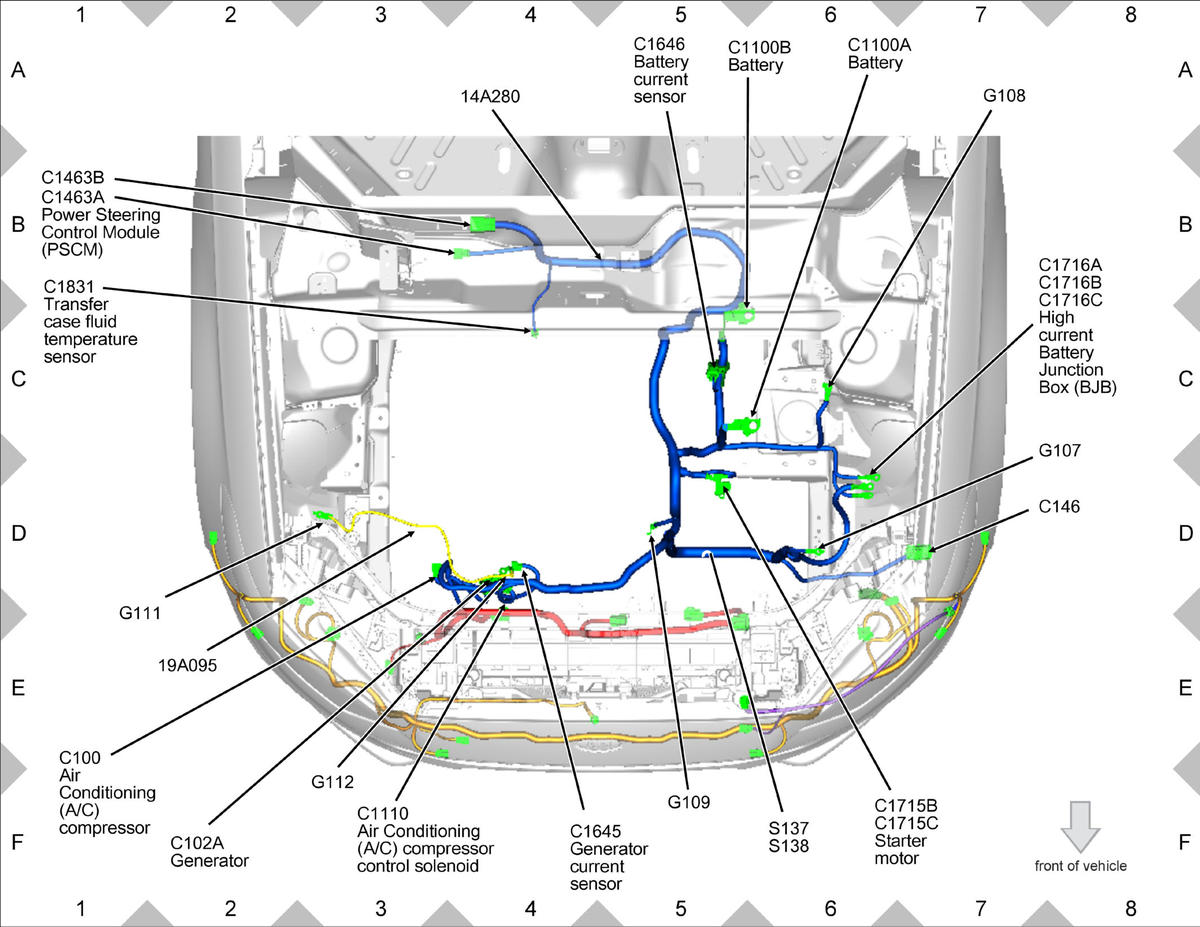

GFDWR88535Courtesy of FORD MOTOR COMPANY

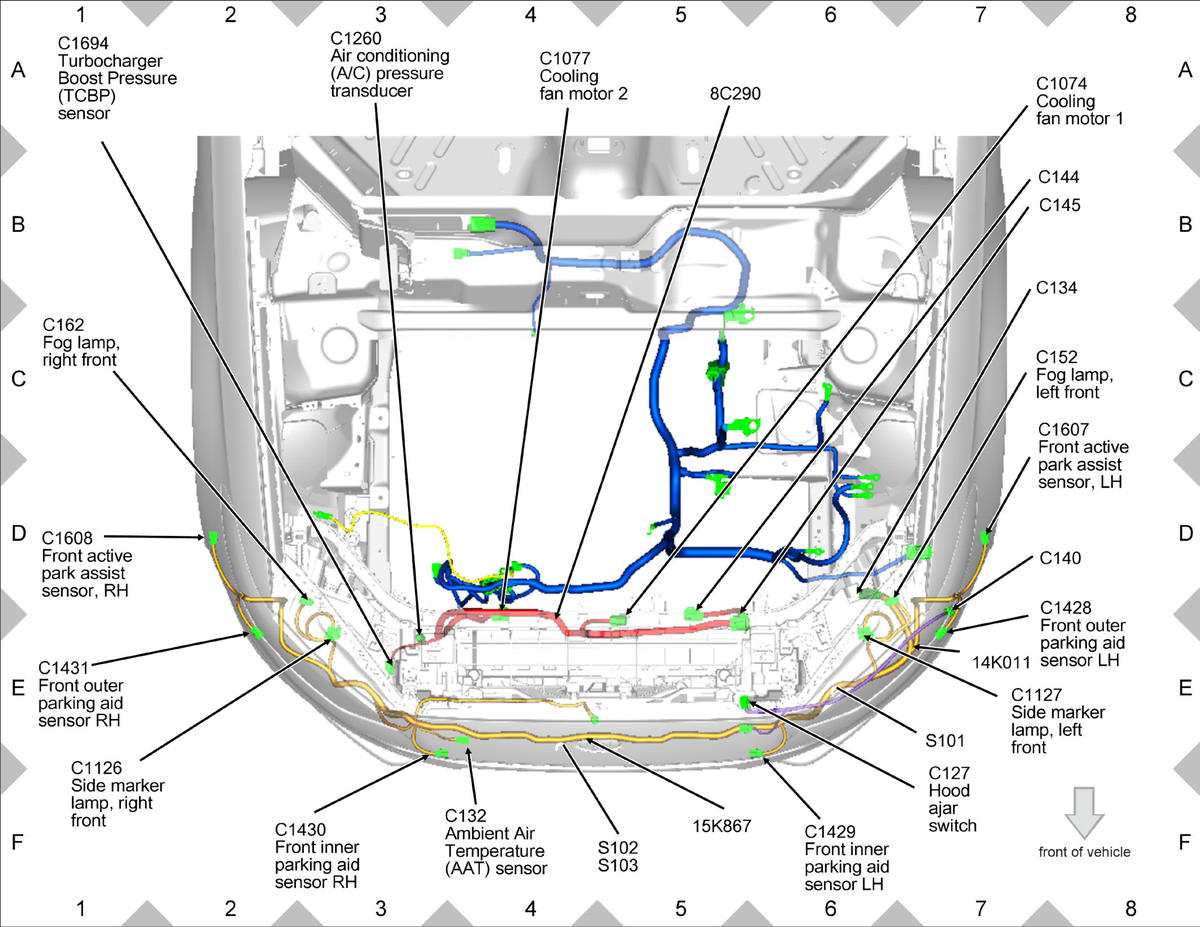

GFDWR88510Courtesy of FORD MOTOR COMPANY

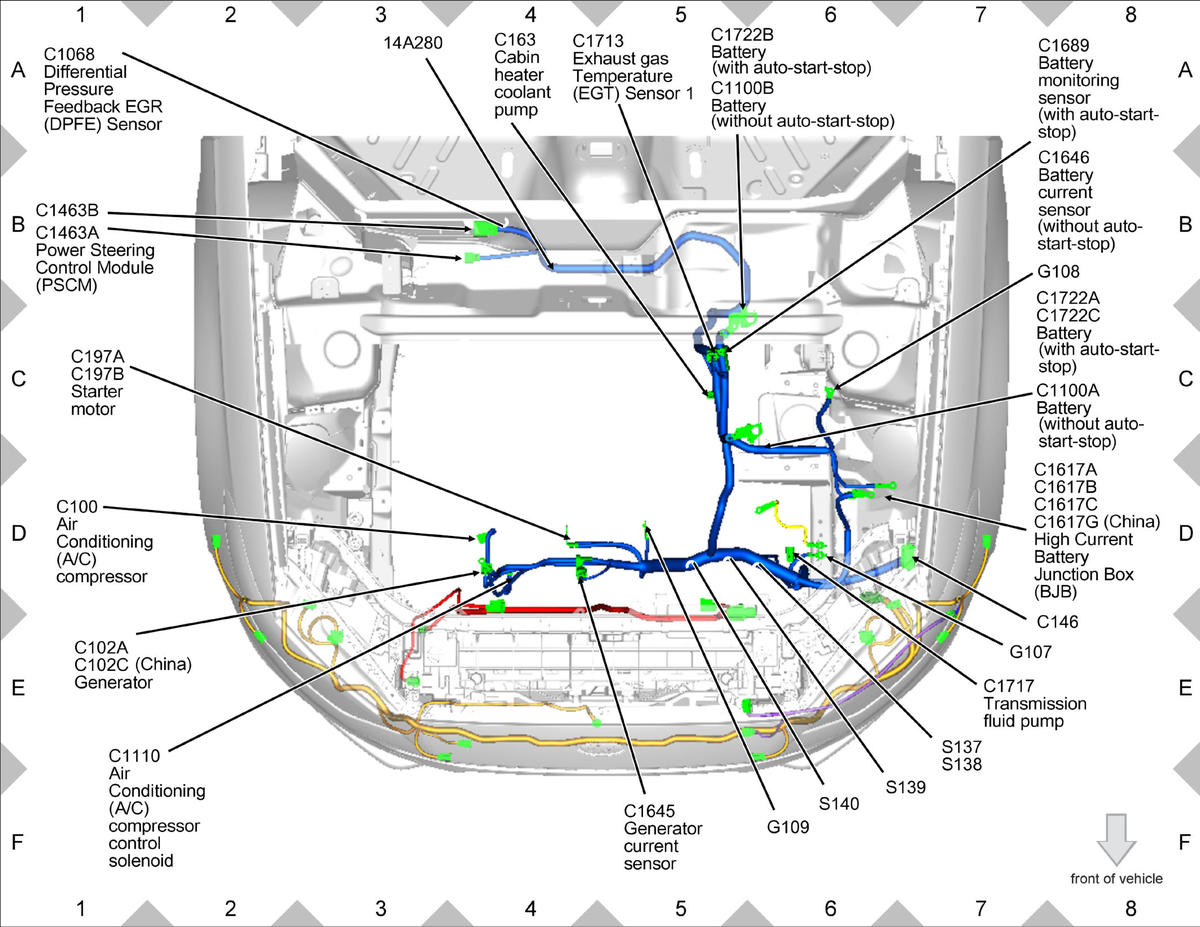

GFDWR88498Courtesy of FORD MOTOR COMPANY

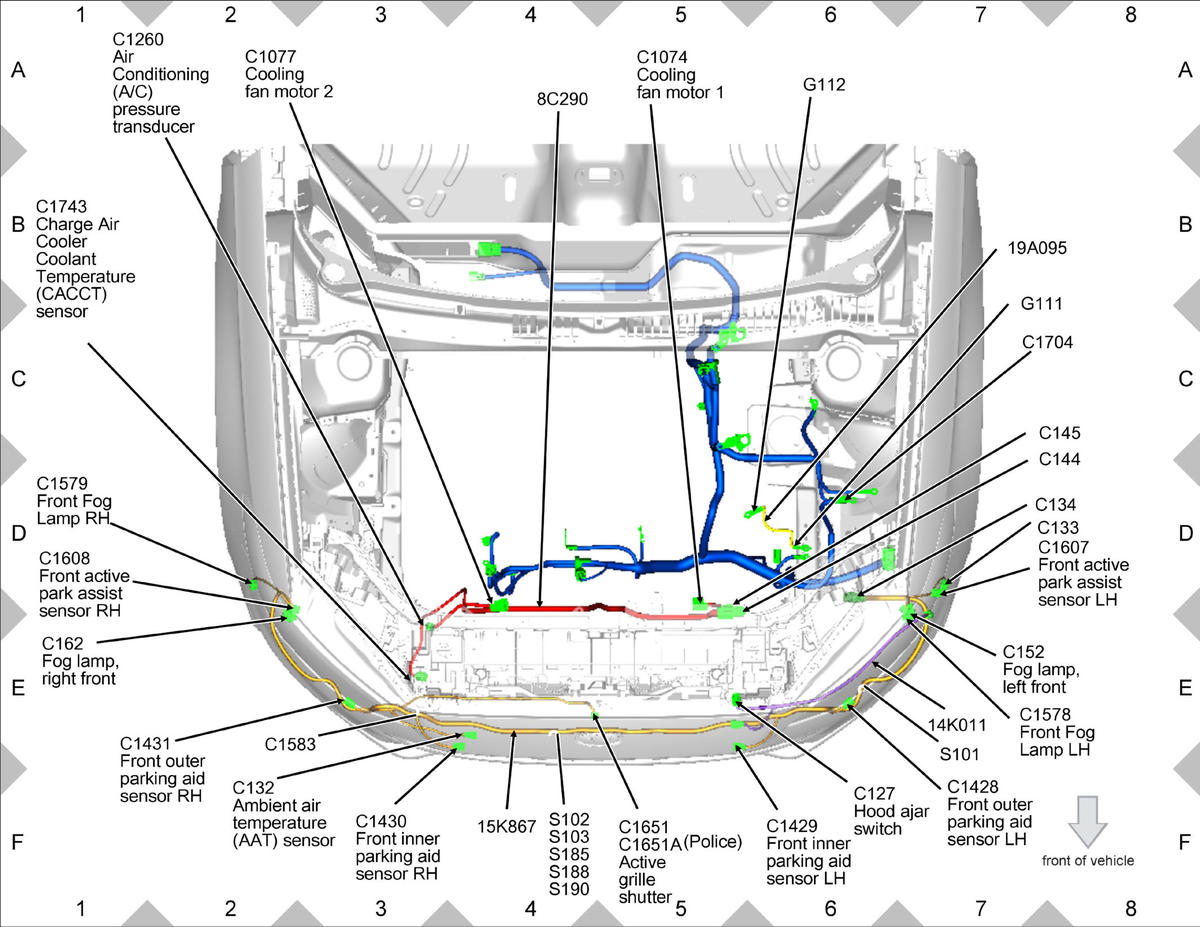

GFDWR88493Courtesy of FORD MOTOR COMPANY

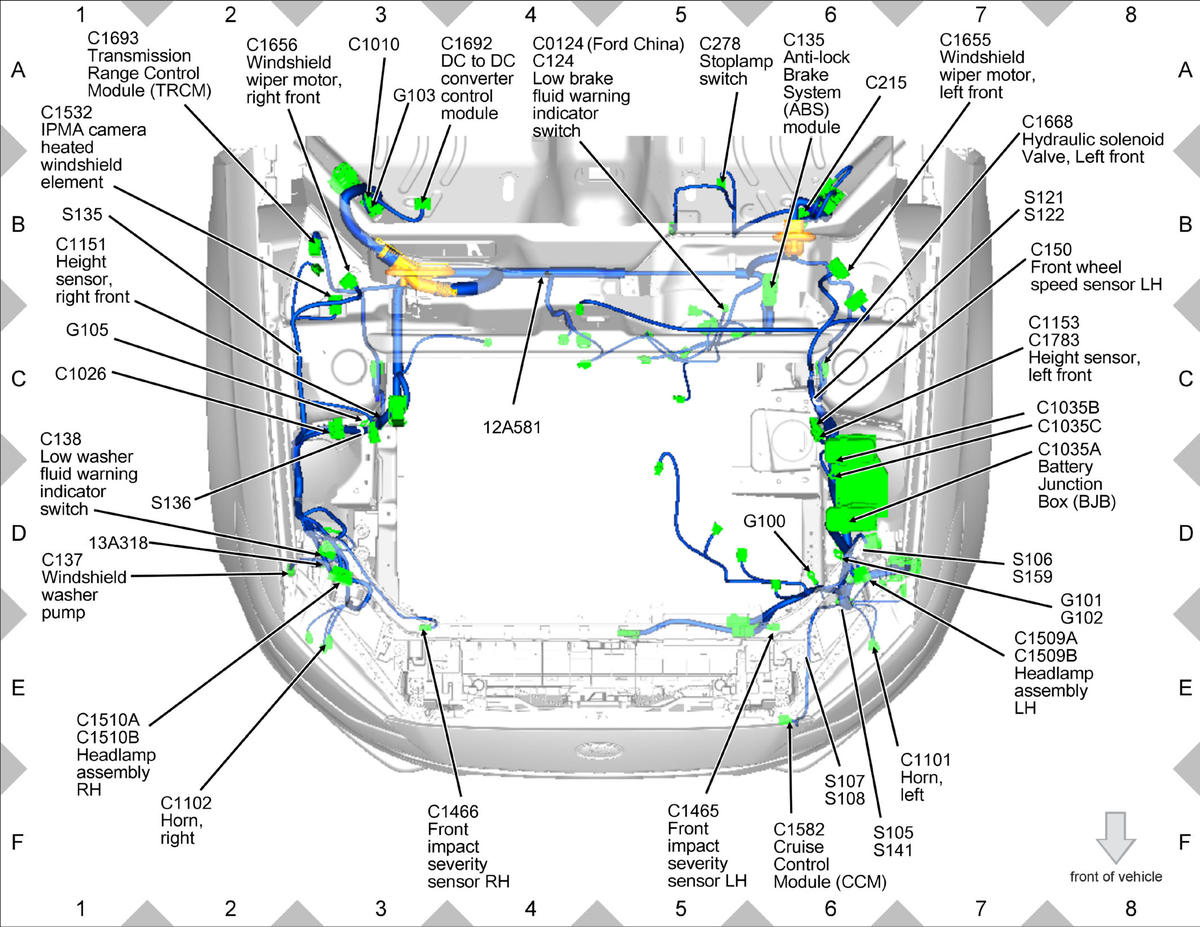

GFDWR88490Courtesy of FORD MOTOR COMPANY

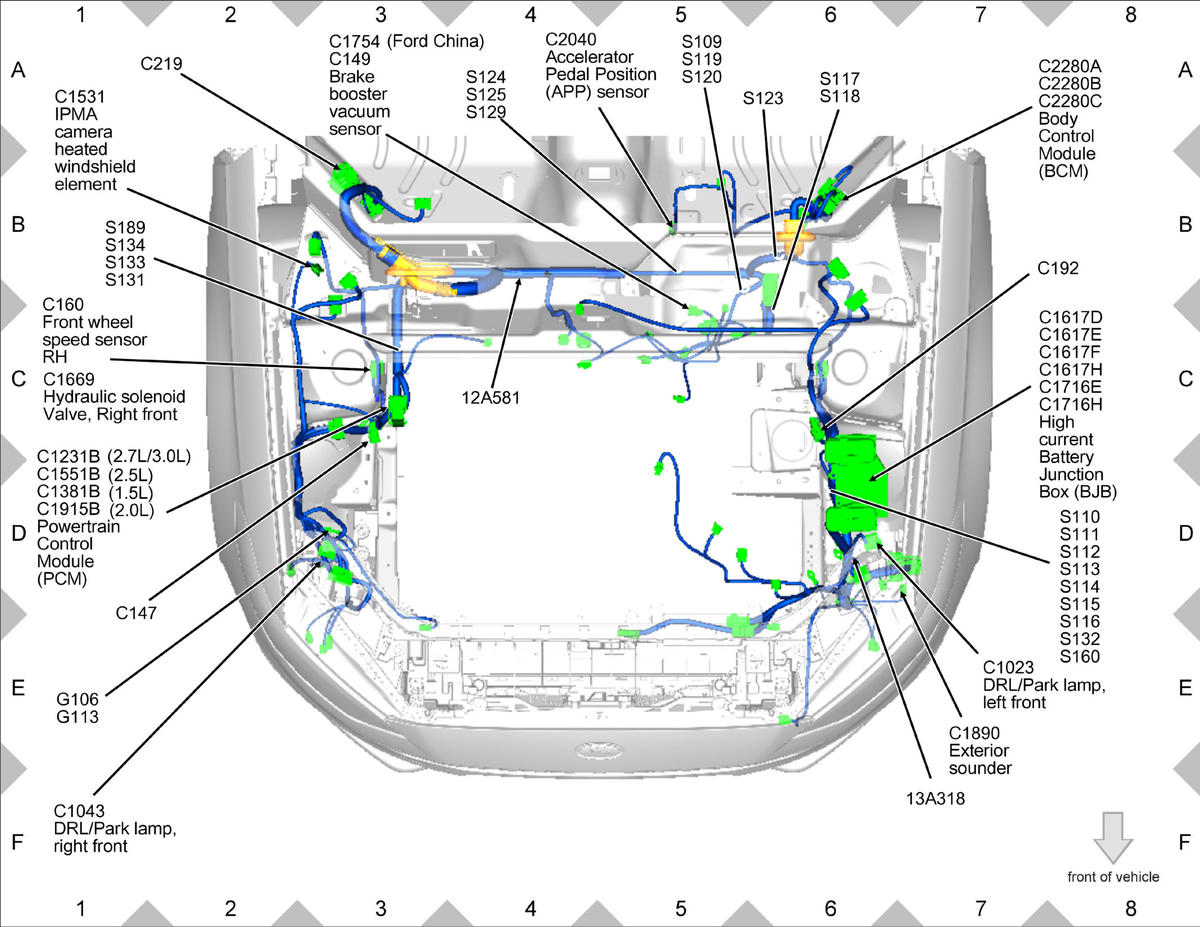

GFDWR88537Courtesy of FORD MOTOR COMPANY

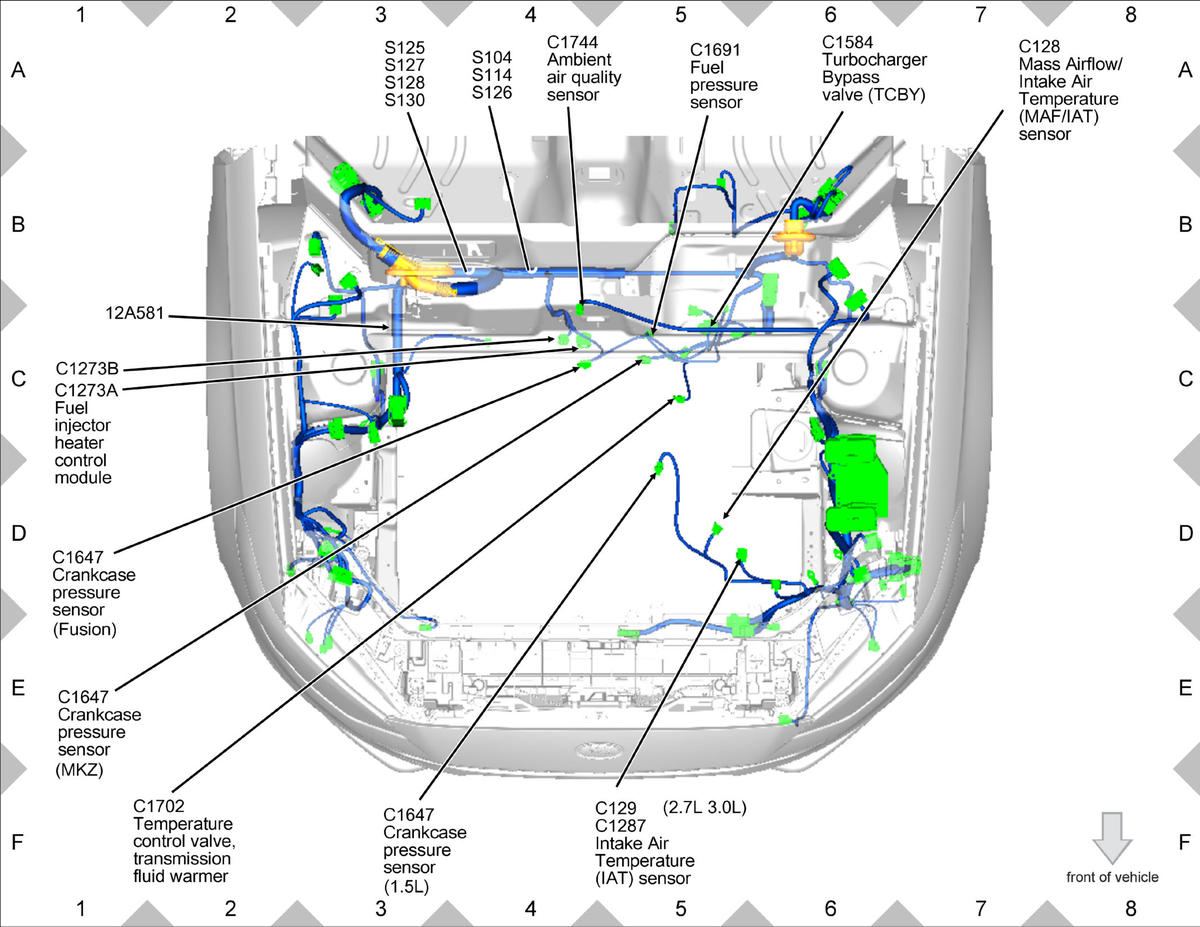

GFDWR88521Courtesy of FORD MOTOR COMPANY

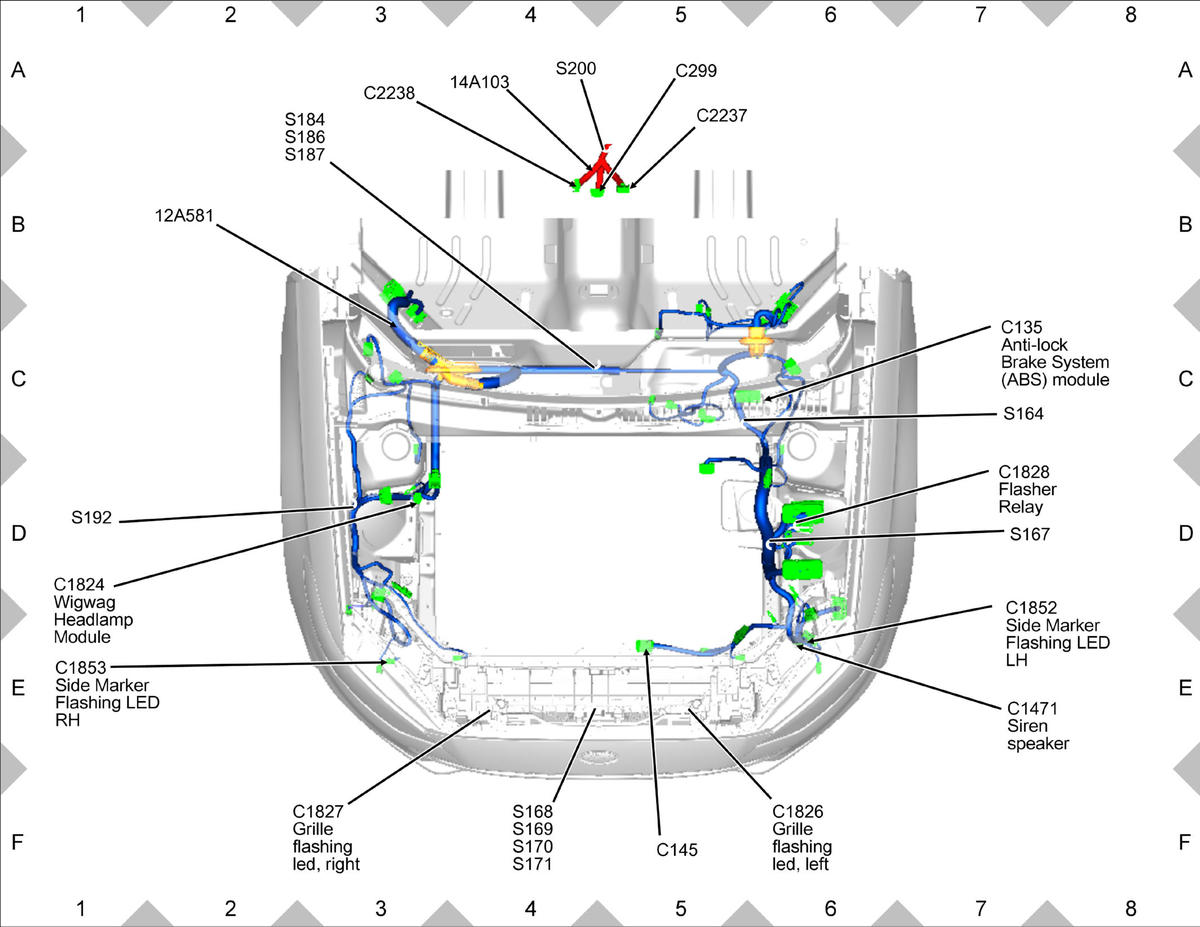

GFDWR88495Courtesy of FORD MOTOR COMPANY

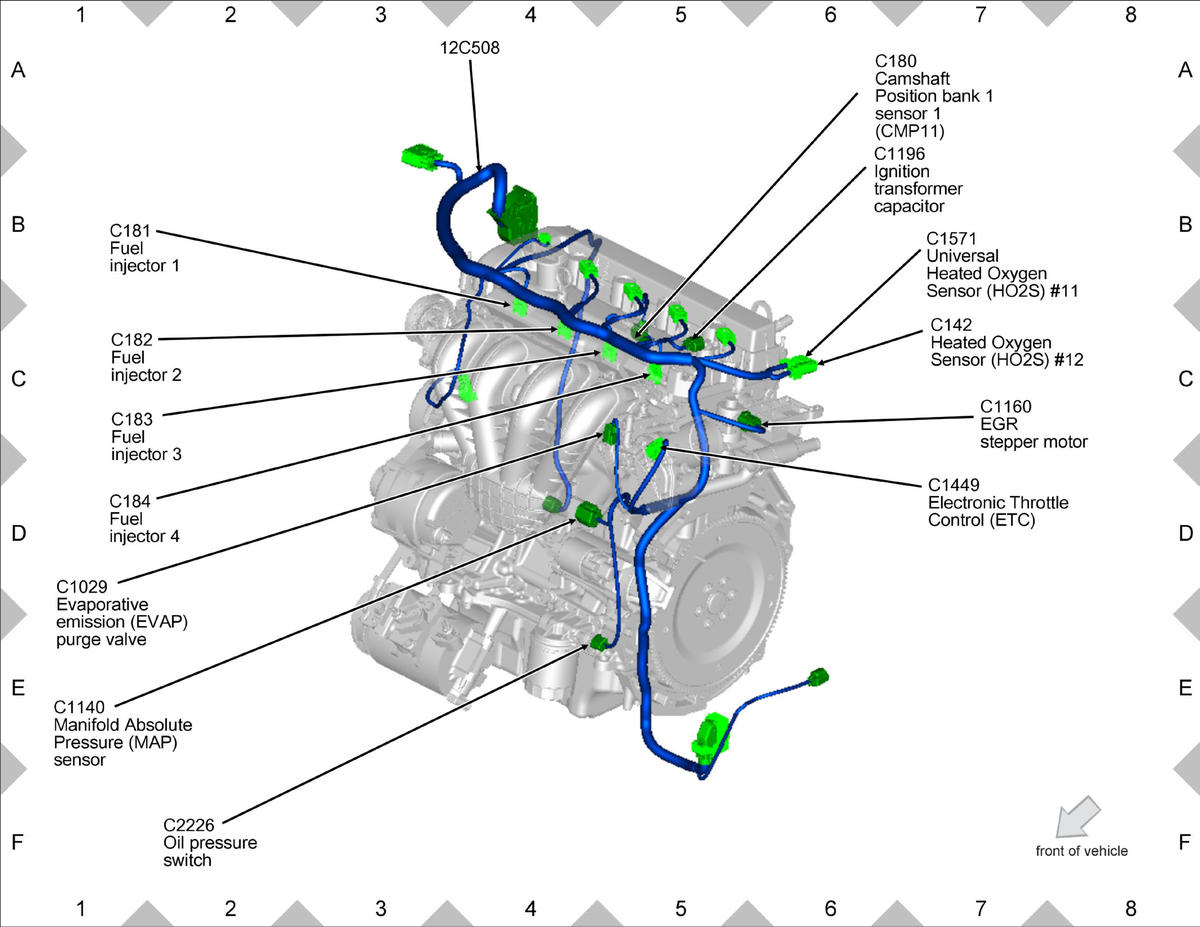

GFDWR88488Courtesy of FORD MOTOR COMPANY

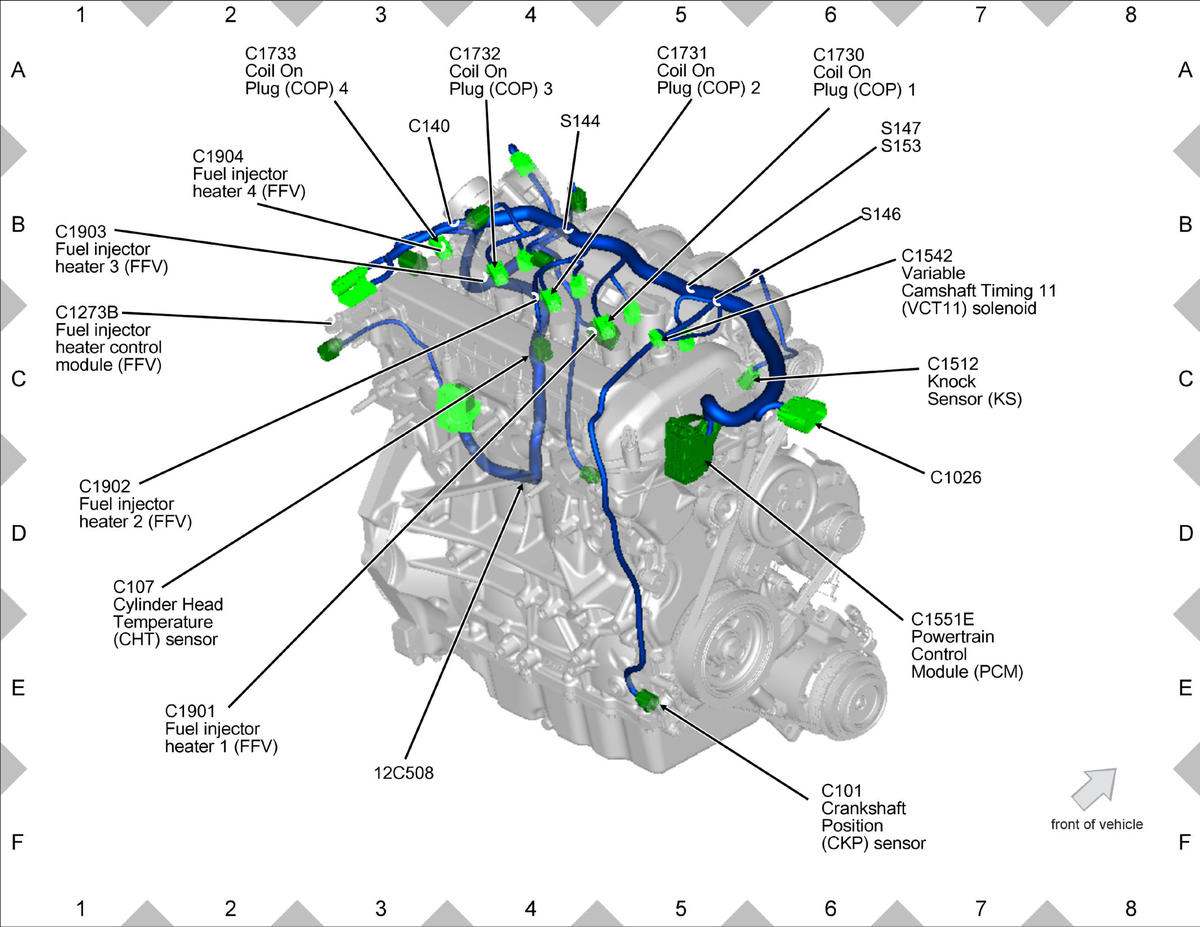

GFDWR88531Courtesy of FORD MOTOR COMPANY

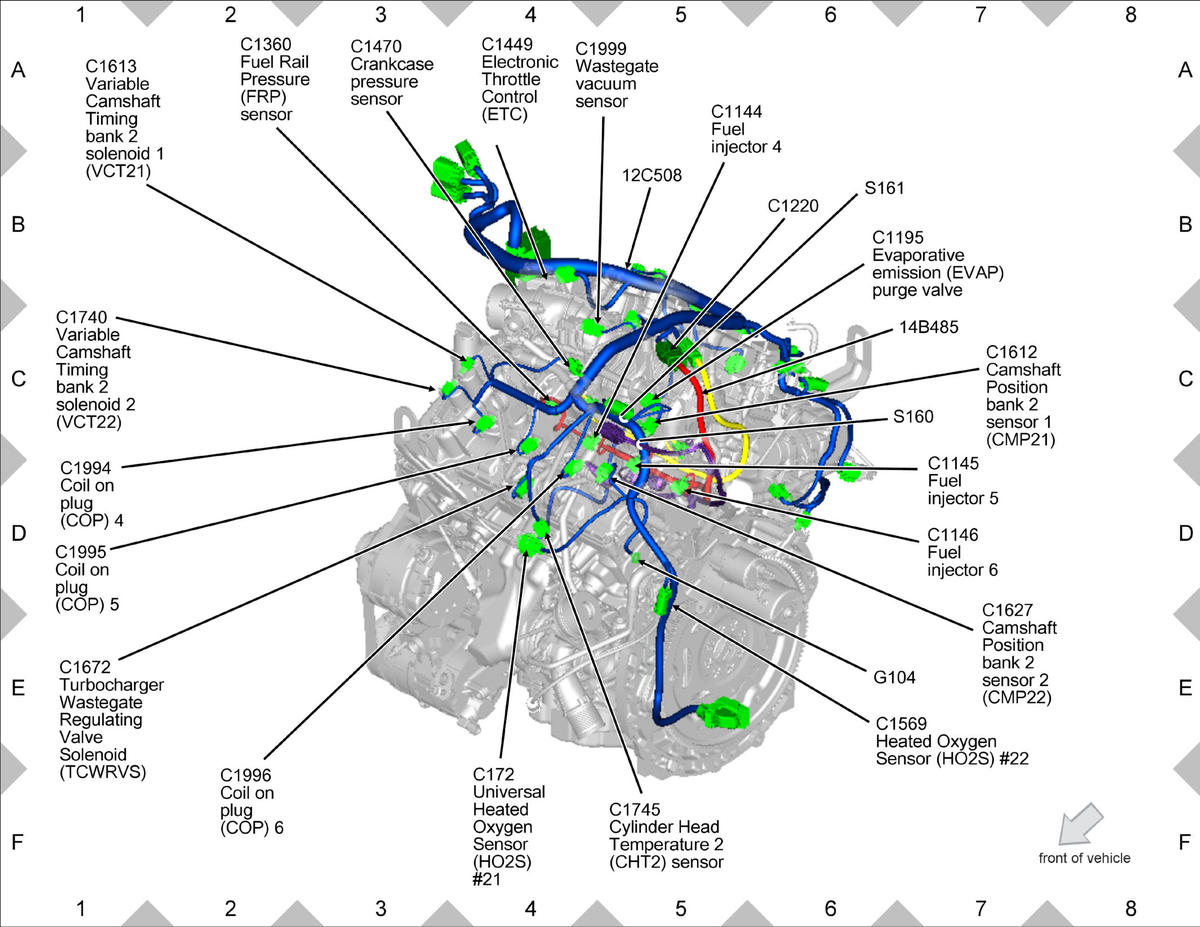

GFDWR88511Courtesy of FORD MOTOR COMPANY

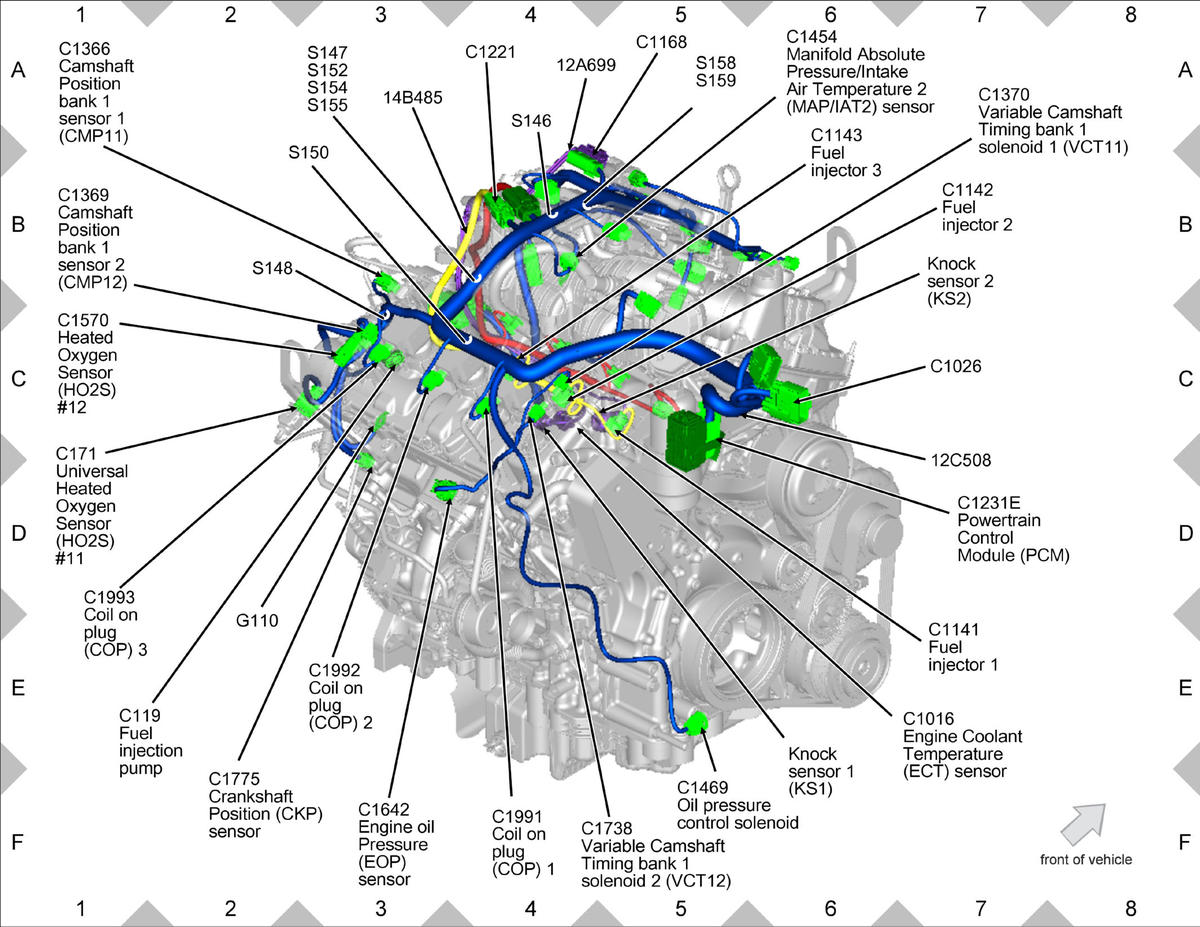

GFDWR88491Courtesy of FORD MOTOR COMPANY

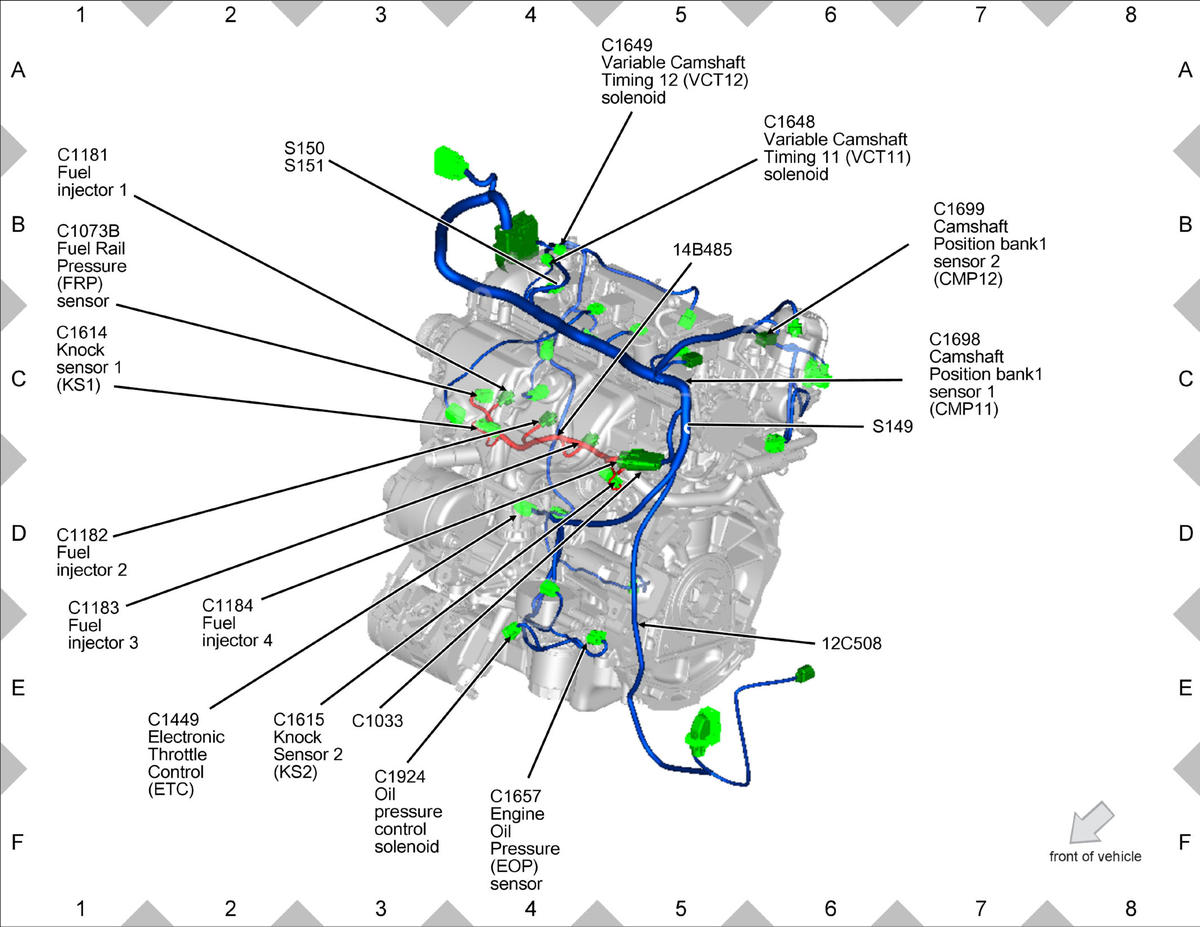

GFDWR88520Courtesy of FORD MOTOR COMPANY

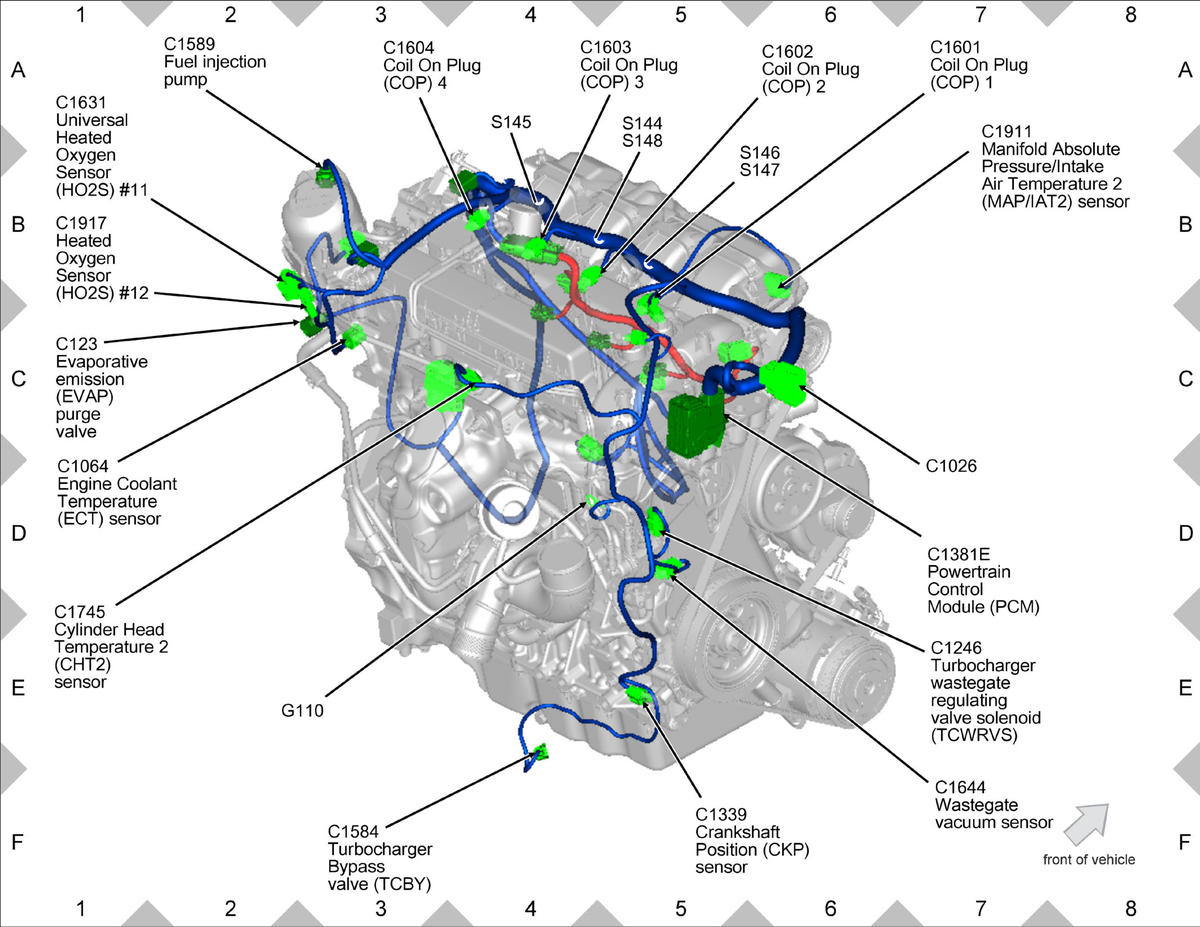

GFDWR88524Courtesy of FORD MOTOR COMPANY

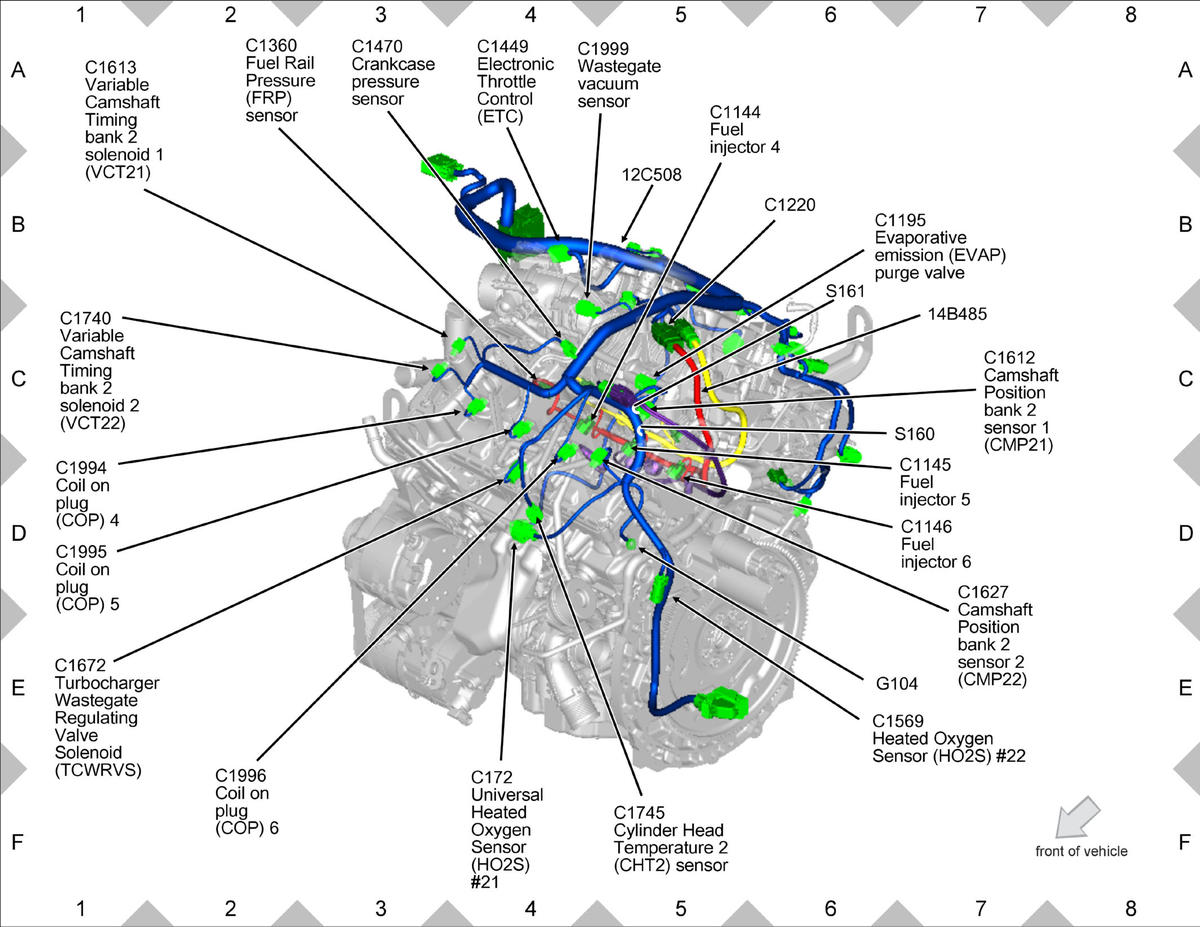

GFDWR88496Courtesy of FORD MOTOR COMPANY

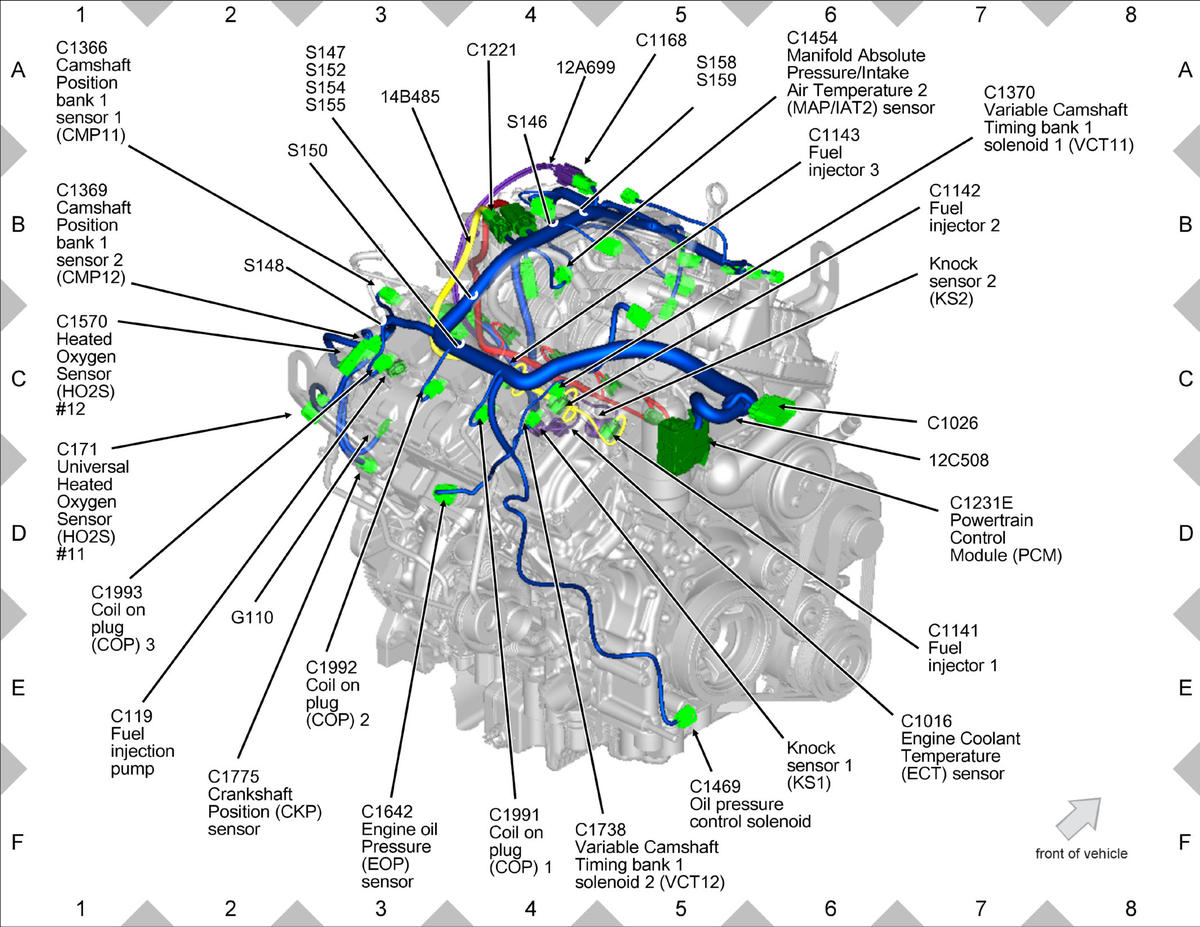

GFDWR88500Courtesy of FORD MOTOR COMPANY

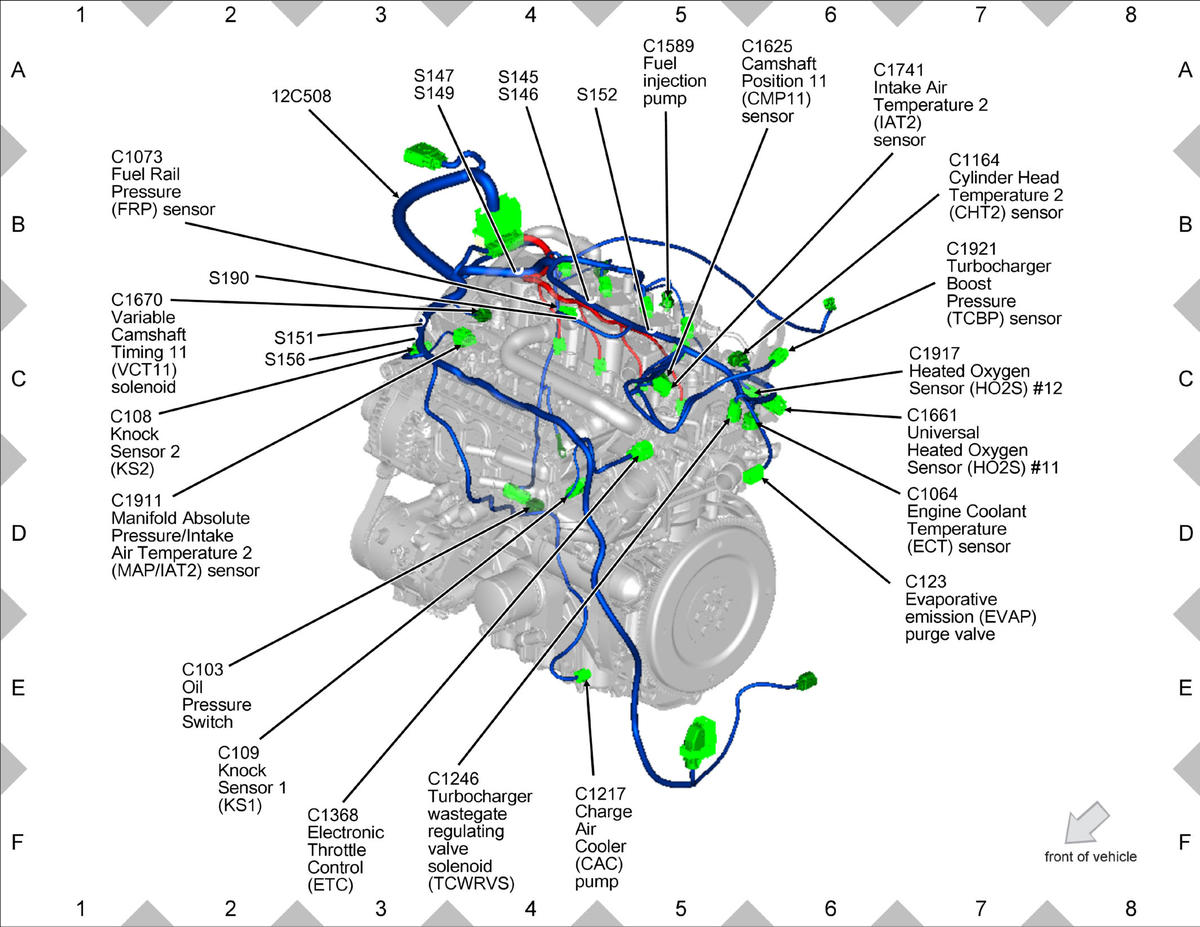

GFDWR88485Courtesy of FORD MOTOR COMPANY

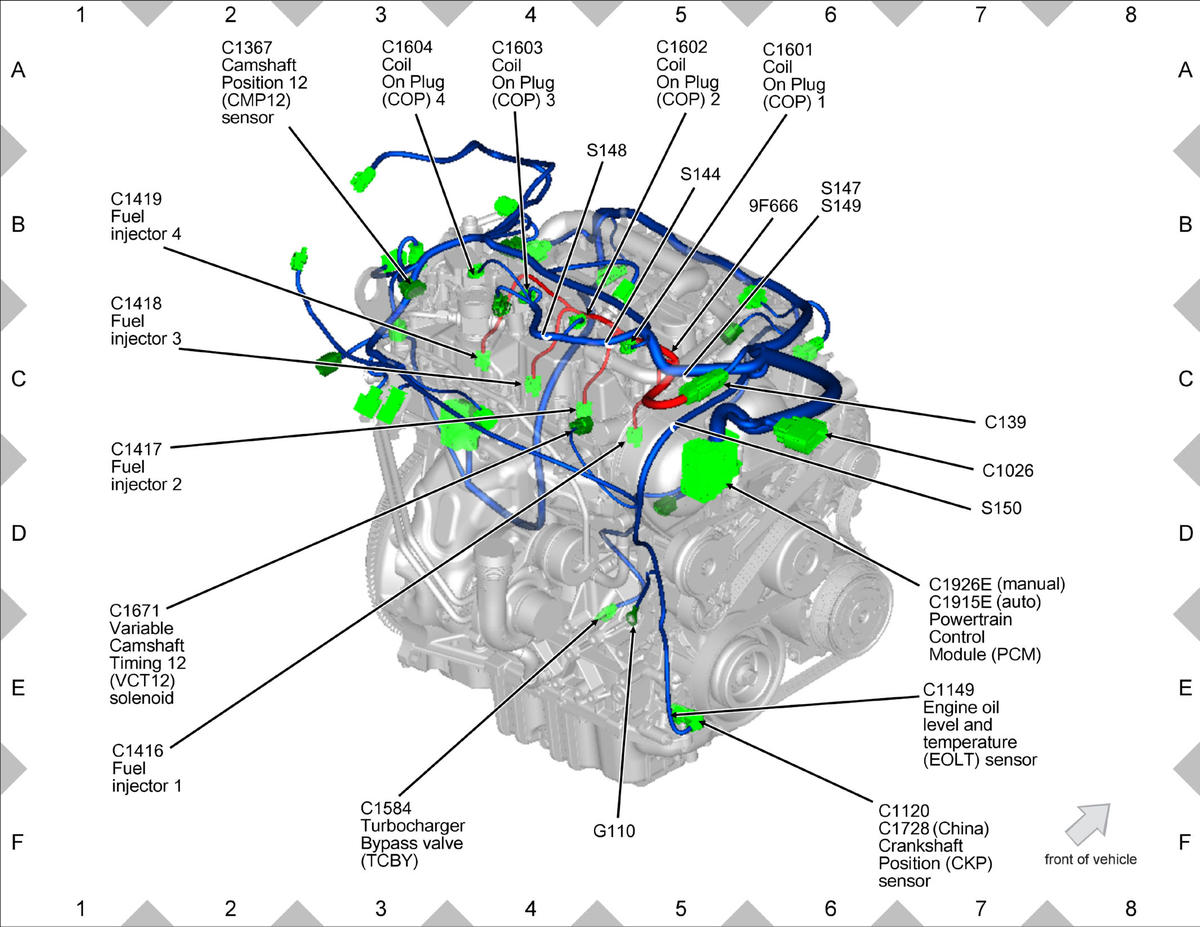

GFDWR88514Courtesy of FORD MOTOR COMPANY

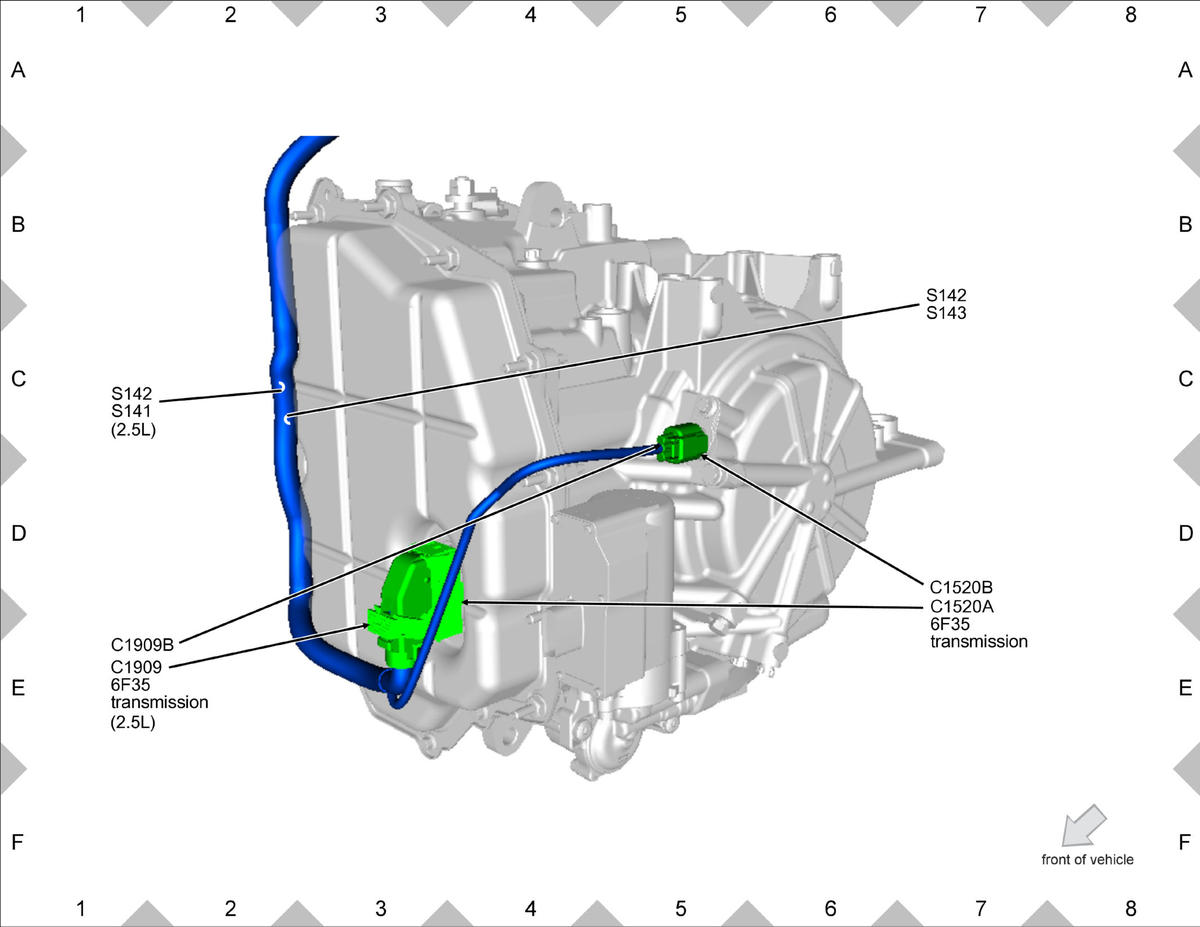

GFDWR88483Courtesy of FORD MOTOR COMPANY

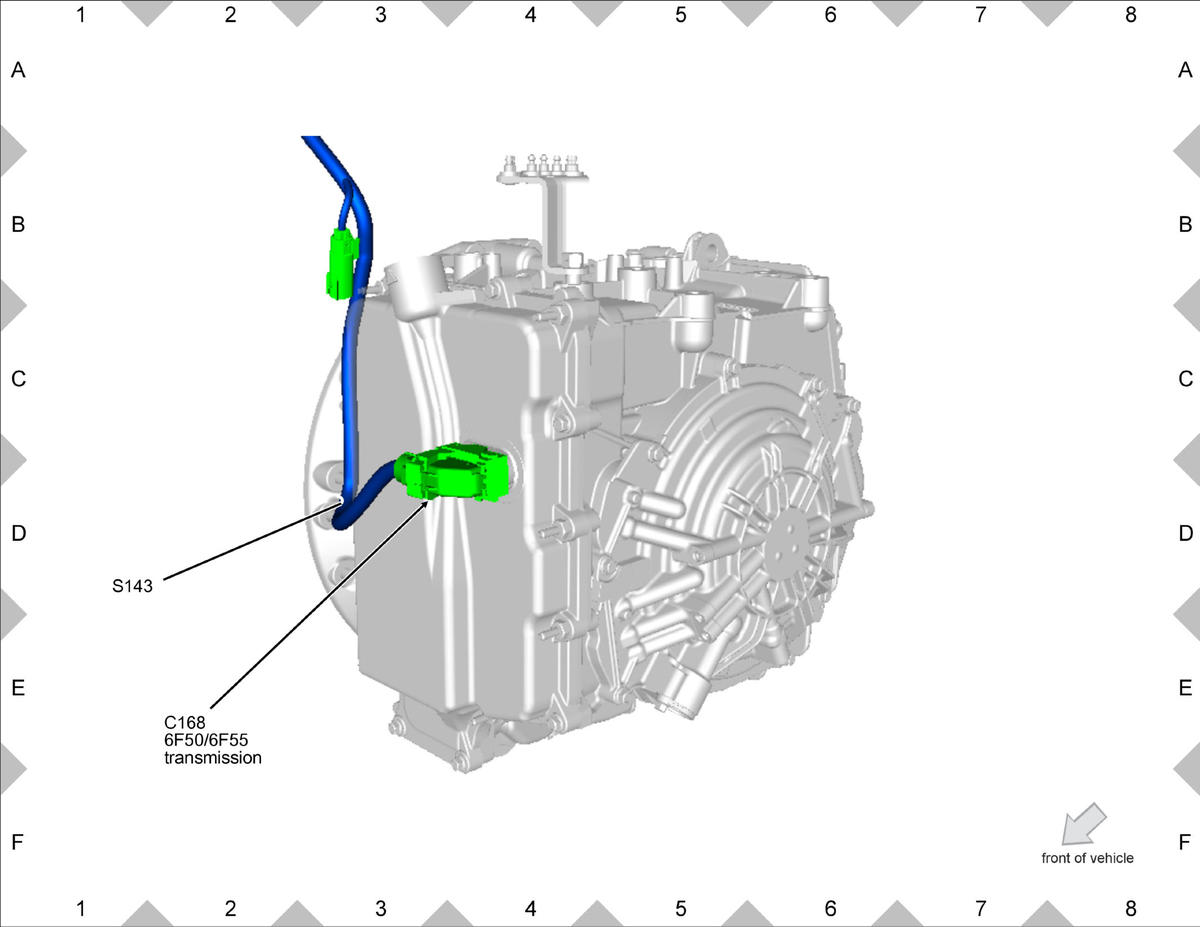

GFDWR88533Courtesy of FORD MOTOR COMPANY

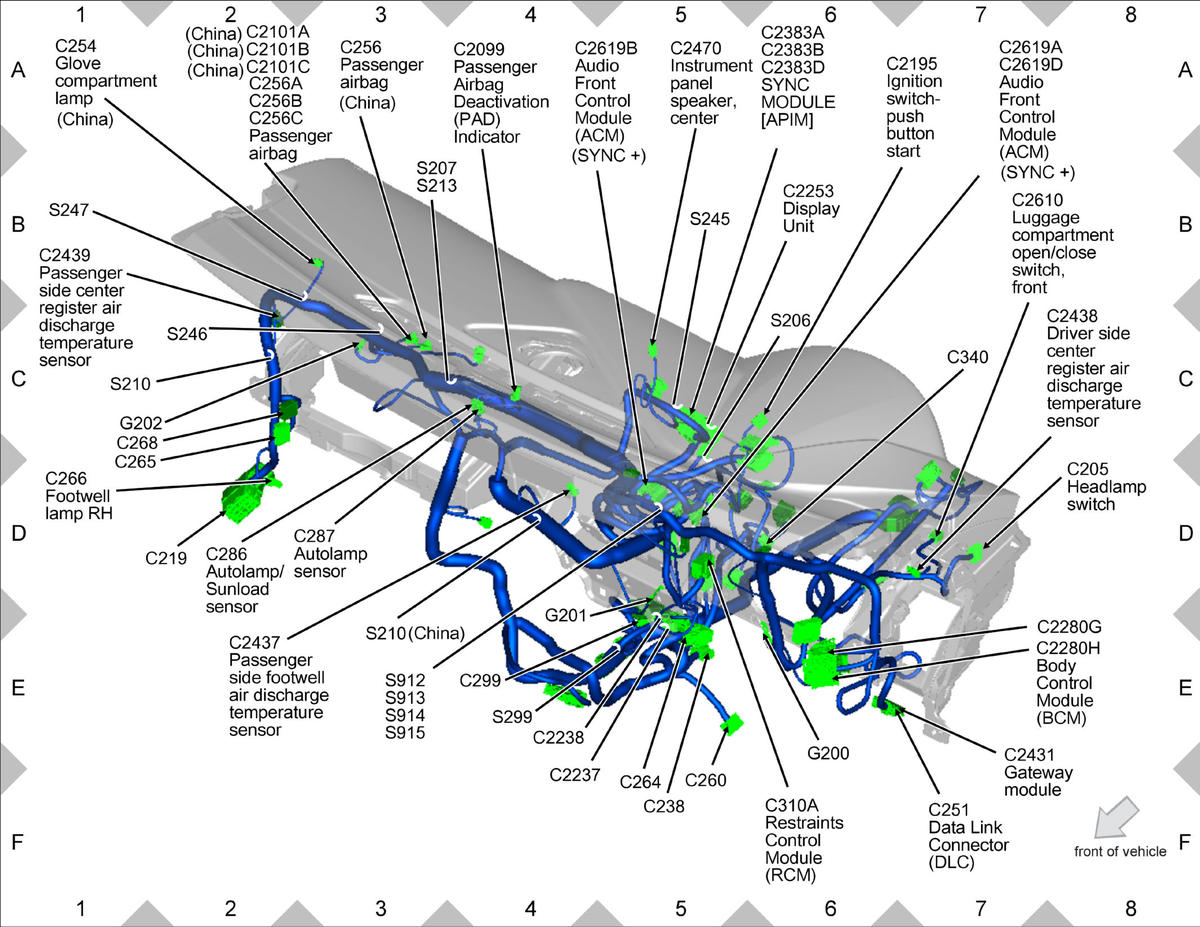

GFDWR88503Courtesy of FORD MOTOR COMPANY

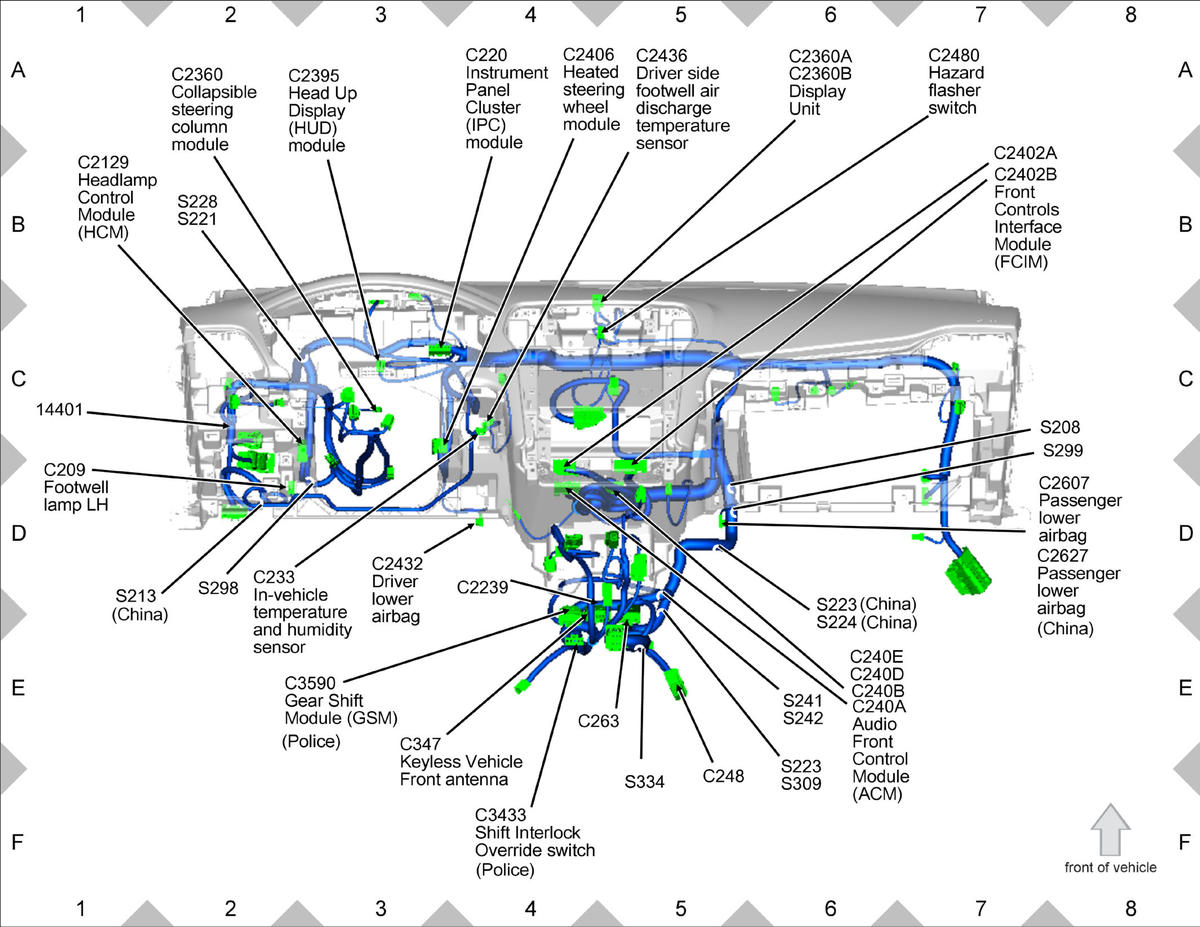

GFDWR88515Courtesy of FORD MOTOR COMPANY

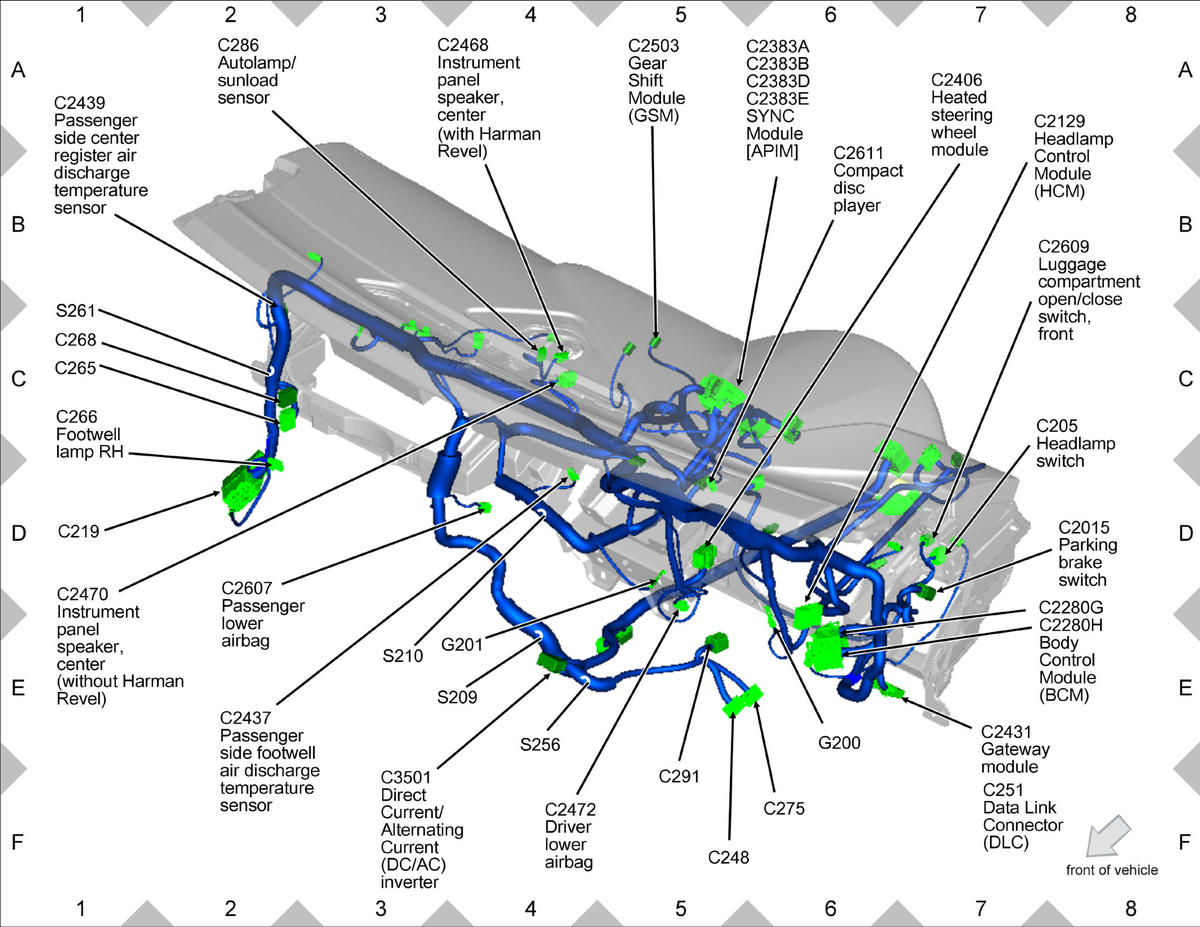

GFDWR88528Courtesy of FORD MOTOR COMPANY

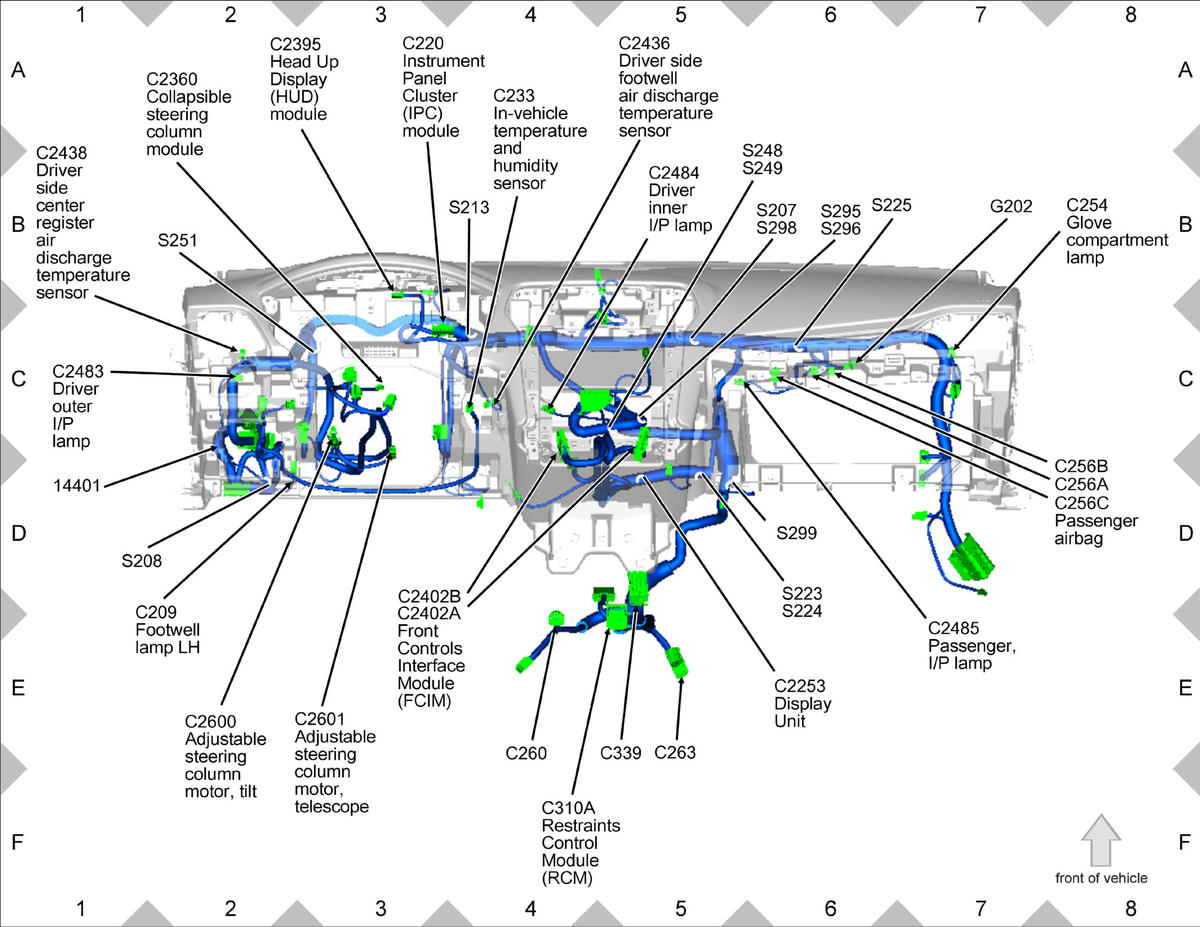

GFDWR88506Courtesy of FORD MOTOR COMPANY

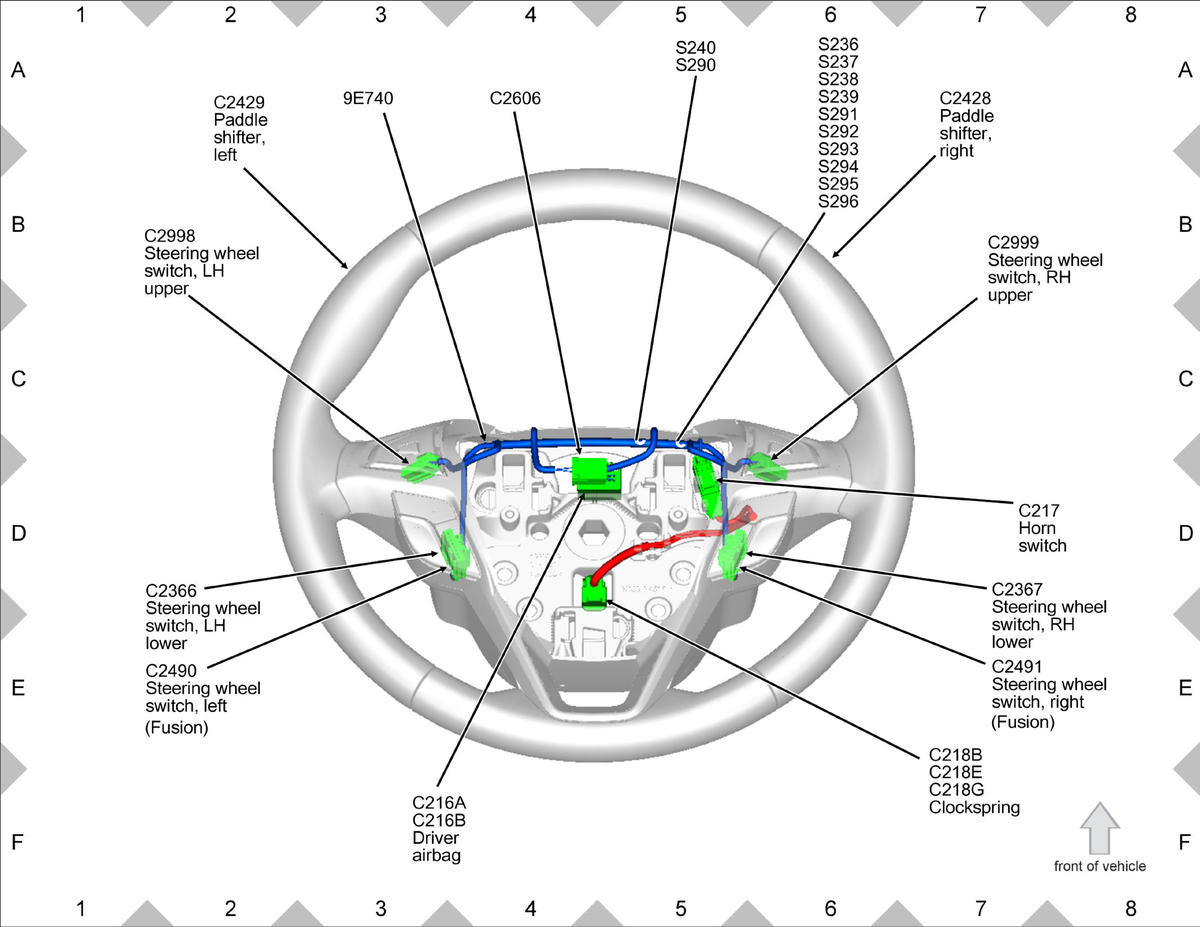

GFDWR88530Courtesy of FORD MOTOR COMPANY

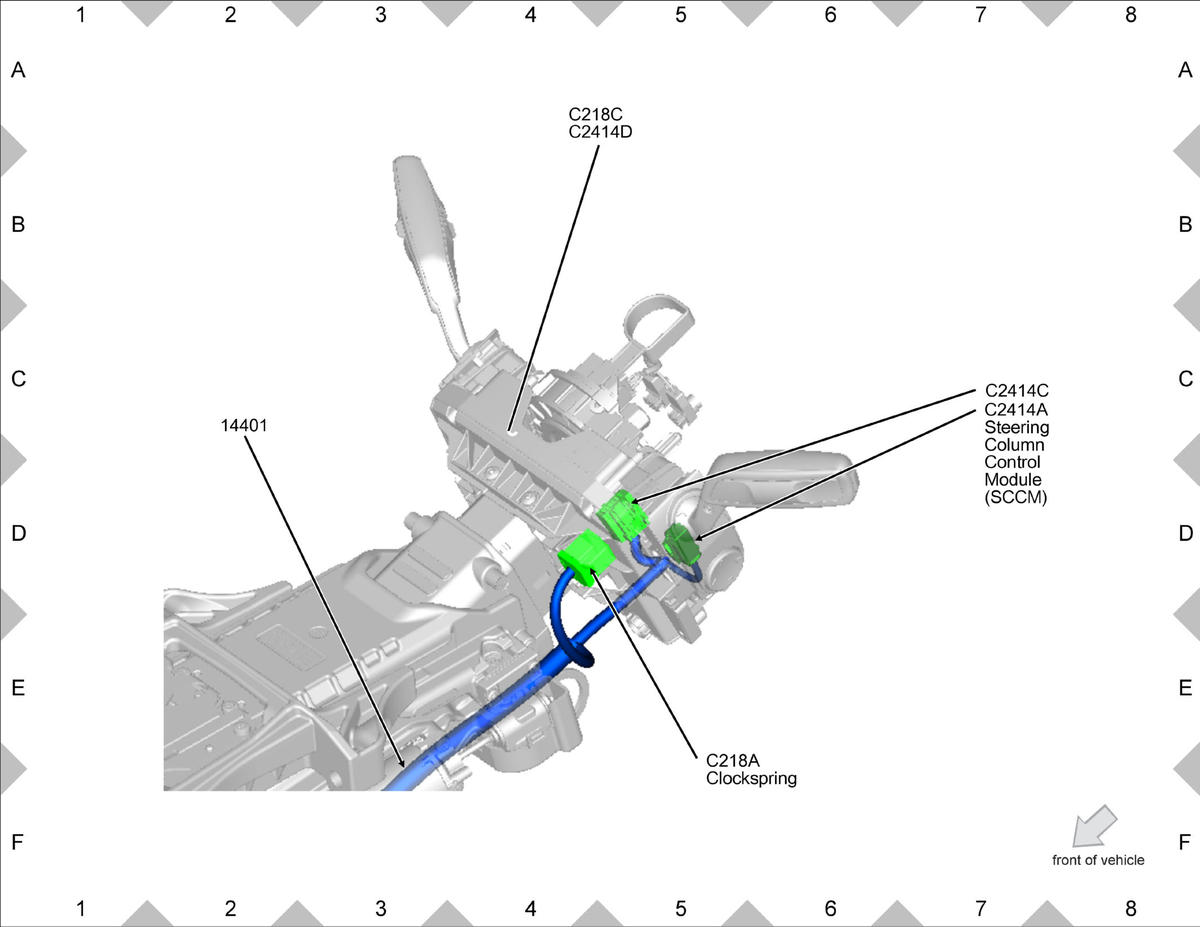

GFDWR88497Courtesy of FORD MOTOR COMPANY

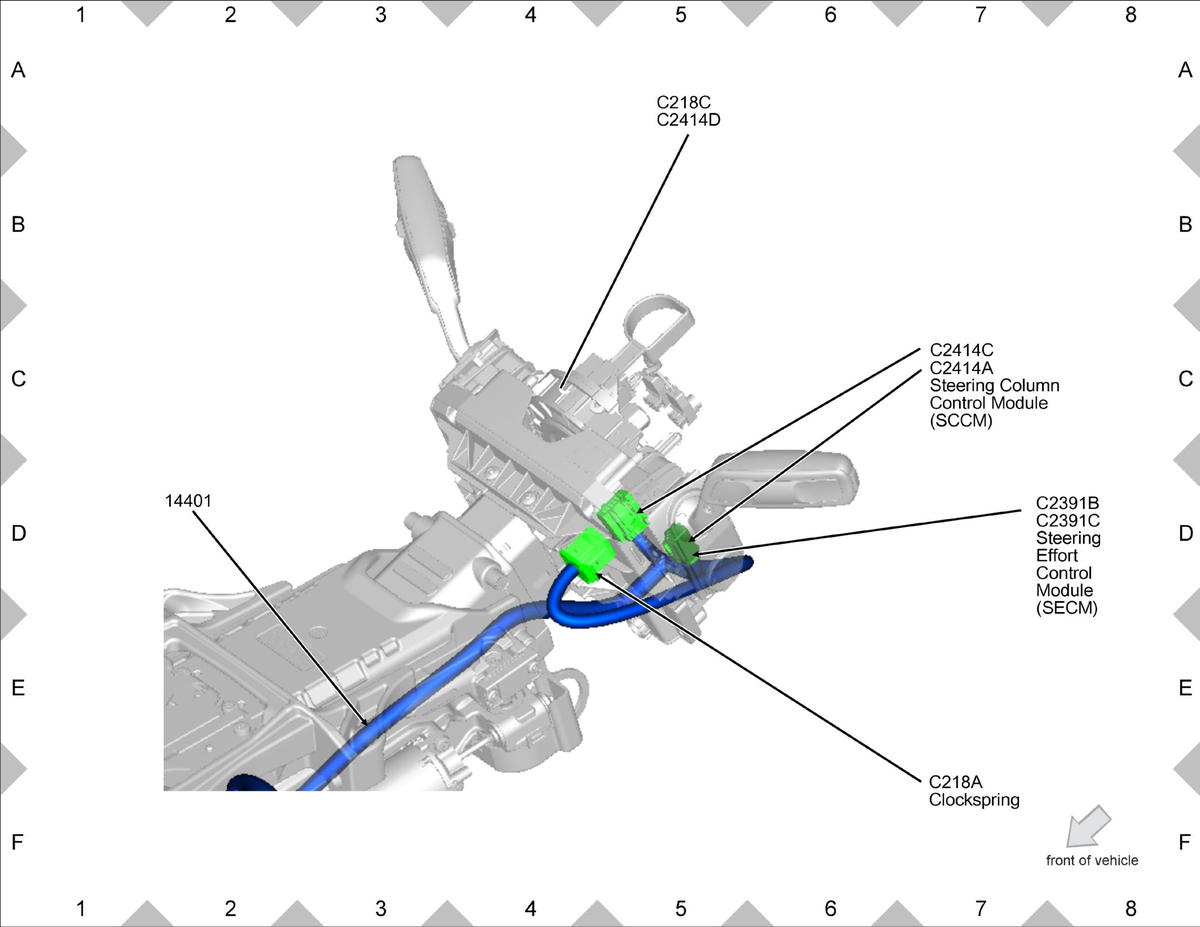

GFDWR88526Courtesy of FORD MOTOR COMPANY

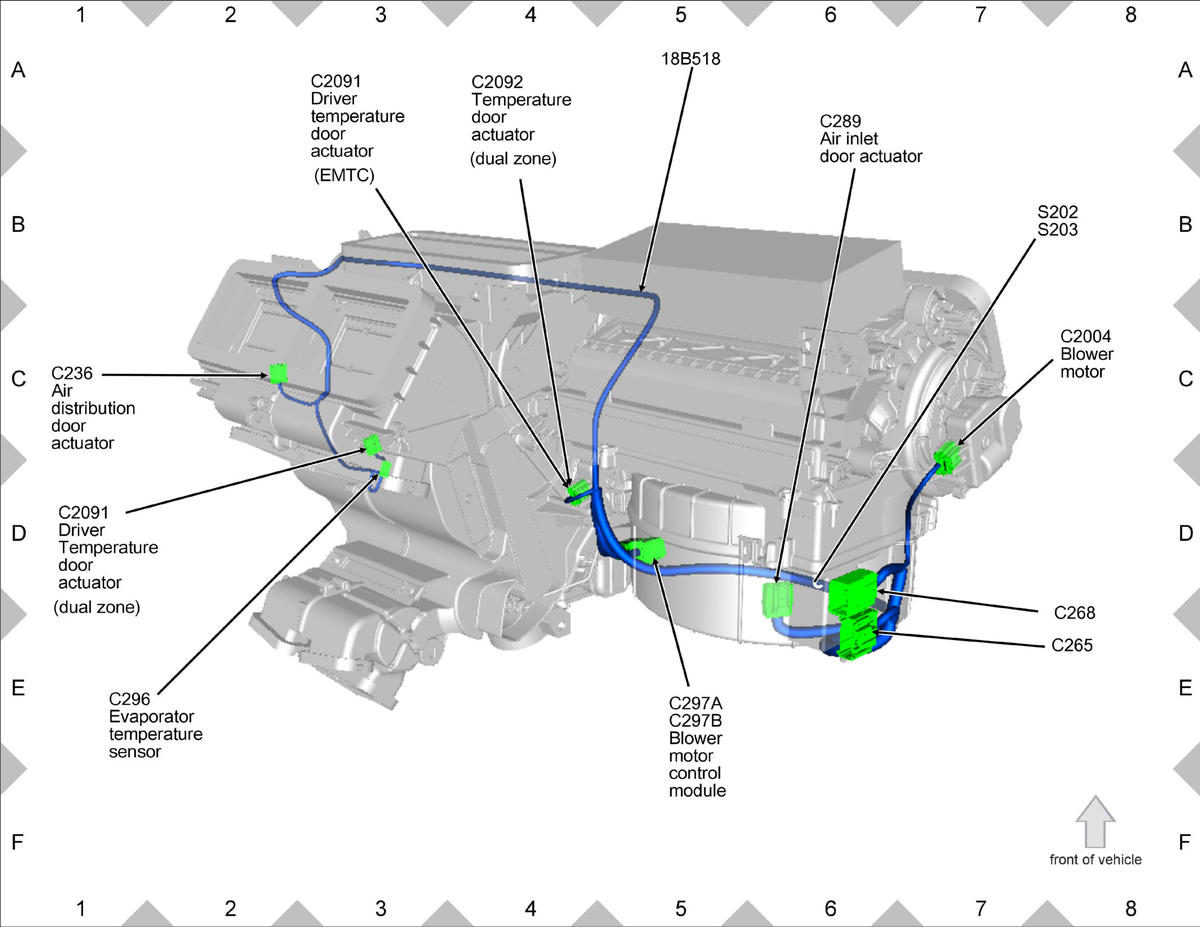

GFDWR88478Courtesy of FORD MOTOR COMPANY

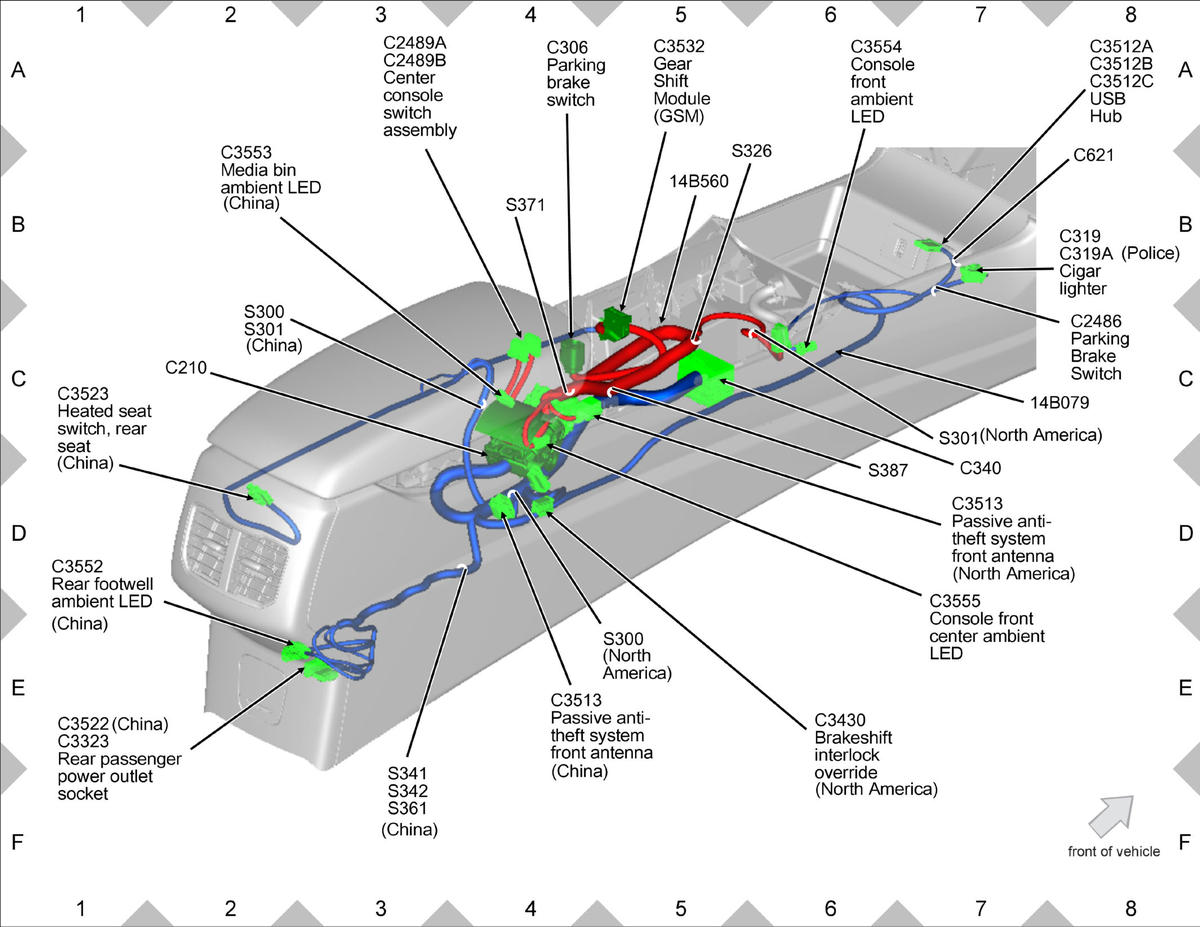

GFDWR88480Courtesy of FORD MOTOR COMPANY

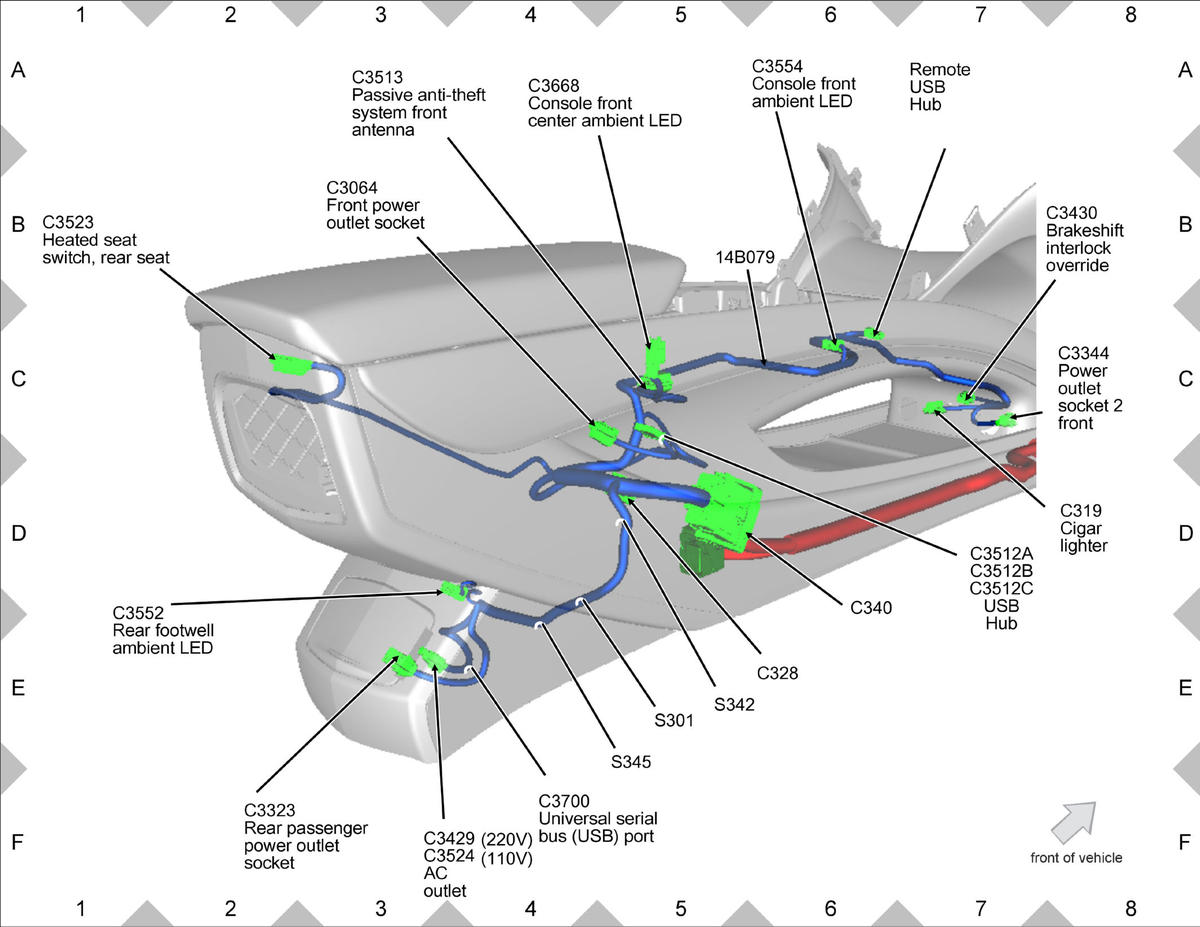

GFDWR88489Courtesy of FORD MOTOR COMPANY

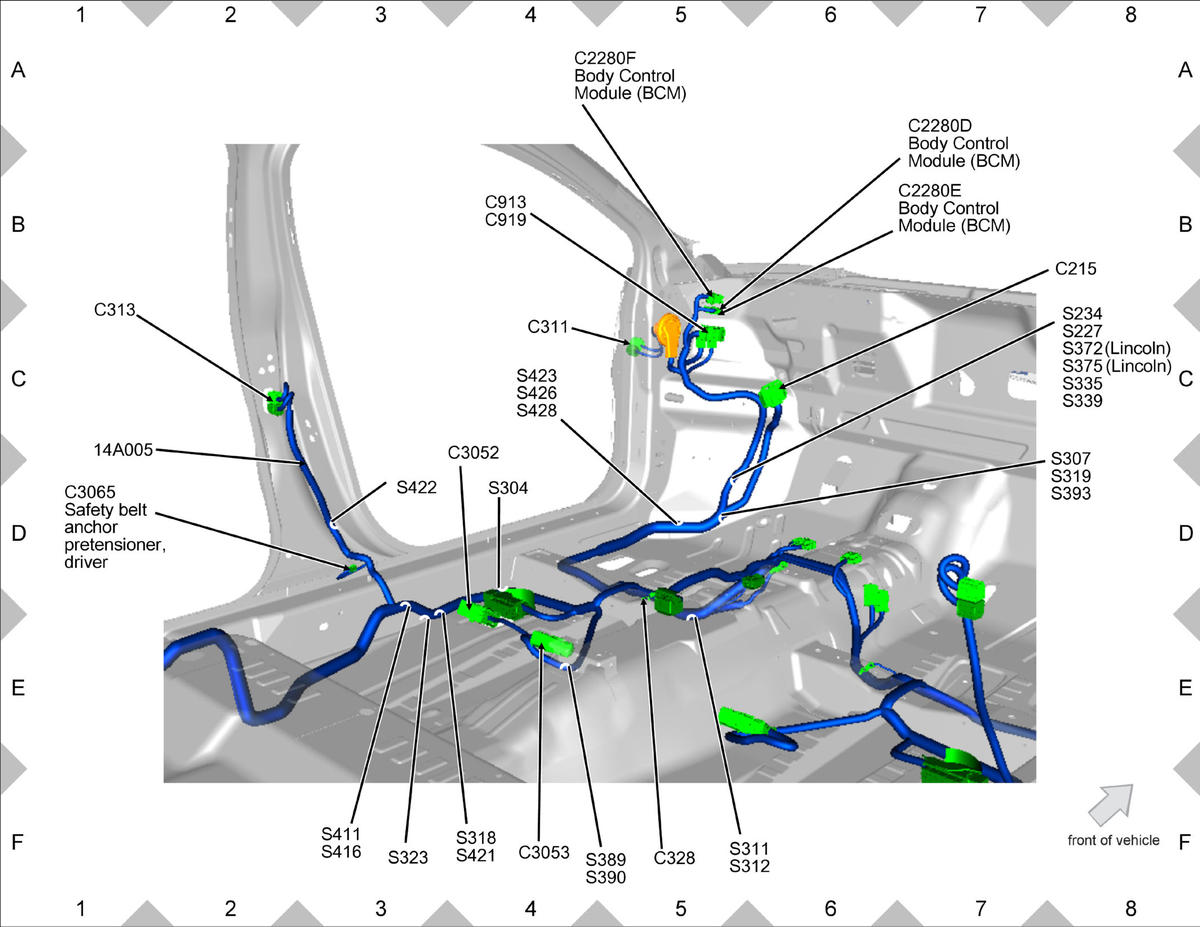

GFDWR88523Courtesy of FORD MOTOR COMPANY

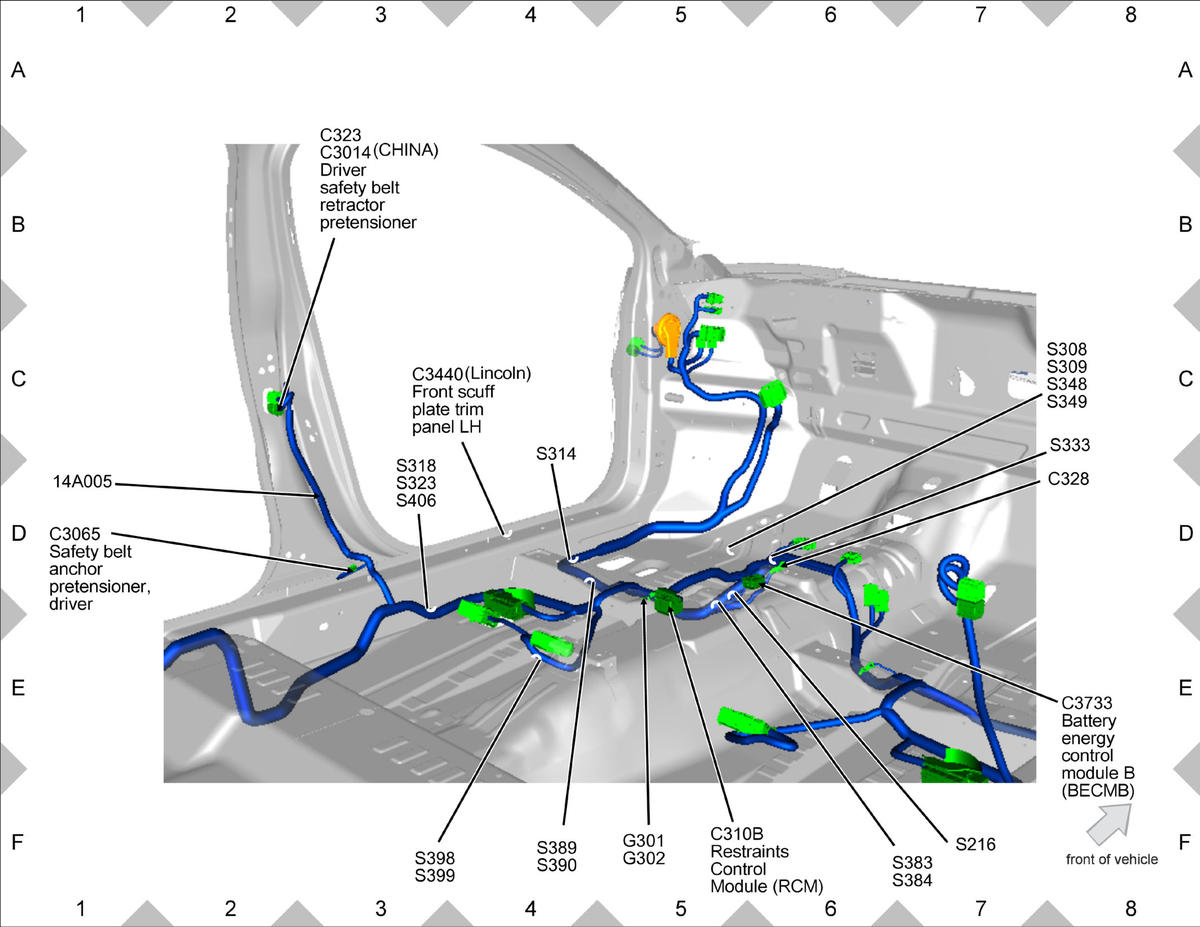

GFDWR88508Courtesy of FORD MOTOR COMPANY

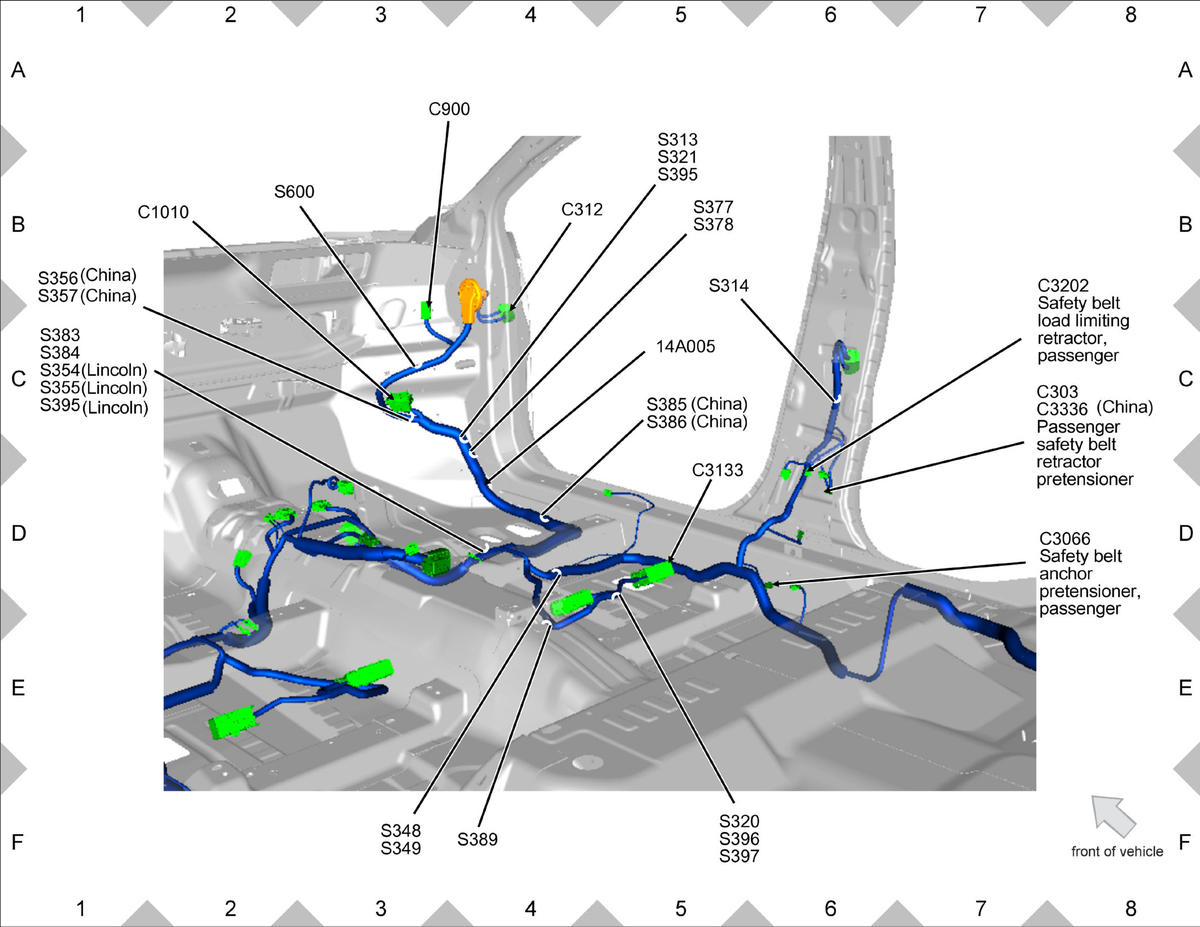

GFDWR88527Courtesy of FORD MOTOR COMPANY

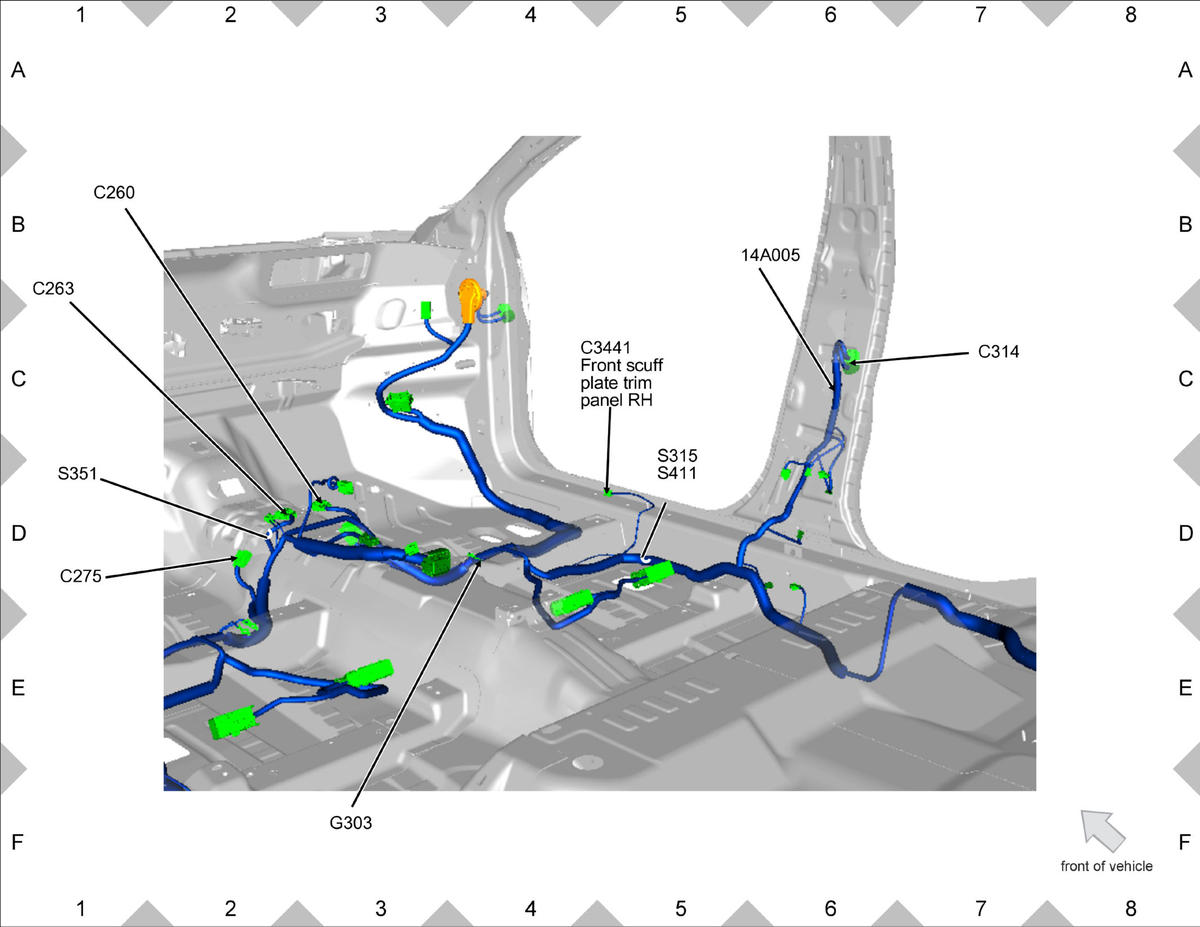

GFDWR88522Courtesy of FORD MOTOR COMPANY

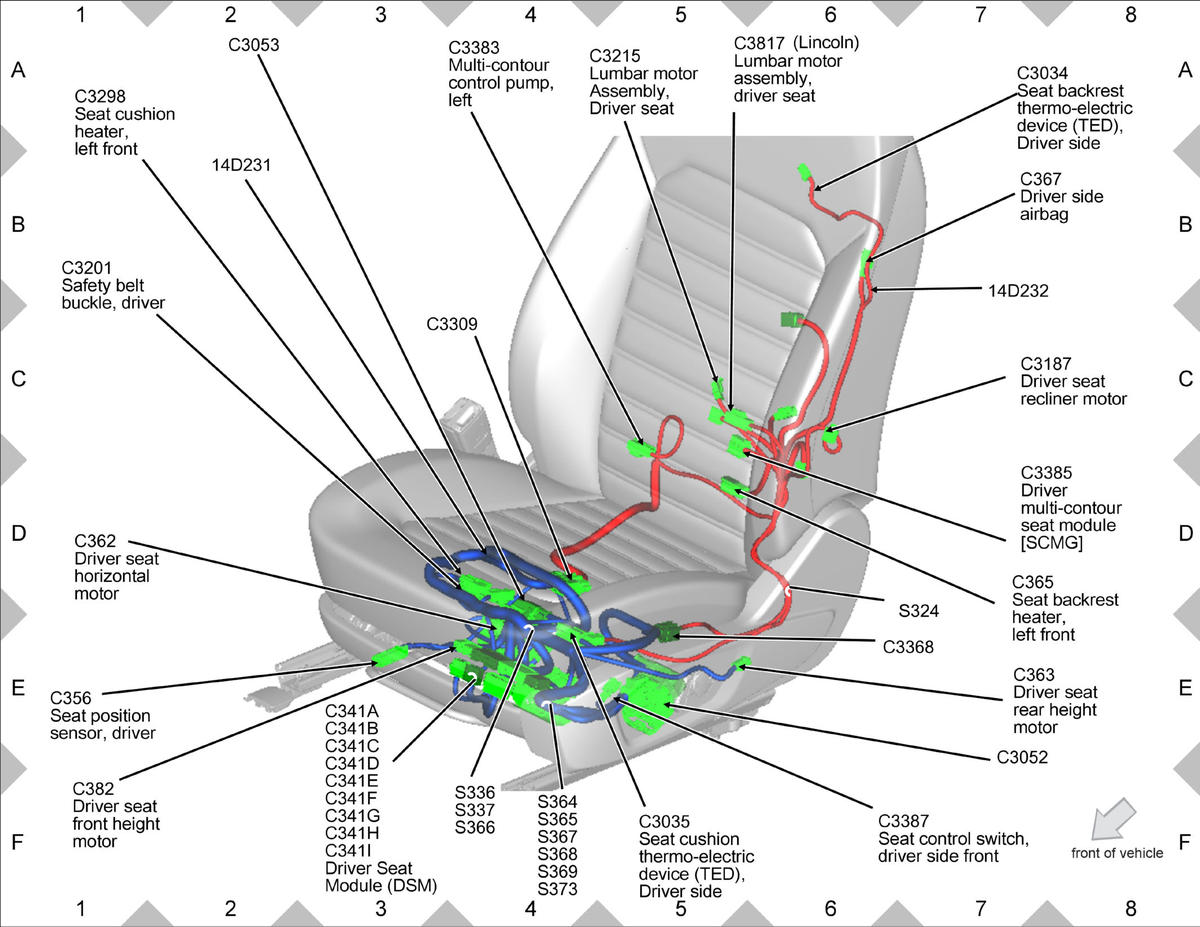

GFDWR88513Courtesy of FORD MOTOR COMPANY

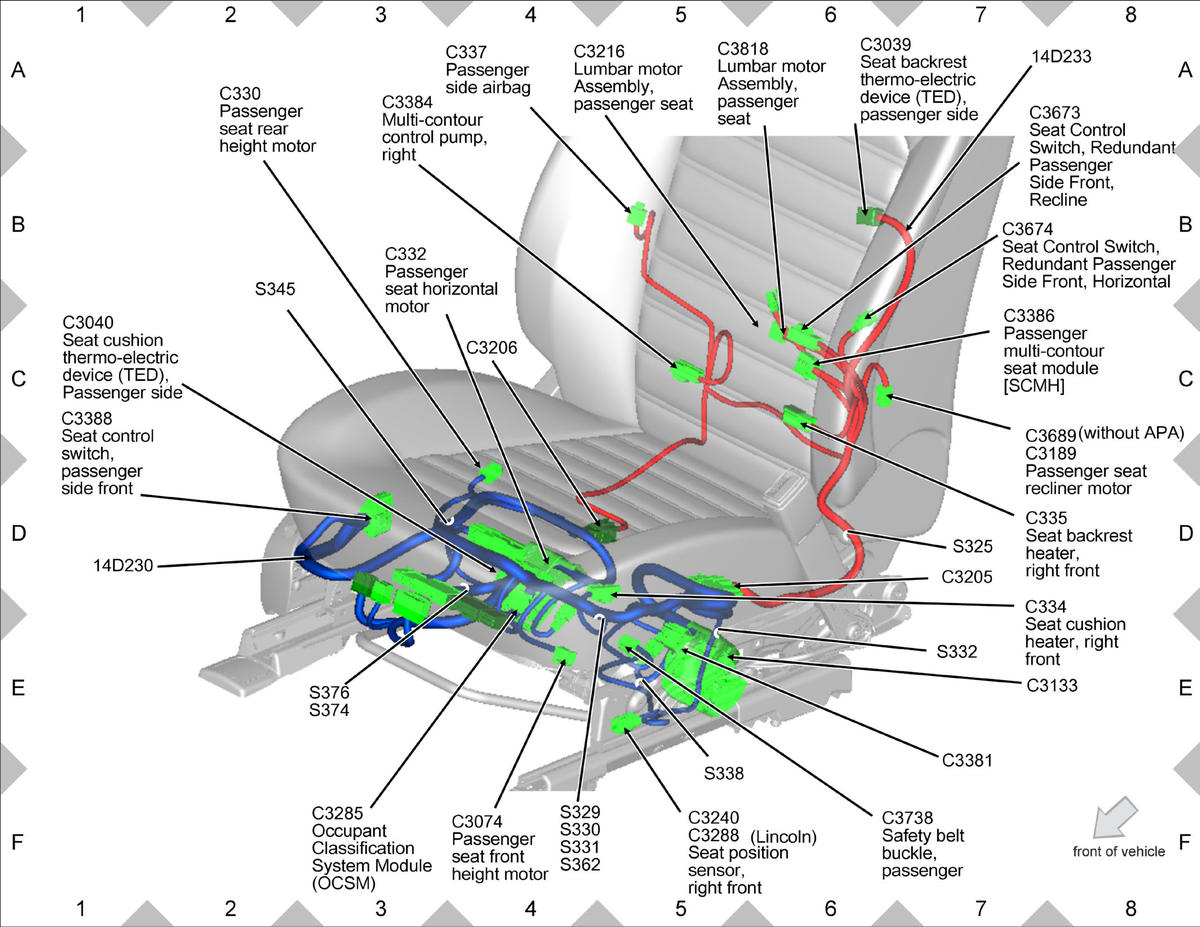

GFDWR88486Courtesy of FORD MOTOR COMPANY

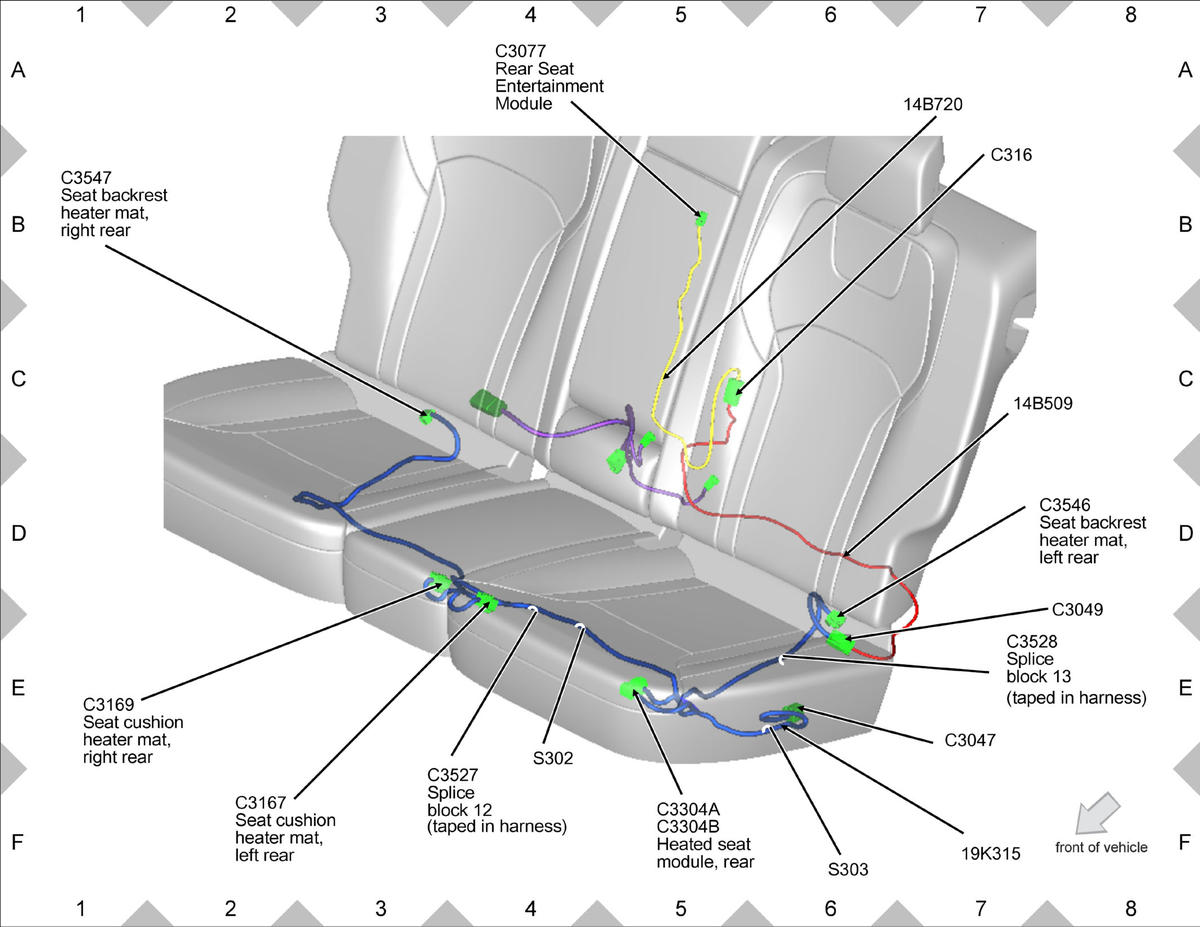

GFDWR88505Courtesy of FORD MOTOR COMPANY

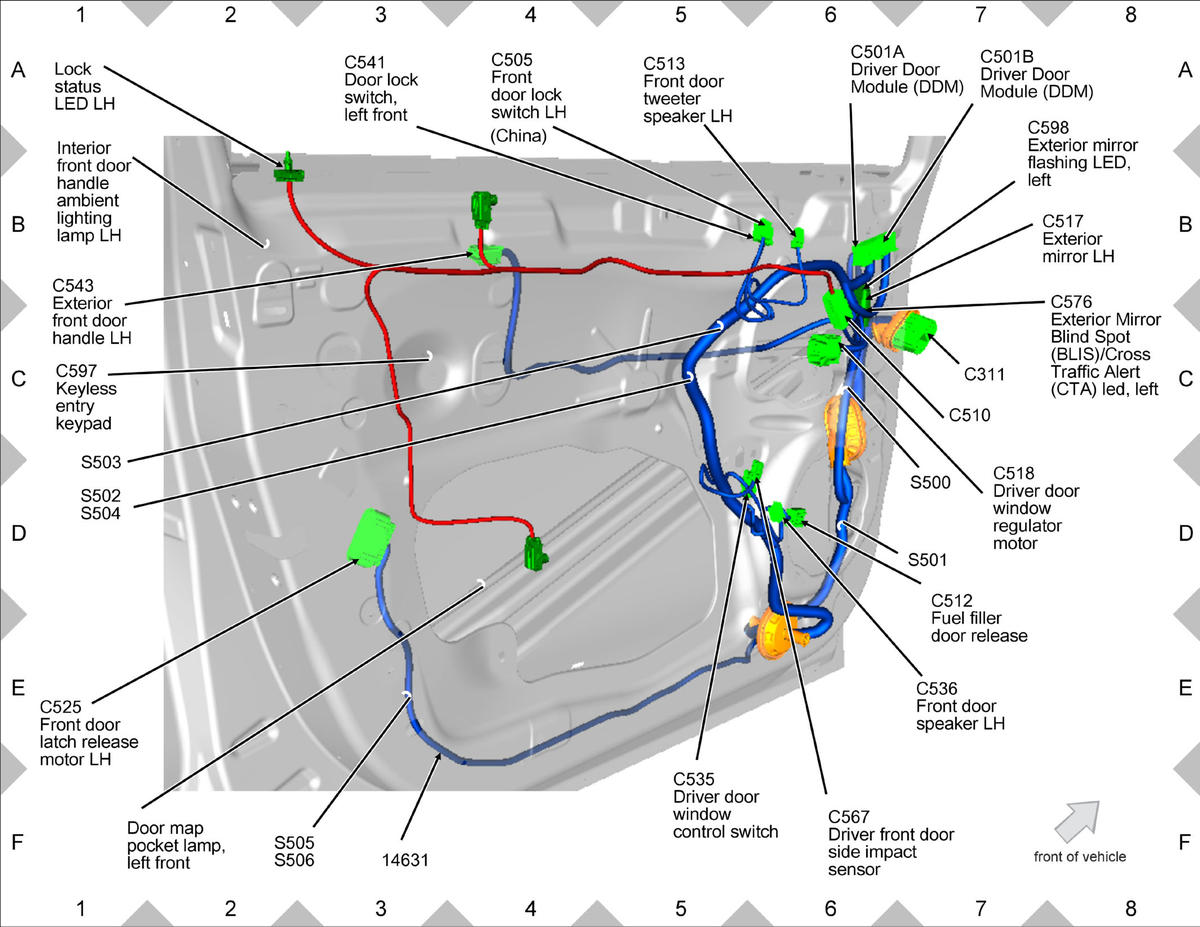

GFDWR88517Courtesy of FORD MOTOR COMPANY

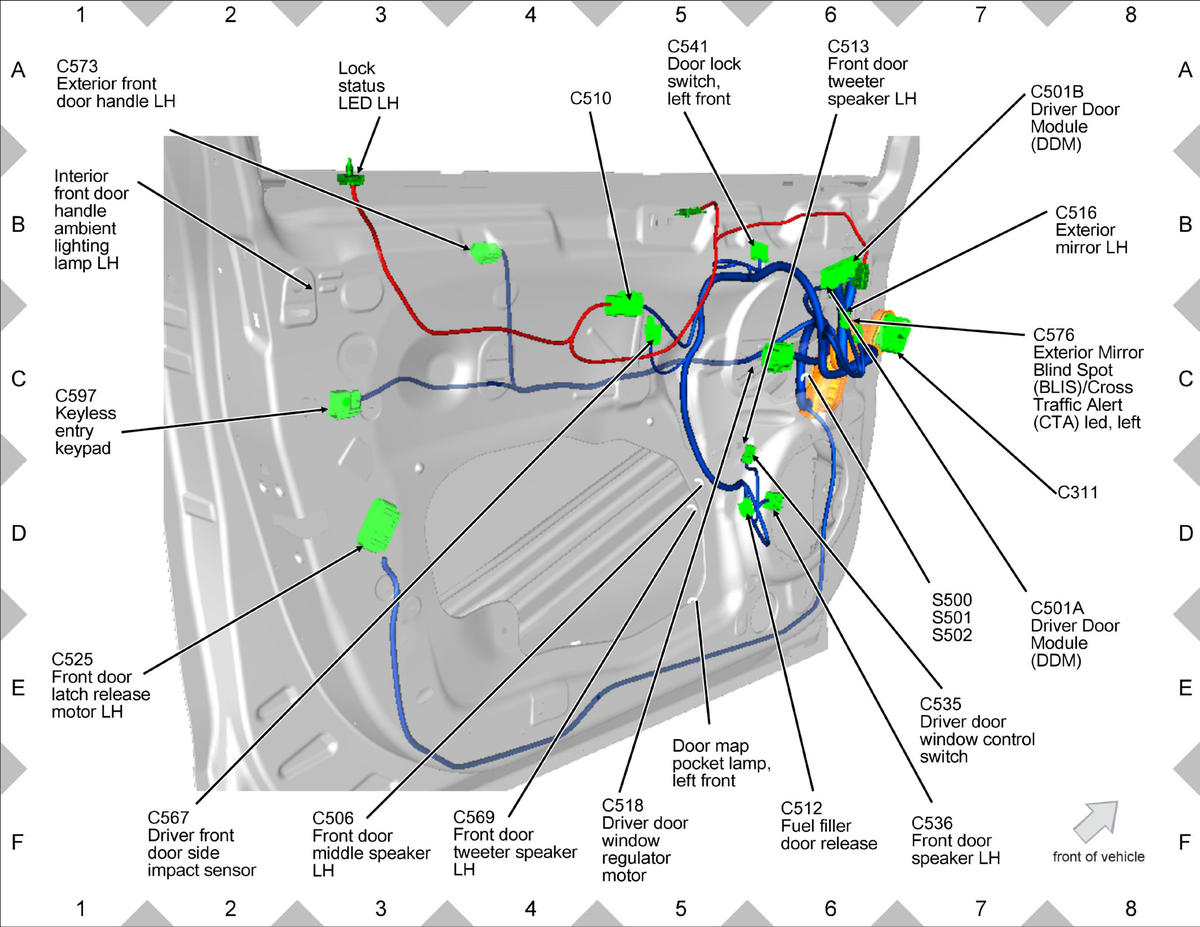

GFDWR88534Courtesy of FORD MOTOR COMPANY

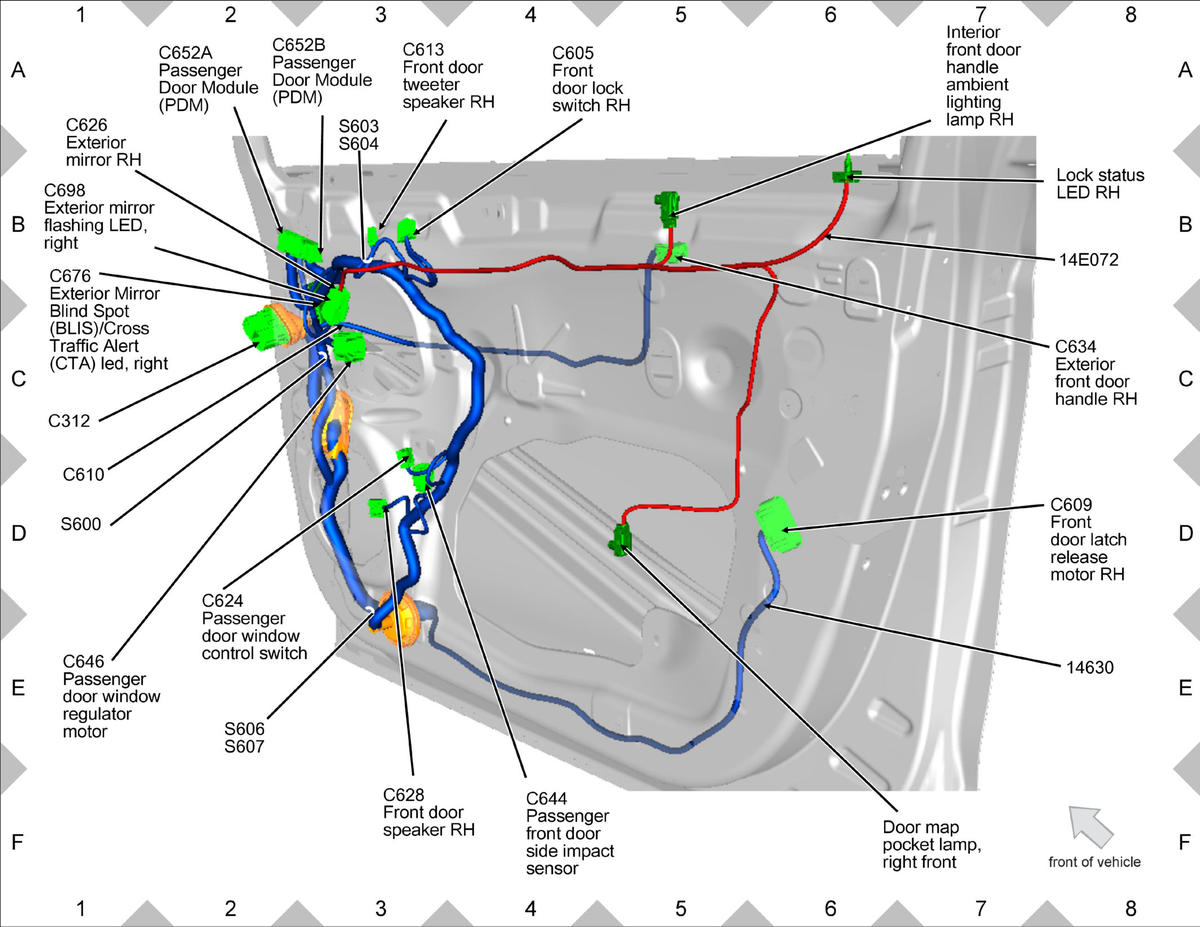

GFDWR88509Courtesy of FORD MOTOR COMPANY

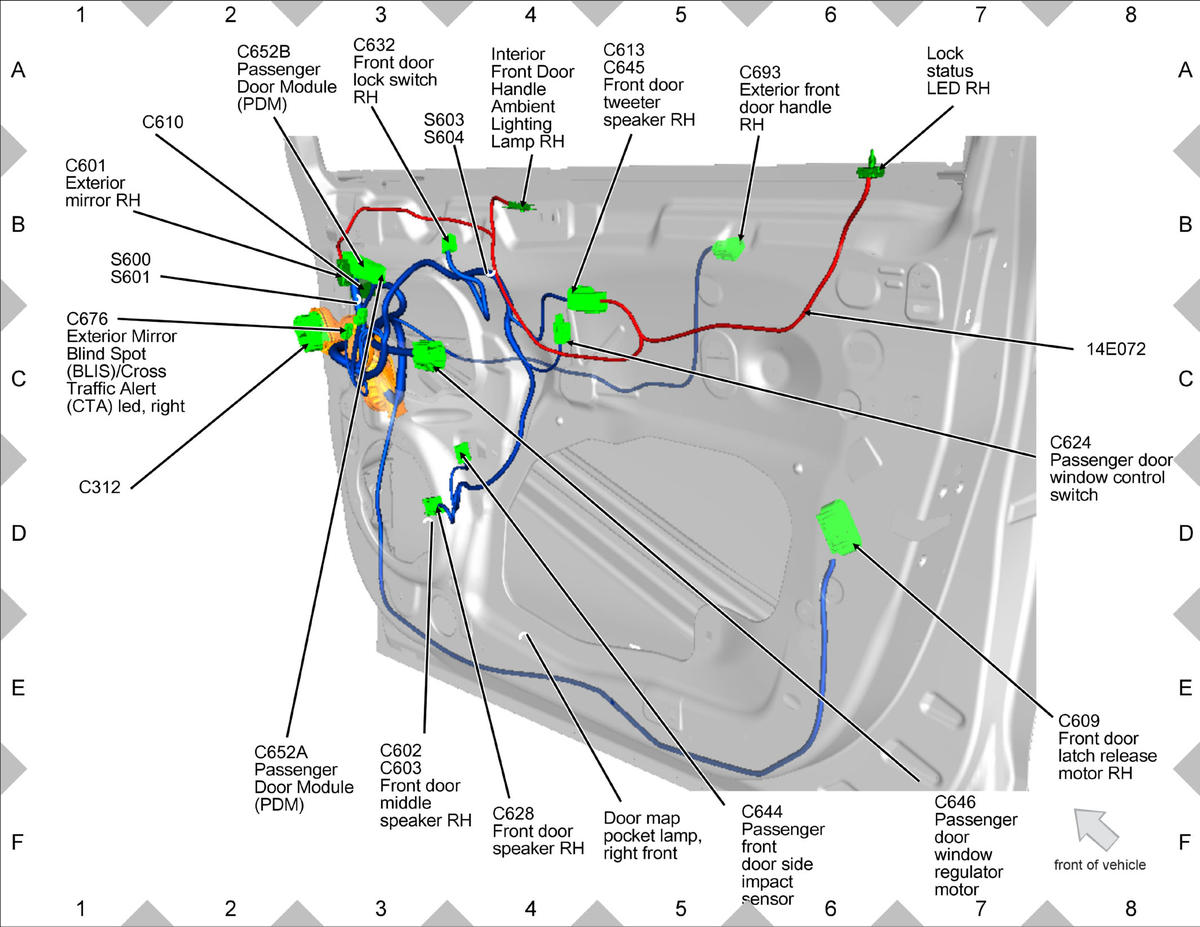

GFDWR88494Courtesy of FORD MOTOR COMPANY

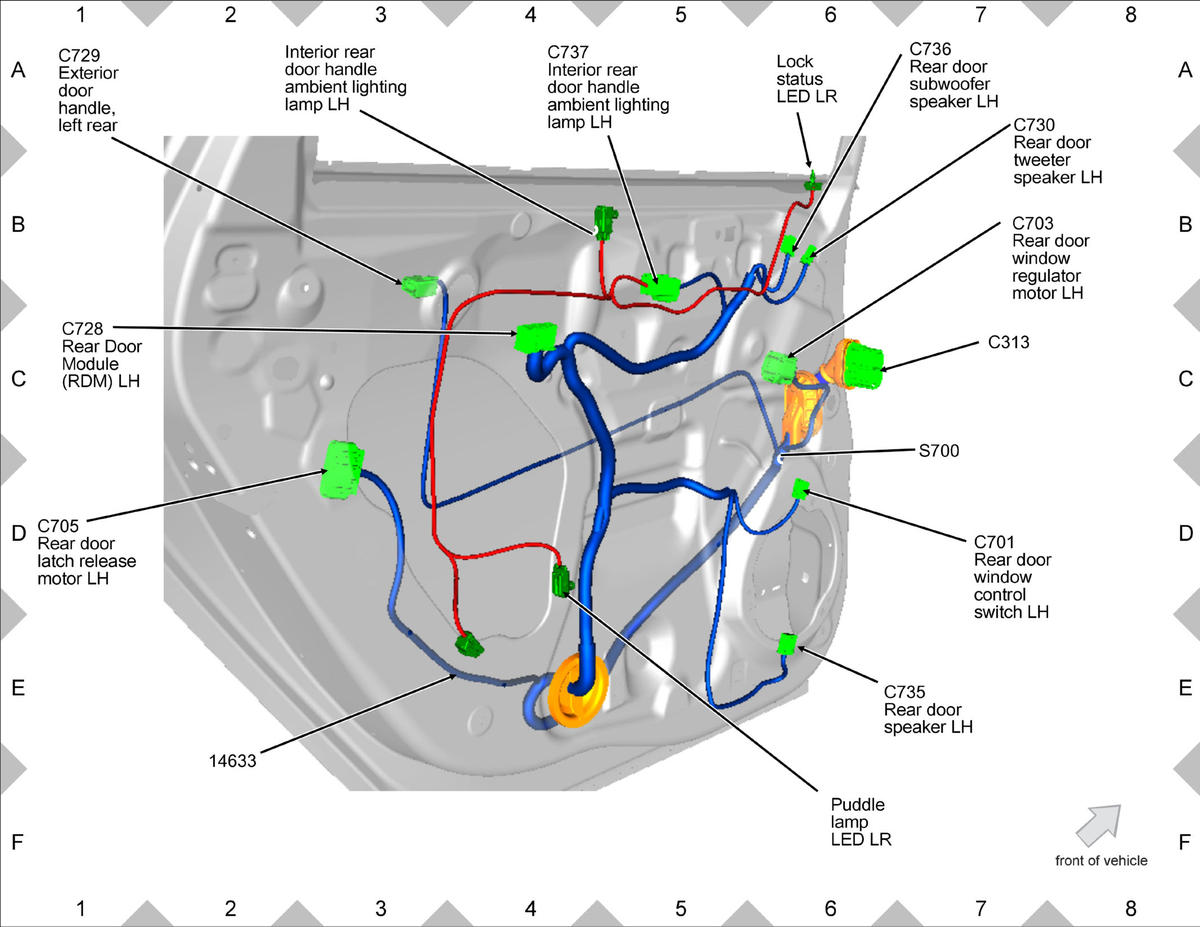

GFDWR88529Courtesy of FORD MOTOR COMPANY

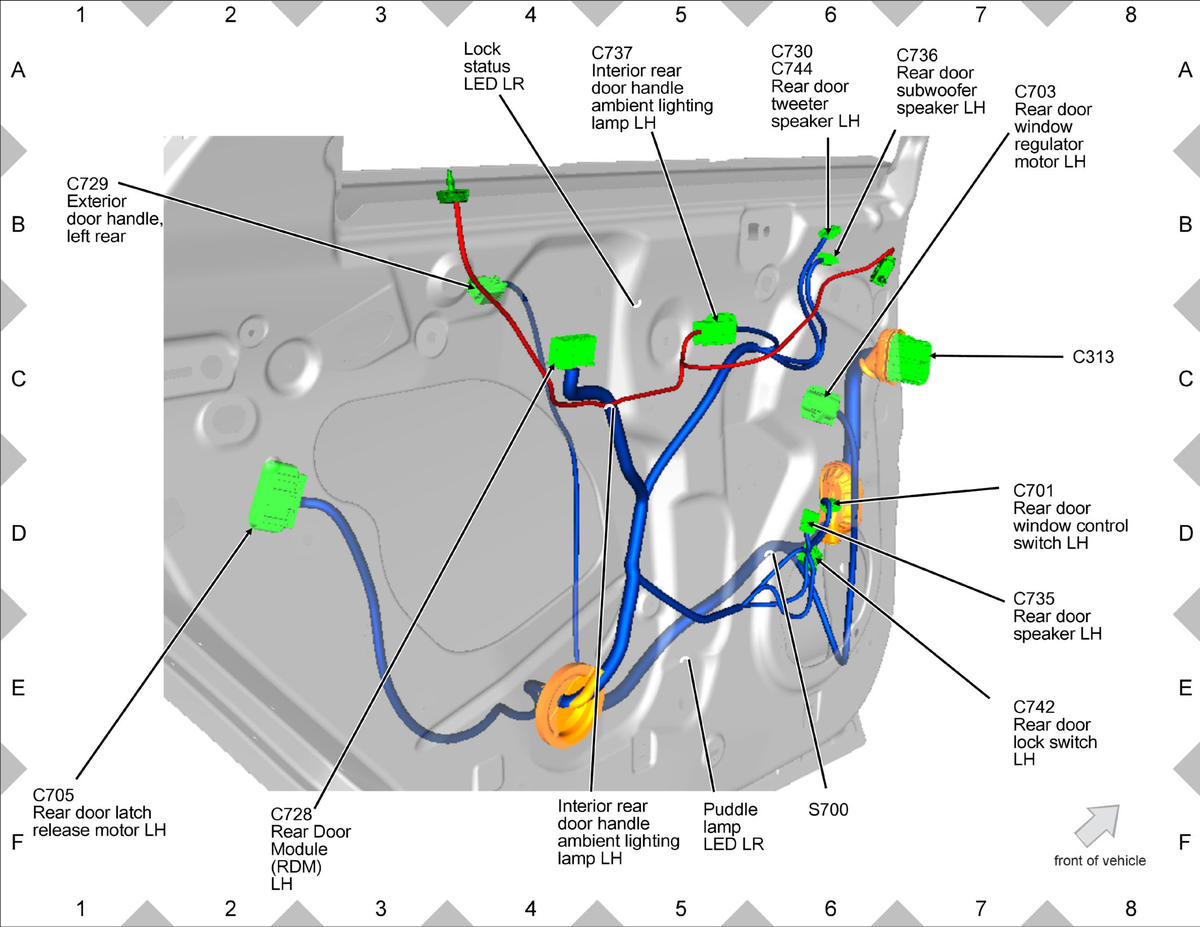

GFDWR88481Courtesy of FORD MOTOR COMPANY

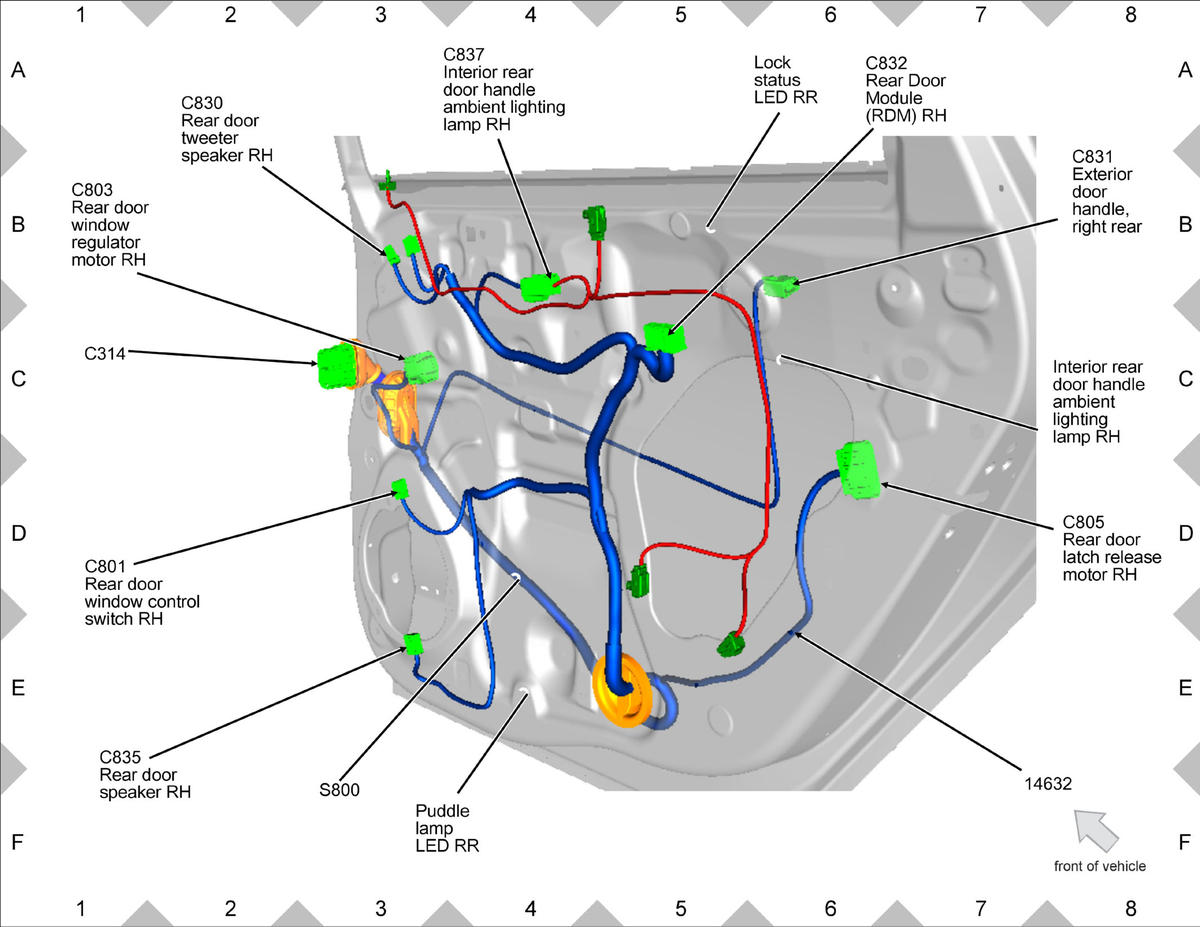

GFDWR88487Courtesy of FORD MOTOR COMPANY

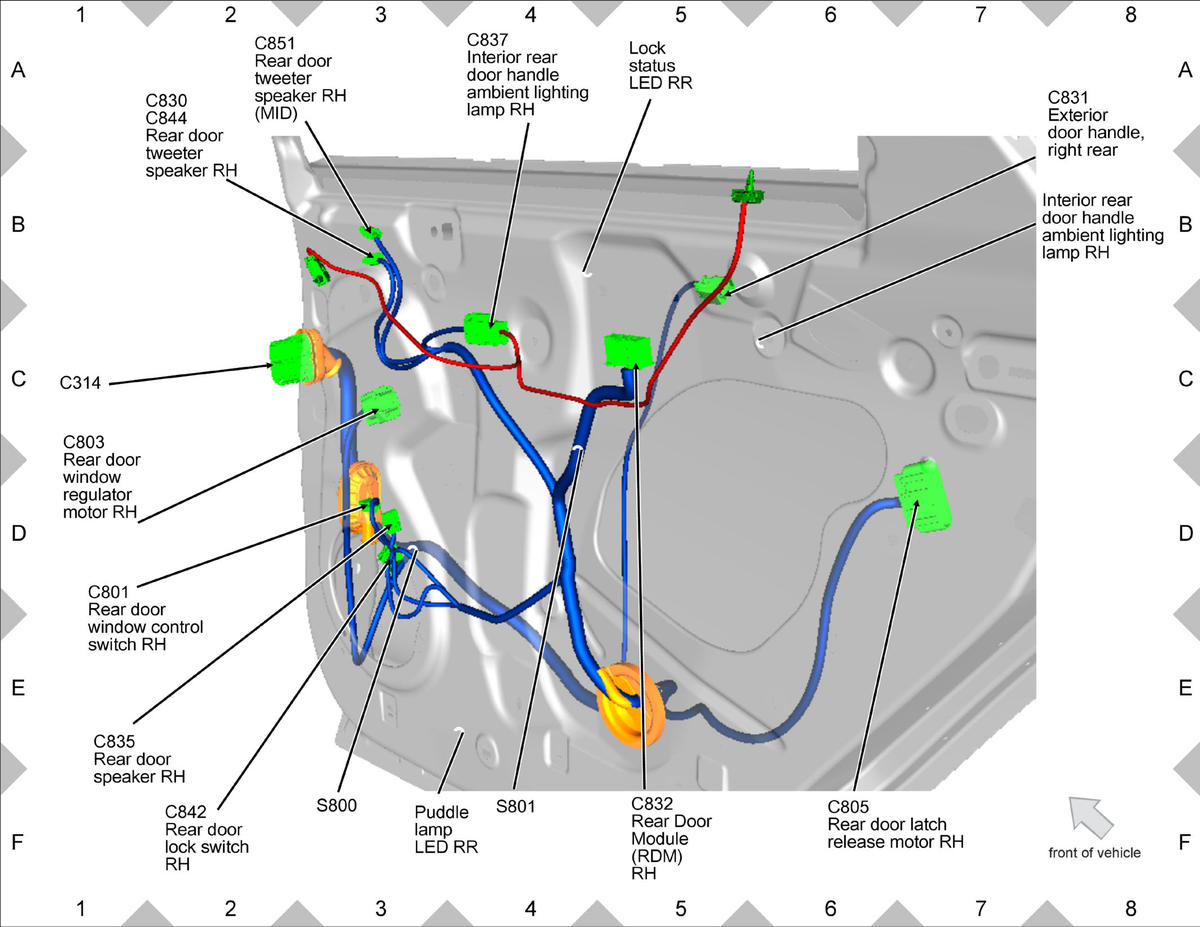

GFDWR88492Courtesy of FORD MOTOR COMPANY

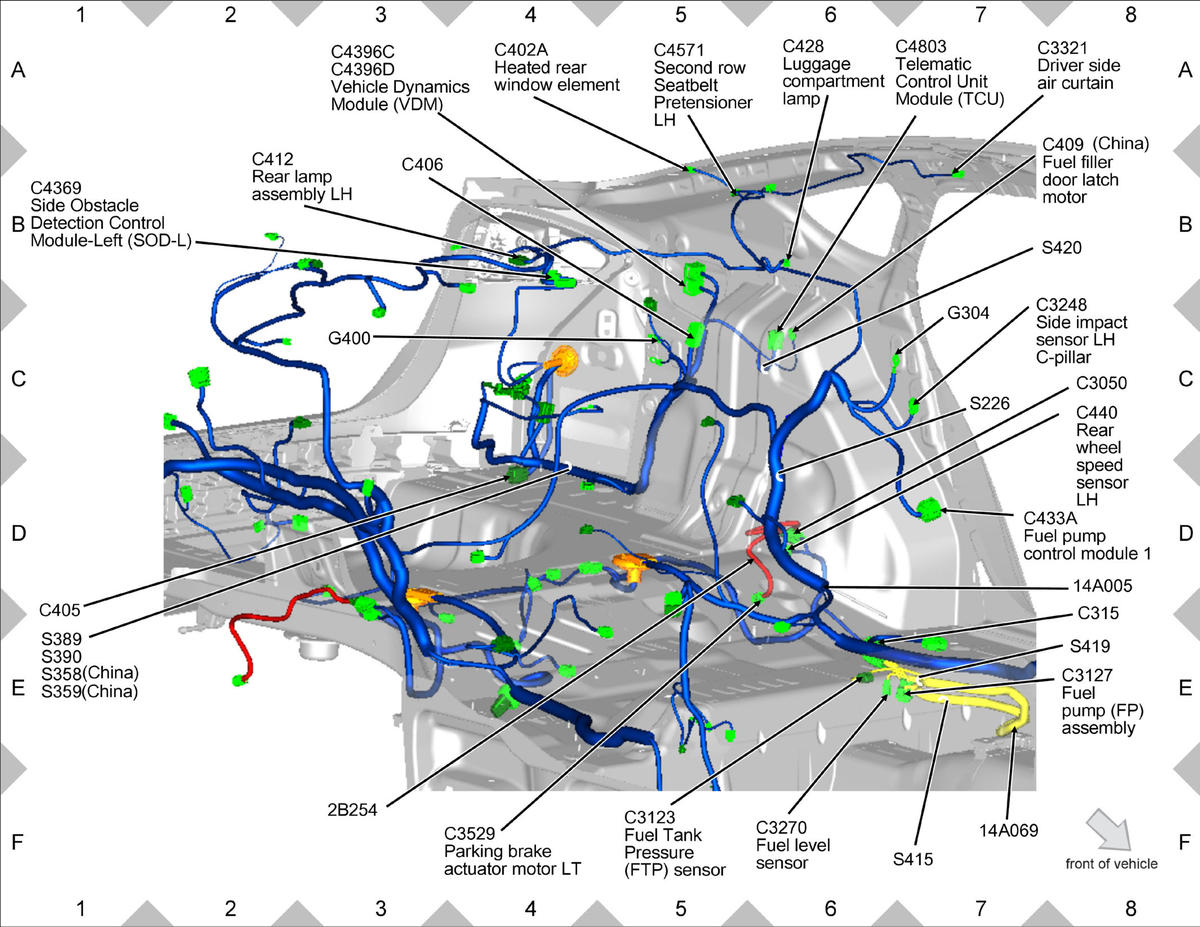

GFDWR88501Courtesy of FORD MOTOR COMPANY

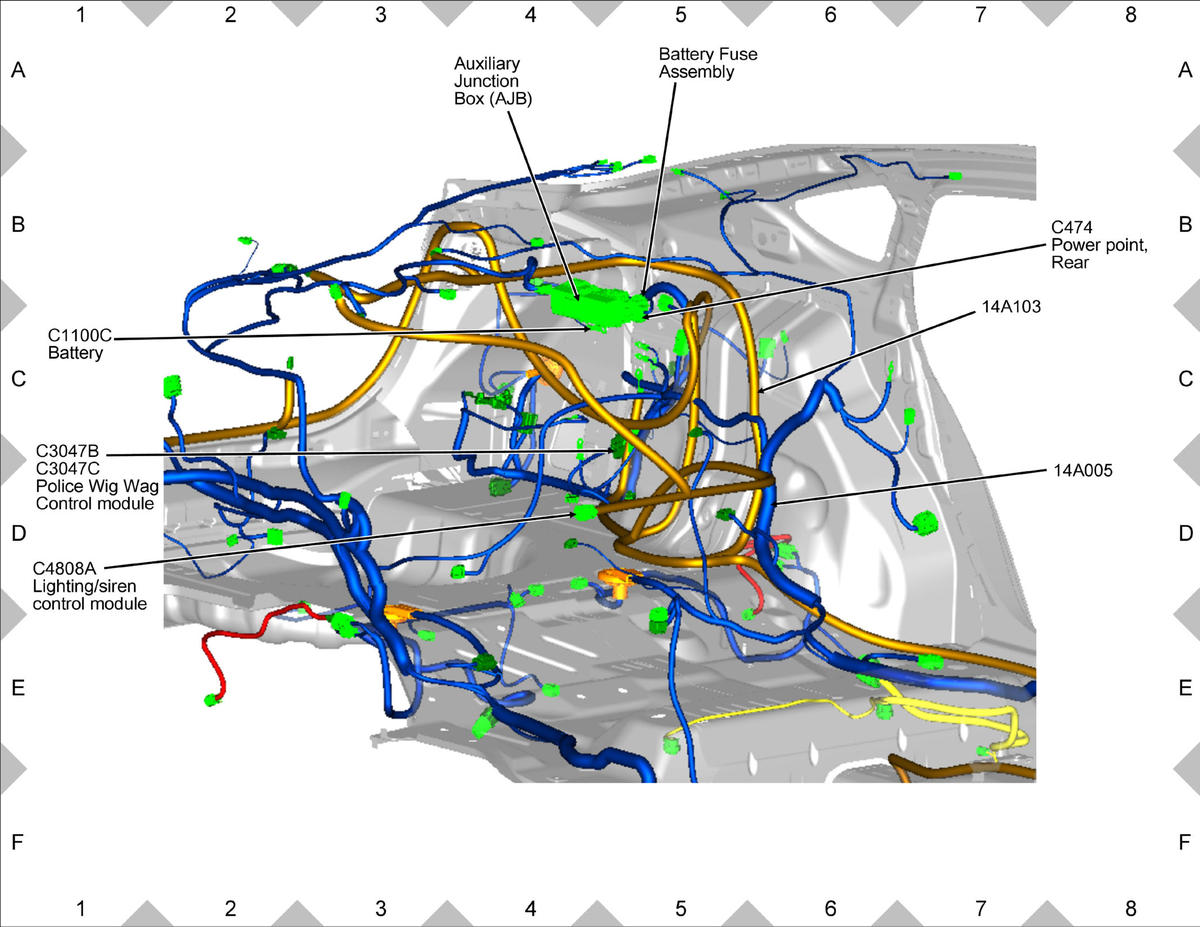

GFDWR88502Courtesy of FORD MOTOR COMPANY

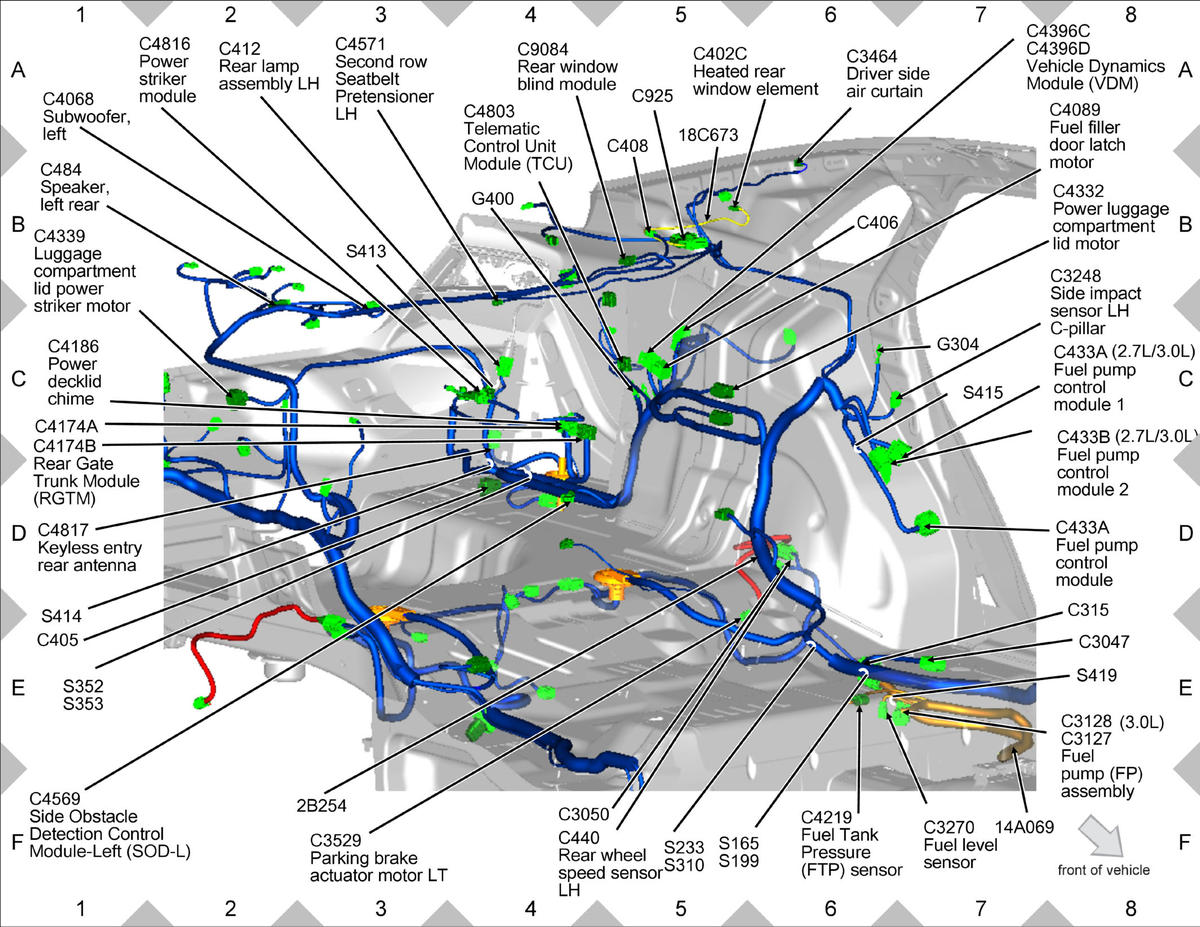

GFDWR88484Courtesy of FORD MOTOR COMPANY

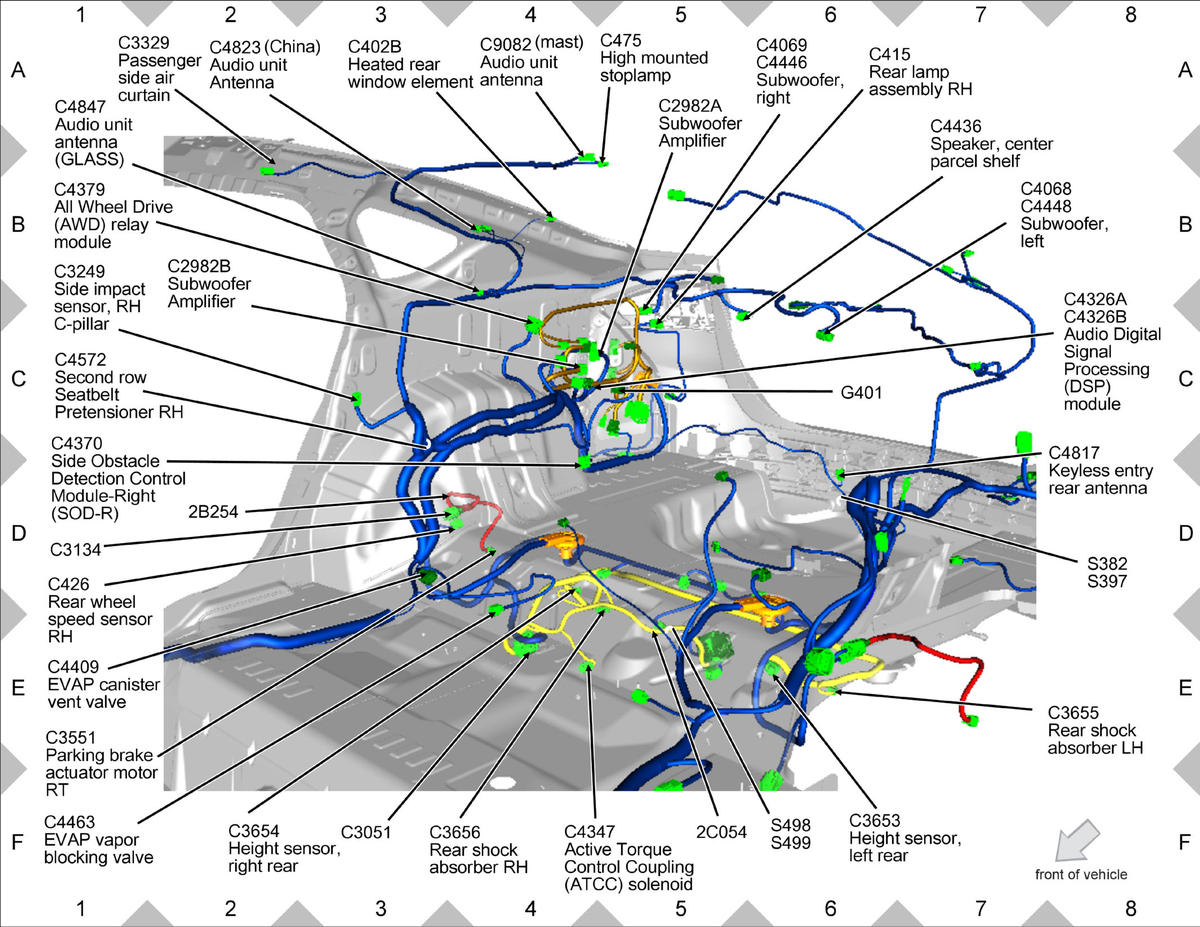

GFDWR88504Courtesy of FORD MOTOR COMPANY

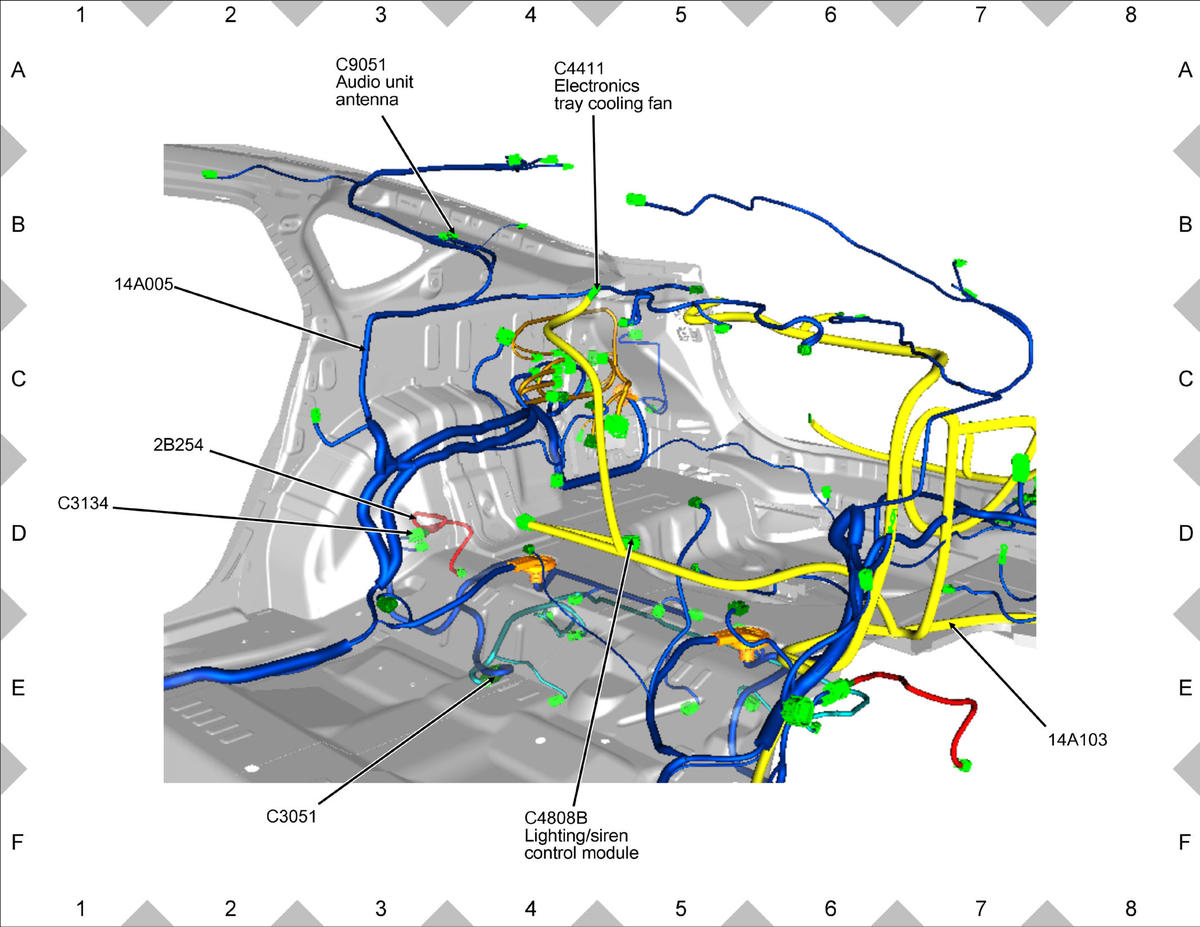

GFDWR88536Courtesy of FORD MOTOR COMPANY

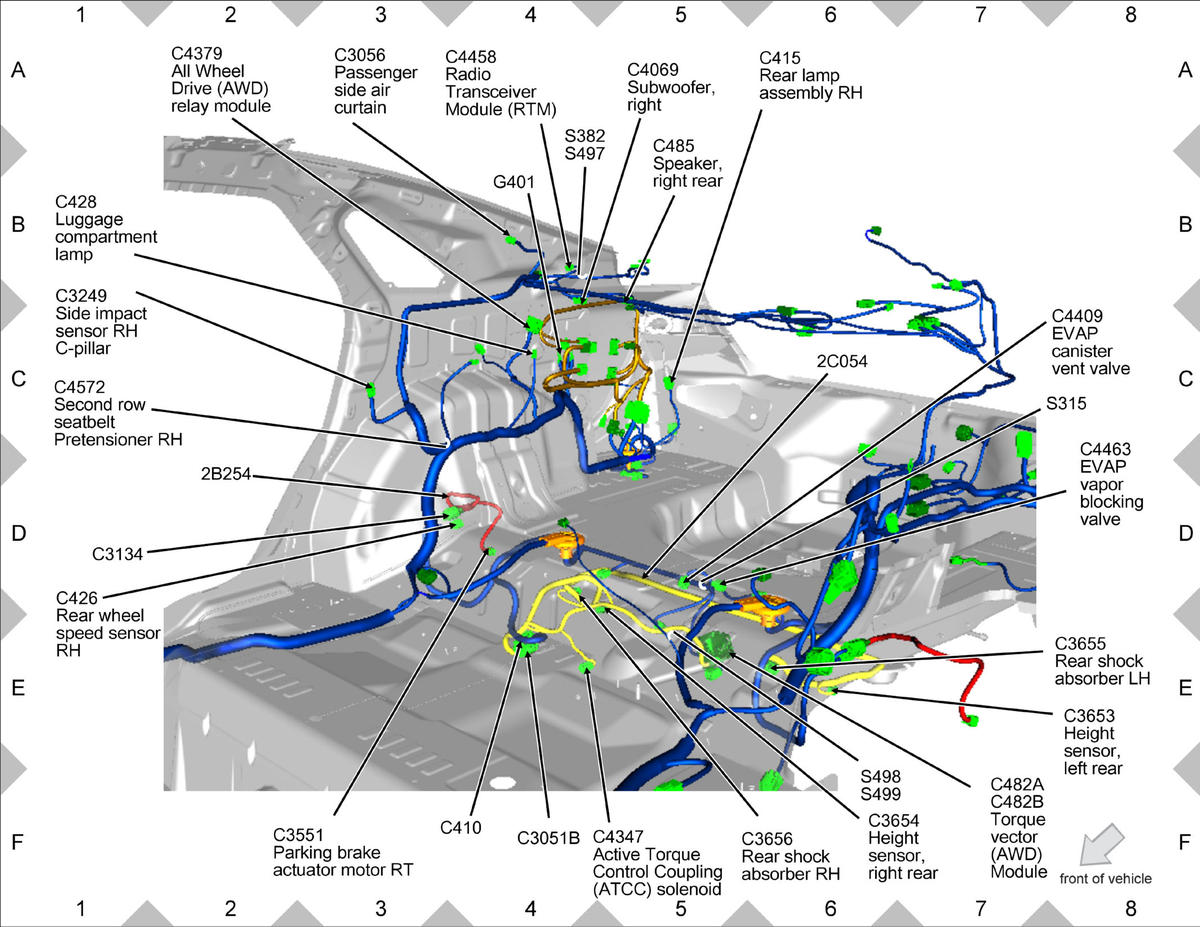

GFDWR88518Courtesy of FORD MOTOR COMPANY

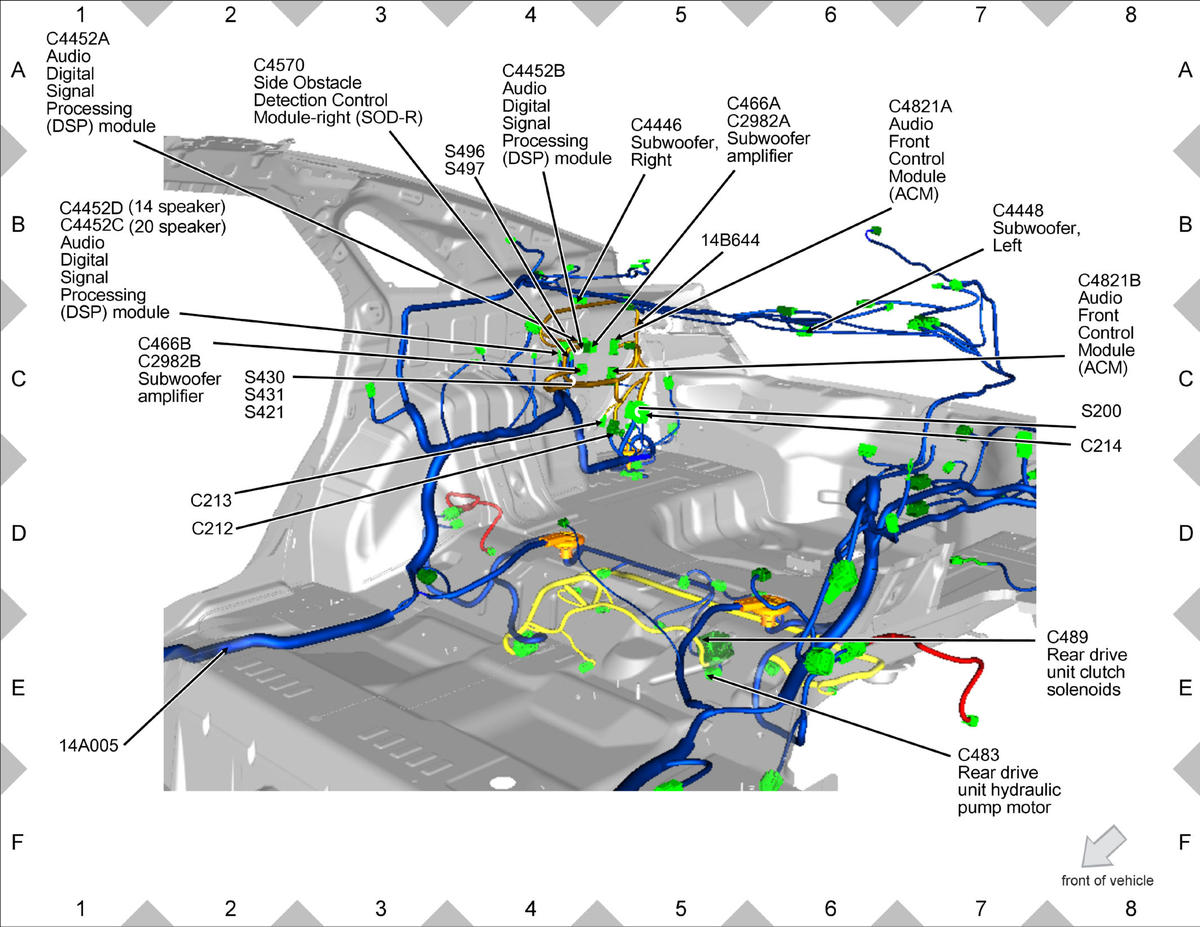

GFDWR88516Courtesy of FORD MOTOR COMPANY

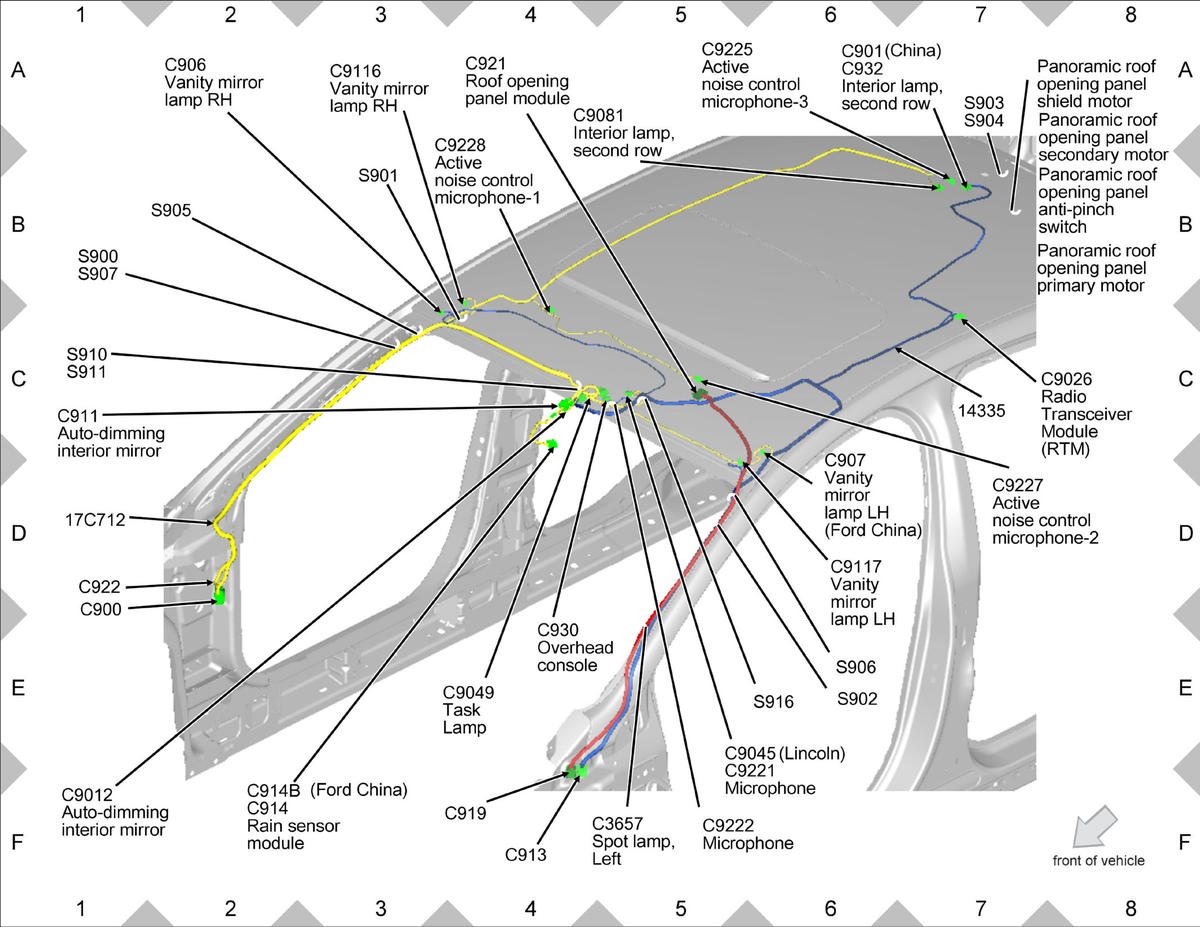

GFDWR88482Courtesy of FORD MOTOR COMPANY

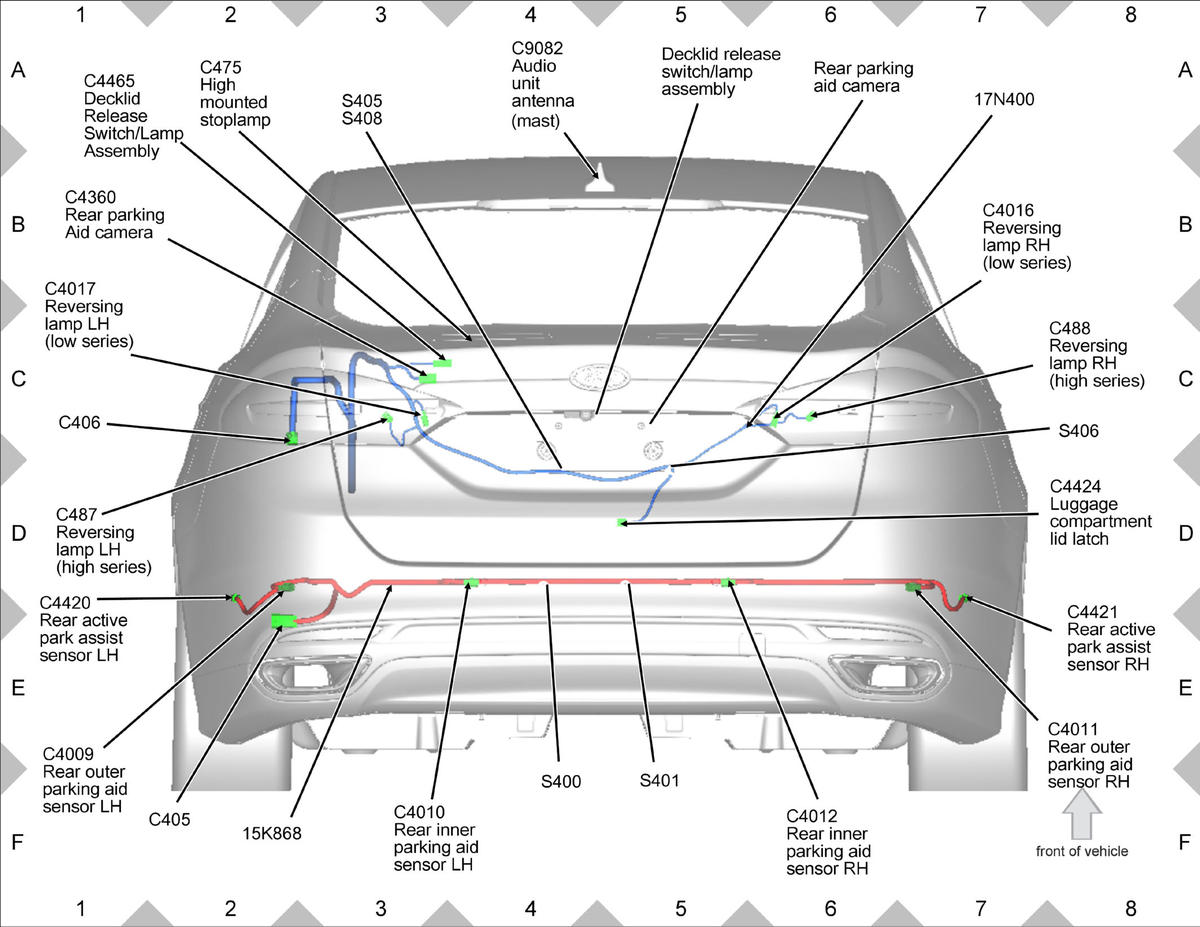

GFDWR88525Courtesy of FORD MOTOR COMPANY

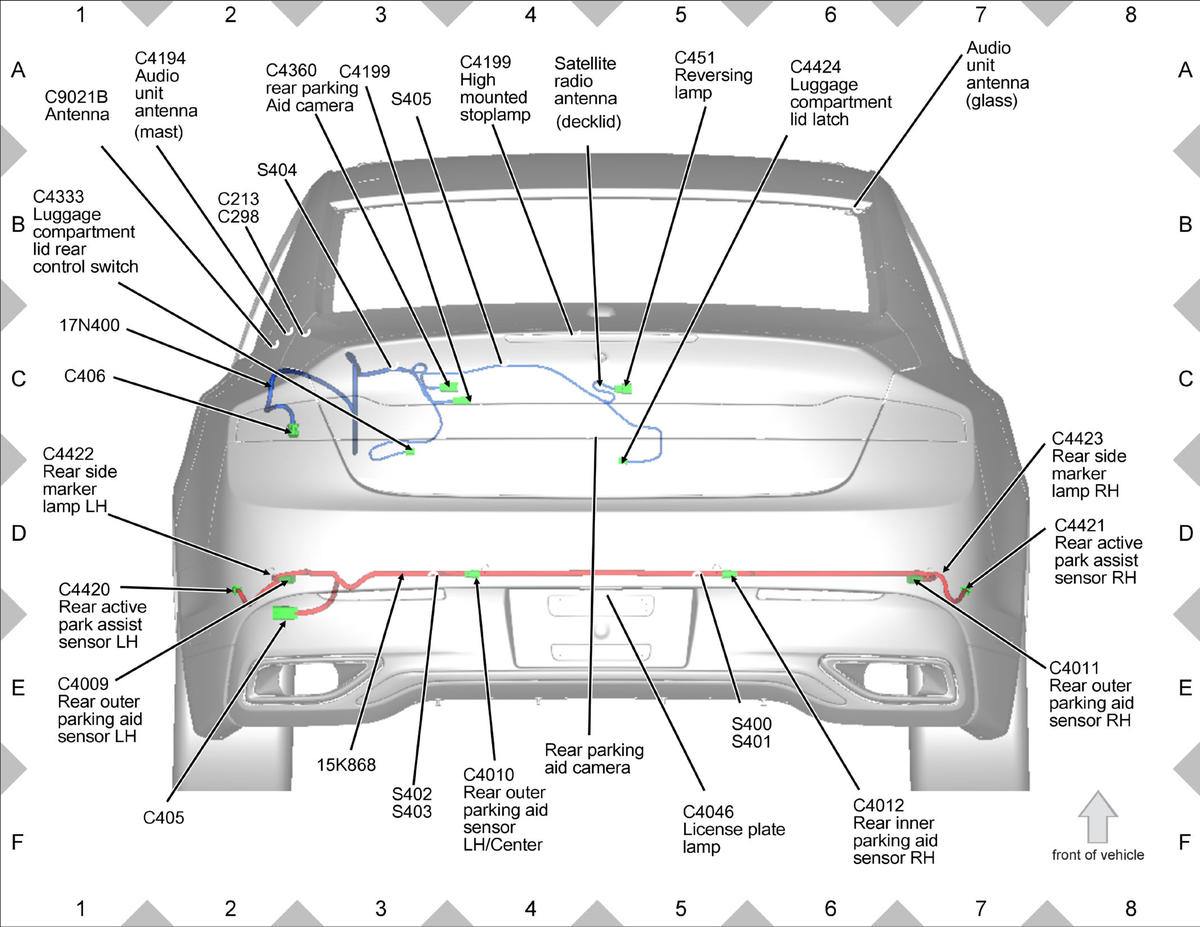

GFDWR88499Courtesy of FORD MOTOR COMPANY

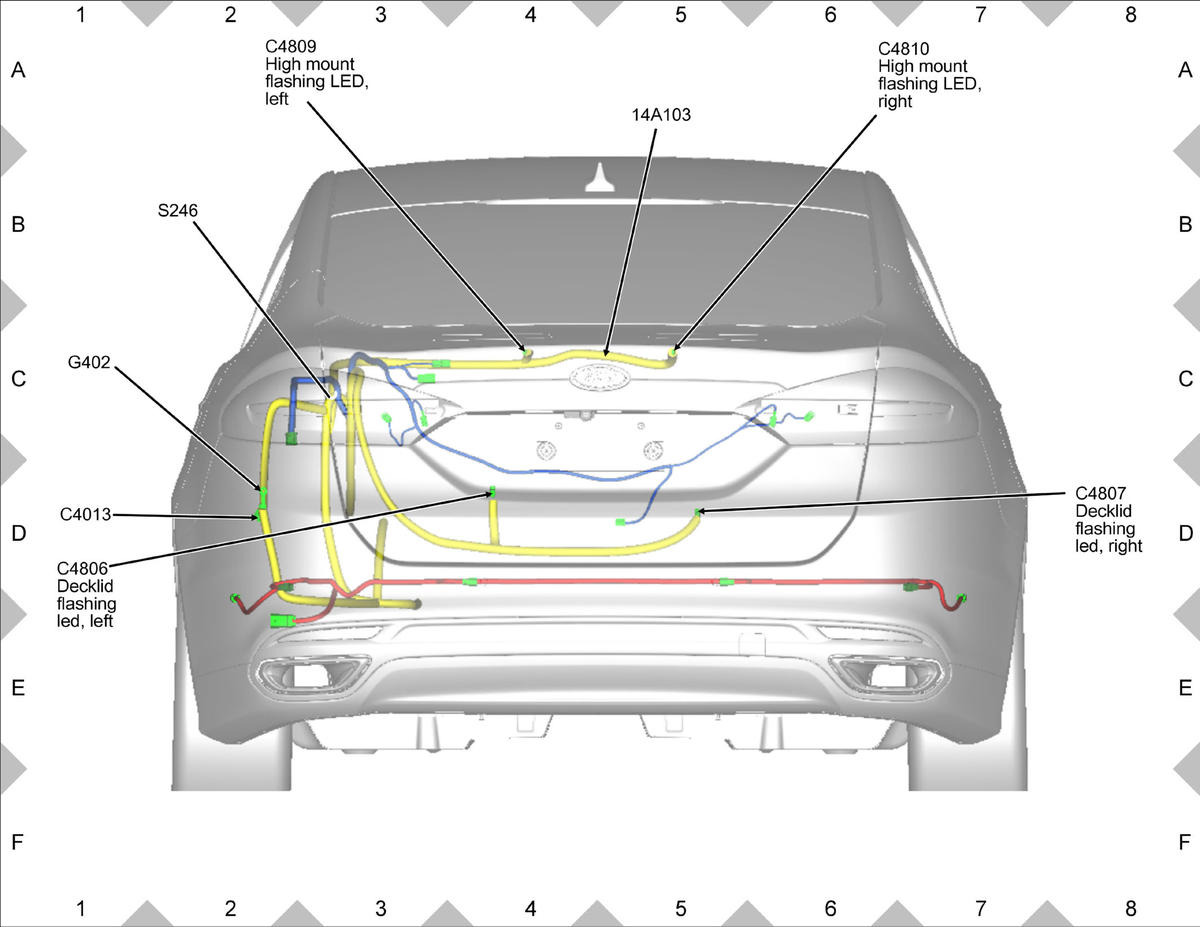

GFDWR88532Courtesy of FORD MOTOR COMPANY
