Luggage Compartment Lid Alignment

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

Check

1. Check the body to luggage compartment lid dimensions. Refer to: Body and Frame .

Adjustment

1. Remove the luggage compartment lid latch. Refer to: Luggage Compartment Lid Latch .

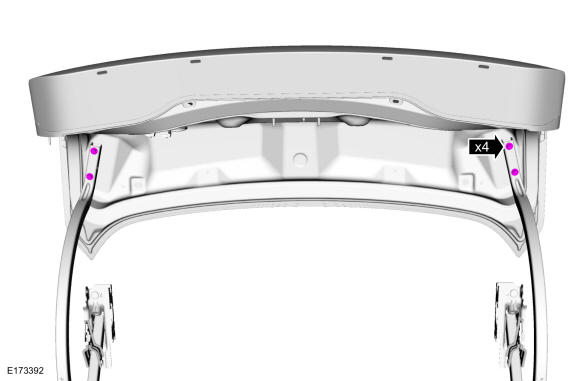

2. Loosen the bolts to permit movement of the luggage compartment lid. Loosen: : 2 turn(s)

   Courtesy of FORD MOTOR COMPANY

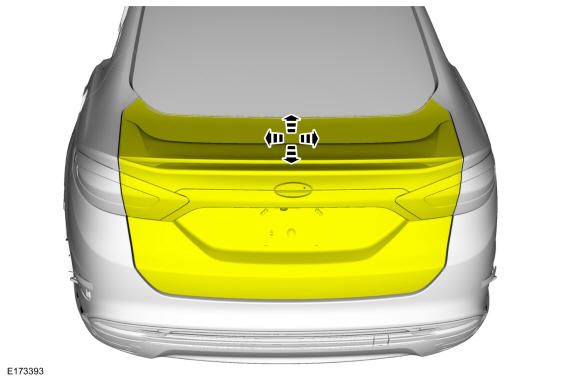

3. Adjust the luggage compartment lid to specifications. Refer to: Body and Frame .

   Courtesy of FORD MOTOR COMPANY

4. Tighten the bolts.

   Torque: 89 lb.in (10 Nm)

   Courtesy of FORD MOTOR COMPANY

5. Check the luggage compartment lid to body dimensions. Refer to: Body and Frame .

   Courtesy of FORD MOTOR COMPANY

6. Install the luggage compartment lid latch. Refer to: Luggage Compartment Lid Latch .
