Parking Aid - Component Location

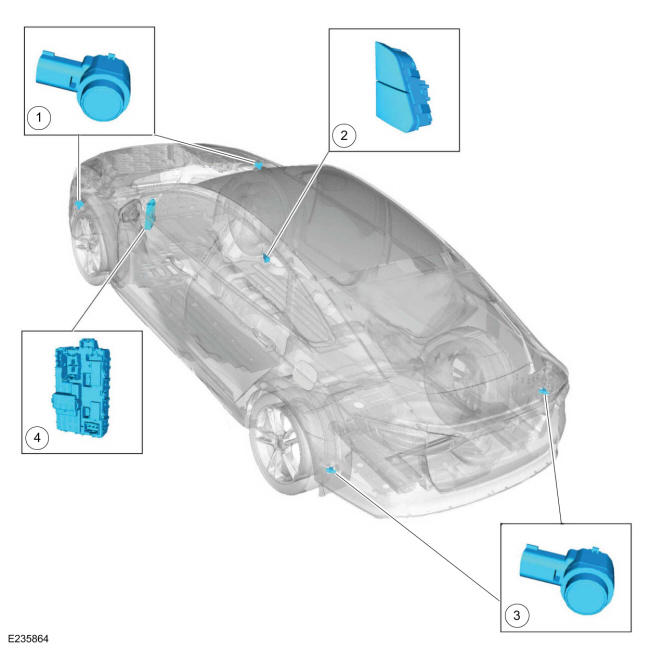

Component Location - Active Park Assist

GFD484376Courtesy of FORD MOTOR COMPANY
Item Description
1 Front active park assist sensors
2 Active park assist switch
3 Rear active park assist sensors
4 PAM (integral to the BCM)
