Parking Aid - Component Location
>>

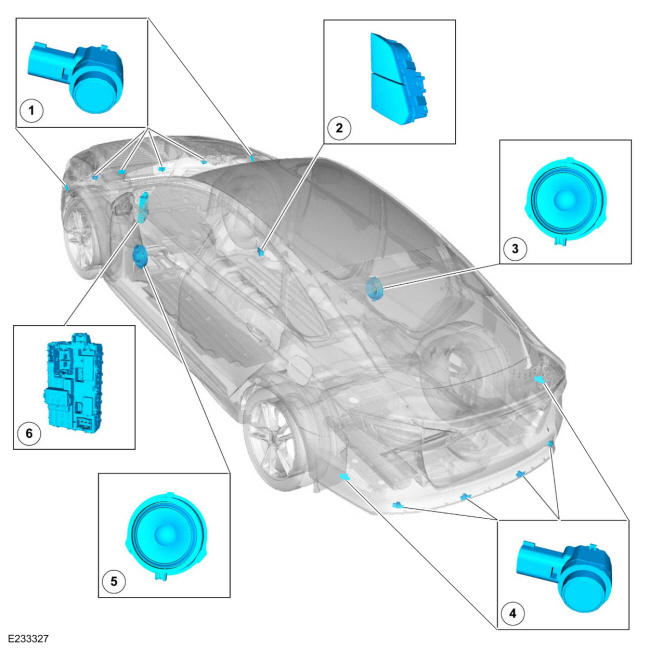

Component Location, Parking Aid - Audible
Component Location, Parking Aid - Audible
Courtesy of FORD MOTOR COMPANY
Item
Description
1
Front parking aid sensors
2
Parking aid switch (if equipped)
3
Rear speakers (part of audio system)
4
Rear parking aid sensors
5
Front speakers (part of audio system)
6
PAM (integral to the BCM
