Vehicle Dynamic Suspension

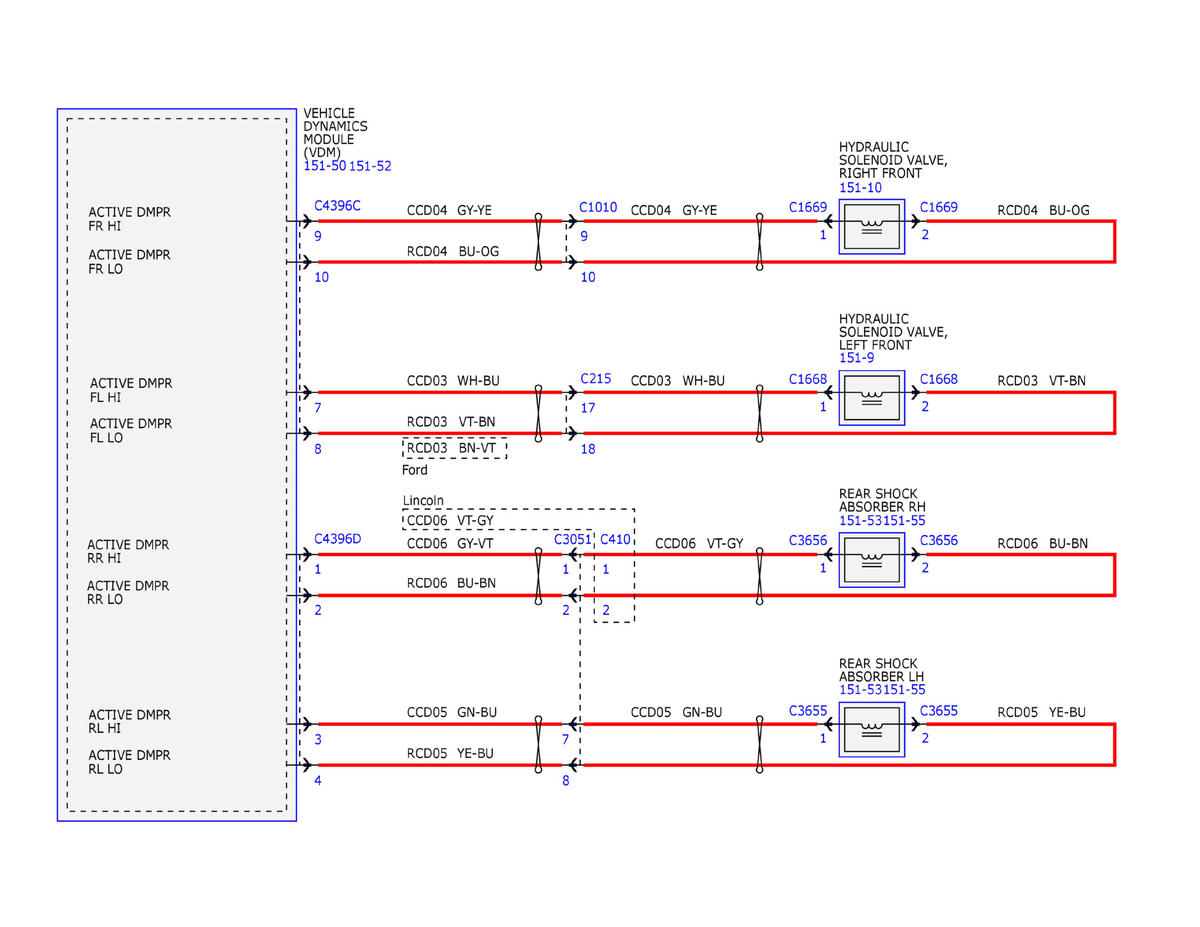

Fig 1: Vehicle Dynamic Suspension Wiring Diagram (1 Of 3)
GFDWR89802Courtesy of FORD MOTOR COMPANY

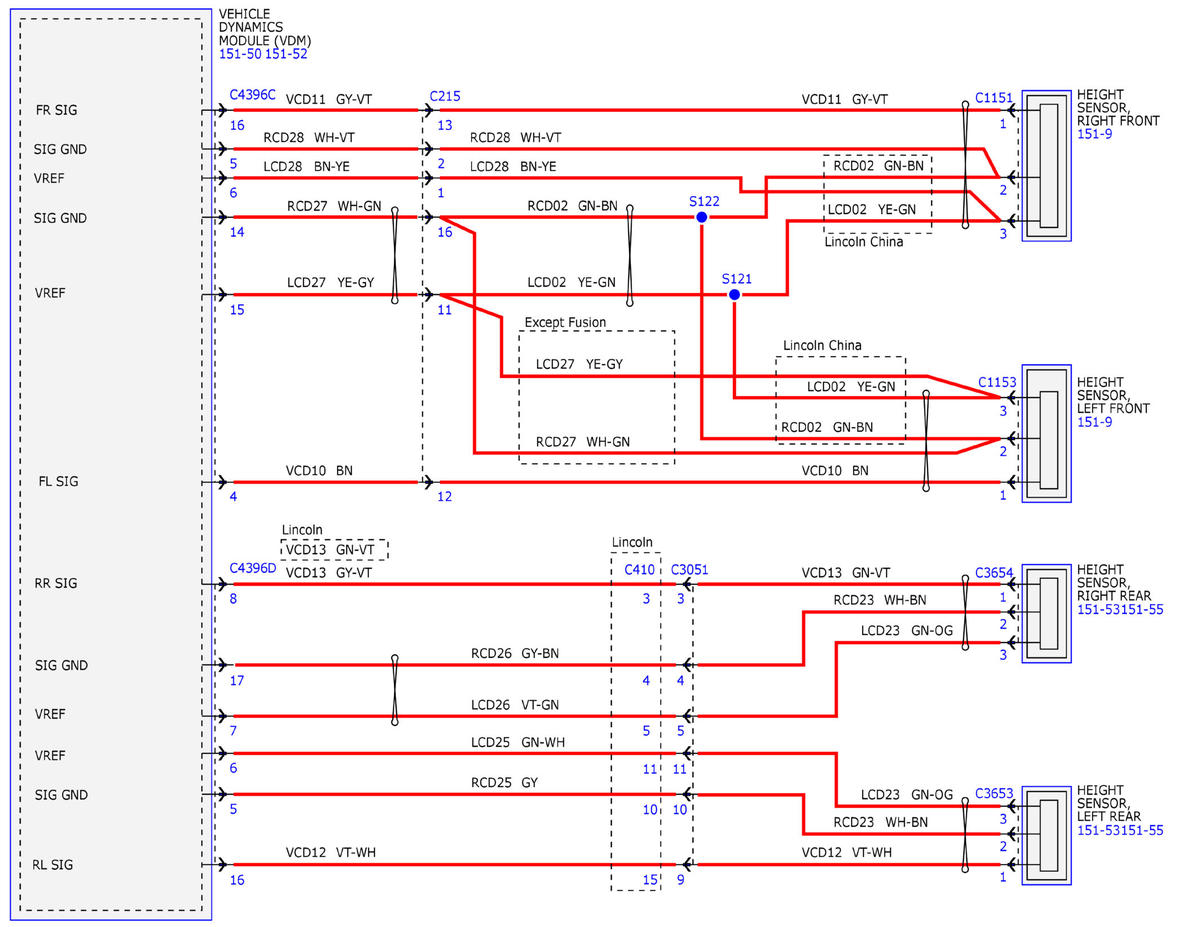

Fig 2: Vehicle Dynamic Suspension Wiring Diagram (2 Of 3)
GFDWR89803Courtesy of FORD MOTOR COMPANY

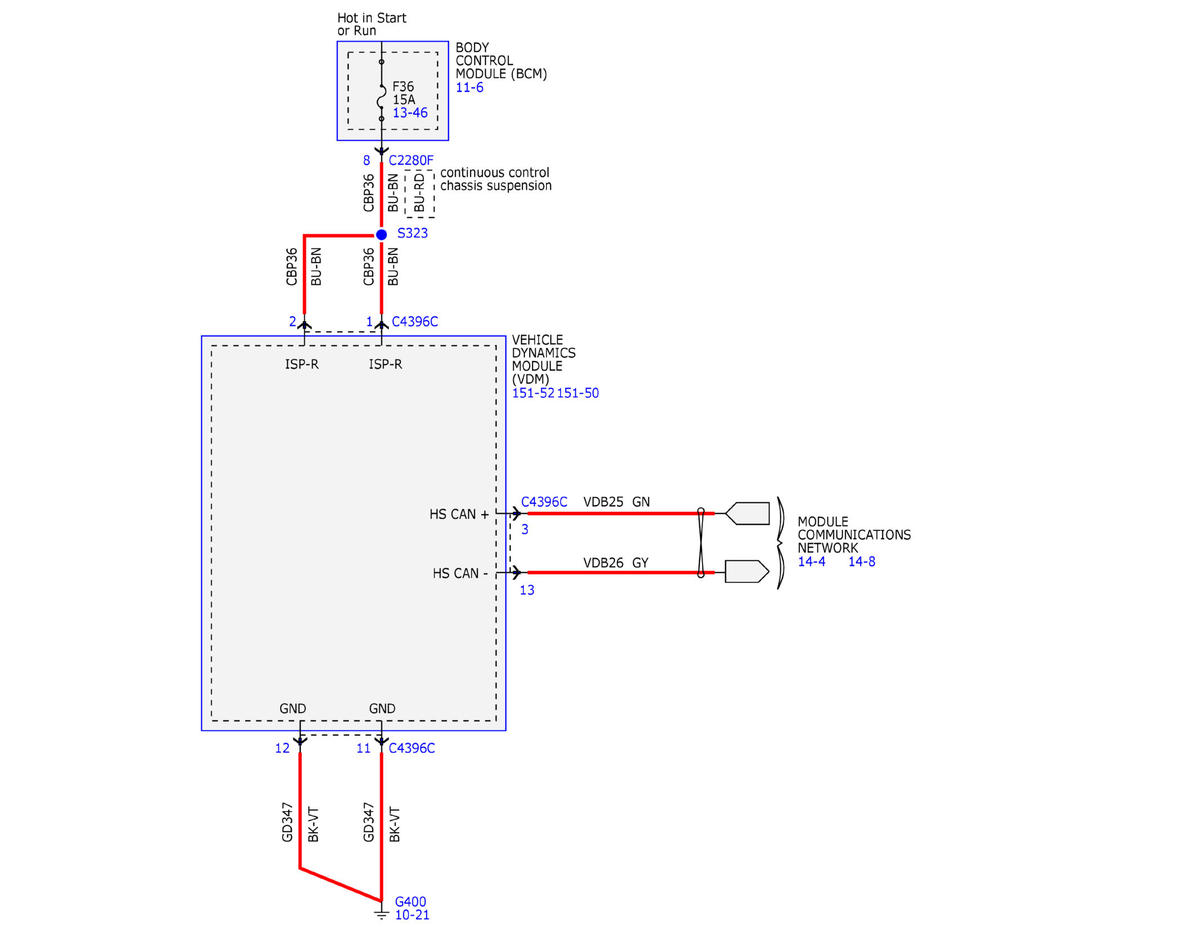

Fig 3: Vehicle Dynamic Suspension Wiring Diagram (3 Of 3)
GFDWR89804Courtesy of FORD MOTOR COMPANY
