Reversing Lamps

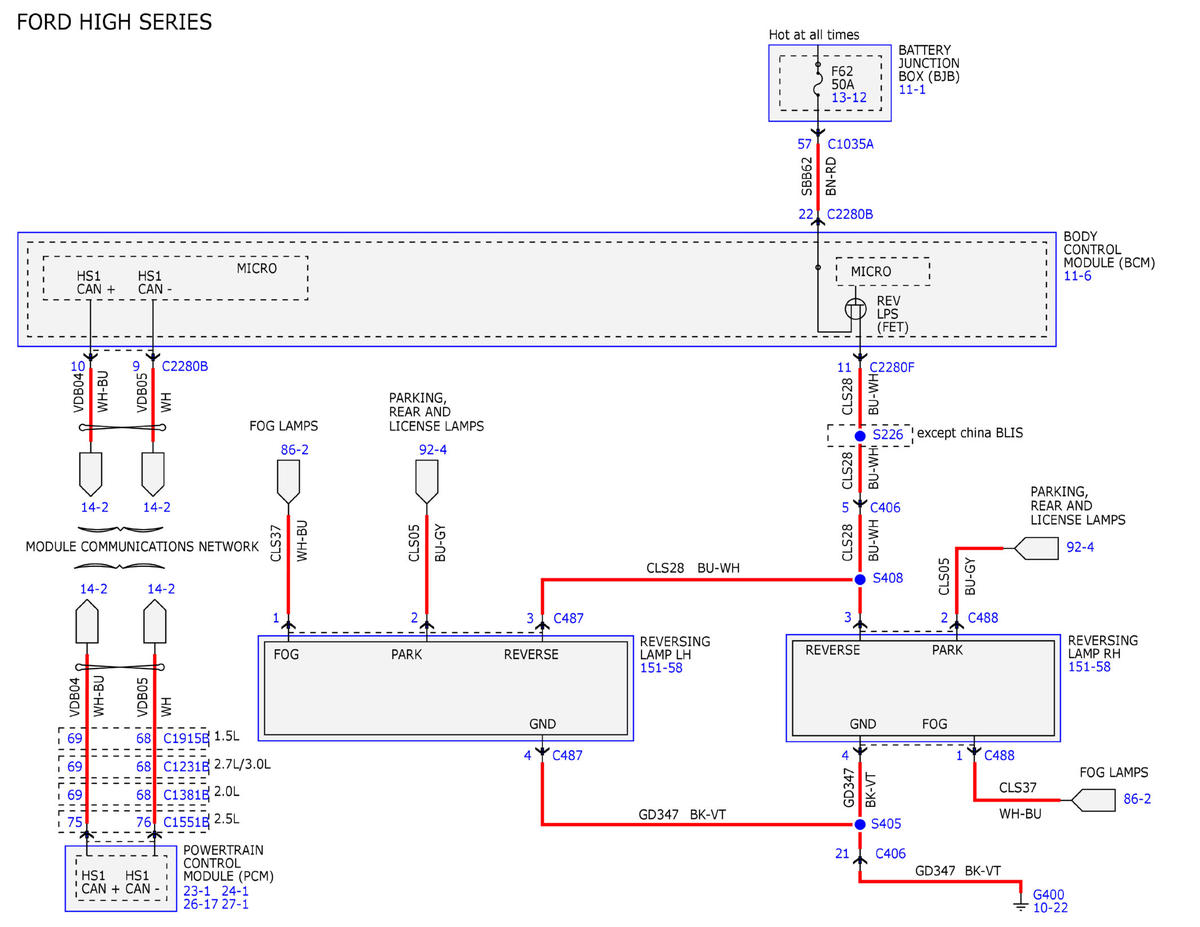

Fig 1: Reversing Lamps Wiring Diagram (1 Of 3)
GFDWR89759Courtesy of FORD MOTOR COMPANY

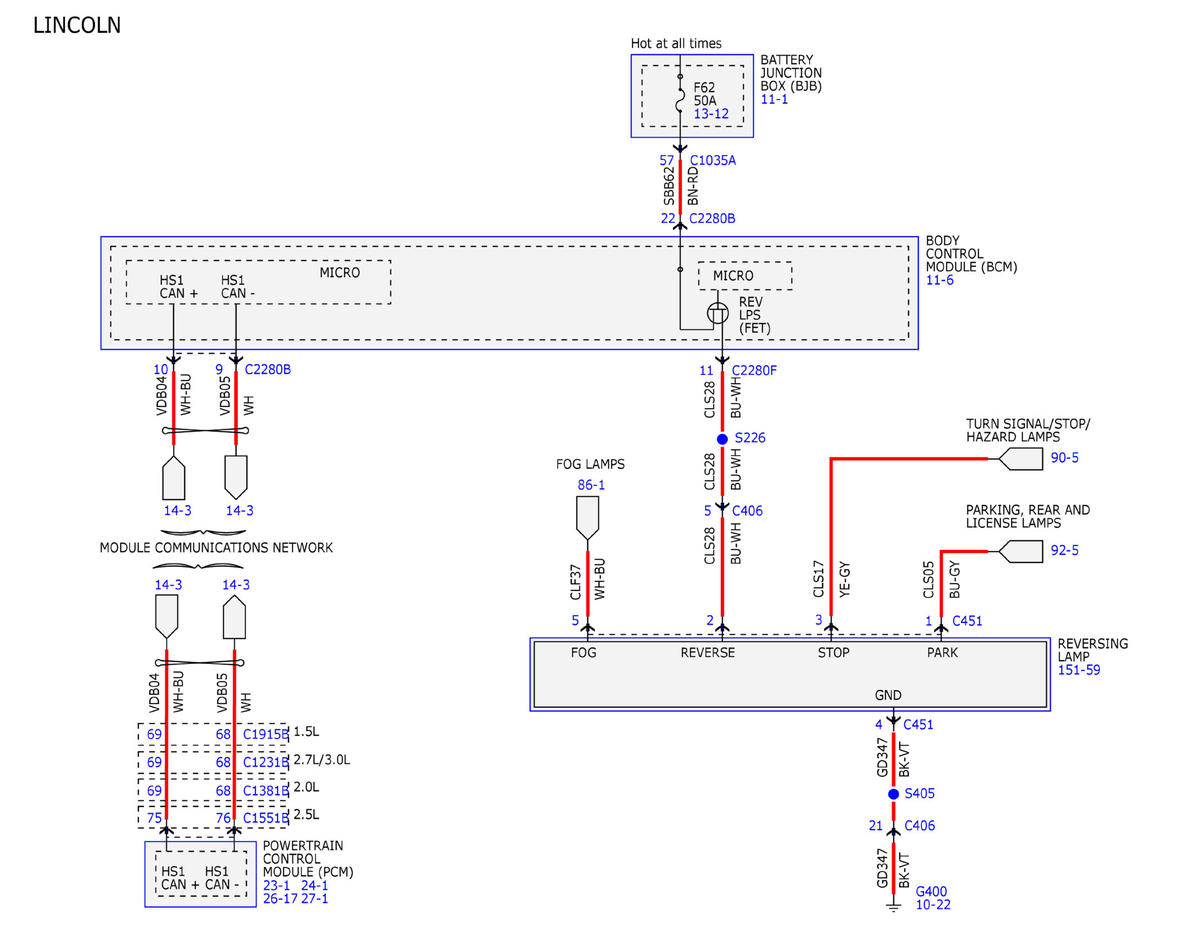

Fig 2: Reversing Lamps Wiring Diagram (2 Of 3)
GFDWR89760Courtesy of FORD MOTOR COMPANY
Fig 3: Reversing Lamps Wiring Diagram (3 Of 3)
GFDWR89761Courtesy of FORD MOTOR COMPANY
