Parking, Rear and License Lamps

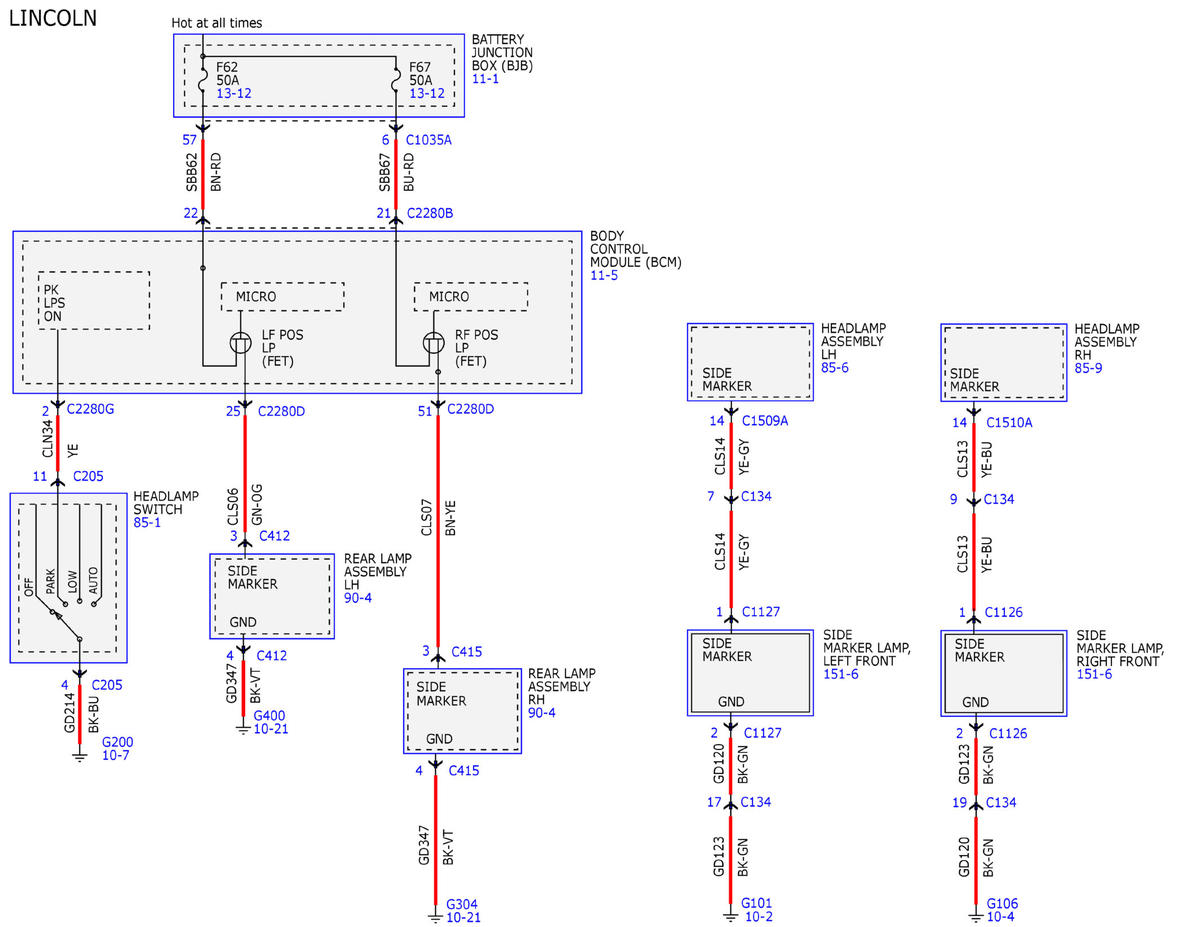

Fig 1: Parking, Rear and License Lamps Wiring Diagram (1 Of 5)
GFDWR89628Courtesy of FORD MOTOR COMPANY

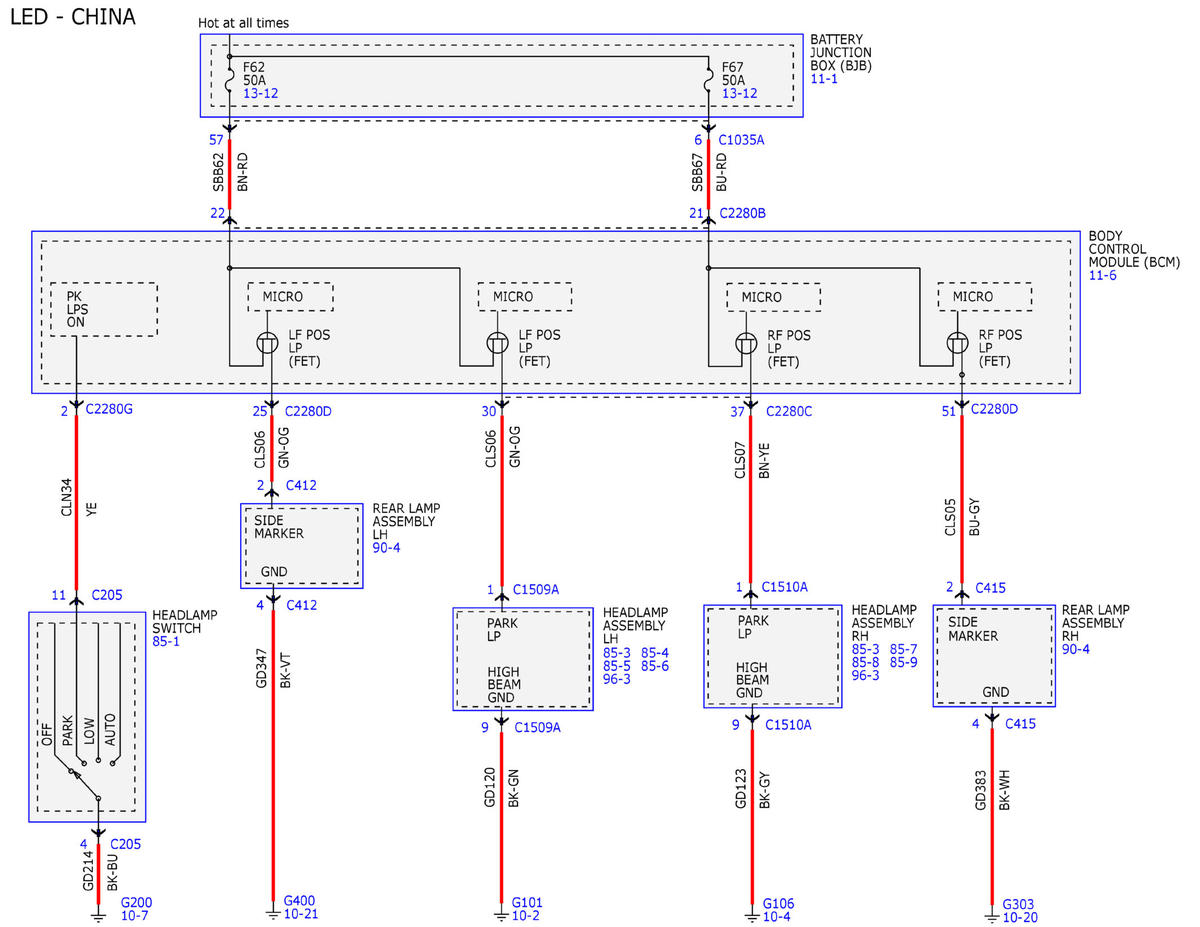

Fig 2: Parking, Rear and License Lamps Wiring Diagram (2 Of 5)
GFDWR89629Courtesy of FORD MOTOR COMPANY

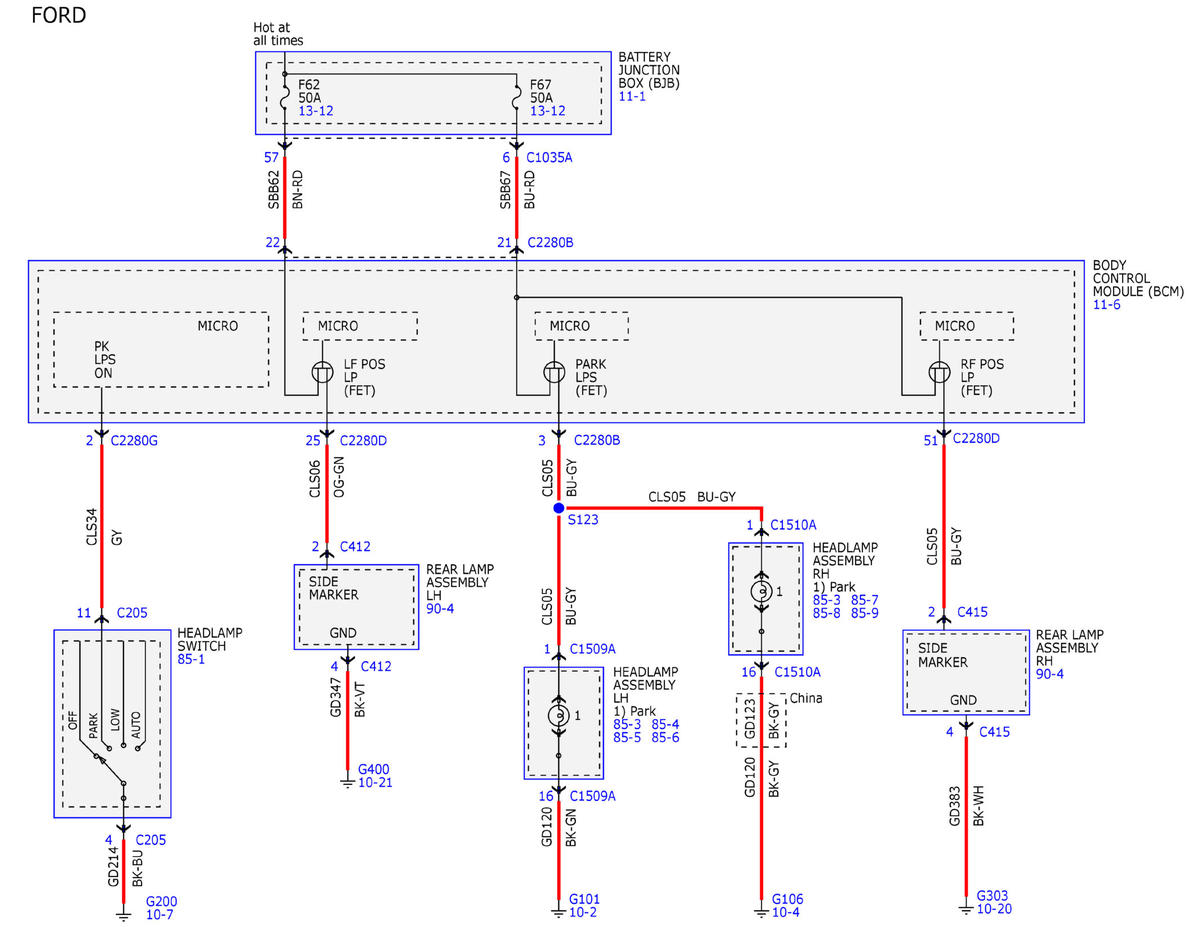

Fig 3: Parking, Rear and License Lamps Wiring Diagram (3 Of 5)
GFDWR89630Courtesy of FORD MOTOR COMPANY

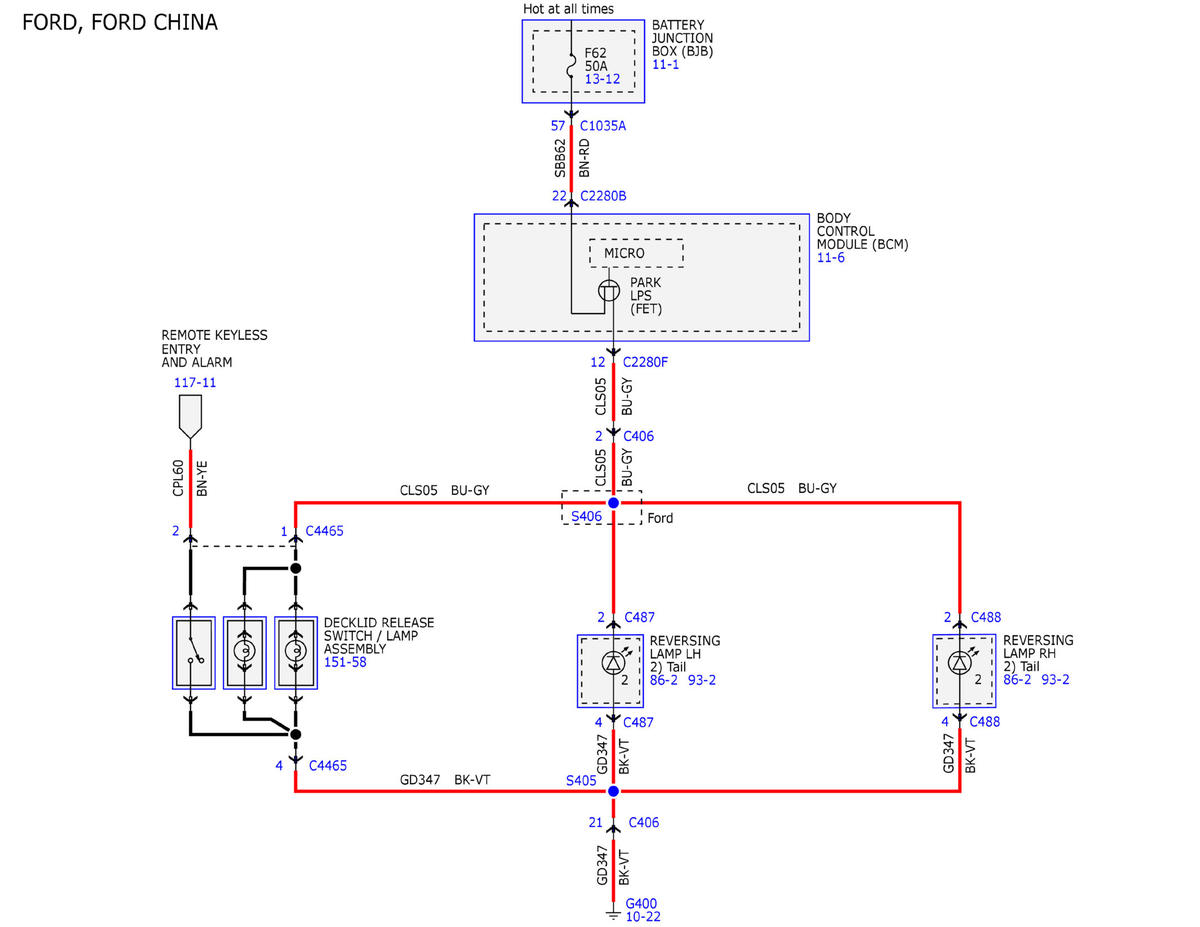

Fig 4: Parking, Rear and License Lamps Wiring Diagram (4 Of 5)
GFDWR89631Courtesy of FORD MOTOR COMPANY

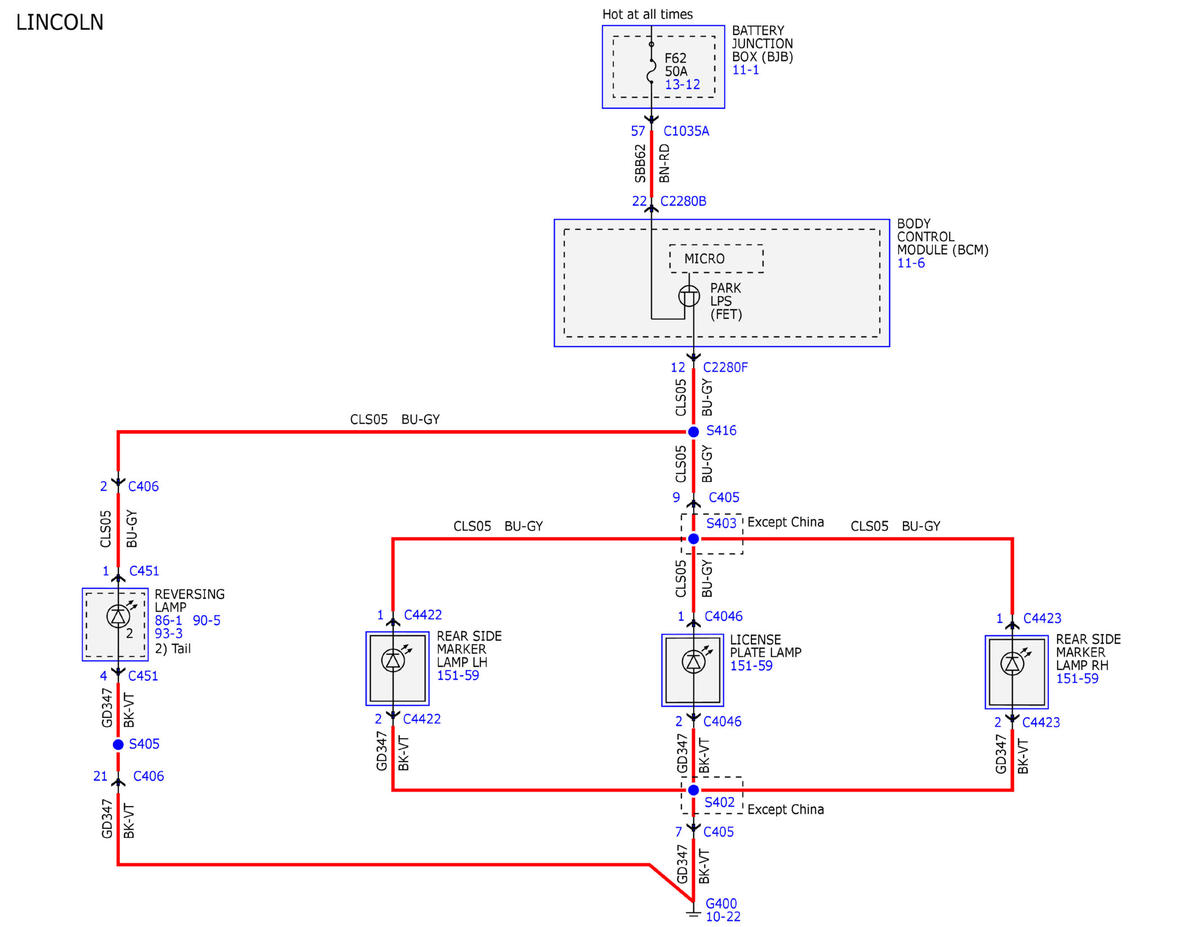

Fig 5: Parking, Rear and License Lamps Wiring Diagram (5 Of 5)
GFDWR89632Courtesy of FORD MOTOR COMPANY
