Parking Aid

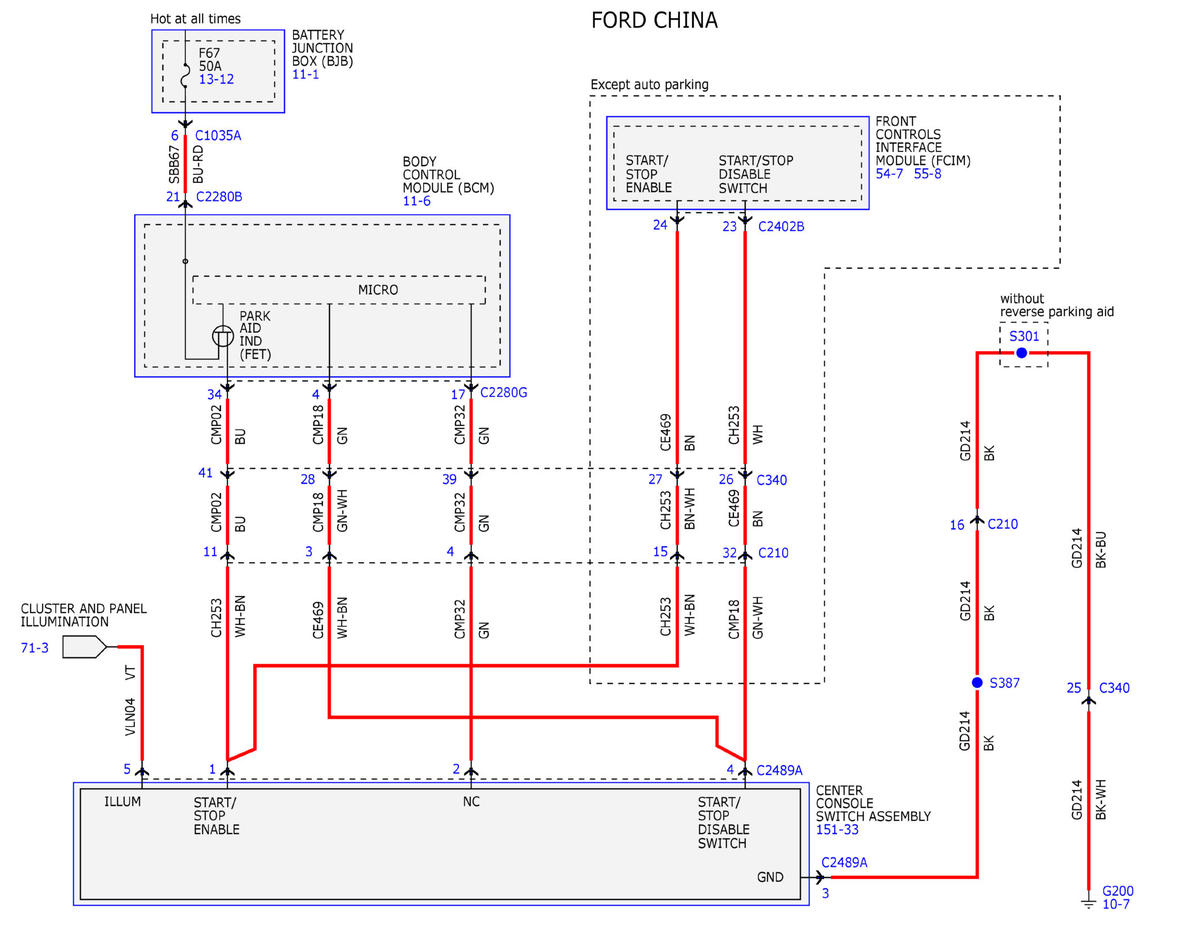

Fig 1: Parking Aid Wiring Diagram (1 Of 9)
GFDWR89619Courtesy of FORD MOTOR COMPANY

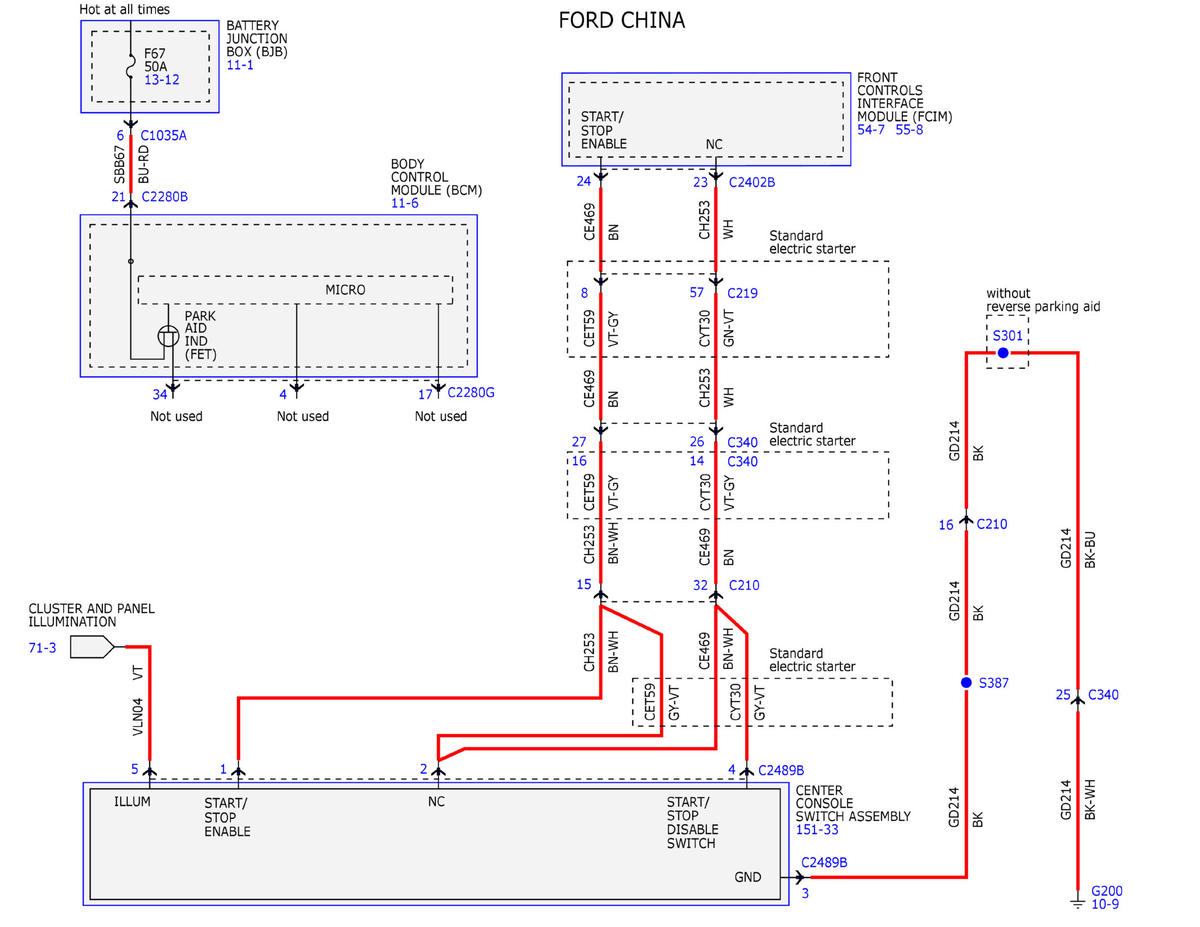

Fig 2: Parking Aid Wiring Diagram (2 Of 9)
GFDWR89620Courtesy of FORD MOTOR COMPANY

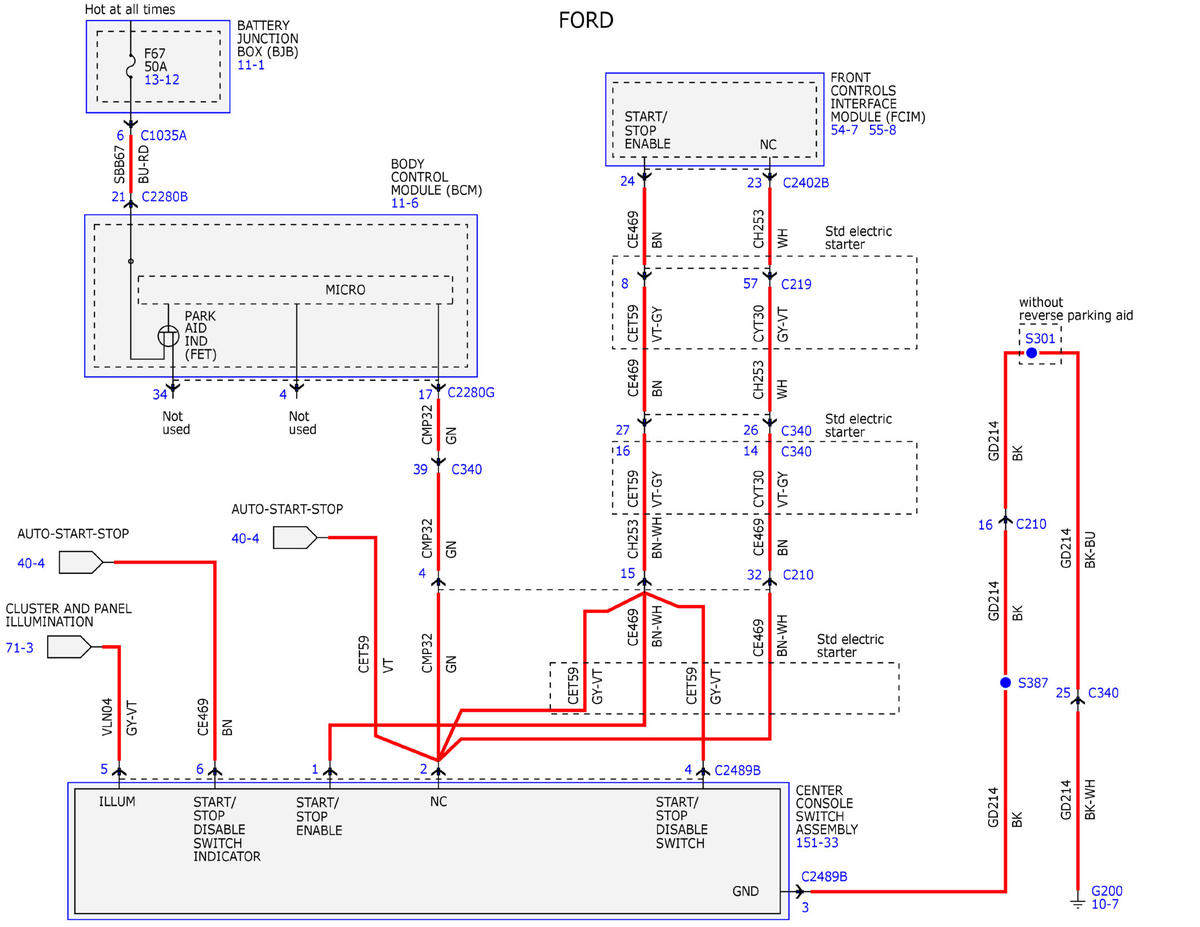

Fig 3: Parking Aid Wiring Diagram (3 Of 9)
GFDWR89621Courtesy of FORD MOTOR COMPANY

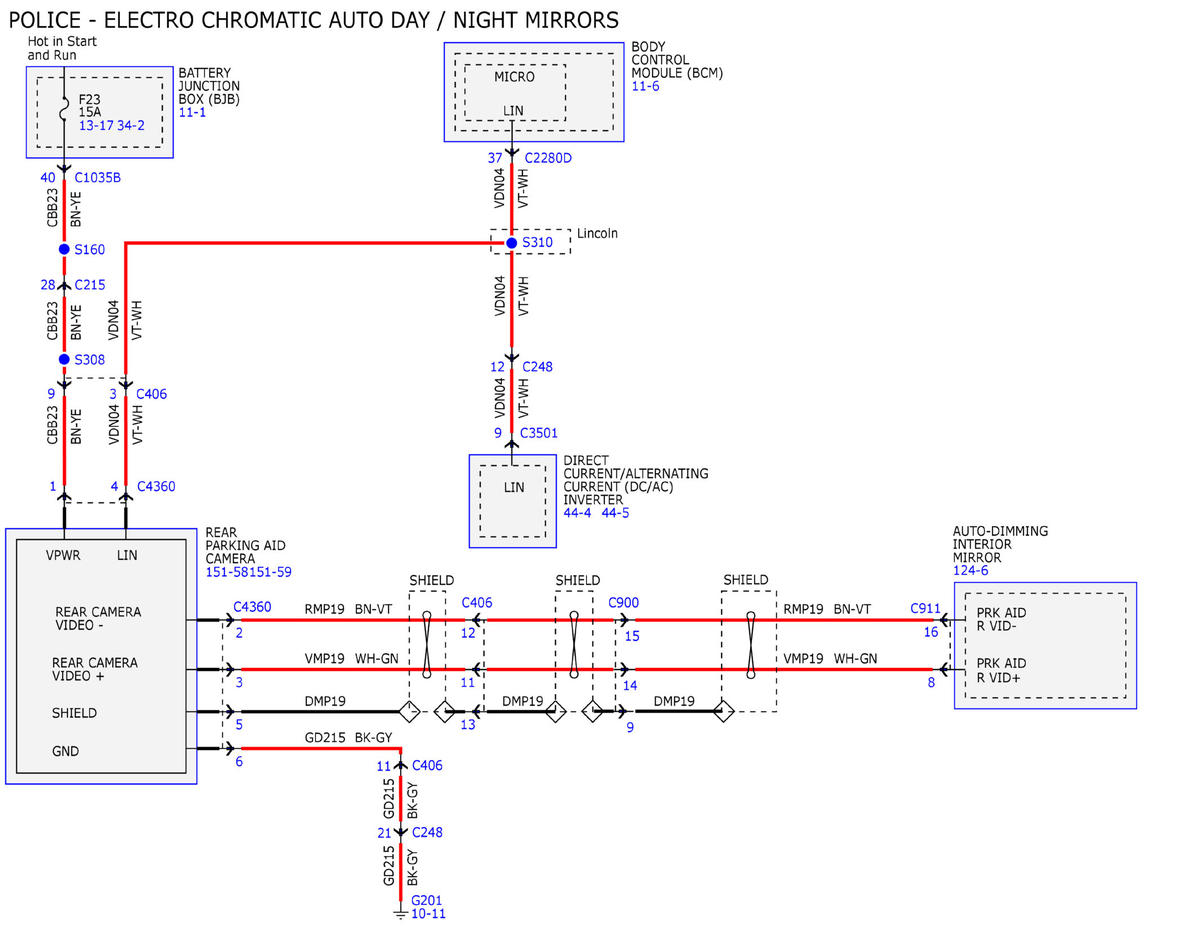

Fig 4: Parking Aid Wiring Diagram (4 Of 9)
GFDWR89622Courtesy of FORD MOTOR COMPANY

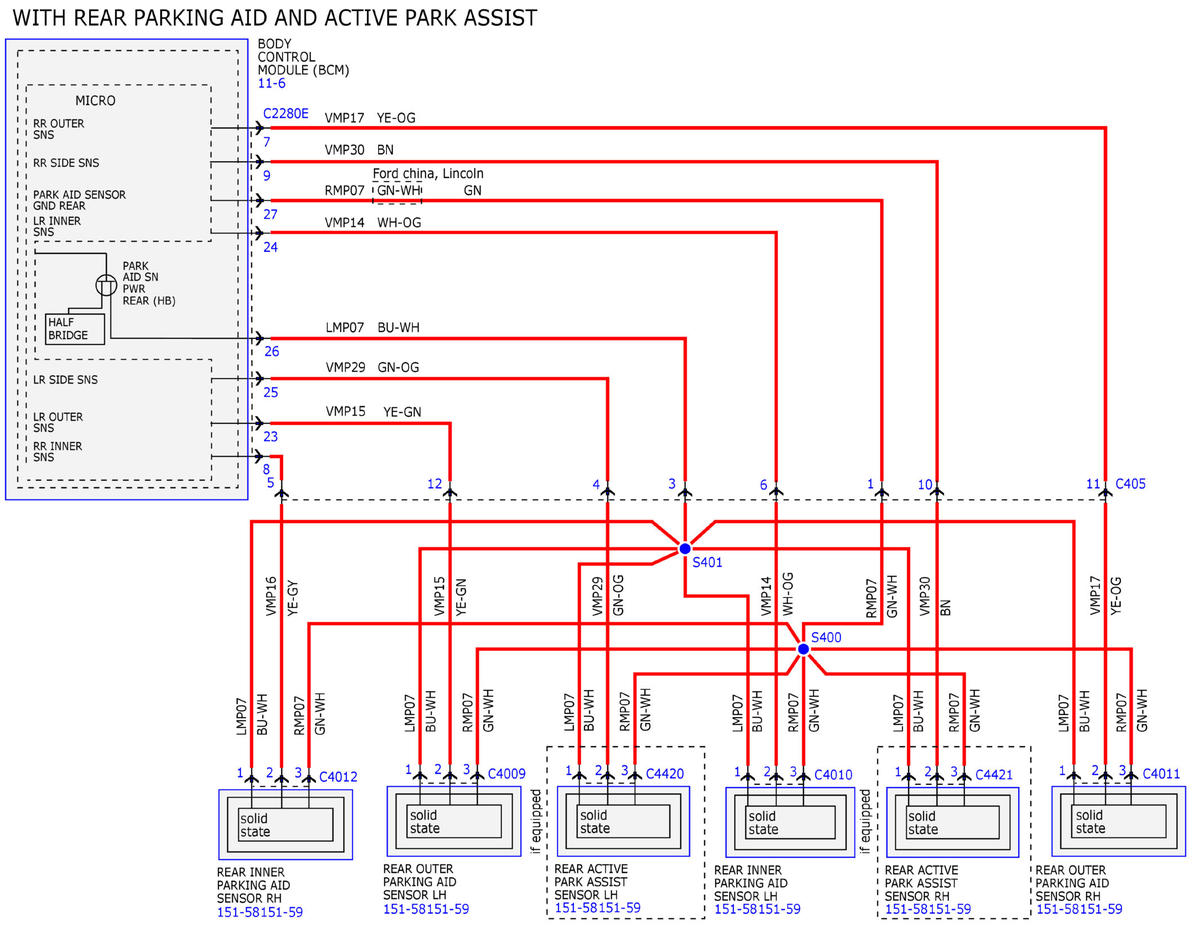

Fig 5: Parking Aid Wiring Diagram (5 Of 9)
GFDWR89623Courtesy of FORD MOTOR COMPANY

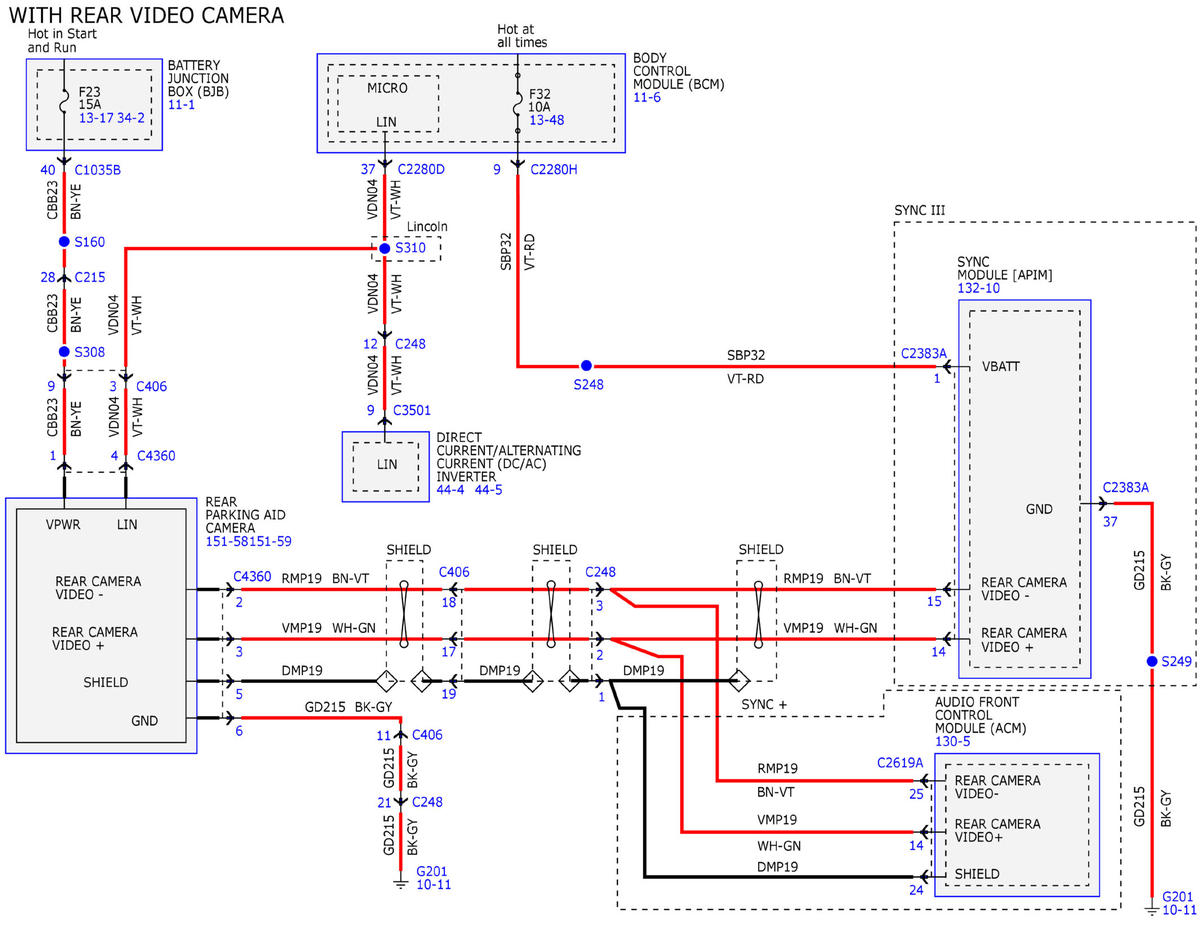

Fig 6: Parking Aid Wiring Diagram (6 Of 9)
GFDWR89624Courtesy of FORD MOTOR COMPANY

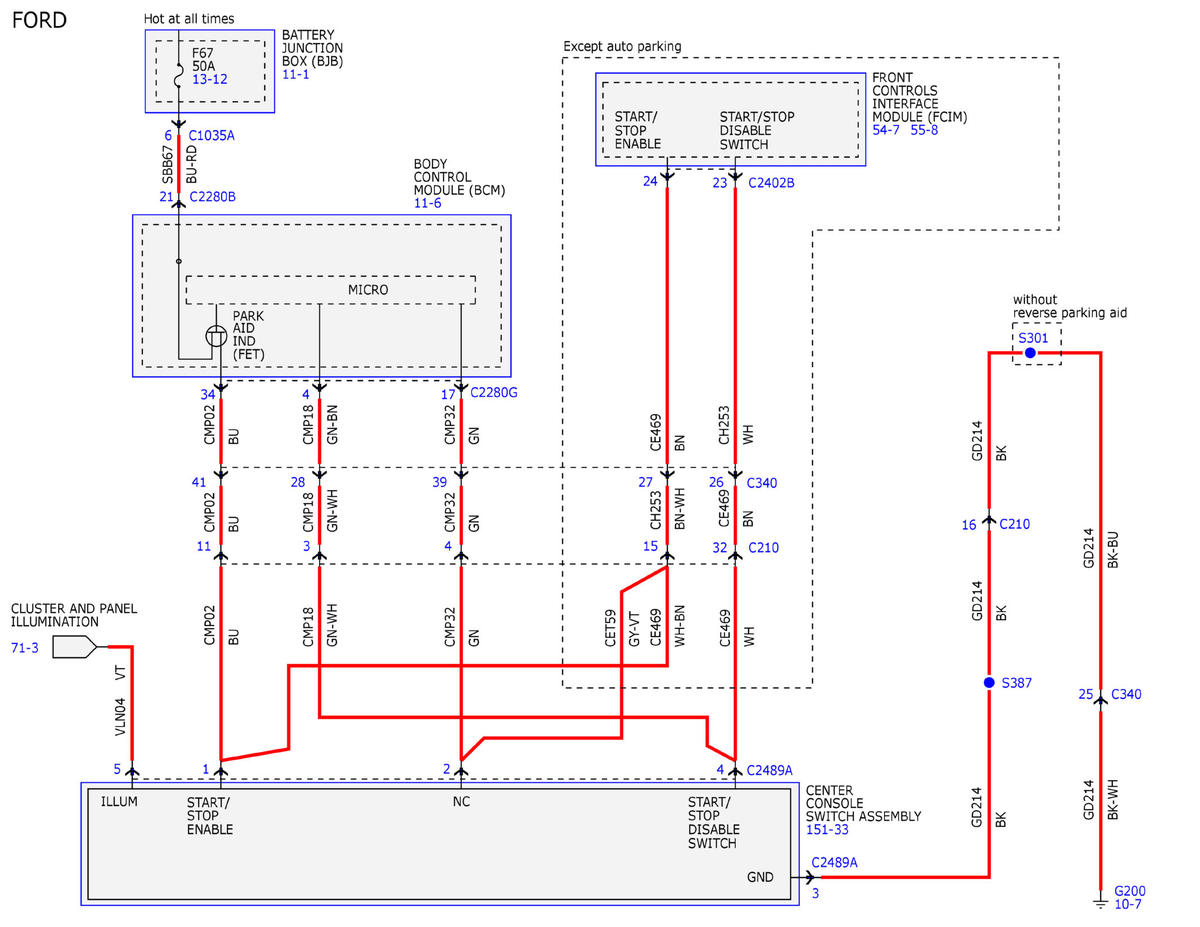

Fig 7: Parking Aid Wiring Diagram (7 Of 9)
GFDWR89625Courtesy of FORD MOTOR COMPANY

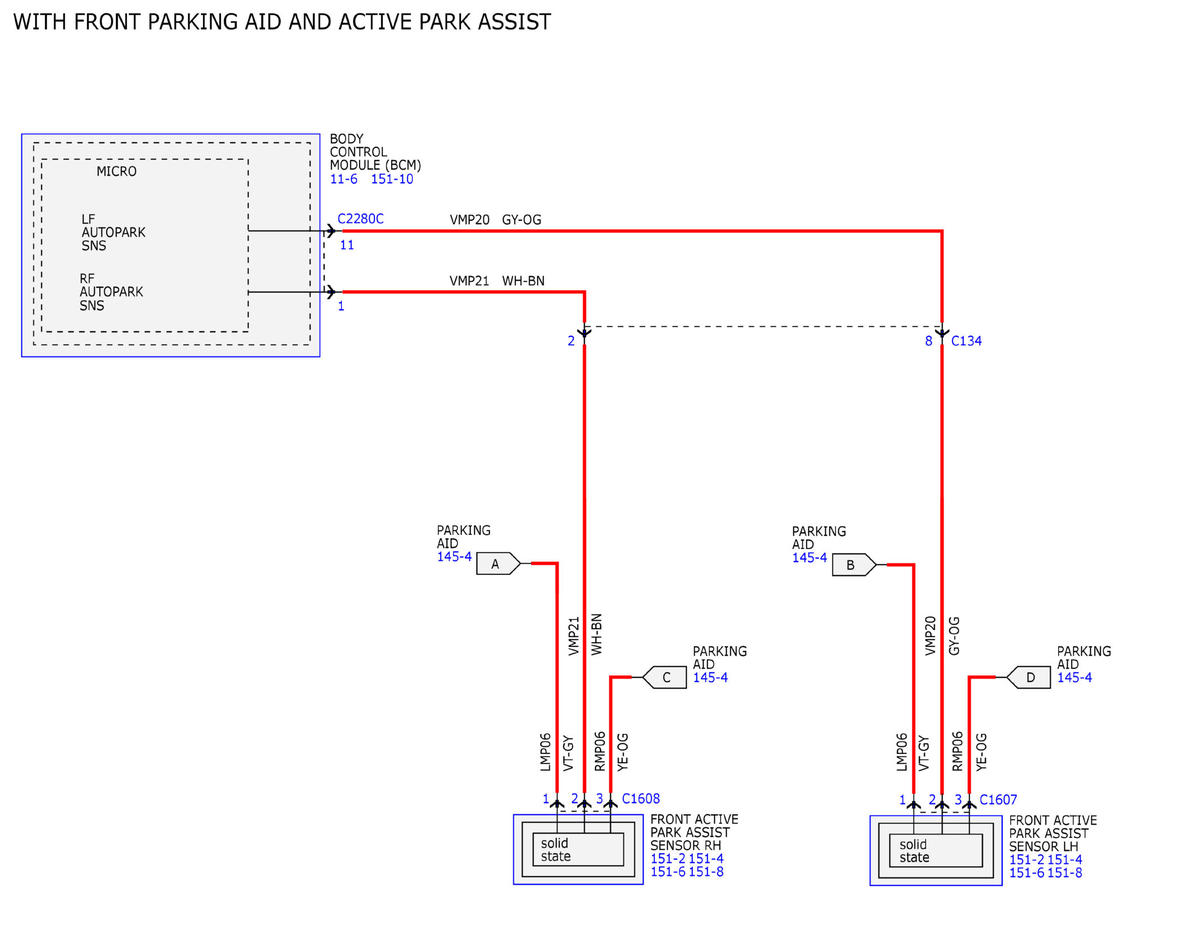

Fig 8: Parking Aid Wiring Diagram (8 Of 9)
GFDWR89626Courtesy of FORD MOTOR COMPANY

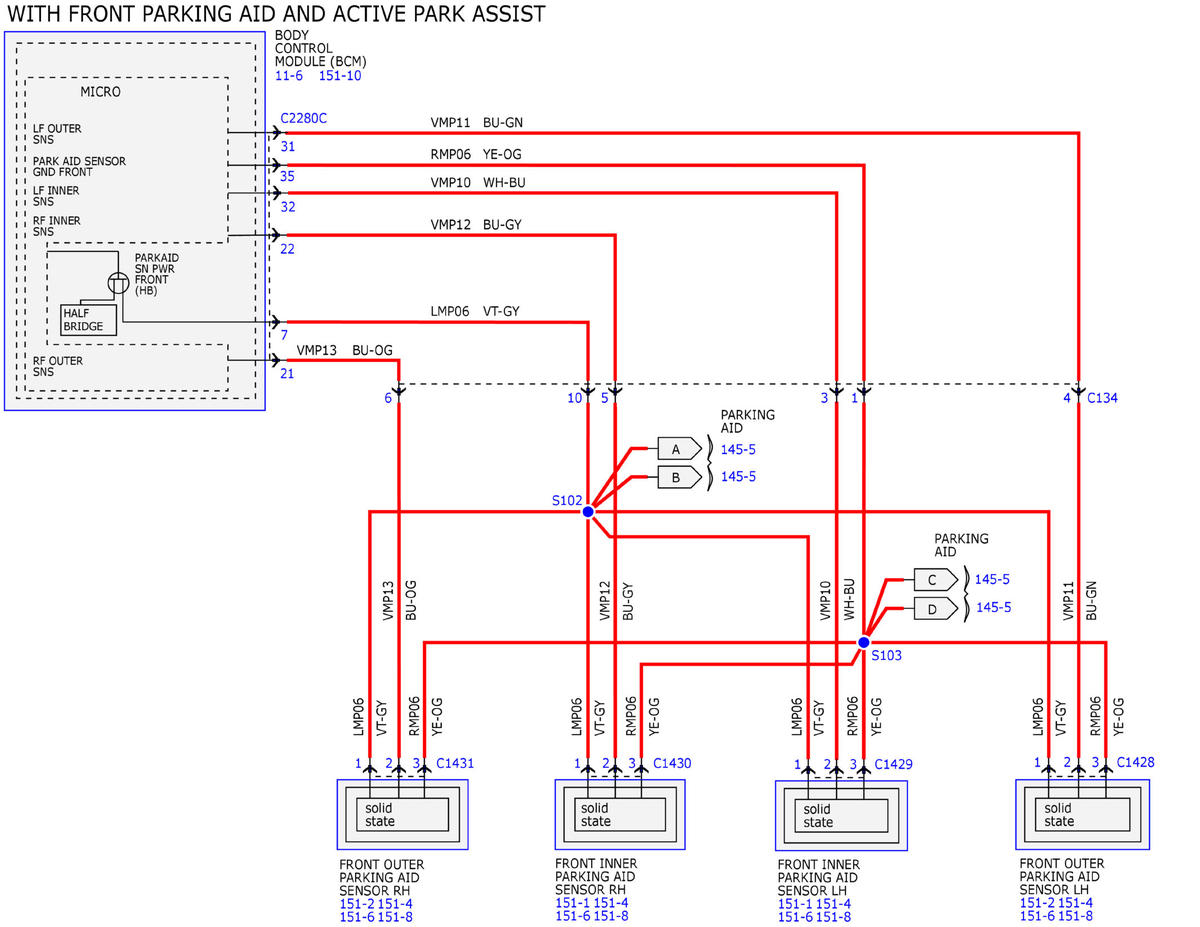

Fig 9: Parking Aid Wiring Diagram (9 Of 9)
GFDWR89627Courtesy of FORD MOTOR COMPANY
