Luggage Compartment
Luggage Compartment

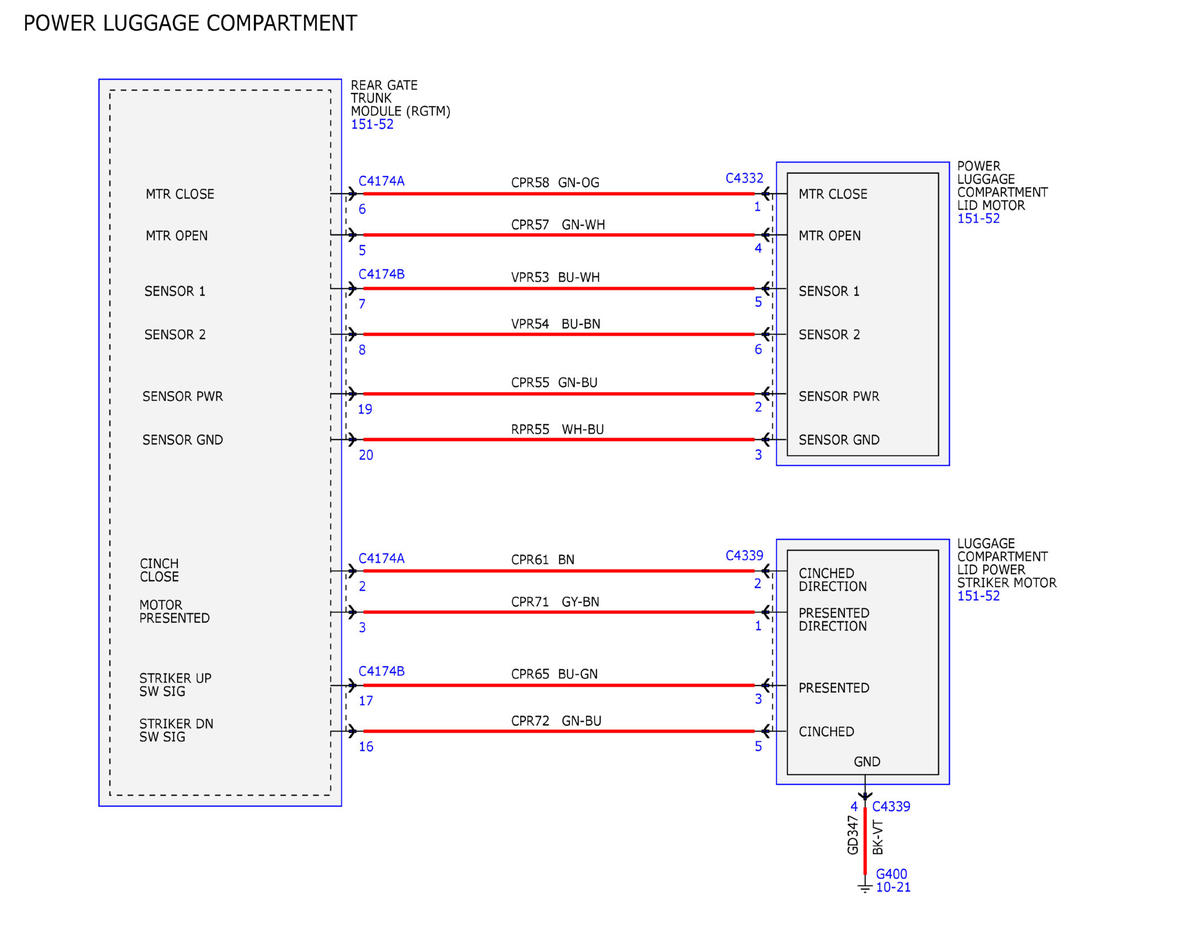

Fig 1: Luggage Compartment Wiring Diagram (1 Of 5)
Courtesy of FORD MOTOR COMPANY

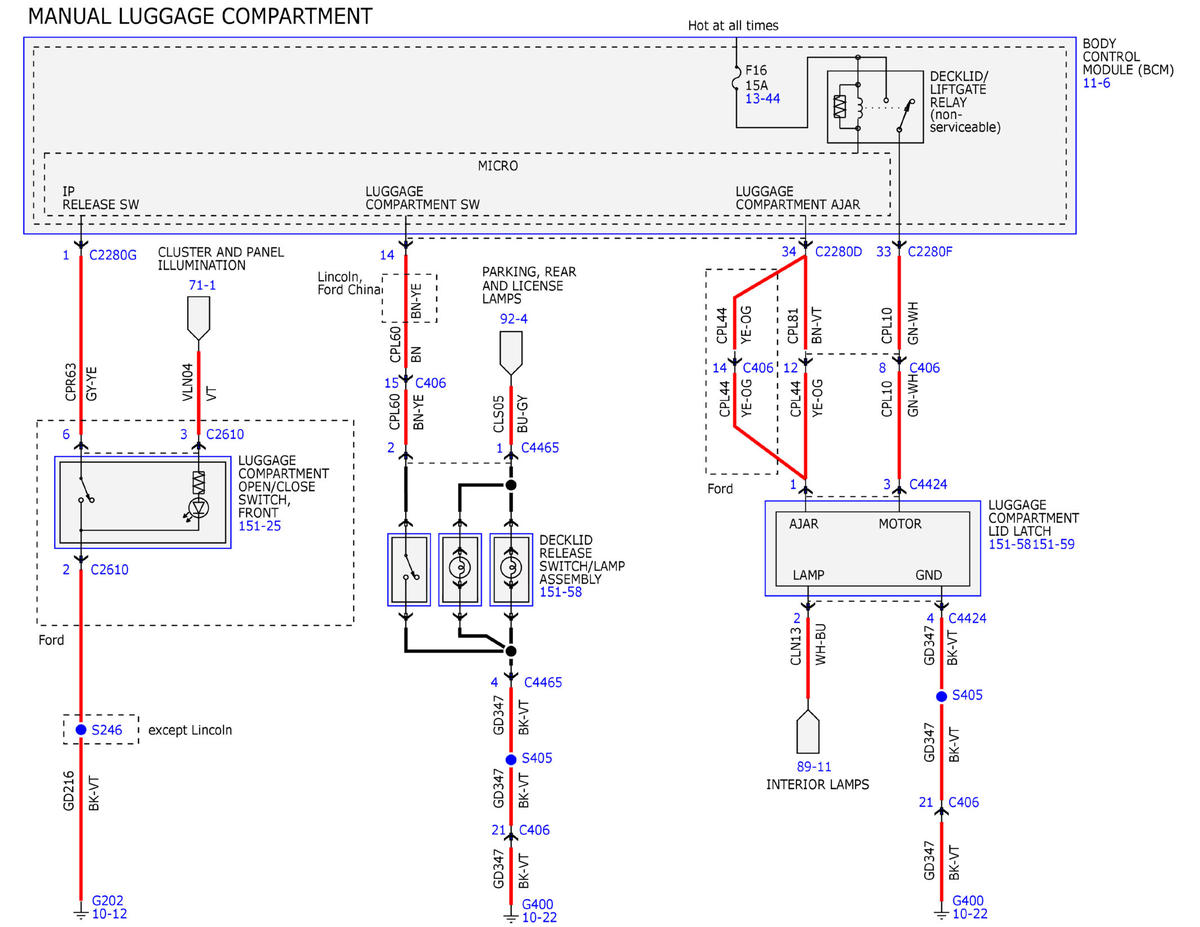

Fig 2: Luggage Compartment Wiring Diagram (2 Of 5)
Courtesy of FORD MOTOR COMPANY

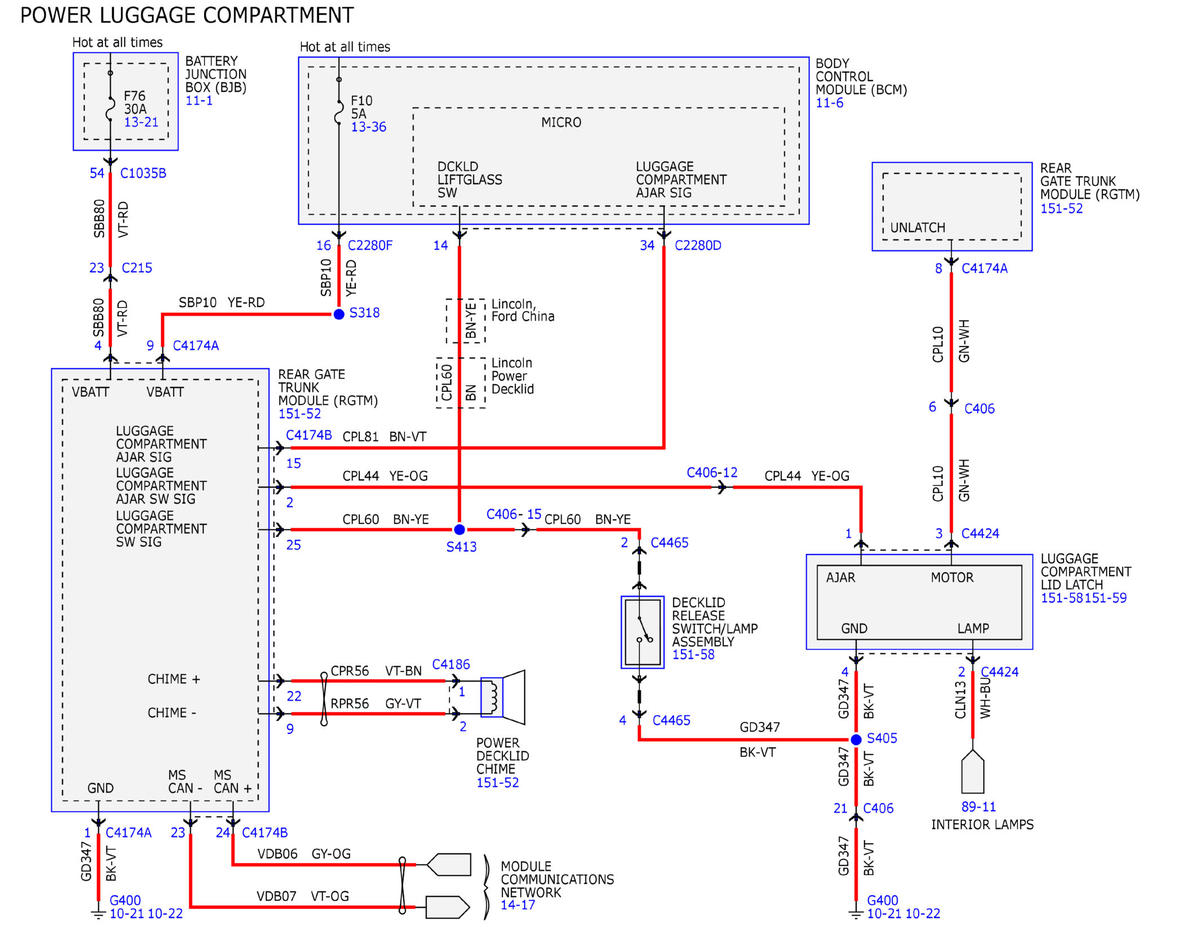

Fig 3: Luggage Compartment Wiring Diagram (3 Of 5)
Courtesy of FORD MOTOR COMPANY

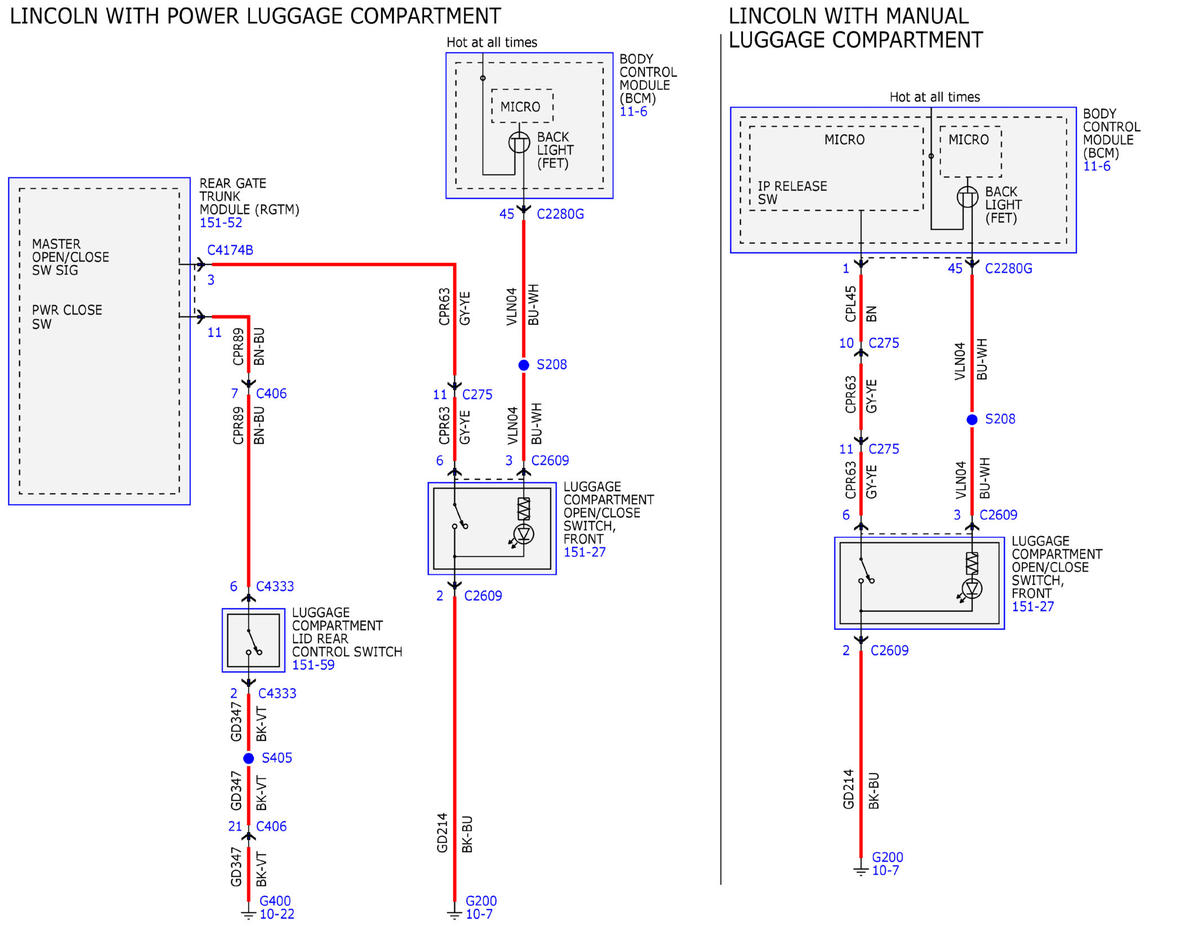

Fig 4: Luggage Compartment Wiring Diagram (4 Of 5)
Courtesy of FORD MOTOR COMPANY
Fig 5: Luggage Compartment Wiring Diagram (5 Of 5)
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
