Interior Lamps

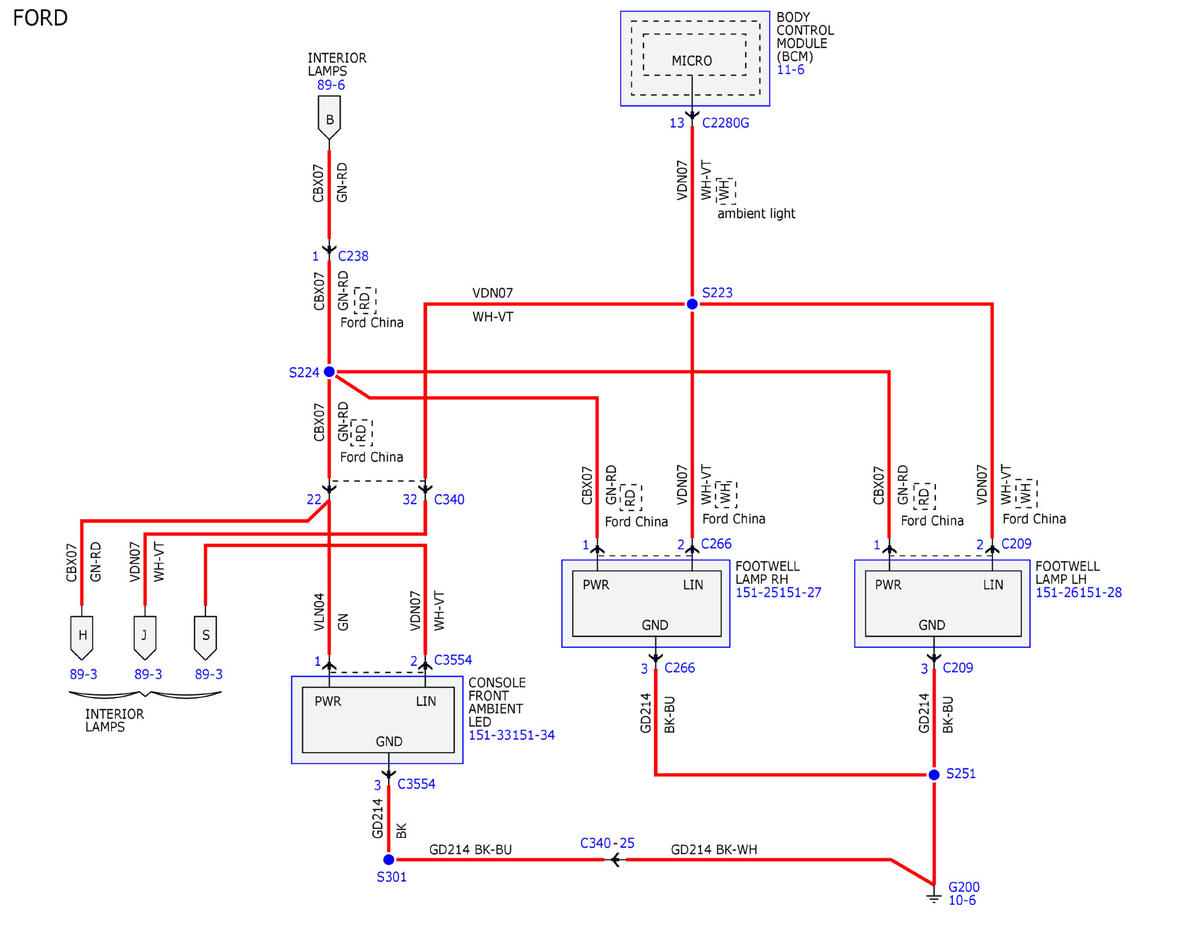

Fig 1: Interior Lamps Wiring Diagram (1 Of 12)

GFDWR89569

Courtesy of FORD MOTOR COMPANY

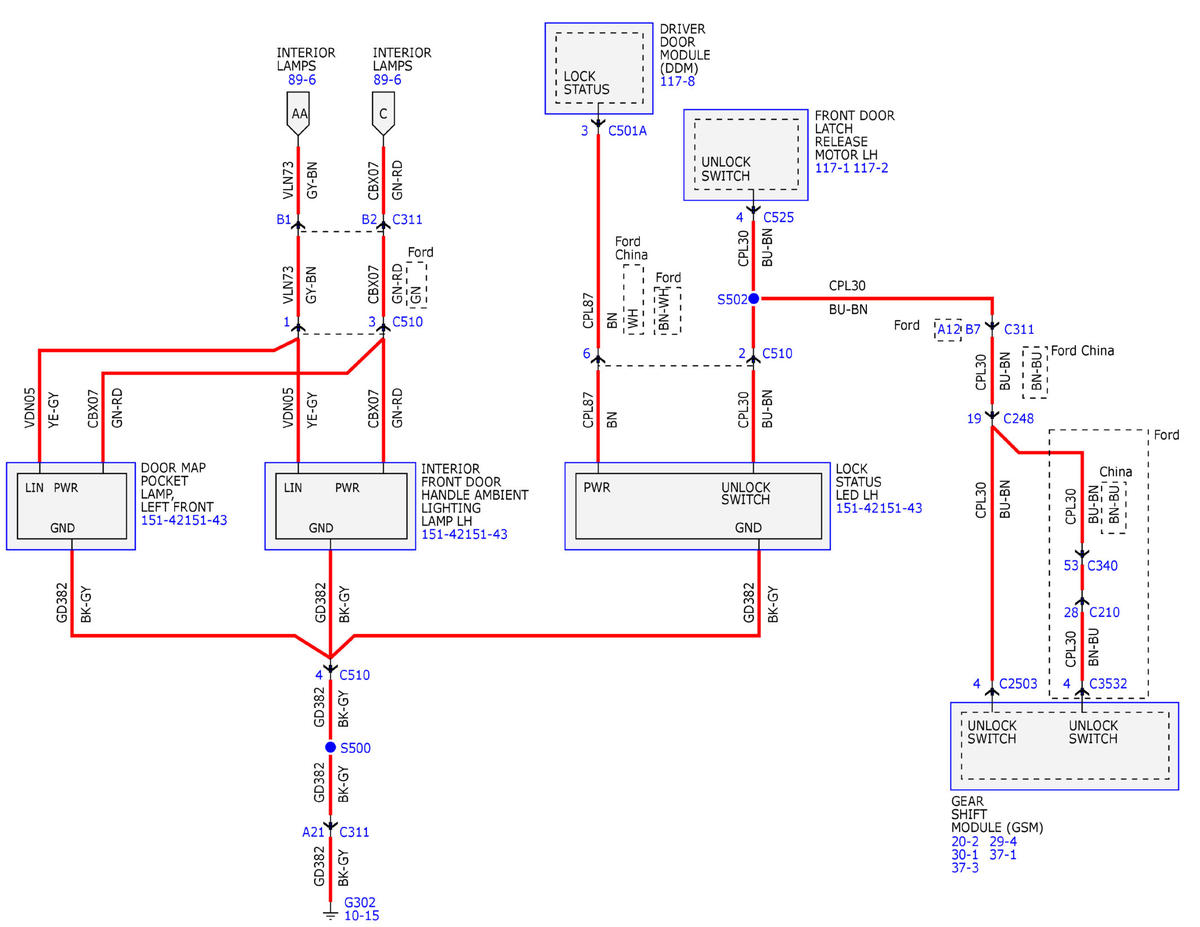

Fig 2: Interior Lamps Wiring Diagram (2 Of 12)

GFDWR89570

Courtesy of FORD MOTOR COMPANY

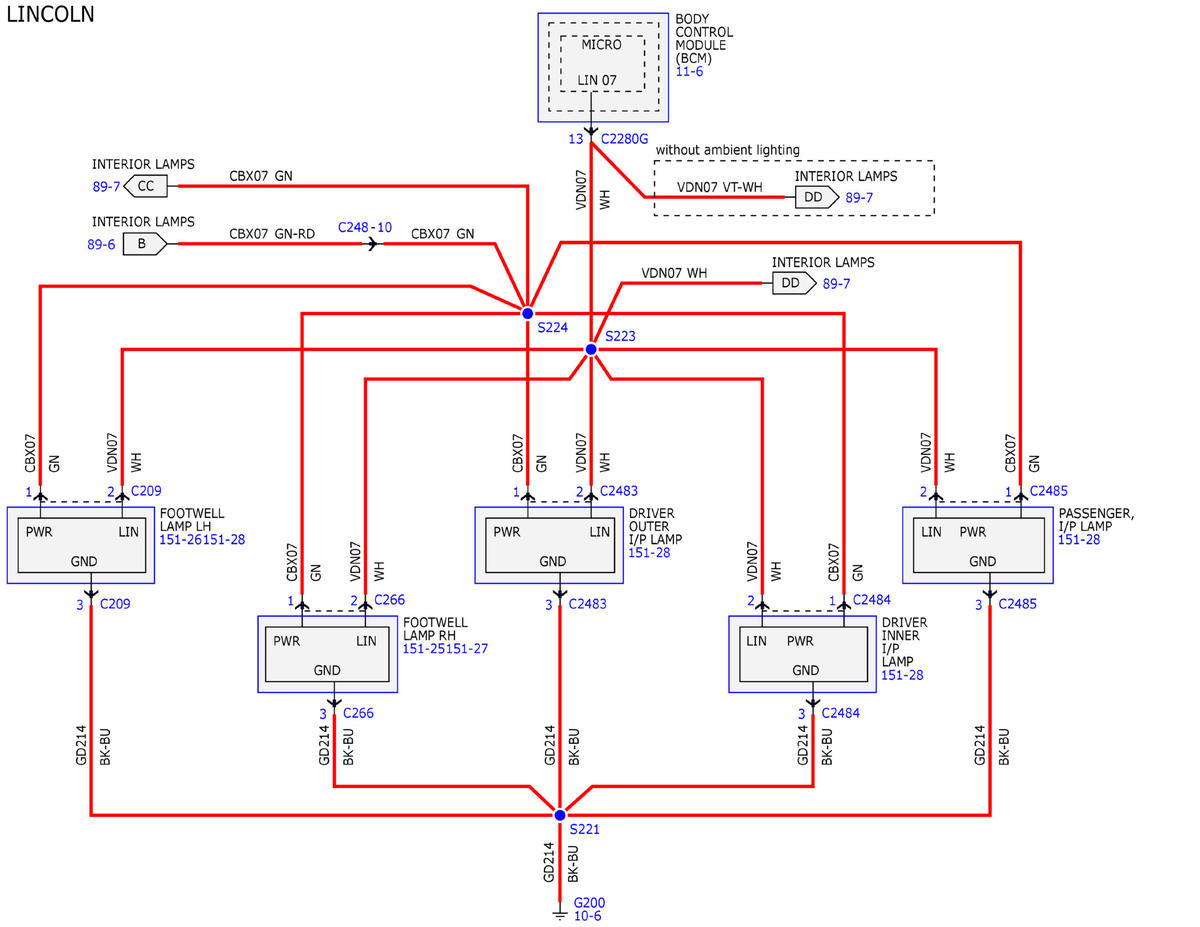

Fig 3: Interior Lamps Wiring Diagram (3 Of 12)

GFDWR89571

Courtesy of FORD MOTOR COMPANY

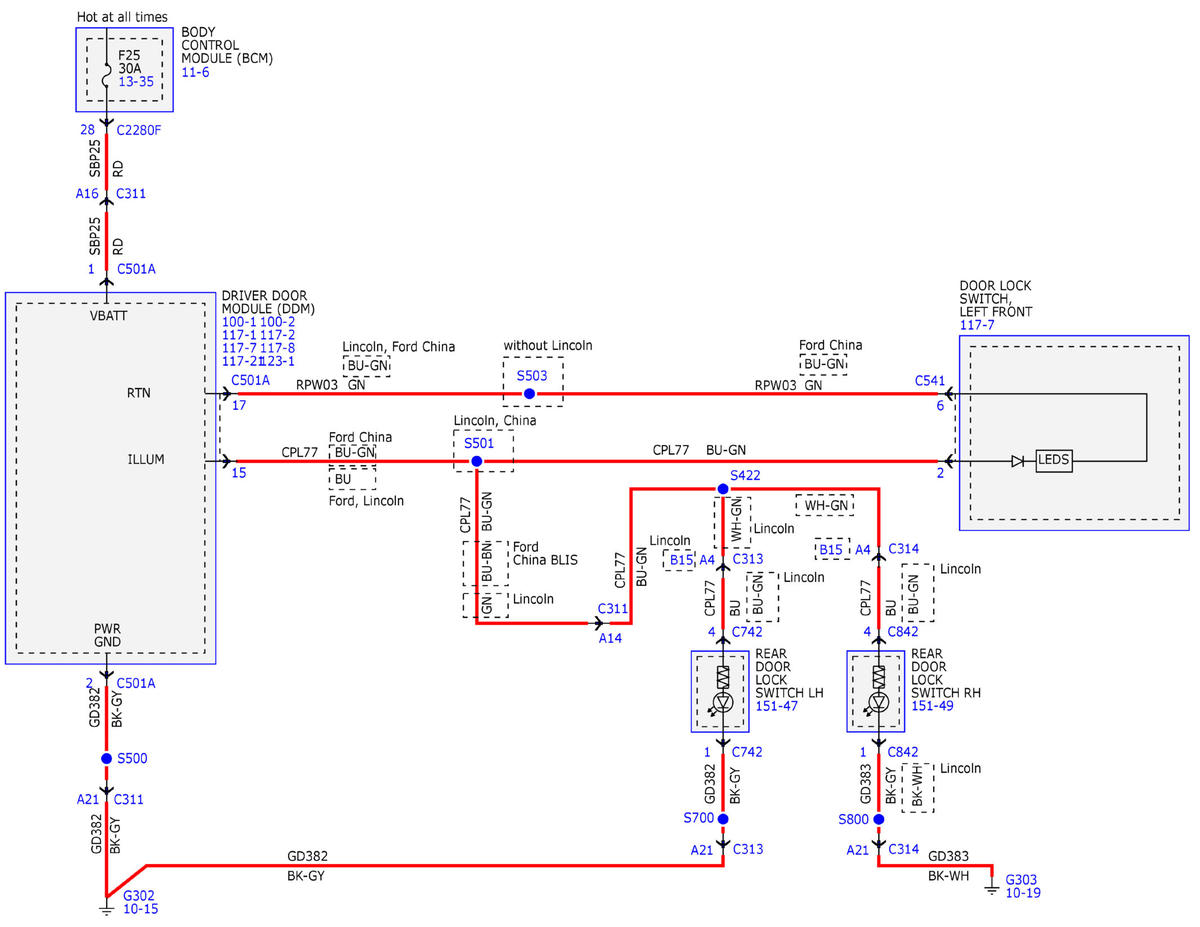

Fig 4: Interior Lamps Wiring Diagram (4 Of 12)

GFDWR89572

Courtesy of FORD MOTOR COMPANY

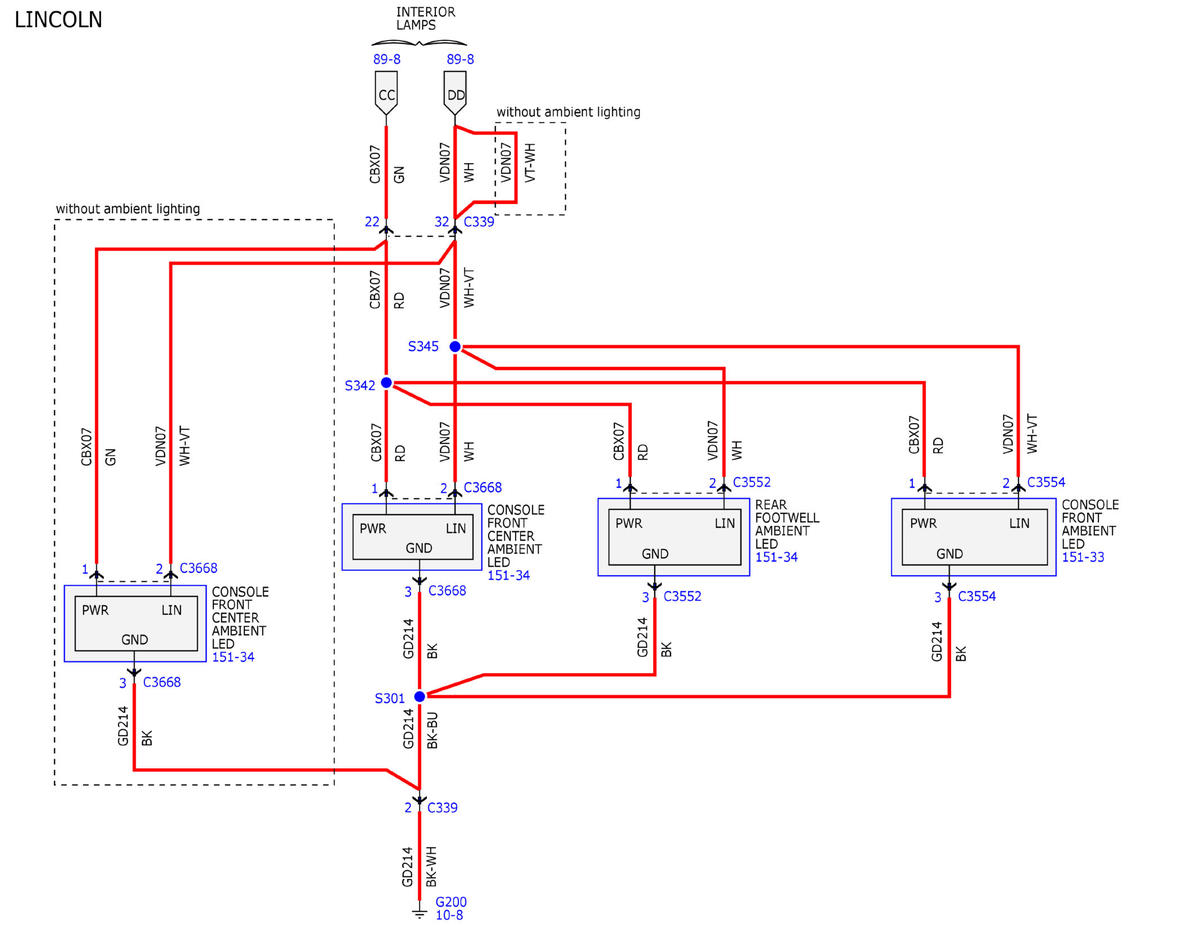

Fig 5: Interior Lamps Wiring Diagram (5 Of 12)

GFDWR89573

Courtesy of FORD MOTOR COMPANY

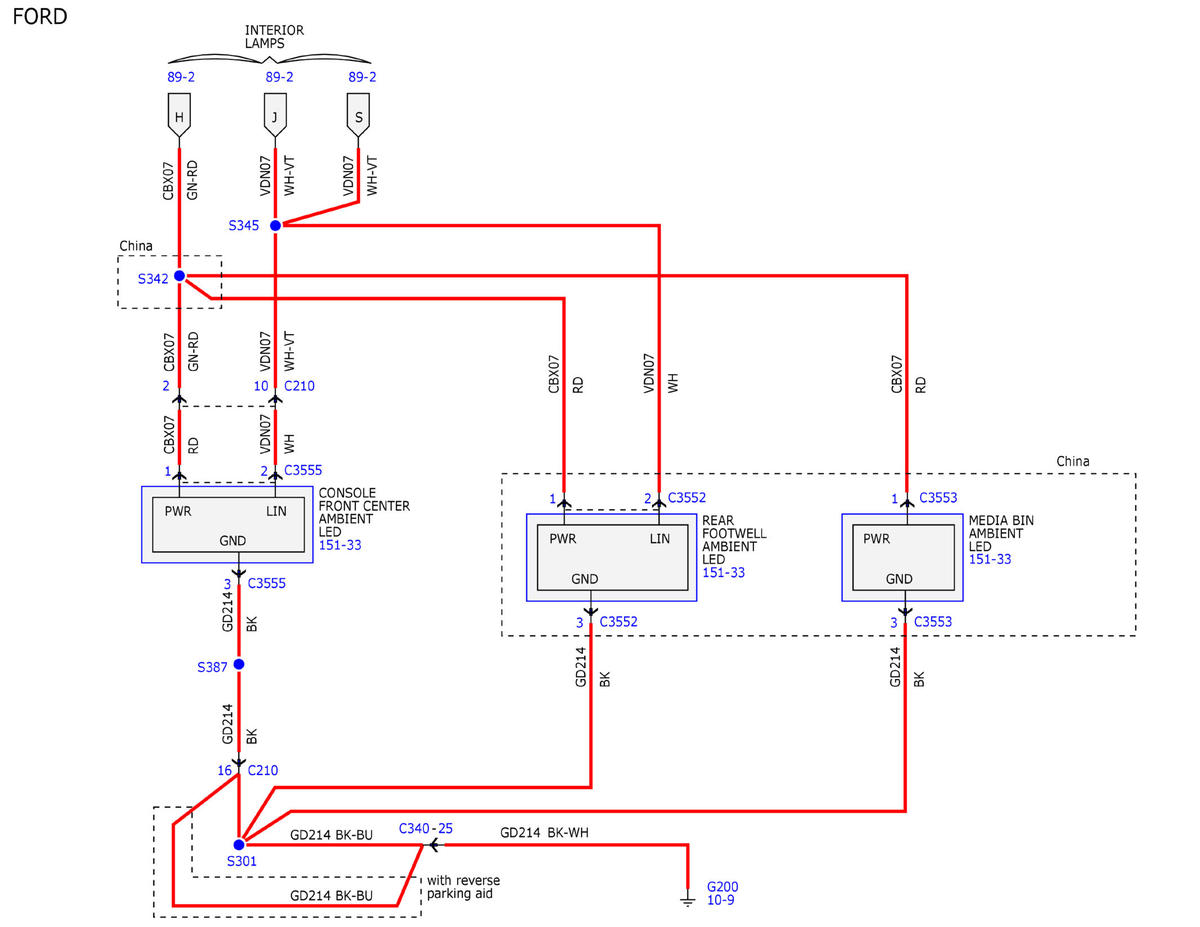

Fig 6: Interior Lamps Wiring Diagram (6 Of 12)

GFDWR89574

Courtesy of FORD MOTOR COMPANY

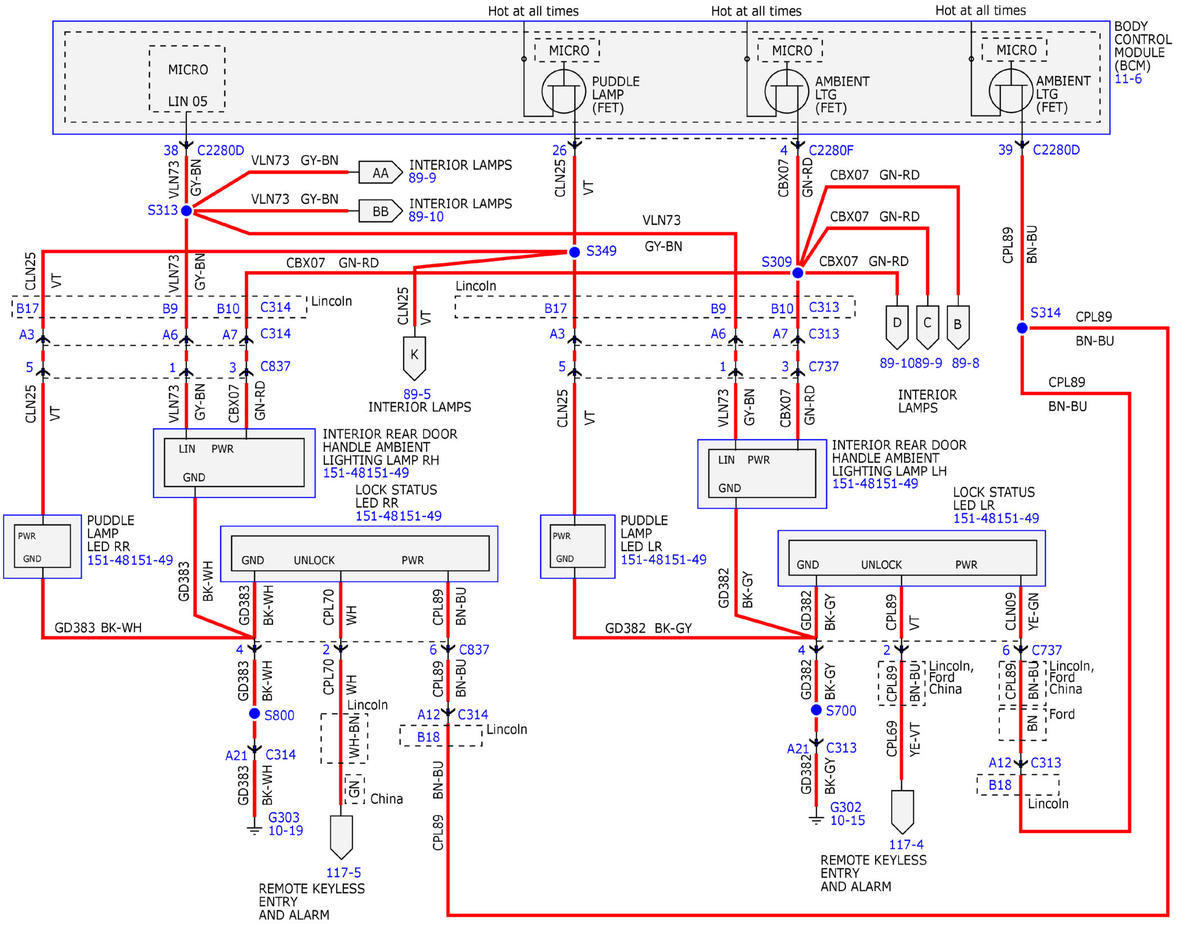

Fig 7: Interior Lamps Wiring Diagram (7 Of 12)

GFDWR89575

Courtesy of FORD MOTOR COMPANY

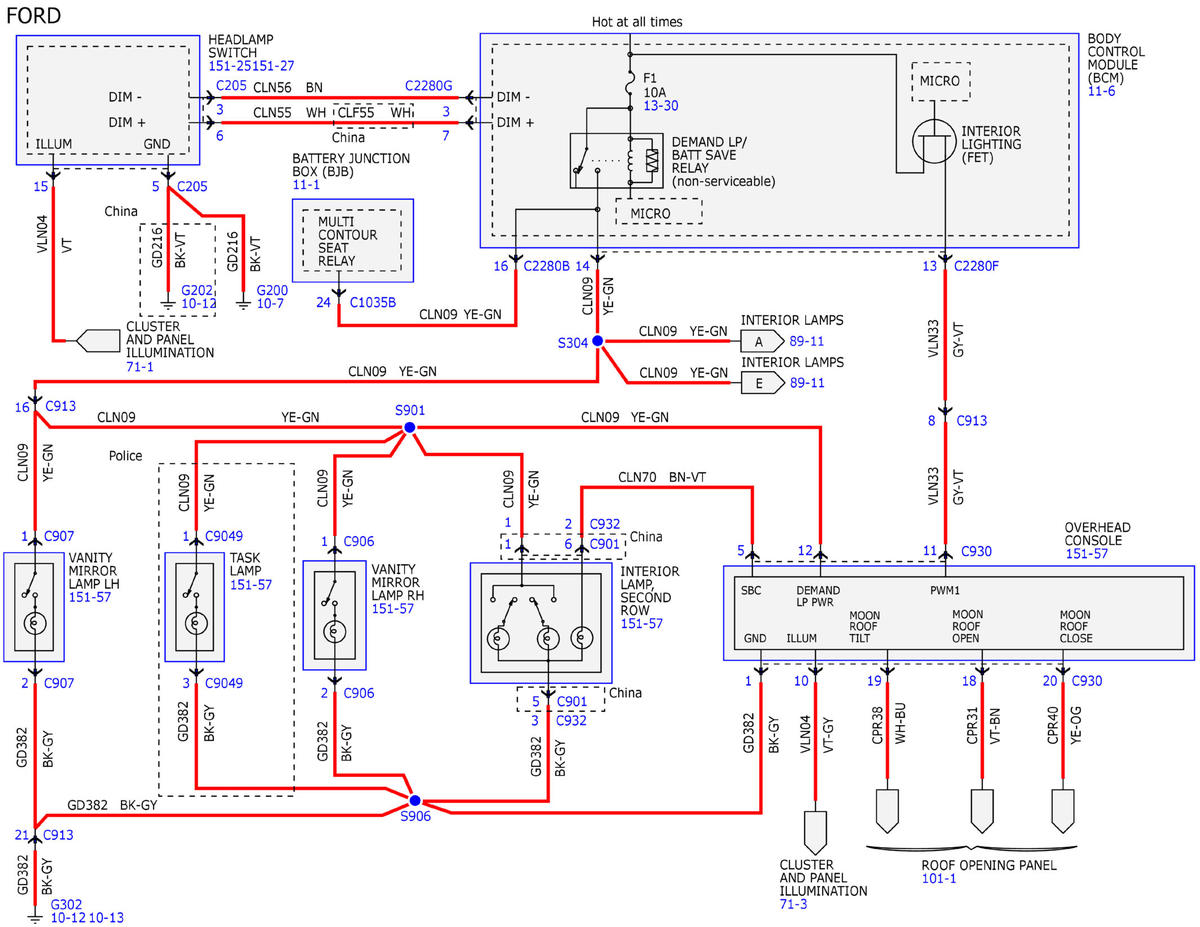

Fig 8: Interior Lamps Wiring Diagram (8 Of 12)

GFDWR89576

Courtesy of FORD MOTOR COMPANY

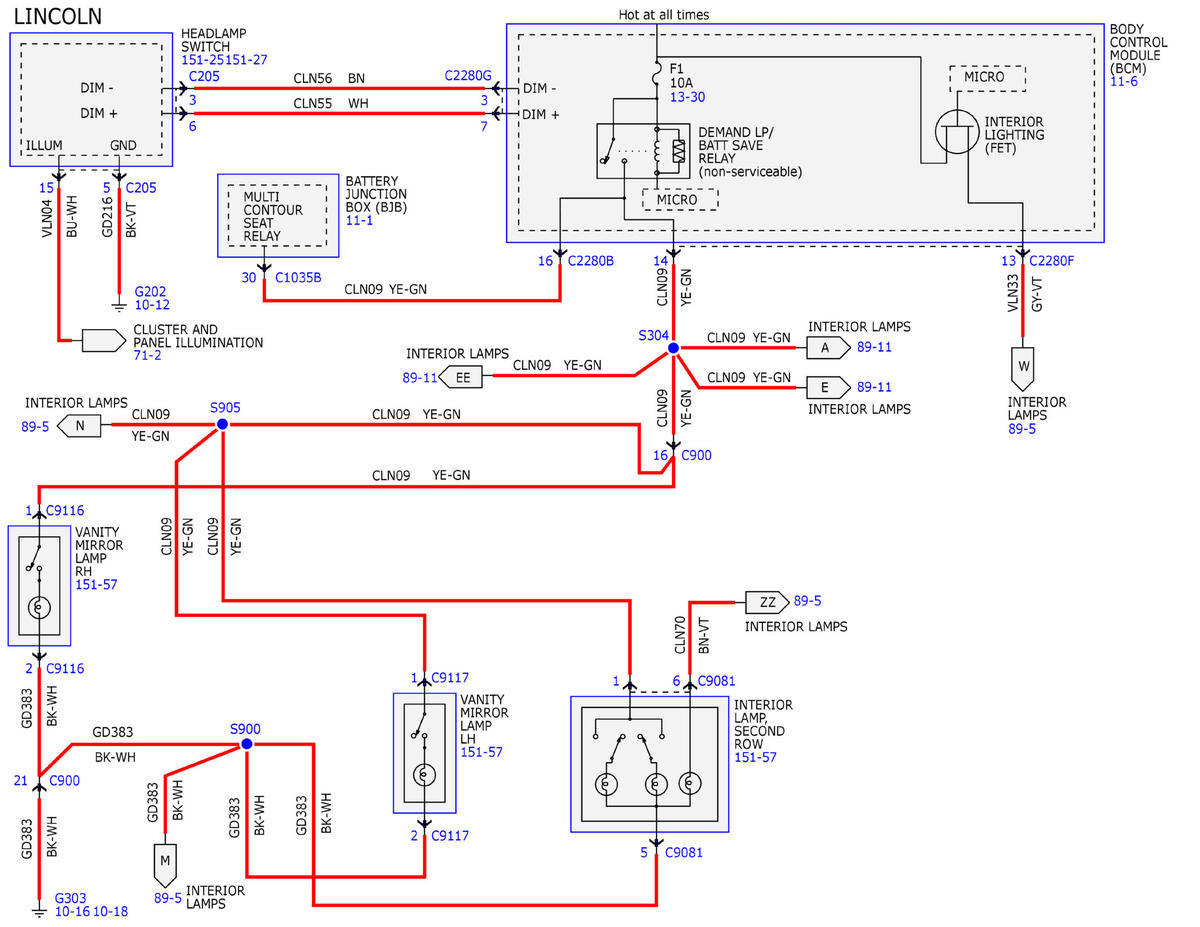

Fig 9: Interior Lamps Wiring Diagram (9 Of 12)

GFDWR89577

Courtesy of FORD MOTOR COMPANY

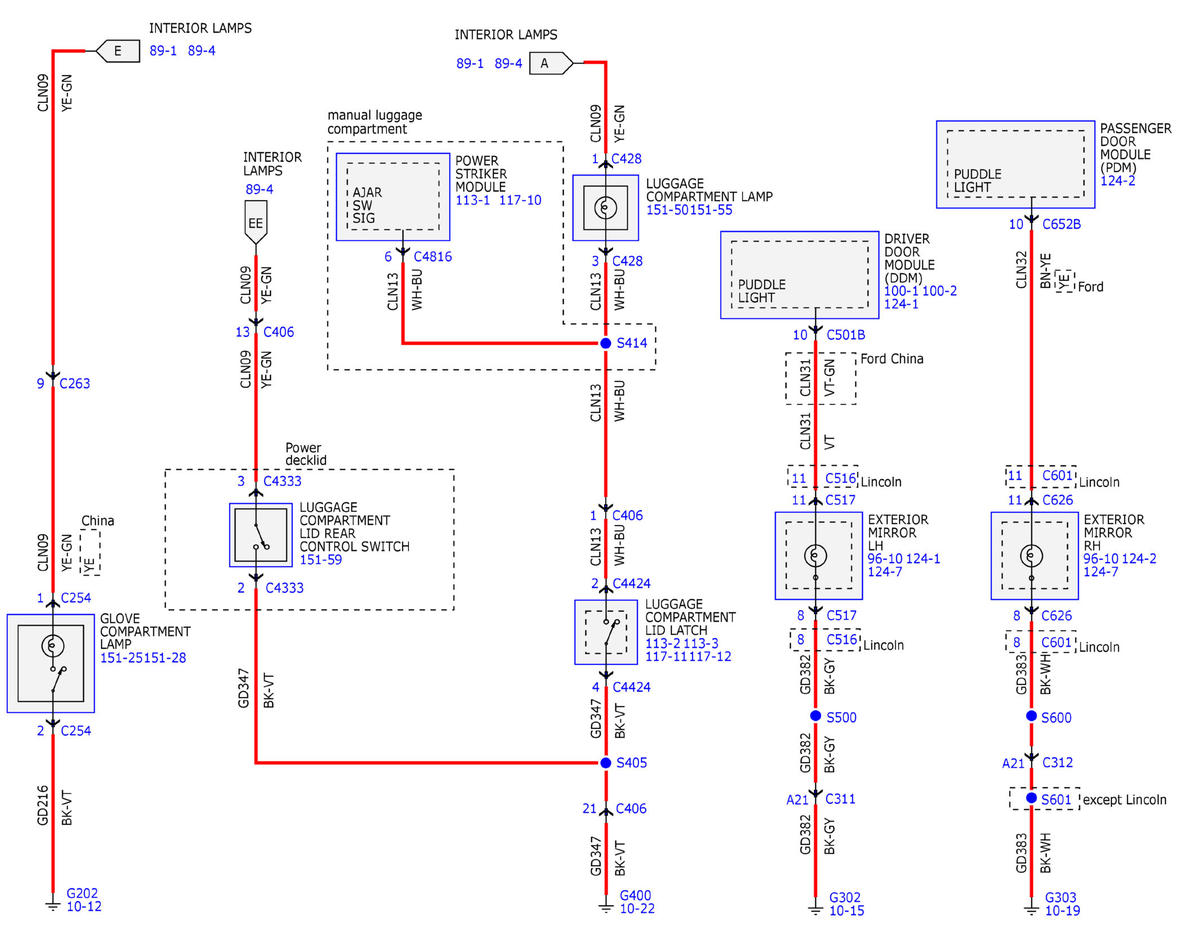

Fig 10: Interior Lamps Wiring Diagram (10 Of 12)

GFDWR89578

Courtesy of FORD MOTOR COMPANY

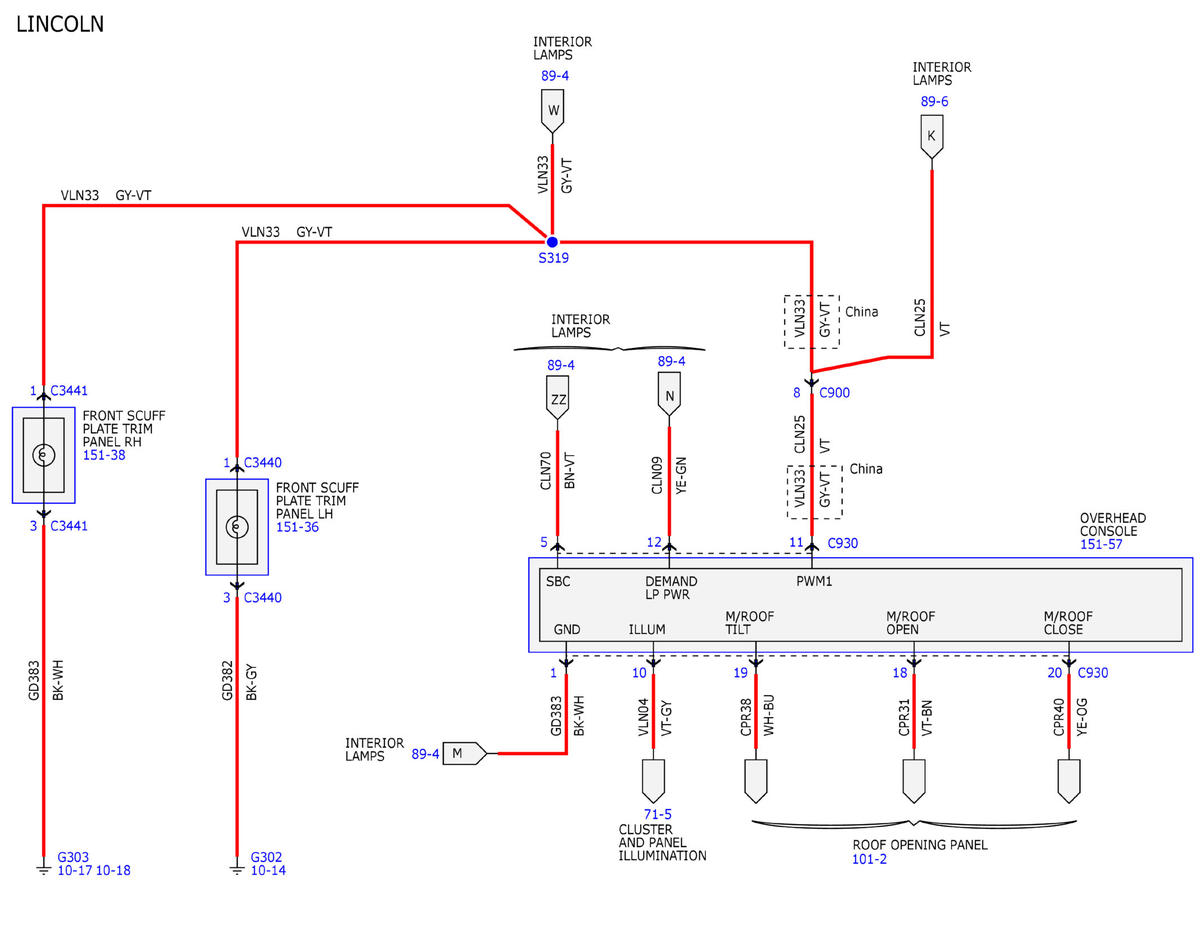

Fig 11: Interior Lamps Wiring Diagram (11 Of 12)

GFDWR89579

Courtesy of FORD MOTOR COMPANY

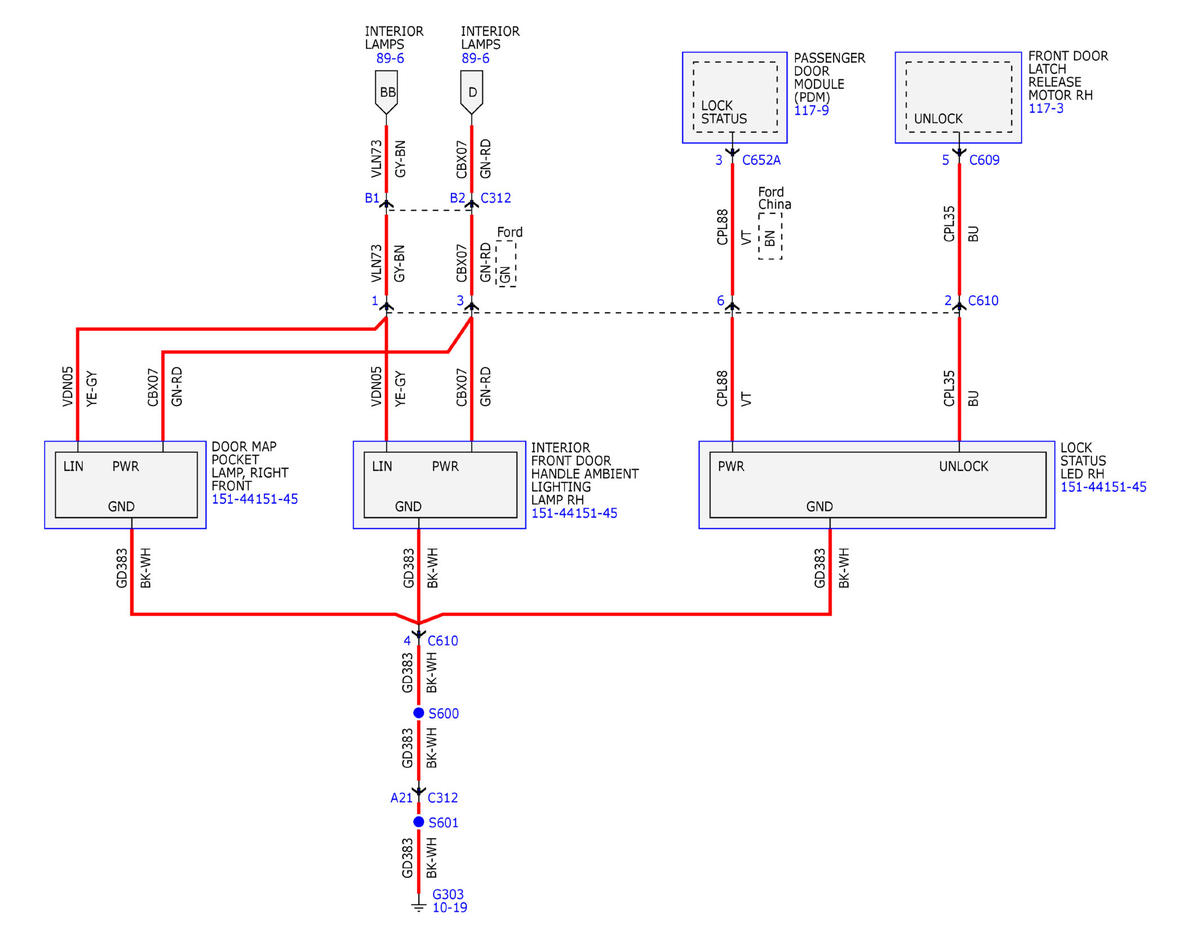

Fig 12: Interior Lamps Wiring Diagram (12 Of 12)

GFDWR89580

Courtesy of FORD MOTOR COMPANY
