Ford
>>
2020
>>
Fusion Titanium, FWD
>>
Repair and Diagnosis (Single Page)
>>
Quick Lookups
>>
Wiring Diagrams
>>
OEM Wiring Diagrams (Except Hybrid)
>>
Horn/Cigar Lighter
Horn/Cigar Lighter

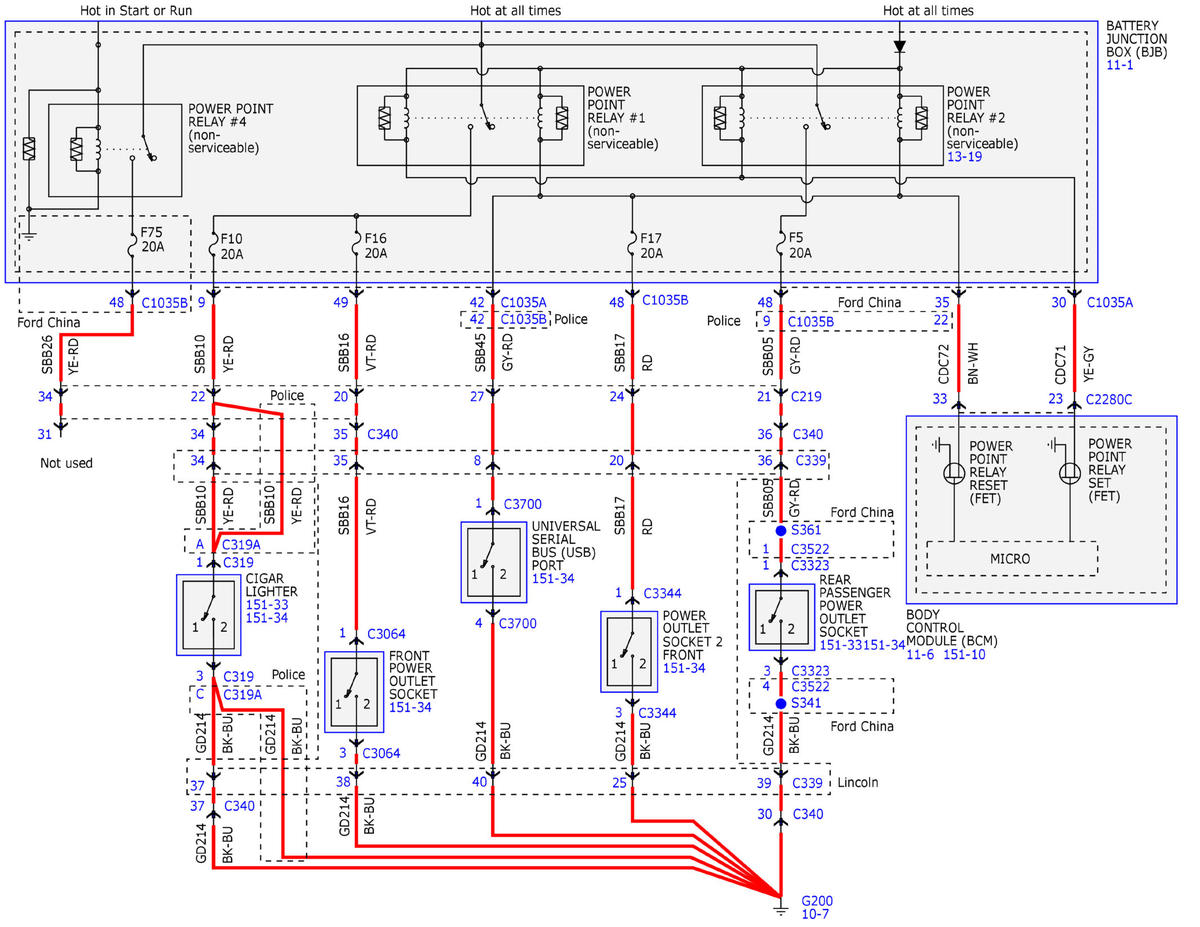

Fig 1: Horn/Cigar Lighter Wiring Diagram (1 Of 5)
Courtesy of FORD MOTOR COMPANY
Fig 2: Horn/Cigar Lighter Wiring Diagram (2 Of 5)
Courtesy of FORD MOTOR COMPANY
Fig 3: Horn/Cigar Lighter Wiring Diagram (3 Of 5)
Courtesy of FORD MOTOR COMPANY
Fig 4: Horn/Cigar Lighter Wiring Diagram (4 Of 5)
Courtesy of FORD MOTOR COMPANY
Fig 5: Horn/Cigar Lighter Wiring Diagram (5 Of 5)
Courtesy of FORD MOTOR COMPANY
