OEM Wiring Diagrams (Except Hybrid): Headlamps/Autolamps

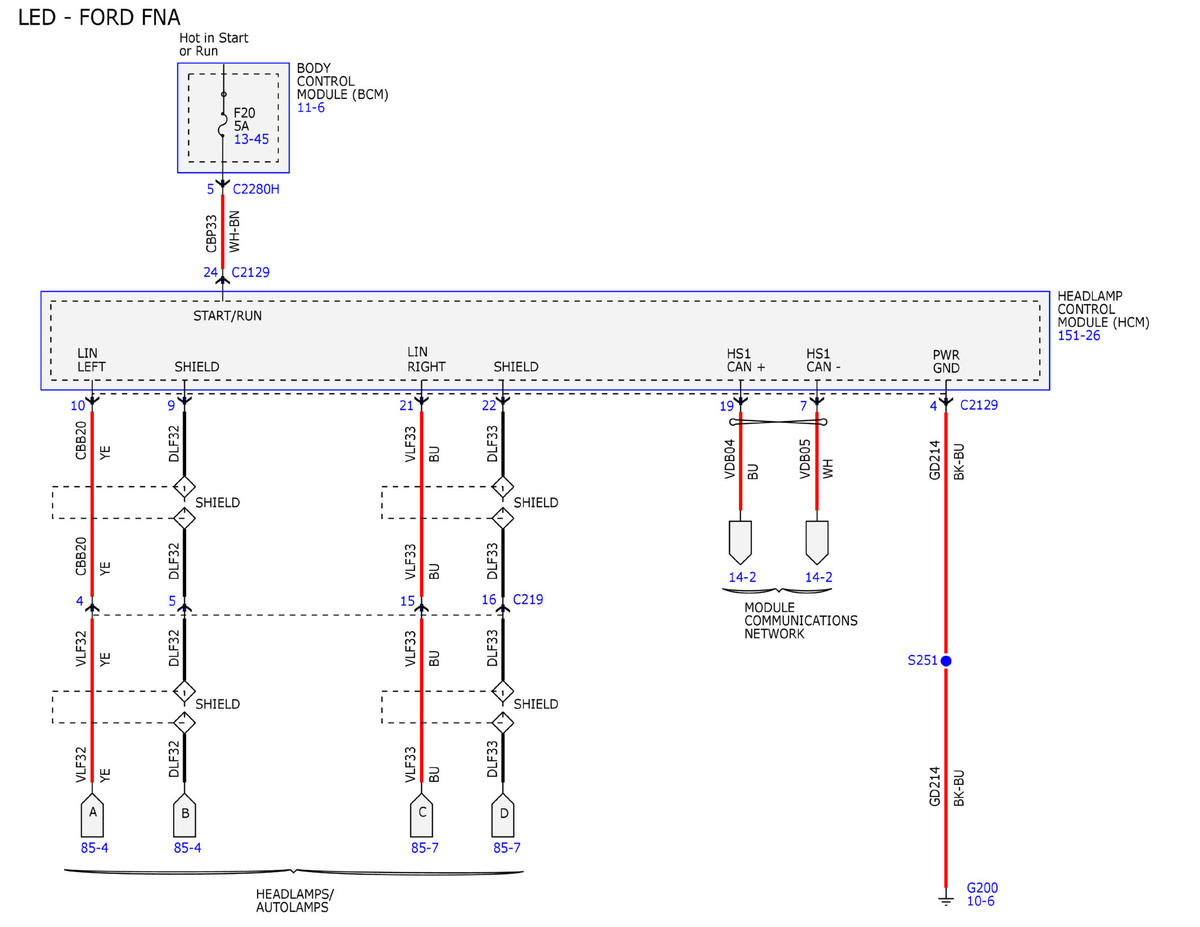

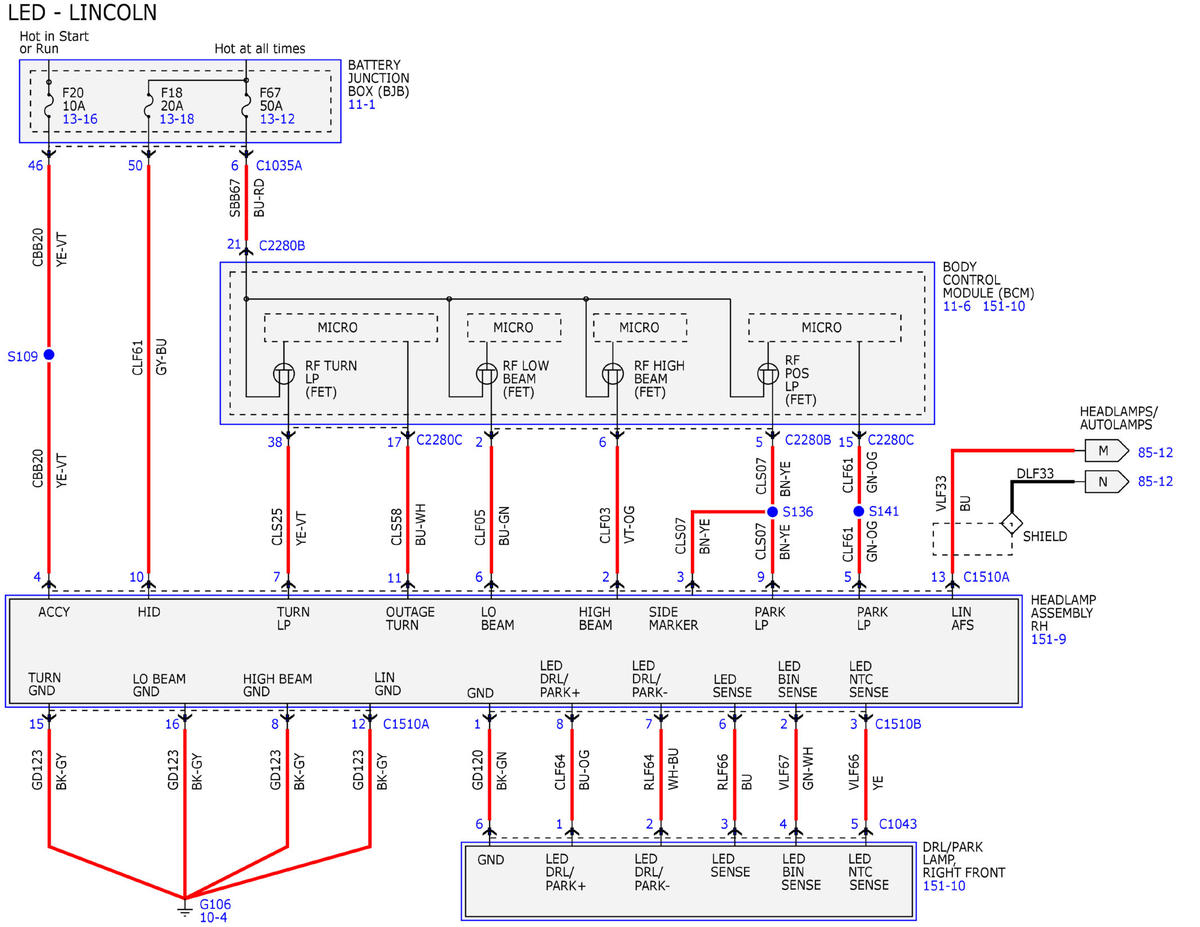

Fig 1: Headlamps/Autolamps Wiring Diagram (1 Of 15)

Courtesy of FORD MOTOR COMPANY

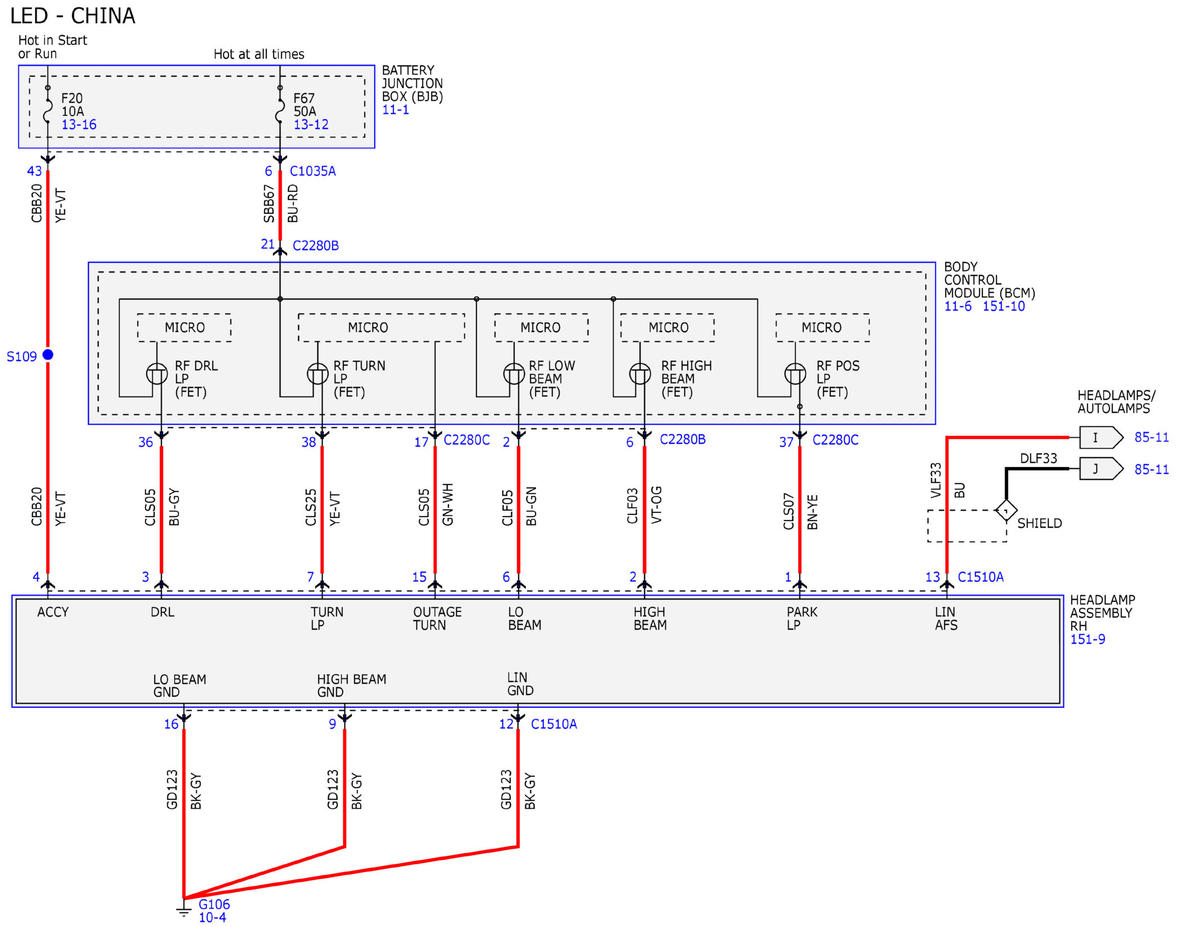

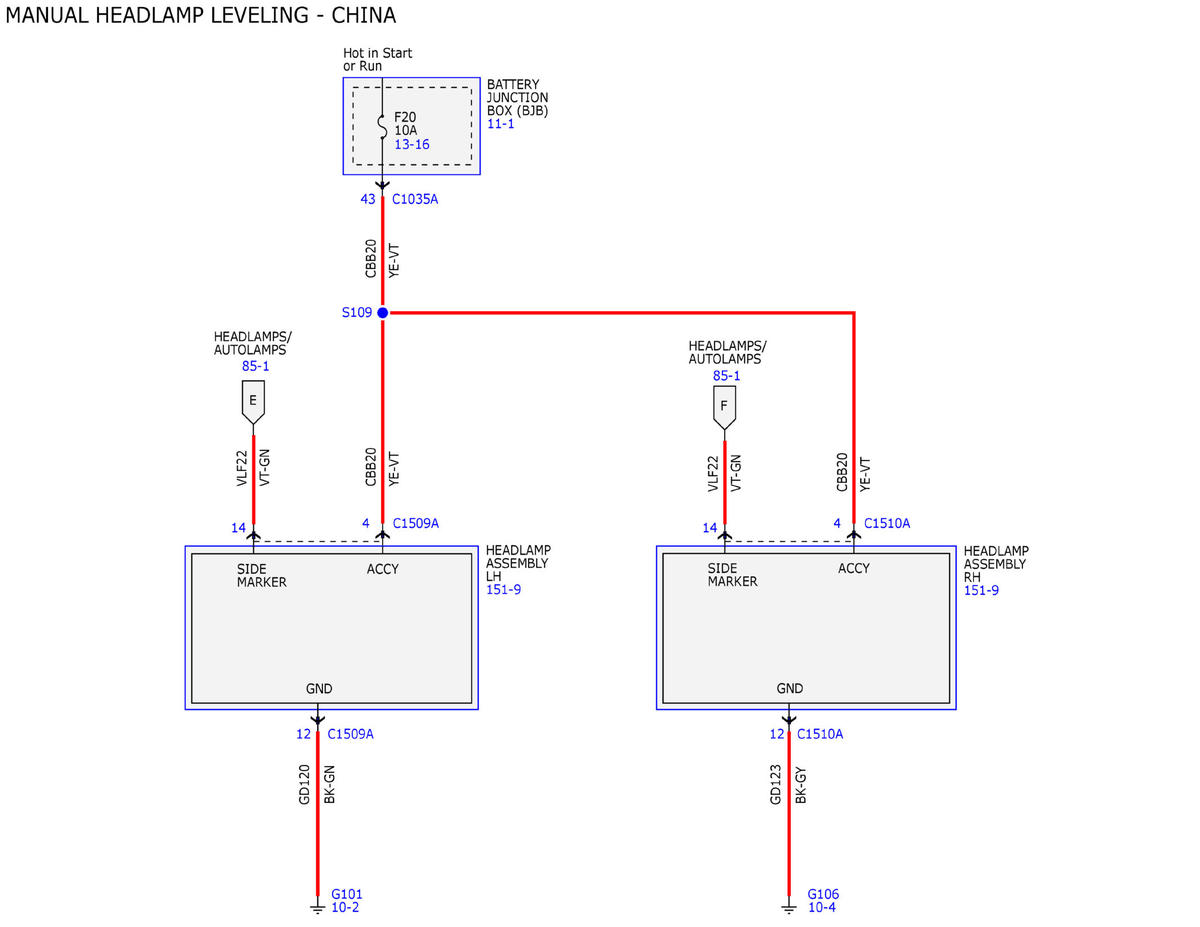

Fig 2: Headlamps/Autolamps Wiring Diagram (2 Of 15)

Courtesy of FORD MOTOR COMPANY

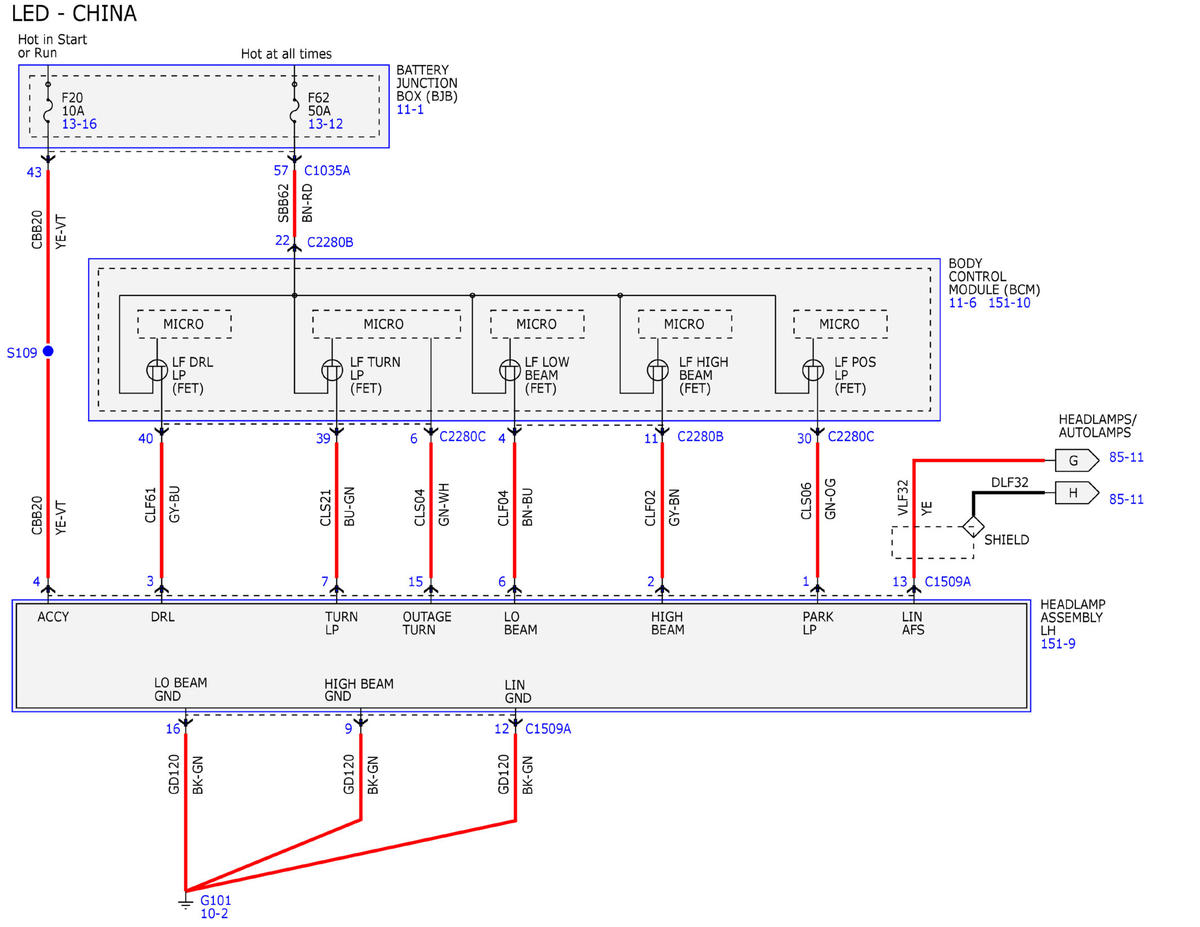

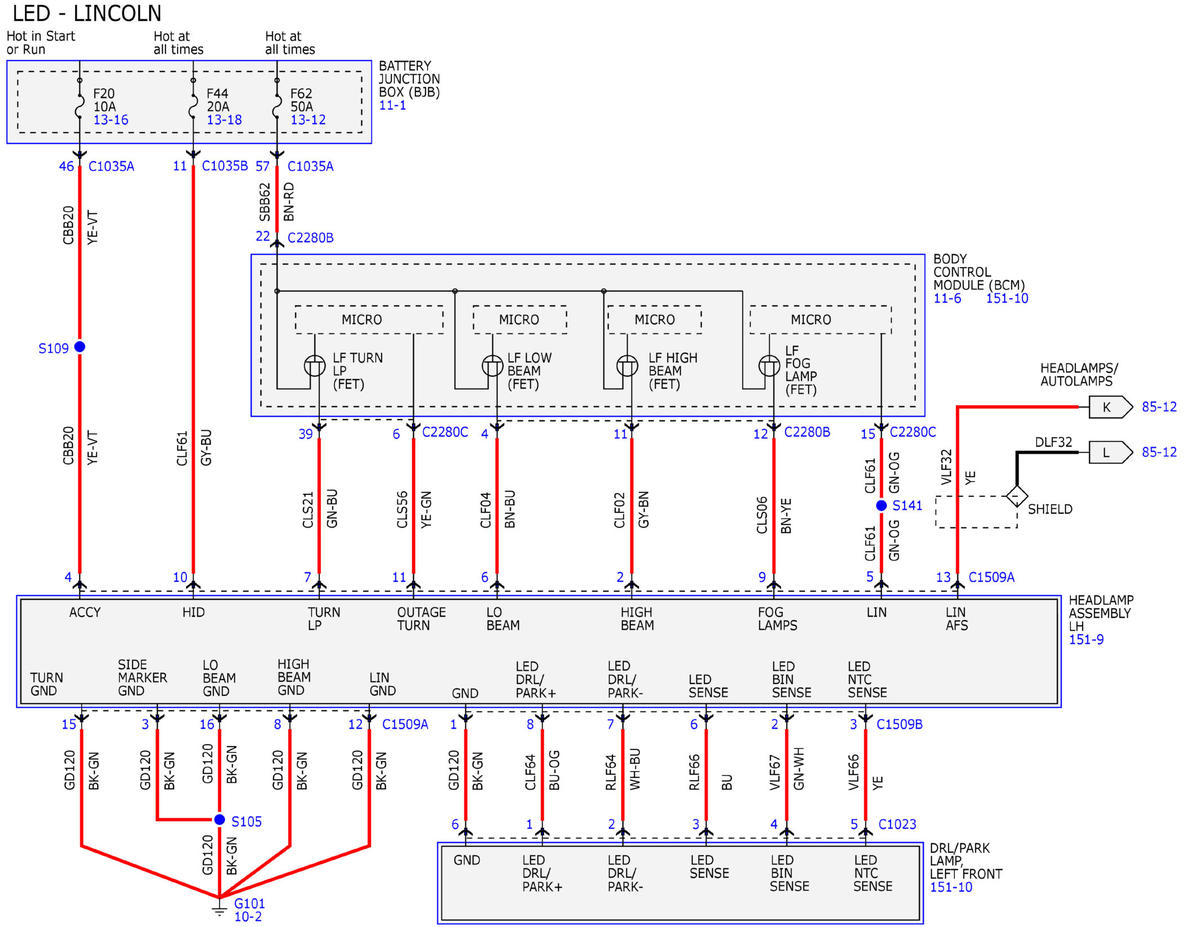

Fig 3: Headlamps/Autolamps Wiring Diagram (3 Of 15)

Courtesy of FORD MOTOR COMPANY

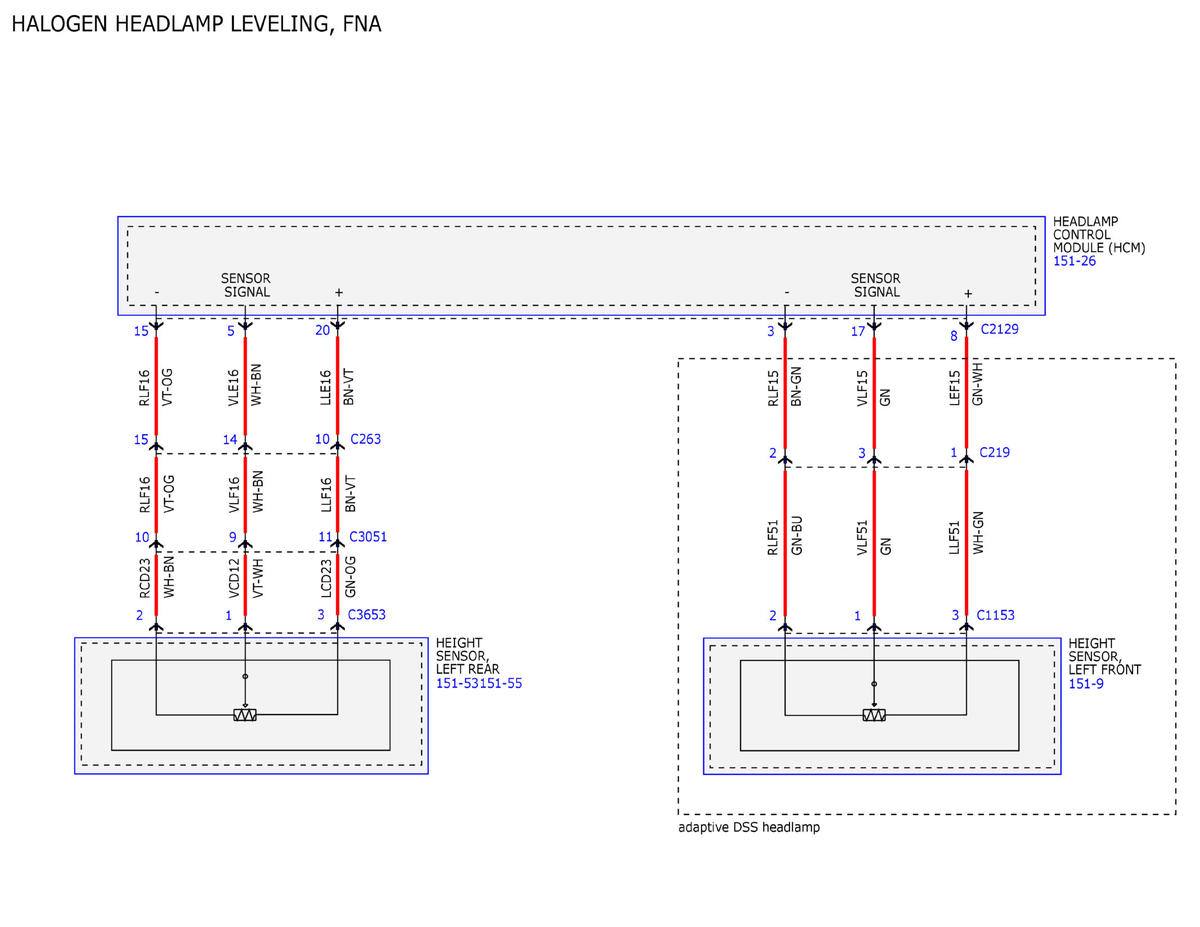

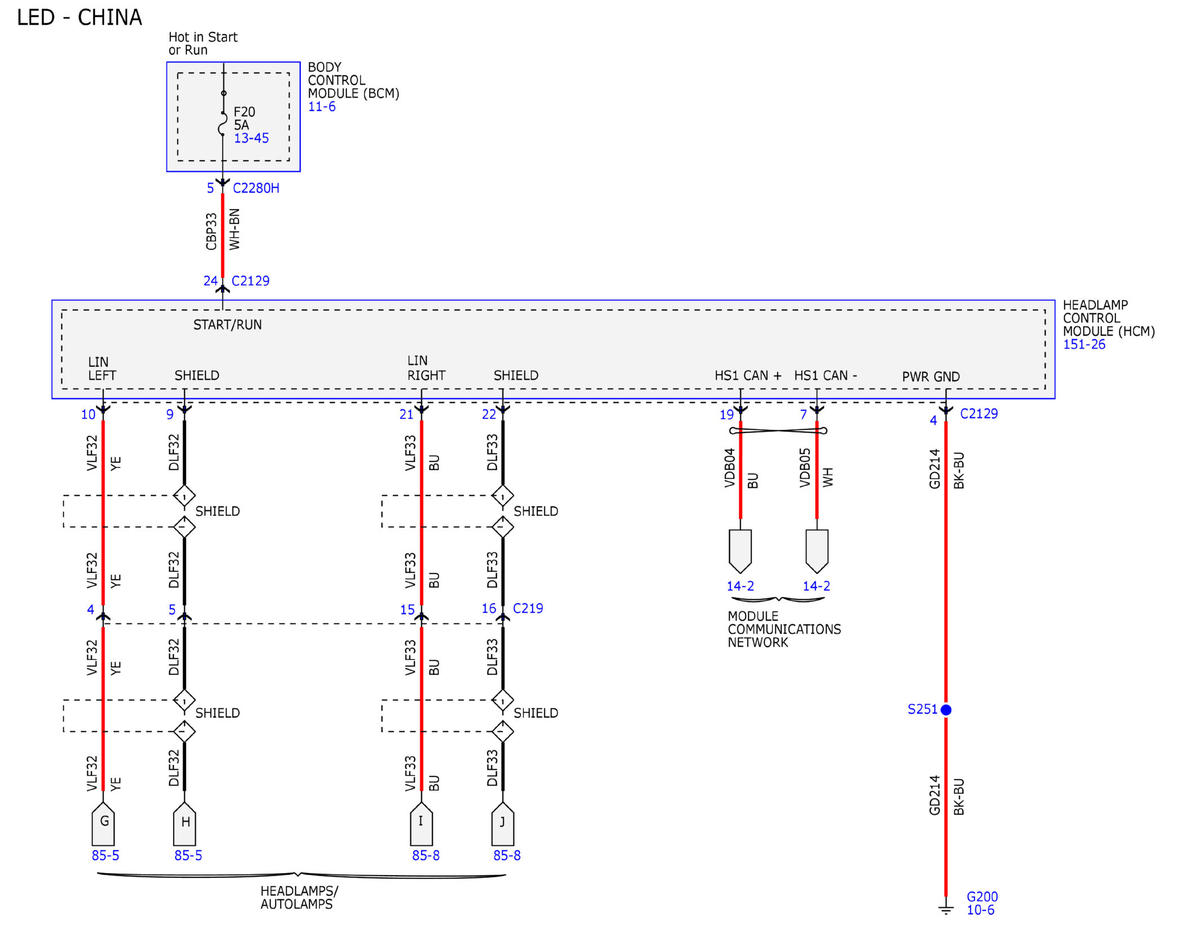

Fig 4: Headlamps/Autolamps Wiring Diagram (4 Of 15)

Courtesy of FORD MOTOR COMPANY

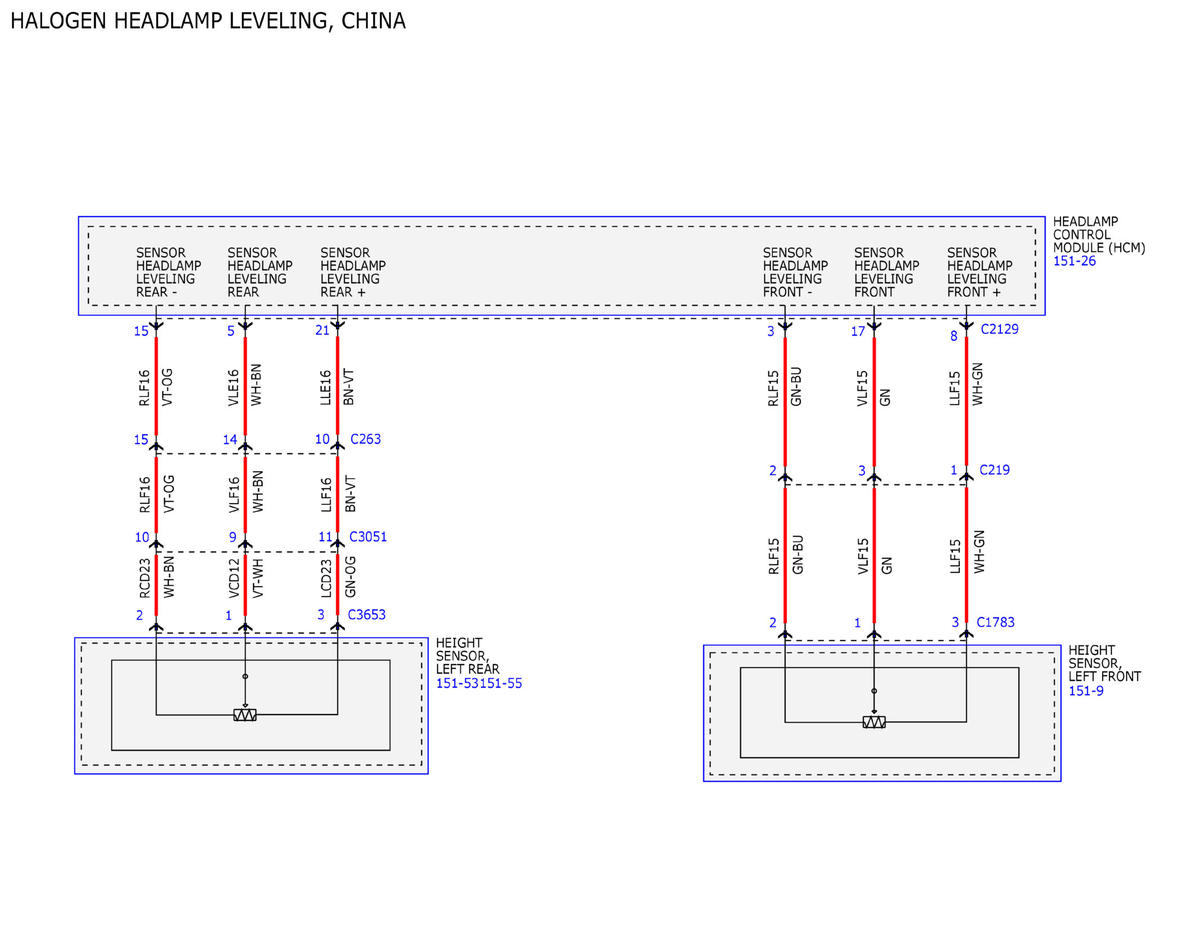

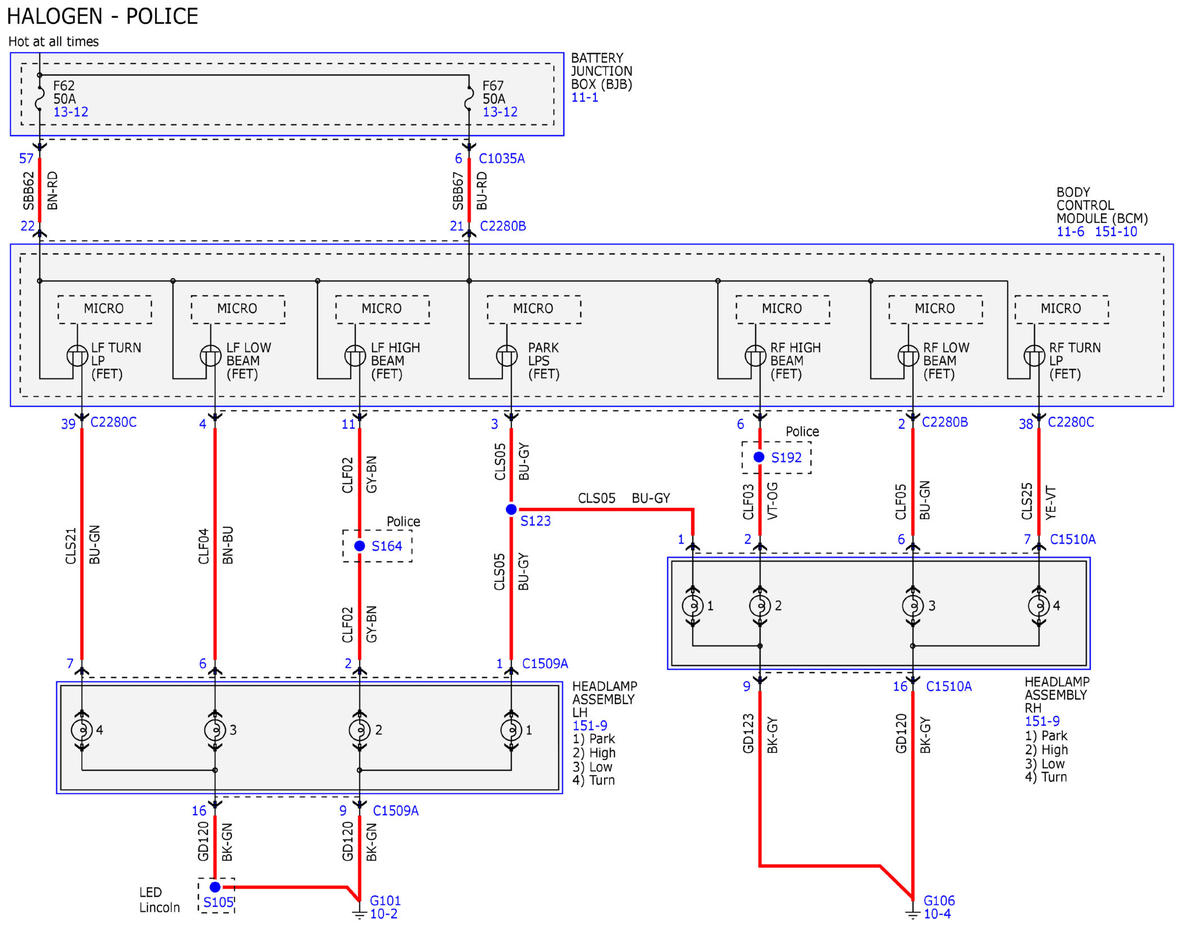

Fig 5: Headlamps/Autolamps Wiring Diagram (5 Of 15)

Courtesy of FORD MOTOR COMPANY

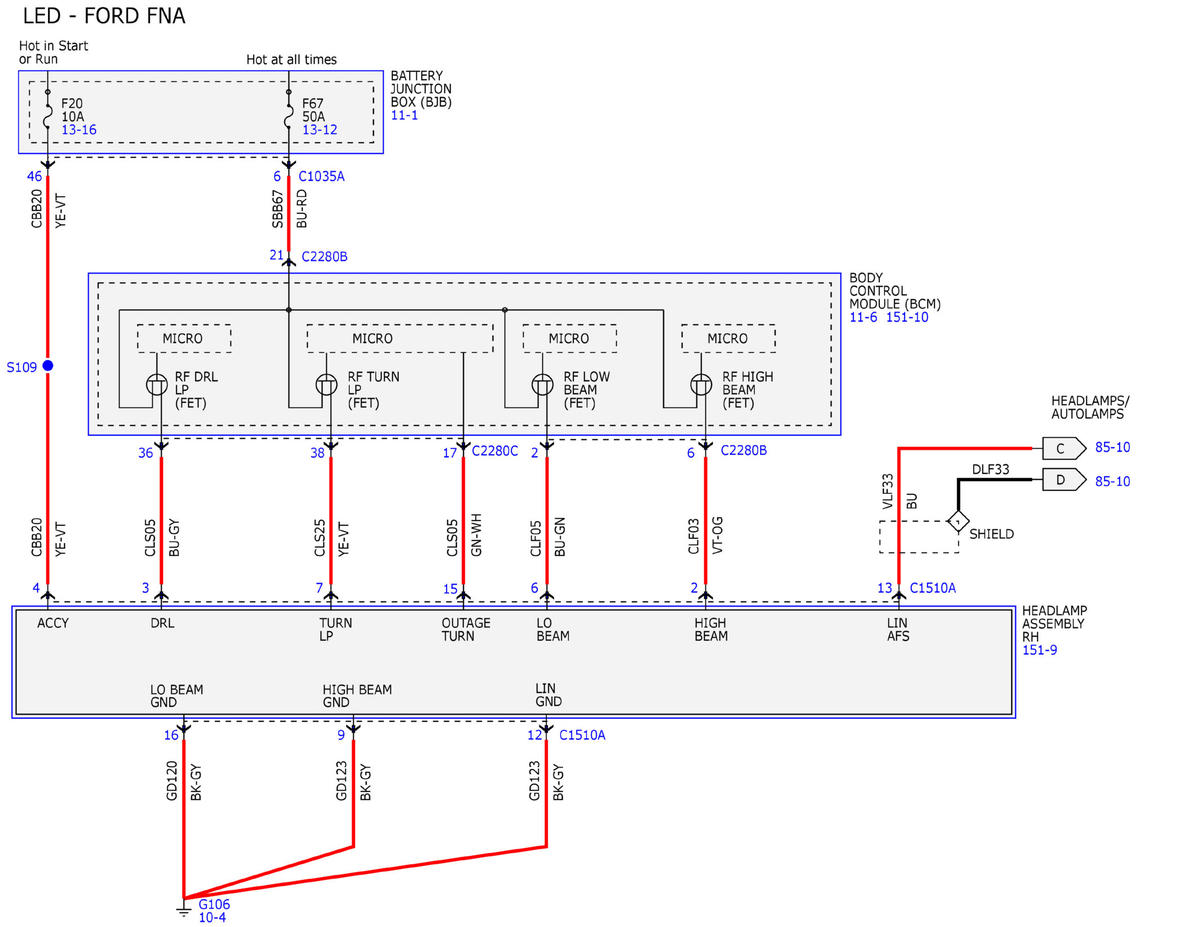

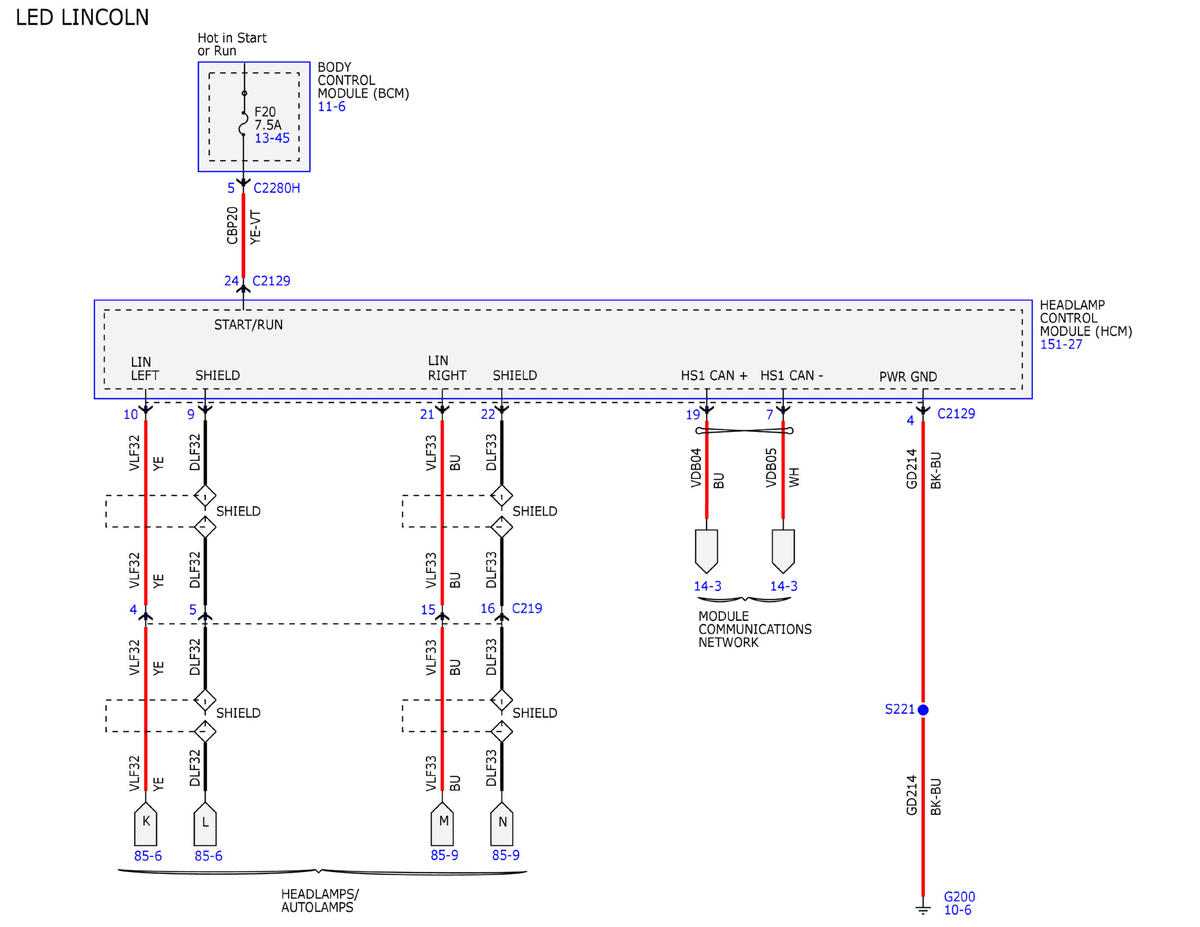

Fig 6: Headlamps/Autolamps Wiring Diagram (6 Of 15)

Courtesy of FORD MOTOR COMPANY

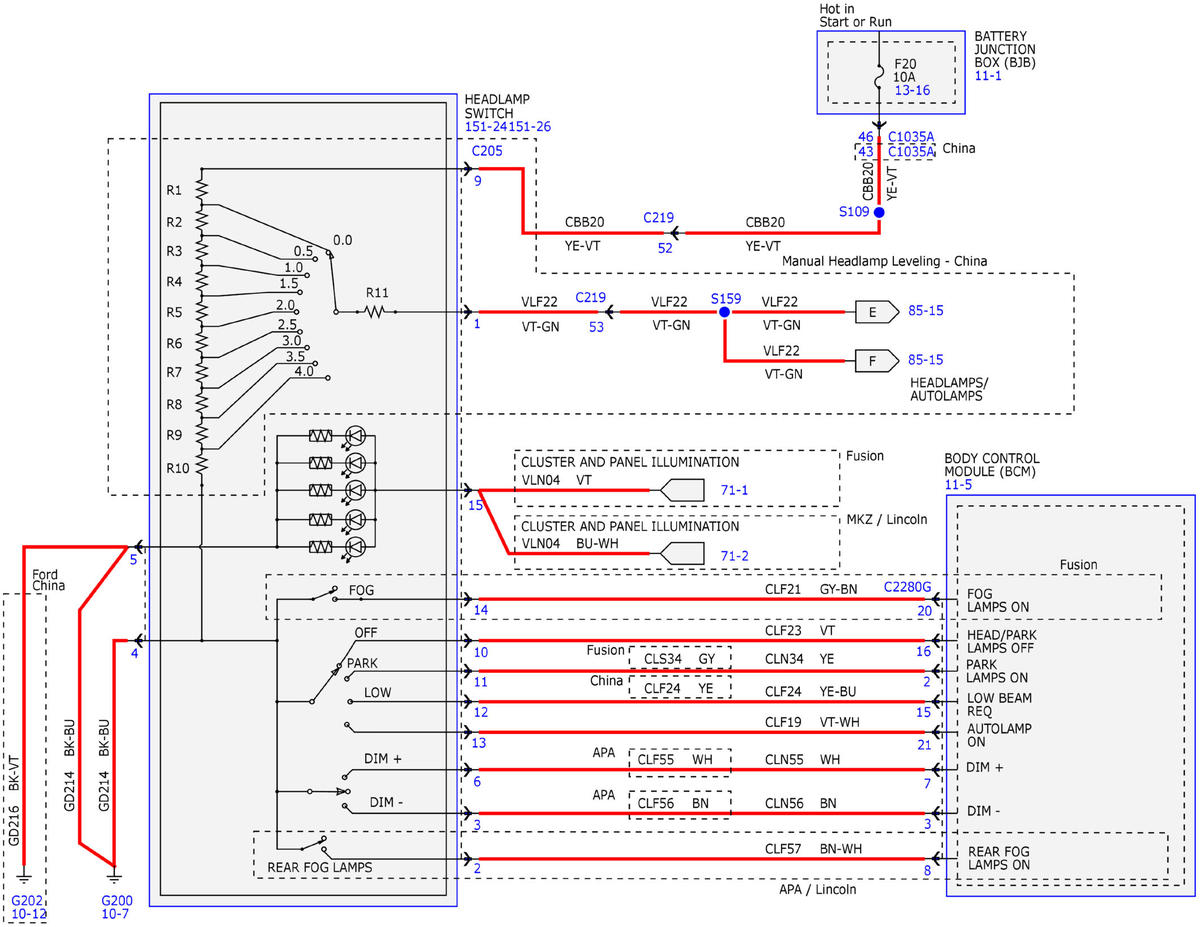

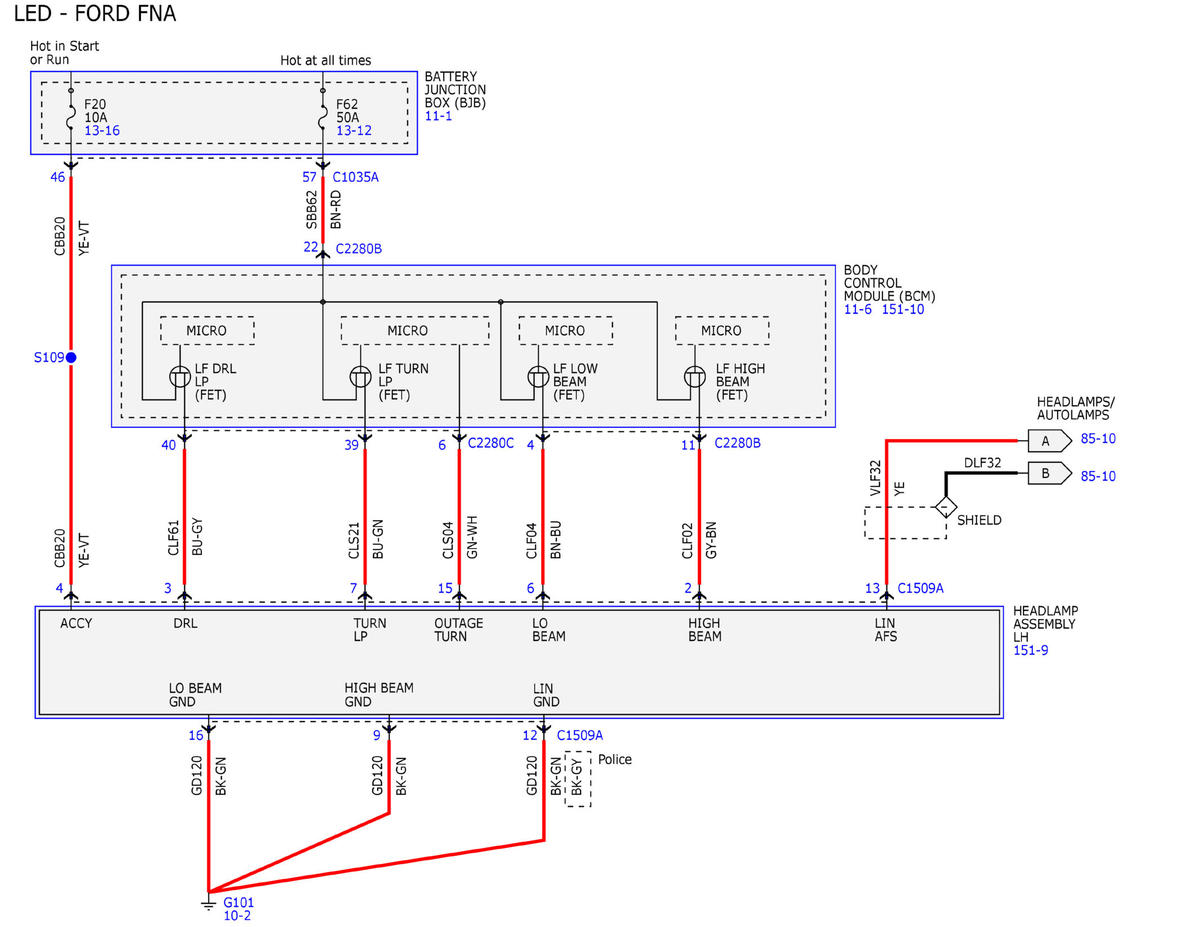

Fig 7: Headlamps/Autolamps Wiring Diagram (7 Of 15)

Courtesy of FORD MOTOR COMPANY

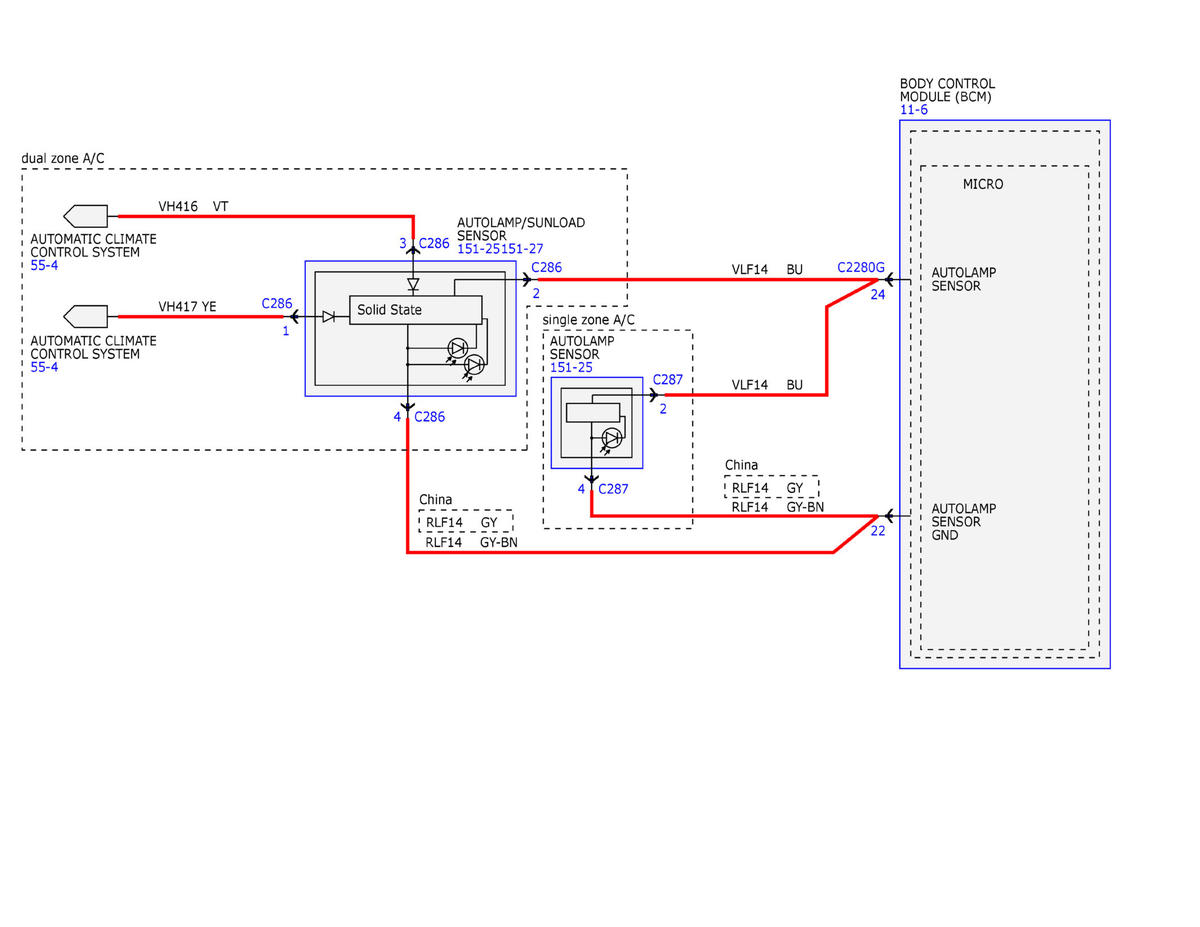

Fig 8: Headlamps/Autolamps Wiring Diagram (8 Of 15)

Courtesy of FORD MOTOR COMPANY

Fig 9: Headlamps/Autolamps Wiring Diagram (9 Of 15)

Courtesy of FORD MOTOR COMPANY

Fig 10: Headlamps/Autolamps Wiring Diagram (10 Of 15)

Courtesy of FORD MOTOR COMPANY

Fig 11: Headlamps/Autolamps Wiring Diagram (11 Of 15)

Courtesy of FORD MOTOR COMPANY

Fig 12: Headlamps/Autolamps Wiring Diagram (12 Of 15)

Courtesy of FORD MOTOR COMPANY

Fig 13: Headlamps/Autolamps Wiring Diagram (13 Of 15)

Courtesy of FORD MOTOR COMPANY

Fig 14: Headlamps/Autolamps Wiring Diagram (14 Of 15)

Courtesy of FORD MOTOR COMPANY

Fig 15: Headlamps/Autolamps Wiring Diagram (15 Of 15)

Courtesy of FORD MOTOR COMPANY
