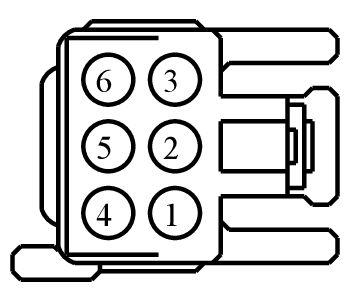

Connector End View (C837) - INTERIOR REAR DOOR HANDLE AMBIENT LIGHTING LAMP RH

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C837	INTERIOR REAR DOOR HANDLE AMBIENT LIGHTING LAMP RH	14632			#N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
AU5T-14474-DA	Not Available

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	VLN73 (GY-BN)	22	CTRL MOD. - AMBIENT LIGHTING LIN BUS	AU5T-14474-DA
2	CPL70 (WH)	22	SWITCH - LATCH REAR PASSENGER SIDE # CHILD LOCK FEEDBACK	Ford	AU5T-14474-DA
2	CPL70 (WH-BN)	22	SWITCH - LATCH REAR PASSENGER SIDE # CHILD LOCK FEEDBACK	Lincoln	AU5T-14474-DA
2	CPL90 (GN)	22	CTRL MOD. - DOOR LOCK # LOCK STATUS INDICATOR REAR PASSENGER	China	AU5T-14474-DA
3	CBX07 (GN-RD)	22	POWER - CTRL MOD. AMBIENT LIGHTING	AU5T-14474-DA
4	GD383 (BK-WH)	22	GROUND - CROSS MEMBER MIDDLE PASSENGER OR RIGHT	AU5T-14474-DA
5	CLN25 (VT)	22	RELAY - PUDDLE LAMPS (KERB ILLUM.)	AU5T-14474-DA
6	CPL89 (BN-BU)	22	CTRL MOD. - DOOR LOCK # LOCK STATUS INDICATOR REAR DRIVER	AU5T-14474-DA

Available Pigtail Kits

Pigtail Kit Part Number WPT-962

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z- 14S411-JBB

Gauge:

14

Pin material:

Silver

Cavities:

6

Vehicle Uses:

• Mating Connector WPT-1299
• Switch - Gear Shift Select/Neutral Safety
• Switch - Overdrive Cancel
• Switch - Power Sliding Door
