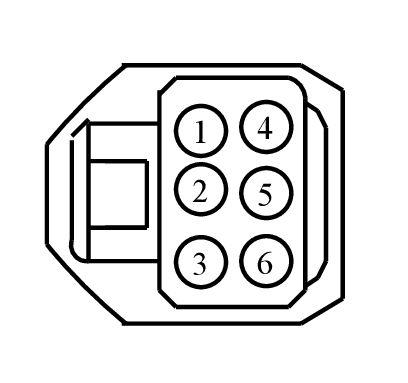

Connector End View (C803) - REAR DOOR WINDOW REGULATOR MOTOR RH

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C803	REAR DOOR WINDOW REGULATOR MOTOR RH	14632			#N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
97BG-14474-BFA	DU2Z-14474-FA	2.8
97BG-14474-BDA	DU2Z-14474-FA	2.8

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CPW53 (YE-OG)	12	CTRL MOD. - WINDOW MOTOR REAR RIGHT # DOWN (IF POSITIVE)	97BG-14474-BFA
2	VPW56 (BN-BU)	22	CTRL MOD. - WINDOW MOTOR REAR RIGHT # HALL EFFECT SENSOR 1 (DOWN IF LEAD)	97BG-14474-BDA
3	LPW54 (BN-GN)	22	CTRL MOD. - WINDOW MOTOR REAR RIGHT # SENSORS +	97BG-14474-BDA
4	CPW52 (VT-WH)	12	CTRL MOD. - WINDOW MOTOR REAR RIGHT # UP (IF POSITIVE)	97BG-14474-BFA
5	VPW57 (BU-GY)	22	CTRL MOD. - WINDOW MOTOR REAR RIGHT # HALL EFFECT SENSOR 2 (UP IF LEAD)	97BG-14474-BDA
6	RPW55 (GY-VT)	22	CTRL MOD. - WINDOW MOTOR REAR RIGHT # SENSORS -	97BG-14474-BDA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1344

Courtesy of FORD MOTOR COMPANY

Service Part Number:

DU2Z-14S411-AEA

Gauge:

16

Pin material:

Tin

Cavities:

6

Vehicle Uses:

• Motor - Power Window - LH - Front
• Motor - Power Window - LH - Rear
• Motor - Power Window - RH - Front
• Motor - Power Window - RH - Rear
