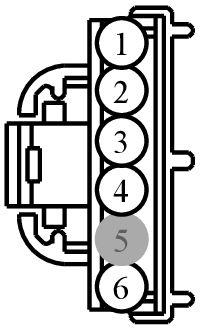

Connector End View (C801) - REAR DOOR WINDOW CONTROL SWITCH RH

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C801	REAR DOOR WINDOW CONTROL SWITCH RH	14632			#N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
9U5T-14474-NA	DU2Z-14474-BA	0.64
9U5T-14474-LA	DU2Z-14474-BA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	RPW09 (BN-WH)	22	CTRL MOD. - POWER WINDOW SWITCH REAR RIGHT RETURN	Ford	9U5T-14474-NA
1	RPW09 (BN-YE)	22	CTRL MOD. - POWER WINDOW SWITCH REAR RIGHT RETURN	Lincoln	9U5T-14474-LA
1	RPW09 (GY-OG)	22	CTRL MOD. - POWER WINDOW SWITCH REAR RIGHT RETURN	Ford China	N/A
2	CPW24 (WH)	22	SWITCH - POWER WINDOW REAR RIGHT # UP	N/A
2	CPW24 (WH)	26	SWITCH - POWER WINDOW REAR RIGHT # UP	Lincoln	9U5T-14474-NA
3	CPW23 (GY)	26	SWITCH - POWER WINDOW REAR RIGHT # DOWN	Lincoln	9U5T-14474-NA
3	CPW23 (GY)	22	SWITCH - POWER WINDOW REAR RIGHT # DOWN	N/A
4	CPW59 (VT)	22	SWITCH - POWER WINDOW REAR (BACKLIGHT) # UP OR RIGHT	N/A
4	CPW59 (VT)	26	SWITCH - POWER WINDOW REAR (BACKLIGHT) # UP OR RIGHT	Lincoln	9U5T-14474-NA
5	*	*	Not Used	N/A
6	RPW09 (BN-WH)	22	CTRL MOD. - POWER WINDOW SWITCH REAR RIGHT RETURN	9U5T-14474-LA
6	RPW09 (GY-OG)	22	CTRL MOD. - POWER WINDOW SWITCH REAR RIGHT RETURN	Ford China	9U5T-14474-NA

Available Pigtail Kits

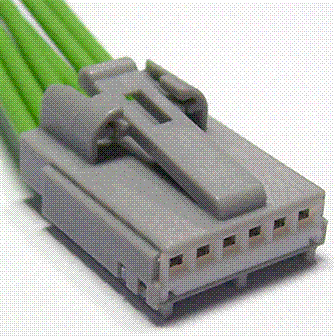

Pigtail Kit Part Number WPT-1028

Courtesy of FORD MOTOR COMPANY

Service Part Number:

9U2Z-14S411-APA

Gauge:

18

Pin material:

Silver

Cavities:

6

Vehicle Uses:

• Switch - Power Window - LH - Rear
• Switch - Power Window - Passenger (Front)
• Switch - Power Window - RH - Rear
