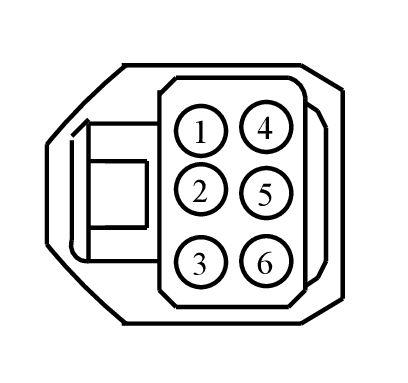

Connector End View (C703) - REAR DOOR WINDOW REGULATOR MOTOR LH

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C703	REAR DOOR WINDOW REGULATOR MOTOR LH	14632			#N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
97BG-14474-BFA	DU2Z-14474-FA	2.8
97BG-14474-BDA	DU2Z-14474-FA	2.8

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CPW47 (VT-OG)	12	CTRL MOD. - WINDOW MOTOR REAR LEFT # DOWN (IF POSITIVE)	97BG-14474-BFA
2	VPW50 (GN-OG)	22	CTRL MOD. - WINDOW MOTOR REAR LEFT # HALL EFFECT SENSOR 1 (DOWN IF LEAD)	97BG-14474-BDA
3	LPW48 (YE-GY)	22	CTRL MOD. - WINDOW MOTOR REAR LEFT # SENSORS +	97BG-14474-BDA
4	CPW46 (GY-BN)	12	CTRL MOD. - WINDOW MOTOR REAR LEFT # UP (IF POSITIVE)	97BG-14474-BFA
5	VPW51 (BN-YE)	22	CTRL MOD. - WINDOW MOTOR REAR LEFT # HALL EFFECT SENSOR 2 (UP IF LEAD)	97BG-14474-BDA
6	RPW49 (BU-BN)	22	CTRL MOD. - WINDOW MOTOR REAR LEFT # SENSORS -	97BG-14474-BDA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1344

Courtesy of FORD MOTOR COMPANY

Service Part Number:

DU2Z-14S411-AEA

Gauge:

16

Pin material:

Tin

Cavities:

6

Vehicle Uses:

• Motor - Power Window - LH - Front
• Motor - Power Window - LH - Rear
• Motor - Power Window - RH - Front
• Motor - Power Window - RH - Rear
