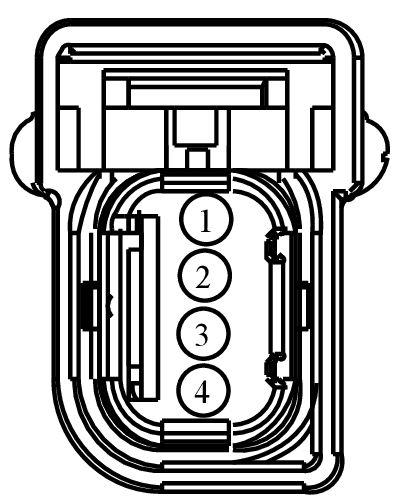

Connector End View (C634) - EXTERIOR FRONT DOOR HANDLE RH

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C634	EXTERIOR FRONT DOOR HANDLE RH	14630			#N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
8U5T-14474-BA	DU2Z-14474-CA	0.64

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	VPK40 (WH)	22	SENSOR - KEYLESS VEHICLE HANDLE PASSENGER POWER/DATA	Ford	8U5T-14474-BA
1	VPK40 (WH-OG)	22	SENSOR - KEYLESS VEHICLE HANDLE PASSENGER POWER/DATA	Ford China	8U5T-14474-BA
2	VPK02 (VT)	22	CTRL MOD. - KEYLESS VEHICLE # ANTENNA HANDLE PASSENGER +	Ford	8U5T-14474-BA
2	VPK02 (VT-WH)	22	CTRL MOD. - KEYLESS VEHICLE # ANTENNA HANDLE PASSENGER +	Ford China	8U5T-14474-BA
3	RPK02 (GY-YE)	22	CTRL MOD. - KEYLESS VEHICLE # ANTENNA HANDLE PASSENGER -	Ford China	8U5T-14474-BA
3	RPK02 (GY)	22	CTRL MOD. - KEYLESS VEHICLE # ANTENNA HANDLE PASSENGER -	Ford	8U5T-14474-BA
4	RPK39 (VT)	22	SENSOR - KEYLESS VEHICLE HANDLE	8U5T-14474-BA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1568

Courtesy of FORD MOTOR COMPANY

Service Part Number:

FU2Z-14S411-ANB

Gauge:

20

Pin material:

Silver

Cavities:

4

Vehicle Uses:

• Connector - Inline
• Lamp - Front Turn
• Switch - Keyless Door Handle

Pigtail Kit Part Number WPT-1443

Courtesy of FORD MOTOR COMPANY

Service Part Number:

FU2Z-14S411-ANA

Gauge:

20

Pin material:

Silver

Cavities:

4

Vehicle Uses:

• Antenna - Keyless Entry
• Lamp - Front Turn
• Lamp - Side Marker (Rear Fender)
• Switch - Keyless Door Handle
