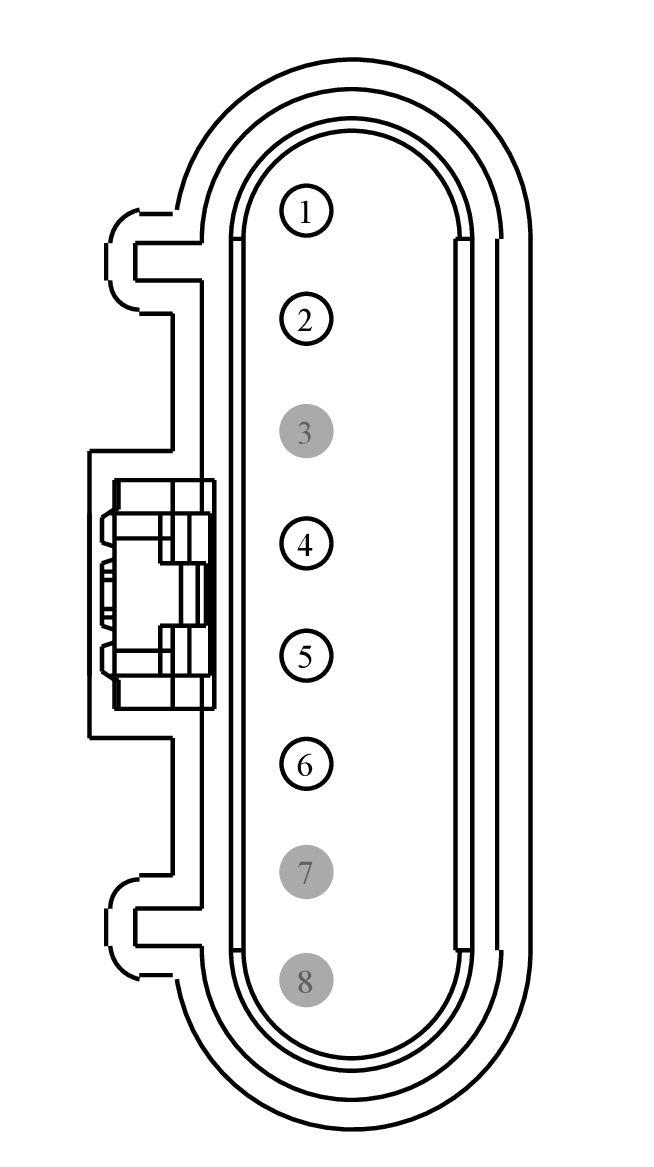

Connector End View (C609) - FRONT DOOR LATCH RELEASE MOTOR RH

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C609	FRONT DOOR LATCH RELEASE MOTOR RH	14630			#N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CPL13 (BN-GN)	14	CTRL MOD. - DOOR LOCK # ALL UNLOCK	98BG-14474-AKA
2	CPL11 (GY-BN)	14	CTRL MOD. - DOOR LOCK # ALL LOCK	98BG-14474-AKA
3	*	*	Not Used	N/A
4	RPL62 (GY)	22	CTRL MOD. - DOOR LOCK # SWITCH TRIM DOOR LOCK PASSENGER	97BG-14474-ADA
5	CPL35 (BU)	22	SWITCH - LATCH PASSENGER OR RIGHT FRONT # UNLOCK	97BG-14474-ADA
6	CPL31 (WH)	22	SWITCH - LATCH PASSENGER OR RIGHT FRONT # AJAR	97BG-14474-ADA
7	*	*	Not Used	N/A
8	*	*	Not Used	N/A

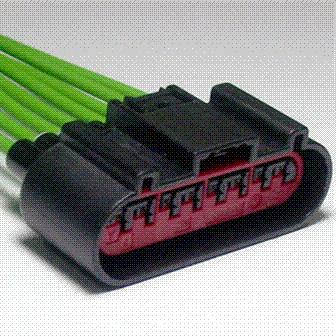

Available Pigtail Kits

Pigtail Kit Part Number WPT-1366

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-MBB

Gauge:

16

Pin material:

Silver

Cavities:

8

Vehicle Uses:

• Actuator - Door Lock - LH - Front
• Actuator - Door Lock - LH - Rear
• Actuator - Door Lock - RH - Front
• Actuator - Door Lock - RH - Rear
• Module - Liftgate
• Switch - Door Ajar / Interior Lamp
• Switch - Door Lock (LH)
• Switch - Door Lock (RH)
• Switch - Sliding Door Contact
