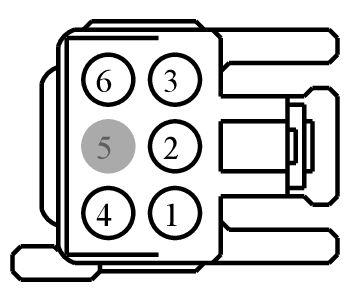

Connector End View (C510) - INTERIOR FRONT DOOR HANDLE AMBIENT LIGHTING LAMP LH

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C510	INTERIOR FRONT DOOR HANDLE AMBIENT LIGHTING LAMP LH	14631			#N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
AU5T-14474-DA	Not Available
DU5T-14474-DA	Not Available

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	VLN73 (GY-BN)	22	CTRL MOD. - AMBIENT LIGHTING LIN BUS	AU5T-14474-DA
2	CPL30 (BU-BN)	22	SWITCH - LATCH DRIVER OR LEFT FRONT # UNLOCK	AU5T-14474-DA
3	CBX07 (GN)	22	POWER - CTRL MOD. AMBIENT LIGHTING	Ford	AU5T-14474-DA
3	CBX07 (GN-RD)	22	POWER - CTRL MOD. AMBIENT LIGHTING	Lincoln, Ford China	AU5T-14474-DA
4	GD382 (BK-GY)	22	GROUND - CROSS MEMBER MIDDLE DRIVER OR LEFT	AU5T-14474-DA
5	*	*	Not Used	N/A
6	CPL87 (BN)	26	CTRL MOD. - DOOR LOCK # LOCK STATUS INDICATOR DRIVER	Lincoln	DU5T-14474-DA
6	CPL87 (BN-WH)	22	CTRL MOD. - DOOR LOCK # LOCK STATUS INDICATOR DRIVER	Ford	DU5T-14474-DA
6	CPL87 (WH)	26	CTRL MOD. - DOOR LOCK # LOCK STATUS INDICATOR DRIVER	Ford China	DU5T-14474-DA

Available Pigtail Kits

Pigtail Kit Part Number WPT-962

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z- 14S411-JBB

Gauge:

14

Pin material:

Silver

Cavities:

6

Vehicle Uses:

• Mating Connector WPT-1299
• Switch - Gear Shift Select/Neutral Safety
• Switch - Overdrive Cancel
• Switch - Power Sliding Door
