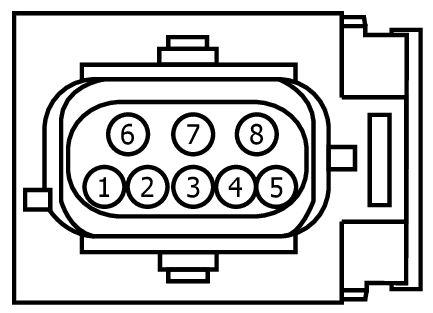

Connector End View (C483) - REAR DRIVE UNIT HYDRAULIC PUMP MOTOR

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C483	REAR DRIVE UNIT HYDRAULIC PUMP MOTOR	14G359			part# N/A	Not Available

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	* (VT-WH)	20	HALL VCC	N/A
2	* (BU-OG)	20	HALL 2	N/A
3	* (BU)	20	HALL 3	N/A
4	* (BU-WH)	20	HALL 1	N/A
5	* (VT)	20	HALL GND	N/A
6	* (RD-WH)	12	L1 (U)	N/A
7	* (RD)	12	L3 (W)	N/A
8	* (RD-BK)	12	L2 (V)	N/A
