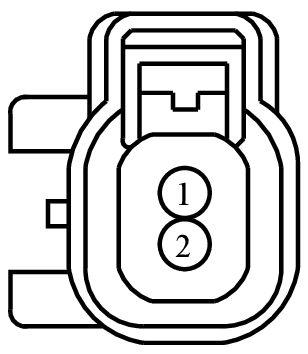

Connector End View (C440) - REAR WHEEL SPEED SENSOR LH
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C440 | REAR WHEEL SPEED SENSOR LH | 14A005 | #N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | VCA04 (BU-OG) | 20 | SENSOR - WHEEL SPEED LEFT REAR | 7C3T-14474-RA | ||||
| 2 | RCA18 (BN-GN) | 20 | CTRL MOD. - SENSOR WHEEL SPEED LEFT REAR | 7C3T-14474-RA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-984
Service Part Number:
3U2Z-14S411-BXAB
Gauge:
16
Pin material:
Silver
Cavities:
2
Vehicle Uses:
- A/C Compressor Clutch
- EGR Cooler Outlet
- Electronic Locking Differential
- Horn
- Lamp - CHMSL (Center High Mount Stop Lamp)
- Lamp - Rear Park
- Lamp - Reverse
- Lamp - Side Marker
- Motor - Adjustable Pedal
- Sensor - Adjustable Pedal
- Sensor - Brake Fluid Level
- Sensor - Cam Shaft Position
- Sensor - Cylinder Head Temperature
- Sensor - Exhaust Gas Temperature
- Sensor - Liftgate Obstacle
- Sensor - Oil Level
- Sensor - Output Shaft Speed
- Sensor - Speed
- Solenoid - Engine Variable Timing
- Speaker - Door
- Speaker - Front
- Speaker - Rear
- Speaker - Subwoofer
- Speaker - Tweeter - LH - Front
- Switch - A/C Compressor Clutch Cycling
- Switch - Backup Lamp
- Switch - Deck Lid / Hatch Release
- Switch - Deck Lid / Lift Gate Ajar
- Switch - Hood Ajar
- Switch - Lift Gate Glass Ajar
- Switch - Power Liftgate
- Switch - Reverse Park Aid
