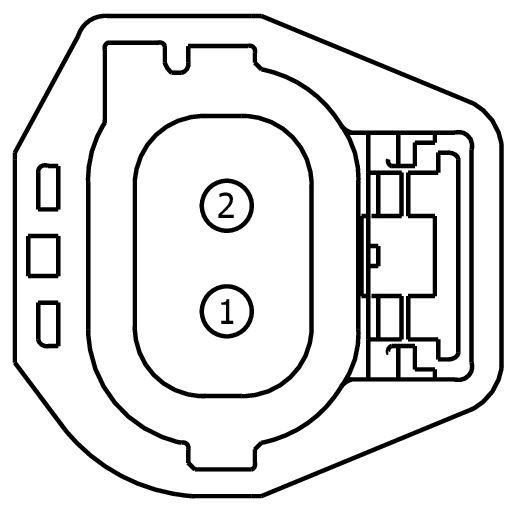

Connector End View (C409) - FUEL FILLER DOOR LATCH MOTOR

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C409	FUEL FILLER DOOR LATCH MOTOR	14A005			#N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
1F1T-14474-JA	DU2Z-14474-FA	2.8

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CPL11 (GY-BN)	14	CTRL MOD. - DOOR LOCK # ALL LOCK	Ford China	1F1T-14474-JA
1	GD347 (BK-VT)	20	GROUND - PILLAR C OR QUARTER PANEL LEFT	Ford	N/A
2	CPL18 (GY-VT)	22	RELAY - FUEL FLAP LOCK	Ford	N/A
2	CPL51 (BU-GN)	14	CTRL MOD. - DOOR LOCK # DRIVER UNLOCK	Ford China	1F1T-14474-JA

Available Pigtail Kits

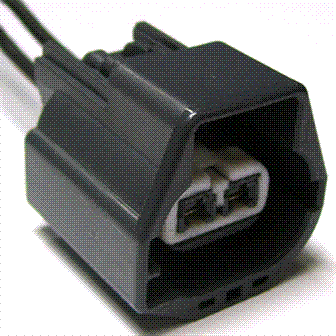

Pigtail Kit Part Number WPT-1336

Courtesy of FORD MOTOR COMPANY

Service Part Number:

DU2Z-14S411-KA

Gauge:

16

Pin material:

Tin

Cavities:

2

Vehicle Uses:

• Motor - Fuel Filler Door
• Motor - Power Window - LH - Rear
• Motor - Power Window - RH - Rear

Pigtail Kit Part Number WPT-1496

Courtesy of FORD MOTOR COMPANY

Service Part Number:

DU2Z-14S411-KB

Gauge:

14

Pin material:

Tin

Cavities:

2

Vehicle Uses:

• Glow Plug
• Motor - Fuel Filler Door
• Motor - Power Slider
• Motor - Power Window - LH - Front
• Motor - Power Window - LH - Rear
• Motor - Power Window - RH - Front
• Motor - Power Window - RH - Rear
