Connector End View (C402A) - HEATED REAR WINDOW ELEMENT

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C402A	HEATED REAR WINDOW ELEMENT	14A005			#N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CRD06 (BN-YE)	10	RELAY - HEATER REAR WINDOW	E5SB-14474-BA

Available Pigtail Kits

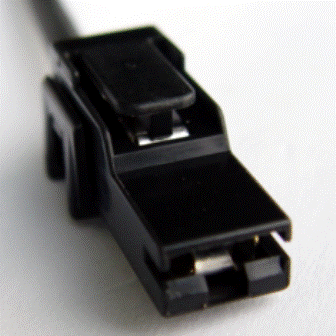

Pigtail Kit Part Number WPT-371

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-KBA

Gauge:

10

Pin material:

Tin

Cavities:

1

Vehicle Uses:

• Cigar Lighter
• Horn
• Lamp - CHMSL (Center High Mount Stop Lamp)
• Module - Isolater Antenna
• Module - Radio Power Antenna
• Relay - Starter Motor
• Switch - Park Brake
• Terminal - Rear Window Defroster Grid

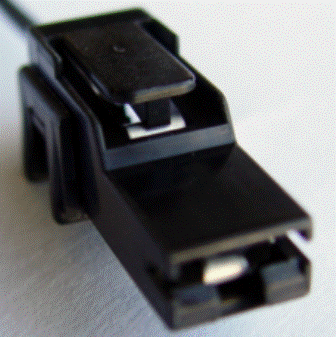

Pigtail Kit Part Number WPT-434

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-MFA

Gauge:

18

Pin material:

Tin

Cavities:

1

Vehicle Uses:

• Lamp - Map
